Nags Head Hammocks Single Rope Swing Instructions

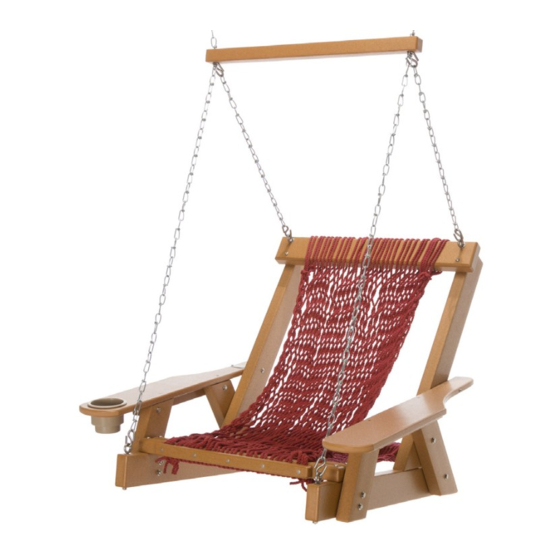

Single Rope Swing
Congratulations on your purchase. You now have one of Nags
Head Hammocks' innovative products! If you have any ques-
tions regarding this product, we invite you to call us 7 days a
week at 800-344-6433.
Helpful tips before starting: • Get someone to help you. Some
pieces are heavy and a second pair of hands always helps. •
Do not tighten the bolts completely until the product is fully
assembled. Some pieces are harder to fit in place and this will
help. A hammer or rubber mallet is needed during assembly.
• Do not over-tighten the bolts or screws. • Build your item
close to where it will be used to eliminate difficulty in moving
once completed. • For a uniform look, face all nuts in the same
direction.

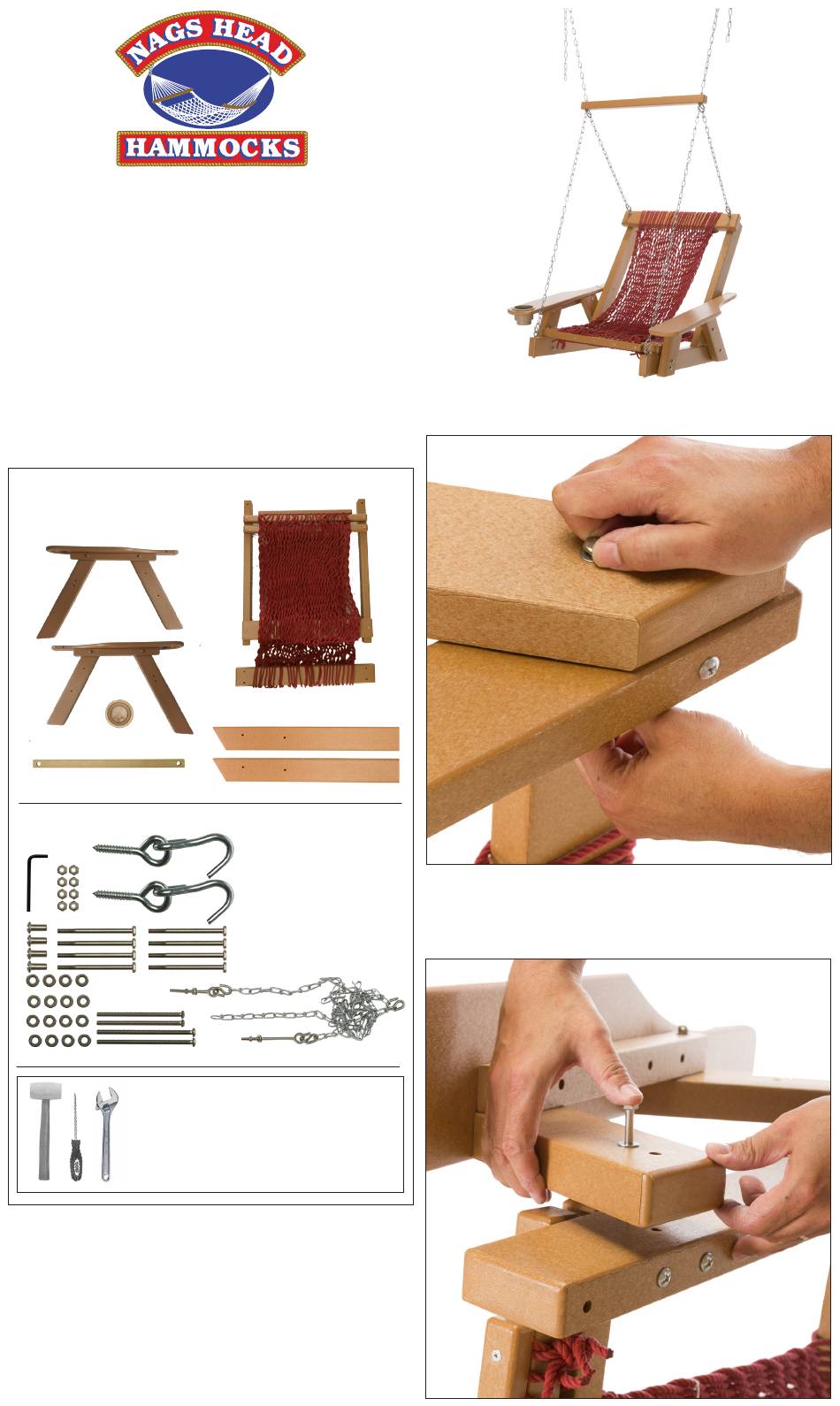

Parts:

Left Arm
Right Arm
Cup
Holder
Spacer Bar

Hardware

SUGGESTED TOOLS
(NOT PROVIDED)
Rubber Mallet
•
Standard Phillips Head Screwdriver
•
Adjustable Wrench
•
Swing Roll-up
Front of rollup
Right Upright
Left Upright
8 - 3.5" x ¼ Hex Bolt
2 - 4" x ¼" Barrel Bolt
2 - 4.5" x ¼" Barrel Bolt
4 - ¾" Barrel Bolt Fasteners
8 - ¼" Locknuts
16 - ¼" Washer
1 - Allen Wrench
2 - Chain Assemblies
2 - Tree Hooks
Step 1. Set Rollup on flat surface such as a work table. Align holes of Left
Arm with holes located on the side of the Rollup. FIGURE 1
Step 2. Starting with back hole of Arm, thread 3.5" Bolt through Washer,
through Arm and Rollup. Secure with Washer and Locknut. Repeat
process for holes at front of Arm. Note: This step may require a Mallet to
tap Bolts through. FIGURE 2

Step 3. Repeat Step 2 for Right Arm.

FIGURE 2
FIGURE 1
