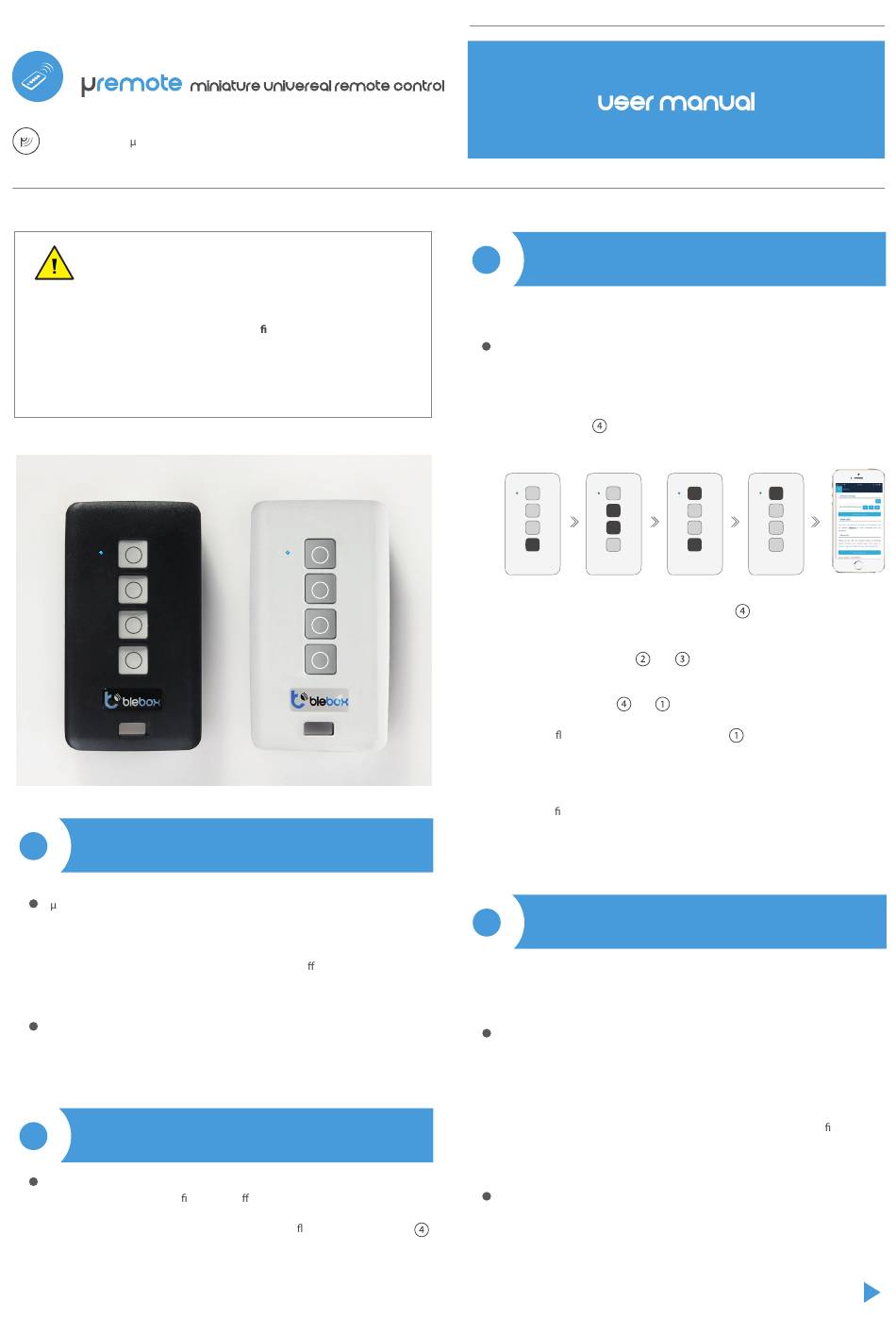

BleBox mremote User Manual

control with the WiFi technology
CONTROL DEVICES WITH A REMOTE CONTROL
The product contains batteries described in Directive
2013/56 / WE, which can not be disposed of with other
household waste.
Avoid mechanical damage. Batteries can explode or cause burns if they
are damaged (e.g. crushed), or exposed to re or high temperature.
Do not remove the casing of the device. The removal of the casing will
cause permanent damage to the product and will result in the loss of
the warranty.
1
2
3
4
1
Remote has a multi-colored LED diode. The PRO version additionally has the
vibration function. It is powered from a built-in lithium battery, charged via
a micro-usb connector, with a standard 5V charger or USB connector. The
beginning of the battery charging is signaled with violet color. When the
battery is completely charged the LED diode turn o . Feature for the remote
control is available in devices of the wBox series, with software version above
0.500
The remote control communicates directly with wBox controllers - no router is
required. The communication of the remote control is bidirectional, the user
receives feedback information about the execution of the command of the
controller by using the signal of the LED diode (in the PRO version also by
using the vibration). The red LED indicates that an error has occurred.
2
Currently there are four groups (channels) to which controllers can be
assigned. Each group is de ned by a di erent color. Group 1 (channel 1) - blu.
Group 2 (channel 2) - pink. Group 3 (channel 3) - green. Group 4 (channel 4) -
white. The selection of the group is made by brie y pressing the button
which changes the colors of the LED signaling, indicating the selection of the
group.
1
2
3
4
GENERAL INFORMATION
GROUP SELECTION
3
Pairing is a procedure aimed at creating a safe connection between the
remote control and the wBox controller.
You need to prepare the controller which is to be paired to the remote control,
by connecting to the phone with the application wBox and going to the
settings menu and next:
a) select a determinated group by scrolling them with a short pressing of
the button
2 seconds 3 seconds
b)
b) press and hold for approx. 2 sec. button
c) press and hold (together) for about 2 seconds the central buttons of
the remote control:
d) press and keep pressed (together) for about 3 seconds the buttons of
remote control:
e) brie y press the remote control button
- the LED will be permanently illuminated
f ) within a maximum of 20 seconds, in the controller settings menu,
pleasepress the "Add remote control" button. The correct pairing will be
con rmed by the correct message and in the PRO version with a vi-
bration of the control remote.
An error in the previous procedure will be signaled by a blinking LED in red
color. In this case youn need to repeat the procedure from the beginning.
4
The unpairing is a procedure aimed at removing the connection between
the remote control and the wBox controller.
The remote control can be unpaired from the controller using two methods,
depending on the situation:
Method 1 – remove the remote control from the list of "remote controls" in
the controller.
This is a standard method in case we have access to the controller but we do
not want to control it anymore with the remote control. In the controller
settings, in the "remote controls" section, delete the determined remote
control from the list. The controller from now on will not respond to the
commands of the remote control, while the remote control at the rst attempt
to control, will automatically remove the association with the device, and will
signal the error with a blink of a red LED and additionally in the Pro version
with the vibration.
Method 2 – remove the controller association in the remote.
This method is recommended when we don't have access to the controller,
, and we want to clear the memory of the whole group. Follow the pairing
procedure in accordance with points a) - d) However, in point e), instead of
3 seconds 0,5 seconds
c) d) e)
- the LED will start blinking
and - the LED will blink faster
and - the LED will blink even faster
to enter to the pairing mode
UNPAIRING
PAIRING
application
f )
