QUICK START GUIDE FOR STARTING UP
TC3G with machines.cloud

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC3G and is the answer not in the manual?

Questions and answers

Related Manuals for STW TC3G

Summary of Contents for STW TC3G

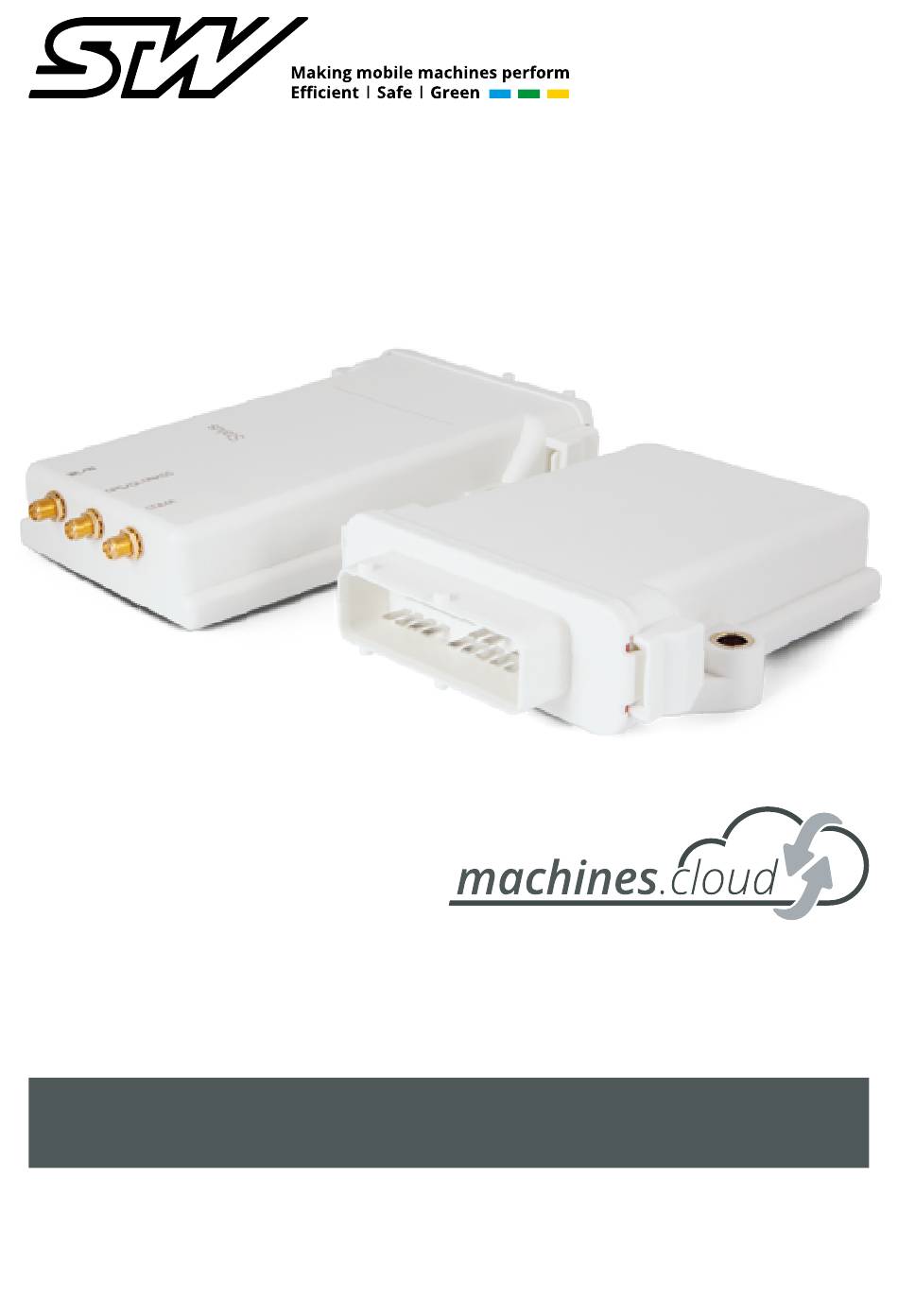

  • Page 1 QUICK START GUIDE FOR STARTING UP TC3G with machines.cloud...
  • Page 2 Check the scope of delivery Cable harness TC3Gi Breakout cables adapter Power supply Optional: TC3Ge 2G/3G/4G Wi-Fi/Bluetooth GPS/GLONASS Connect the antennas to the SMA plugs. Configuring the SIM card 1. Press the yellow button beside the card tray 2. Remove the SIM card holder (for micro SIM cards or smaller cards a corresponding adapter is required)
  • Page 3 ATTENTION: Check the polarity of the power supply output connectors 2. Switch on the cable harness adapter 3. Wait for the status LED of the TC3G ATTENTION: For (optimal) GPS and GSM reception, the TC3G must be positioned outside buildings...
  • Page 4 Establish a connection with machines.insight machines.insight 1. Connect your smart phone, tablet or PC to the TC3G WiFi network:  Network name: TC3G-"serial number“  Password: see label on the TC3G 2. Open address "192.168.201.1" in your browser 3.
  • Page 5 Set the PIN switch in the GSM window to "Yes" and enter the PIN 11. Set GSM status to "ON" 12. Click on "Save" and restart the TC3G (switch off/on the cable harness adapter) ATTENTION: With M2M SIM cards further...
  • Page 6 2. Navigate to "System"  "Network Configuration"  "GSM" 3. Select the "Custom Configuration" field on the right 4. Enter M2M parameters (source: SIM card provider) 5. Click on “Save" and restart the TC3G (switch off/on the cable harness adapter)
  • Page 7 Registration in machines.cloud and first steps 1. Open the e-mail from no-reply@machines.cloud with the link to the cloud 2. Click on the link and change your password on the web page 3. Log in with the new access data  User name: tenantname_admin 4.
  • Page 8 English: All Manuals and Tutorials here: stw-digitalization.com Password: connectivity T.O.N.I. Tours:  Available in machines.cloud and machines.access  Top right click on „<<“ Sensor-Technik Wiedemann GmbH (STW) Am Bärenwald 6 87600 Kaufbeuren Telephone: +49 8341 9505-0 Telefax: +49 8341 9505-55 info@sensor-technik.de...
