SHORT INSTRUCTION

Starting up TCG data modules

with MACHINES.cloud

Need help?

Do you have a question about the TCG Series and is the answer not in the manual?

Questions and answers

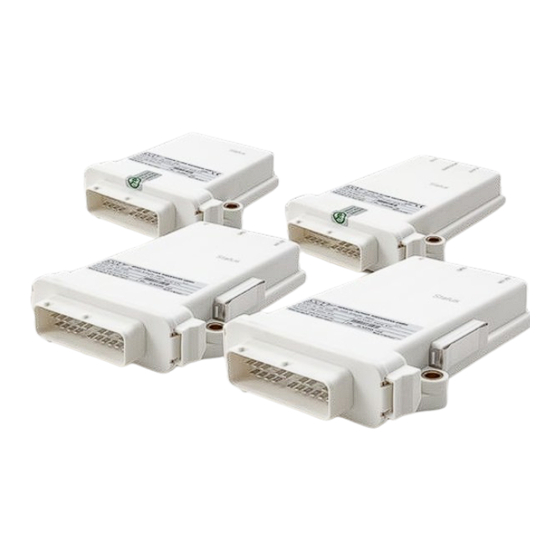

Summary of Contents for STW TCG Series

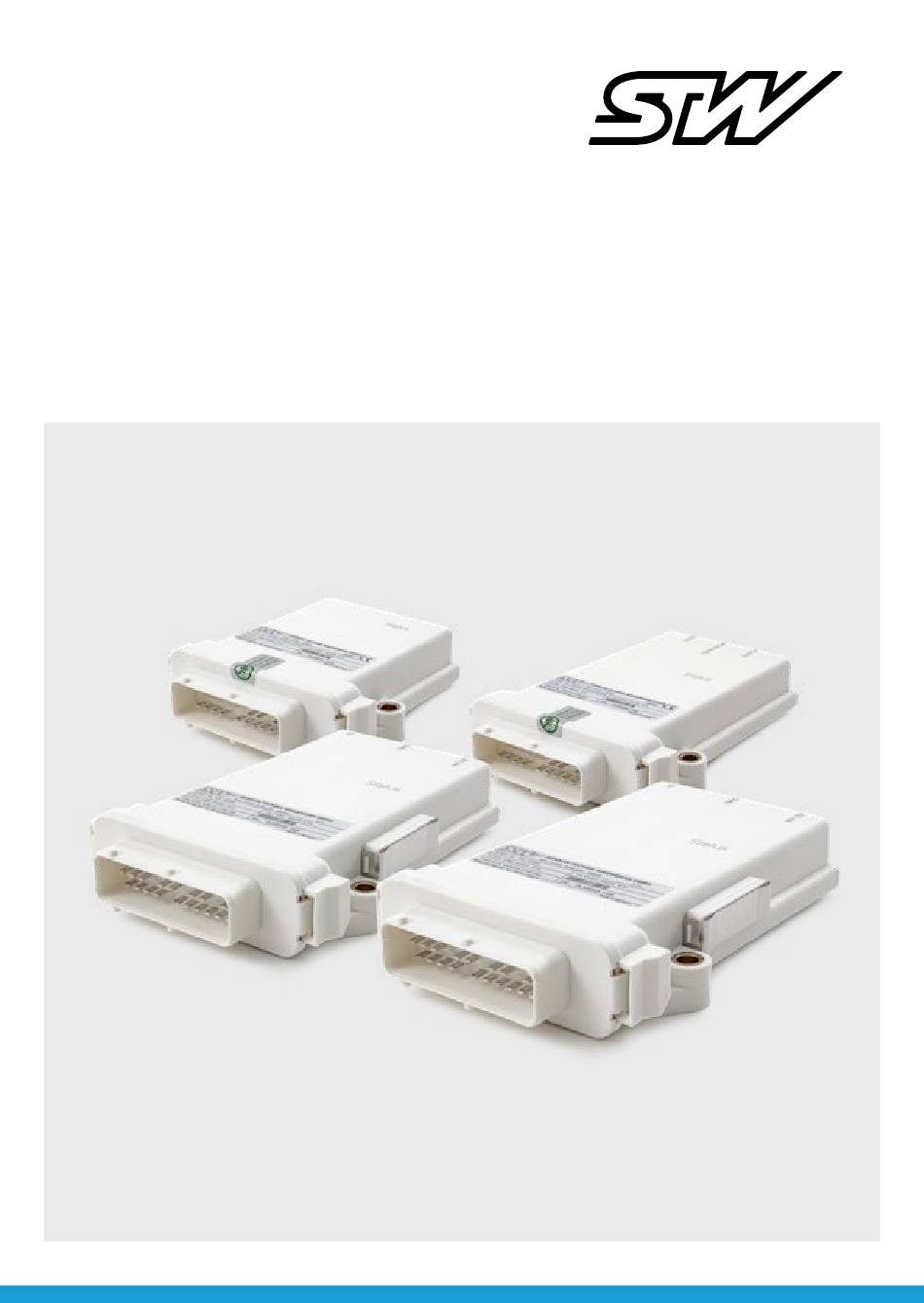

Page 1 SHORT INSTRUCTION Starting up TCG data modules with MACHINES.cloud...
Page 2 Check the scope of delivery TC3G Cable harness TCGi Breakout cables Power supply adapter Optional: TCGe 2G/3G/4G Wi-Fi/Bluetooth GPS/GLONASS Connect the antennas to the SMA plugs on the TCGe. TCG-4 Cable harness TCG-4i Breakout cables Power supply adapter Optional: TCG-4e 2G/3G/4G Wi-Fi/Bluetooth GPS/GLONASS...
Page 3: Insert Sim Card
Insert SIM card into a TC3G 1. Press the yellow button beside the card tray 2. Pull out the SIM card tray 3. Place the SIM card into the tray (for micro SIM cards or smaller cards a corresponding adapter is required) 4.
Page 4 Starting up TCG 1. Supply the TCG with power: a. Set the power supply to 12 V b. Connect the TCG to the breakout cables c. Connect the breakout cables to the cable harness adapter d. Connect the power supply unit to the cable harness adapter e.
Page 5 Status detection by LED light Ready for use  no Internet TCG has booted and Yellow access; GPS not active none of the other or no GPS reception states are active No Internet access; Blue GPS active After booting the TCG, it may take a few Internet access available;...
Page 6 Configure MACHINES.insight TC3G 1. Select “System“ in the left menu bar 2. Switch to “Wi-Fi“ within “Network Configuration“ 3. The right field “Access Point“ must be activated 4. Change the password for Wi-Fi access 5. Click on “Save“ 6. Switch to “machines.cloud“ within the “Network Configuration“...
Page 7 MACHINES.insight konfigurieren TCG-4 1. Select “System“ in the left menu bar 2. Switch to “Wi-Fi“ within “Net- work Configuration“ 3. The right field “Access Point“ must be activated 4. Change the password for Wi-Fi access 5. Click on “Save changes on device!“...
Page 8 Configure a M2M SIM card (only necessary for M2M SIM cards) 1. Login as “admin“ in MACHINES.insight (see  2. Navigate to “System“  “Network Configuration“  “GSM“ 3. Select the “Custom Configuration“ field on the right 4. Enter M2M parameters (source: SIM card provider) 5.
Page 9 Registration in MACHINES.cloud and first steps 1. Open the e-mail from noreply@machines.cloud with the link to the cloud (recommended browser: Google Chrome) 2. Click on the link and change your password on the web page 3. Log in with the new access data ...
Page 10 German: youtu.be/dJcDs7t28yw English: All Manuals and Tutorials here: stw-digitalization.com Passwort: connectivity T.O.N.I. Tours:  Available in MACHINES.cloud and MACHINES.access  Top right click on “<<“ Sensor-Technik Wiedemann GmbH (STW) Am Bärenwald 6 87600 Kaufbeuren Telephone: +49 8341 9505-0 info.stw@wiedemann-group.com www.stw-mm.com...
