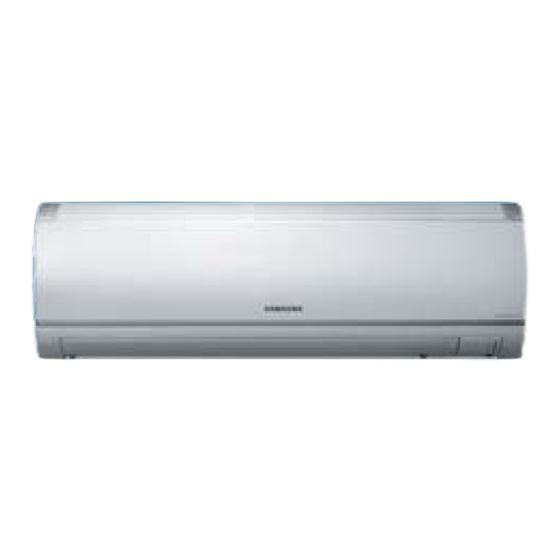

Page 1 SYSTEM AIRCONDITIONER INDOOR UNIT AM007/009/012FN1DCH/AA AM007/009/012/015/018JNMDCH/AA AM009/012/018/020FNNDCH/AA AM024/027/030/036/048/054JNHDCH/AA AM005/007KNNDCH/AA AM036/048JNCDCH/AA AM009/012/018/024/030/036/048FN4DCH/AA AM006/009/012/018/024JNFDCH/AA AM007/009/012FNLDCH/AA AM006/009/012/018/024JNGDCH/AA AM018/024FNLDCH/AA AM072/096JNESCH/AA AM030/036/048FNLDCH/AA AM054KNMDCH/AZ AM018/024FNMDCH/AA AM009/012/018/024/030/036/048KN4DCH/AA AM030/036FNMDCH/AA AM048FNMDCH/AA AM007/009/012/018/020/024FNTDCH/AA AM007/009/012/018/020/024HNQDCH/AA AM036/048FNHDCH/AA AM076/096FNHDCH/AA AM018/024FNCDCH/AA AM048/096HNPDCH/AZ SYSTEM AIRCONDITIONER CONTENTS 1. Precautions 2. Product Specifications 3. Disassembly and Reassembly 4.
Page 2: Table Of Contents
) ..............................4-51 4-4-12 E153 : Detection of Floating Switch of Indoor Unit's Drain Pump ..............4-52 4-4-13 The operational error of Indoor Unit's Fan Motor ......................4-53 4-4-14 Mixed operation Error (Only applicable to Heat Pump Model/Not to HR model) .........4-54 Samsung Electronics...
Page 3 4-4-69 Outdoor Unit Fan Motor RPM Error ..........................4-108 4-4-70 Fan IPM Overheat error ................................4-109 4-4-71 Over-Voltage Error of an Outdoor Fan Motor ......................4-110 4-4-72 Counter-Rotation Error of an Outdoor Fan Motor ....................4-110 4-4-73 E458 : Compressor Excess Current Error ........................4-111 Samsung Electronics...
Page 4 7-2-2 For Single Installation of Outdoor Unit (Only One Outdoor Unit Installed) .............7-3 7-2-3 When Two or More Outdoor Units are Installed .......................7-3 7-3 How to Put Refrigerant in Refrigerant Container ..........................7-4 7-3-1 How to put refrigerant in container before pump-down ...................7-4 Samsung Electronics...
Page 5: Precautions
Explain to workers that the battery for the remote control needs to be separated for storage purposes when the product will not be used for a long time. – This can cause a problem for the remote control since battery fluid may trickle out. Samsung Electronics...
Page 6: Precautions For Handling Refrigerant For Air Conditioner
If the compressor is operating while the refrigerant pipe is not correctly connected and the service valve is opened, then air and other substances can enter the pipe. The interior of the refrigerant cycle may then build up excessive high pressure resulting in explosion and damage. Samsung Electronics...
Page 7 2. Product Specifications 2-1 Product Specifacations 2-1-1 Indoor Unit Slim 1WAY cassette JSF-1 Model AM007FN1DCH/AA AM009FN1DCH/AA AM012FN1DCH/AA Power Supply ø, #, V, Hz 1,2,208-230,60 1,2,208-230,60 1,2,208-230,60 Mode HP/HR HP/HR HP/HR Cooling 2) Btu/h 7,500 9,500 12,000 Capacity Heating 2) Performance...
Page 8 Product Specifications JSF-1 Model AM007FN1DCH/AA AM009FN1DCH/AA AM012FN1DCH/AA PC1NUSMAN PC1NUSMAN PC1NUSMAN Panel model PC1NUPMAN PC1NUPMAN PC1NUPMAN Panel Net Weight Shipping Weight Panel Size 1,180 x 25 x 460 1,180 x 25 x 460 1,180 x 25 x 460 Net Dimensions (W×H×D) inches 46.5 x 1 x 18.1...
Page 9: Product Specifications
623 x 298 x 653 Shipping Dimensions (W×H×D) inch 24.5 x 11.7 x 25.7 24.5 x 11.7 x 25.7 24.5 x 11.7 x 25.7 24.5 x 11.7 x 25.7 24.5 x 11.7 x 25.7 24.5 x 11.7 x 25.7 Samsung Electronics Samsung Electronics...
Page 10 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. Samsung Electronics Samsung Electronics...
Page 11 840 x 204 x 840 840 x 204 x 840 840 x 204 x 840 Net Dimensions (W×H×D) 33.07 x 33.07 x 33.07 x 33.07 x inch 8.03 x 33.07 8.03 x 33.07 8.03 x 33.07 8.03 x 33.07 Samsung Electronics...
Page 12 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. Samsung Electronics...
Page 13 33.07 x 11.34 x 33.07 898 x 357 x 898 898 x 357 x 898 898 x 357 x 898 Shipping Dimensions (W×H×D) inch 35.35 x 14.06 x 35.35 35.35 x 14.06 x 35.35 35.35 x 14.06 x 35.35 Samsung Electronics...
Page 14 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-10 Samsung Electronics...
Page 15 35.43 x 7.83 x 23.62 1,150 x 280 x 710 1,150 x 280 x 710 1,150 x 280 x 710 Shipping Dimensions (W×H×D) inch 45.28 x 11.02 x 27.95 45.28 x 11.02 x 27.95 45.28 x 11.02 x 27.95 Samsung Electronics 2-11...
Page 16 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-12 Samsung Electronics...
Page 17 Net Dimensions (W×H×D) inch 43.31 x 7.83 x 23.62 43.31 x 7.83 x 23.62 1,350 x 280 x 710 1,350 x 280 x 710 Shipping Dimensions (W×H×D) inch 53.15 x 11.02 x 27.95 53.15 x 11.02 x 27.95 Samsung Electronics 2-13...
Page 18 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-14 Samsung Electronics...
Page 19 51.18 x 11.61 x 27.17 1,575 x 370 x 835 1,575 x 370 x 835 1,575 x 370 x 835 Shipping Dimensions (W×H×D) inch 62.01 x 14.57 x 32.87 62.01 x 14.57 x 32.87 62.01 x 14.57 x 32.87 Samsung Electronics 2-15...
Page 20 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-16 Samsung Electronics...
Page 21 Net Dimensions (W×H×D) inch 35.4 x 10.2 x 18.9 35.4 x 10.2 x 18.9 1,170 x 340 x 595 1,170 x 340 x 595 Shipping Dimensions (W×H×D) inch 46.1 x 13.4 x 23.4 46.1 x 13.4 x 23.4 Samsung Electronics 2-17...
Page 22 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-18 Samsung Electronics...
Page 23 1,150 x 320 x 480 1,200 x 360 x 650 1200 x 360 x 650 Net Dimensions (W×H×D) inch 45.28 x 12.60 x 18.90 45.28 x 12.60 x 18.90 47.24 x 14.17 x 25.59 47.24 x 14.17 x 25.59 Samsung Electronics 2-19...
Page 24 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-20 Samsung Electronics...
Page 25 32.48 x 11.22 x 7.44 904 x 353 x 263 904 x 353 x 263 904 x 353 x 263 Shipping Dimensions (W×H×D) inch 35.59 x 13.90 x 10.35 35.59 x 13.90 x 10.35 35.59 x 13.90 x 10.35 Samsung Electronics 2-21...
Page 26 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-22 Samsung Electronics...
Page 27 41.93 x 11.73 x 8.58 1,138 x 378 x 301 1,138 x 378 x 301 1,138 x 378 x 301 Shipping Dimensions (W×H×D) inch 44.80 x 14.88 x 11.85 44.80 x 14.88 x 11.85 44.80 x 14.88 x 11.85 Samsung Electronics 2-23...
Page 28 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-24 Samsung Electronics...
Page 29 32.48 x 11.22 x 7.44 904 x 353 x 263 904 x 353 x 263 904 x 353 x 263 Shipping Dimensions (W×H×D) inch 35.59 x 13.90 x 10.35 35.59 x 13.90 x 10.35 35.59 x 13.90 x 10.35 Samsung Electronics 2-25...
Page 30 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-26 Samsung Electronics...
Page 31 41.93 x 11.73 x 8.58 1,138 x 378 x 301 1,138 x 378 x 301 1,138 x 378 x 301 Shipping Dimensions (W×H×D) inch 44.80 x 14.88 x 11.85 44.80 x 14.88 x 11.85 44.80 x 14.88 x 11.85 Samsung Electronics 2-27...
Page 32 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-28 Samsung Electronics...
Page 33 Net Dimensions (W×H×D) inch 47.2 x 14.2 x 25.6 47.2 x 14.2 x 25.6 1,456 x 432 x 784 1,456 x 432 x 784 Shipping Dimensions (W×H×D) inch 57.3 x 17.0 x 30.9 57.3 x 17.0 x 30.9 Samsung Electronics 2-29...
Page 34 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-30 Samsung Electronics...
Page 35 Net Dimensions (W×H×D) inch 48.8 x 18.5 x 40.9 48.8 x 18.5 x 40.9 1,507 x 558 x 1,155 1,507 x 558 x 1,155 Shipping Dimensions (W×H×D) inch 59.3 x 22 x 45.5 59.3 x 22 x 45.5 Samsung Electronics 2-31...
Page 36 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-32 Samsung Electronics...
Page 37 Net Dimensions (W×H×D) inch 39.97 x 25.59 x 7.87 39.97 x 25.59 x 7.87 1,080 x 730 x 300 1,080 x 730 x 300 Shipping Dimensions (W×H×D) inch 42.52 x 28.74 x 11.81 42.52 x 28.74 x 11.81 Samsung Electronics 2-33...
Page 38 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-34 Samsung Electronics...
Page 39 Φinch Net Weight 33.5 42.5 Weight Shipping Weight 39.5 48.5 1350*235*675 1650*235*675 Net Dimensions (W×H×D) inch Dimensions 1439*758*321 1739*758*321 Shipping Dimensions (W×H×D) inch Auto Restart Auto Swing Functions Group/Individual Control External Contact Control Trouble Shooting by LED Samsung Electronics 2-35...
Page 40 WB - Outdoor temperature : 7 DB, 6 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-36 Samsung Electronics...
Page 41 650 x 1850 x 395 1100 x 1800 x 485 Shipping Dimensions (W×H×D) 753 x 1949 x 503 1177 x 1950 x 563 Panel model Panel Net Weight Panel Size Shipping Weight Net Dimensions (W×H×D) Shipping Dimensions (W×H×D) Samsung Electronics 2-37...
Page 42 - Outdoor temperature : 7˚C DB, 6˚C WB, Equivalent refrigerant piping : 7.5m, Level differences : 0m *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-38 Samsung Electronics...
Page 43 1447 x 425 x 769 1447 x 425 x 769 1447 x 425 x 769 1447 x 425 x 769 Panel model Panel Net Weight Panel Size Shipping Weight Net Dimensions (W×H×D) Shipping Dimensions (W×H×D) 2-39 Samsung Electronics Samsung Electronics 2-40...
Page 44 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-41 Samsung Electronics Samsung Electronics 2-42...
Page 45 1200 × 360 × 650 Shipping Dimensions (W×H×D) 1460 x 455 x 780 1460 x 455 x 780 1460 x 455 x 780 1460 x 455 x 780 1460 x 455 x 780 1460 x 455 x 778 2-43 Samsung Electronics Samsung Electronics 2-44...
Page 46 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-45 Samsung Electronics Samsung Electronics 2-46...
Page 47 1035x690x310 1035x690x310 1035x690x310 1335x690x310 1335x690x310 Shipping Dimensions 40.75x27.17x12.2 40.75x27.17x12.2 40.75x27.17x12.2 52.56 x 27.17 x 12.2 52.56 x 27.17 x 12.2 Auto Restart Auto Swing Functions Group/Individual Control External Contact Control Trouble Shooting by LED 2-47 Samsung Electronics Samsung Electronics 2-48...
Page 48 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-49 Samsung Electronics Samsung Electronics 2-50...
Page 49 1035x690x310 1035x690x310 1035x690x310 1335x690x310 1335x690x310 Shipping Dimensions 40.75x27.17x12.2 40.75x27.17x12.2 40.75x27.17x12.2 52.56 x 27.17 x 12.2 52.56 x 27.17 x 12.2 Auto Restart Auto Swing Functions Group/Individual Control External Contact Control Trouble Shooting by LED 2-51 Samsung Electronics Samsung Electronics 2-52...
Page 50 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-53 Samsung Electronics Samsung Electronics 2-54...
Page 51 Φinch Net Weight Weight Shipping Weight 1465x460x910 1465x460x910 Net Dimensions (W×H×D) inch Dimensions 1612 x 519 x 984 1612 x 519 x 984 Shipping Dimensions (W×H×D) inch SOLENOID VALVE Assy,FDF6A48 Assy,FDF6A48 Bypass Tube Check VALVE ID9.6-ID12.9 ID9.6-ID12.9 2-55 Samsung Electronics...
Page 52 WB - Outdoor temperature : 0 DB, -3 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. Samsung Electronics 2-56...
Page 53 Net Dimensions (W×H×D) 1050*94*1050 1050*94*1050 1050*94*1050 1050*94*1050 1050*94*1050 1050*94*1050 1050*94*1050 Shipping Dimensions (W×H×D) 1093*85*1083 1093*85*1083 1093*85*1083 1093*85*1083 1093*85*1083 1093*85*1083 1093*85*1083 Auto restsrt Auto swing Funtion Group/Individual control Exteral contact control Trouble shooting by LED 2-57 Samsung Electronics Samsung Electronics 2-58...
Page 54 *4) Sound pressure was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions. *5) Specifications may be subject to change without prior notice for product improvement. 2-59 Samsung Electronics Samsung Electronics 2-60...
Page 55: Accessory And Option Specifications
Converter S-NET Pro MIM-C02N DVM S S-checker MIM-C10 DVM S Motion detector sensor MCR-SMA Only Mini 4Way ※ DVM Series : DVM mini, DVM PLUS III, DVM PLUS III HR, DVM PLUS IV, DVM PLUS IV HR Samsung Electronics 2-61...
Page 56 MDP-N047SNC1D HSP DUCT(76.8/96MBH) HSP Duct MCU-S6NEE1N Below 6 indoor units MCU-S4NEE1N Below 4 indoor units Requisite Below 4 indoor units - HSP DUCT(more than MCU-S4NEE2N 76,800Btu/h) MXD-K025AN 24~30MBH(7kW~8.75kW) MXD-K050AN 48~60MBH(14kW~17.5kW) AHU kit Option MXD-K075AN 72~90MBH(21kW~26.25kW) MXD-K100AN 96~112MBH(28kW~35kW) 2-62 Samsung Electronics...
Page 57 Relevant unit Remark PC1NUSMAN SLIM 1-WAY(Classic) SLIM 1WAY PC1NUPMAN SLIM 1-WAY(Zet sliding) SLIM 1WAY PC4SUSMAN MINI 4-WAY(Classic) MINI 4WAY Front panel Requisite PC4NUSKAN G 4-WAY(Classic) G 4WAY PC4NUDMAN 360 cassette 360 cassette PC4NUDMAN 360 cassette 360 cassette Samsung Electronics 2-63...
Page 58: Disassembly And Reassembly
3. Disassembly and Reassembly Necessary Tools Item Remark +Screw Driver Monkey Spanner –Screw Driver Nipper Electric Motion Driver L-Wrench Samsung Electronics...
Page 59: Indoor Unit
Grill to 45° and separate the Grille from the Panel. 3) Separate the Filter from the Panel. 4) Separate 3 cover screws from it. 5) Unscrew 6 fixed screws and separate them from the Indoor Unit. (Use +Screw Driver) Samsung Electronics...
Page 60 Disassembly and Reassembly Parts Procedure Remark 6) Press the left and right Hooks to separate the Panel from the Indoor Unit. Samsung Electronics...
Page 61 Indoor Unit. When disassembling the Pan, be careful not to touch the heat exchanger board with a bare hand. Control In 1) Undo 3 fixing screws in the Control In appliance part to separate the Cover. (Use +Screw Driver) Samsung Electronics...
Page 62 Disassembly and Reassembly Parts Procedure Remark 2) Separate 8 connecters on the PCB of the Indoor Unit. 3) Separate the Control In from the Indoor Unit. Drain Sub 1) Push the hook on the Drain Sub to separate it. Samsung Electronics...
Page 63 2) Separate an Indoor Sensor from the Heat Exchanger. 3) Separate the Heat Exchanger from the Indoor Unit. Cross Fan 1) Undo 3 fixing screws on the Cover Fan Motor. (Use +Screw Driver) 2) Separate the Cover Fan Motor from the Indoor Unit. Samsung Electronics...
Page 64 3) Separate the Cross Fan from the Indoor Unit. Drain Pump 1) Separate fixing screw in the Cover Drain Pump. (Use +Screw Driver) 2) Separate the Drain Hose from the Drain Pump. 3) Separate the Drain Pump from the Indoor Unit. Samsung Electronics...
Page 65: Big Duct
1) Detach the motor connectors from the PCB. & BLOWER 2) Unscew 16 screws and detach Cabinet-Base Blower. (Use+Screw Driver) 3) Unscrew 8 screws and detach Case-Blower. (Use +Screw Driver) 4) Unscrew 4 bolts and separate Motor & blower from Bracket-Motor. (Use +Screw Driver) Samsung Electronics...
Page 66 EVAPORATOR & 1) Detach EEV and Sensor connectors from the DRAIN-PAN PCB. (Use +Screw Driver) 2) Unscrew 8 screws and Detach Cover-Pipe. (Use +Screw Driver) 3) Unscrew 31 screws and detach Cabinet- Base Blower andCabinet-Base Drain. (Use +Screw Driver) Samsung Electronics...
Page 67 Disassembly and Reassembly Parts Procedure Remark 4) Unscrew 10 screws and detach Drain-Pan from the indoor unit. (Use +Screw Driver) 5) Separate Evaporator from the indoor unit. 3-10 Samsung Electronics...
Page 68: Global 4Way Cassette Type
Procedure Remark Panel 1) Push the handles on both sides of the Samsung logo towards the product’s interior to open the Grille. 2) Push up the green knob in the Open direction, and detach the white link from the panel. Detach the safety clip.
Page 69 1) Disconnect the Connector Wire that is connected to the indoor unit’s PBA from the PBA. 2) Unscrew the 2 fixed screws on both sides of the Control Box, and disassemble the Control Box from the indoor unit. (Use +Screw Driver) 3-12 Samsung Electronics...
Page 70 Control-Box to remove it. Drain Pan 1) Unscrew the screws on the 4 corners of the indoor unit. (Use +Screw Driver) 2) Remove the Drain Pan from the indoor unit. Samsung Electronics 3-13...
Page 71 Drain-Hose fixed on the side of the indoor unit. (Use +Screw Driver) 1) Use your hand to remove the temperature Evap. sensor attached to the Evap Pipe along with Temperature the fixing clip. Sensor 3-14 Samsung Electronics...
Page 72 1) Remove the screws of the 2 Steel Holder Evaps that are used to fix the Heat Exchanger, and then remove it. (Use +Screw Driver) 2) Remove the 2 fixing screws of the Partition Evap at the Heat Exchanger’s In/Out Pipe. (Use +Screw Driver) Samsung Electronics 3-15...
Page 73 Disassembly and Reassembly Parts Procedure Remark 3) Remove the screw of the Cover Pipe that is used to fix the In/Out Pipe. Remove the In/Out Pipe. (Use +Screw Driver) 4) Remove the Heat Exchanger from the indoor unit’s cabinet. 3-16 Samsung Electronics...
Page 74: Duct Type(Slim1,2)
– After unscrewing 2 screws – Disassemble the Cover Blower Upper with pushing its hook. 3) Disassemble the Cover Control. – Unscrew 2 screws 4) Disassemble Motor Wires connected to the inside of PCB and connected to the Capacitor. Samsung Electronics 3-17...
Page 75 6) Disassemble the band Motor for fixing the Motor. – Unscrew 2 screws 7) After disassembling the Motor and Blower for the set, disassemble the Blower by use of 3mm wrench. Ass'y Drain Pan 1) Disassemble the Cabinet-Top Evap. – Unscrew 11 screws 3-18 Samsung Electronics...
Page 76 Drain Pan 2-1), 2-2), 2-3). 1) Disassemble the Cover Pipe that fixes the high/low pressure Pipe. – Unscrew 2 screws 2) Disassemble the refrigerant temperature sen- sor, Inlet air temperature sensor, and EEV wire that connected to the inside of PCB. Samsung Electronics 3-19...
Page 77 1) Disassemble all Control Wires connected to the inside of PCB. 2) In case of disassembling the PCB separately, disassemble the PCB from the case with push- ing the hook after unscrewing the screw. – Unscrew 1 screw 3-20 Samsung Electronics...
Page 78 5) In case of disassembling the Trans Power, unscrew the screw fixing on the Case. Disassemble if after disassembling the case PCB 4-4). Bracket Outlet 1) Disassemble the Bracket Outlet assembled on the Cabinet. – Unscrew 10 screws Samsung Electronics 3-21...
Page 79: Duct Type(Slim3)
Disassembly and Reassembly Duct type(Slim3) Parts Procedure Remark Filter 1) DPull out the Filter as picture 1 or picture 2. 2) DIf it is necessary, after disassembling 8 indi- cating screws, detach the Bracket Filter. 3-22 Samsung Electronics...
Page 80 Bracket Outlet 1) After disassembling 13 indicating screws, detach Ass'y Cabinet-Top Motor. 2) After disassembling 3 indicating screws, detach Ass'y Case Blower Upper. – Press the pothook of the Case Blower and detach Ass'y Case Blower Upper. Samsung Electronics 3-23...
Page 81 Cover Control. 4) Detach the Motor Wire Connected to PCB and Capacitor. 5) After disassembling the indicating screws, detach the wire connected to the Partition. 6) After disassembling 2 indicating screws, detach the Ass ’y Band Motor. 3-24 Samsung Electronics...
Page 82 Blowers from the axis of the Motor by 3mm inner hexagon spanner. Drain Pan 1) After disassembling 15 indicating screws, detach Ass'y Cabinet-Top Evap. 2) After disassembling 6 indicating screws, detach the Bracket Outlet. 3) Detach the Drain Pan. Samsung Electronics 3-25...
Page 83 Ass'y Cover Pipe. 2) Detach the Sensor from the Control Box. (including 2 Sensors) 3) After disassembling 2 indicating screws, detach Ass'y Support Evap LF. 4) After disassembling 2 indicating screws, detach Ass'y Support Evap RH. 3-26 Samsung Electronics...
Page 84 Pothook and detach the PCB from the set. 3) If only the disassembly of Capacitor is required,detach it from the set. 4) If only the disassembly of Case Control is required,detach it from the set after disassem- bling 2 indicating screws. Samsung Electronics 3-27...
Page 85 Disassembly and Reassembly Parts Procedure Remark Ass'y Cross Fan 5) Detach the Transformer after disassembling 2 indicating screws. Work is possible after disassembling the Case PCB. Ass'y Bracket 2) After disassembling 16 indicating screws, Outlet detach Ass'y Bracket Outlet. 3-28 Samsung Electronics...
Page 86: Duct Type(Msp1)
Ass'y Cabi Bottom Blower. (Use +Screw Driver.) 2) Detach from Ass'y Control In the capacitor connection wire between the Motor Fan and housing connector. 3) After disassembling 2 places indicating screws,detach the 2 Fan Case. (Use +Screw Driver.) Samsung Electronics 3-29...
Page 87 4) After disassembling 2 places indicating screws,detach Fan Motor and Blower from the set. Control In 1) After disassembling 1 Indicating screw, detach the Cover control. (Use +Screw Driver.) 2) Detach the Motor-Fan and Sensor Connector from the PCB. 3-30 Samsung Electronics...
Page 88 3) Disassemble 4 indicating screws and detach Control In from the set. (Use +Screw Driver.) Drain Pan ※ Work is possible when Disassembling the Ass'y Cabi Bottom Blower. 1) Disassemble 7 indicating screws and detach Ass'y Cabi Bottom Drain. (Use +Screw Driver.) Samsung Electronics 3-31...
Page 89 Disassembly and Reassembly Parts Procedure Remark 2) Disassemble 2 indicating screws and detach Holder Pipe. (Use +Screw Driver.) 3) Disassemble 4 indicating screws and detach the Drain Pan. (2 screws each at left and right side) (Use +Screw Driver.) 3-32 Samsung Electronics...
Page 90 2) Disassemble Sensor on the Evap. 3) Disassemble 4 indicating screws which are in the near of Hanger Plate to detach the Evap. (2 screws each at left and right side) (Use +Screw Driver.) It needs 2 peoples. Samsung Electronics 3-33...
Page 91: Duct Type(Msp2, Hsp Small)
Ass'y Cabi Bottom Blower. Motor (Use +Screw Driver.) 2) Detach from Ass'y Control In the capacitor connection wire between the Motor Fan and housing connector. 3) After disassembling 4 places indicating screws, detach the 2 Fan Case. (Use +Screw Driver.) 3-34 Samsung Electronics...
Page 92 4) After disassembling 2 places indicating screws, detach Fan Motor and Blower from the set. (Use +Screw Driver.) Drain Pan 1) After disassembling 1 Indicating screw, detach the Cover control.(Use +Screw Driver.) 2) Detach the Motor-Fan and Sensor Connector from the PCB. Samsung Electronics 3-35...
Page 93 3) Disassemble 4 indicating screws and detach Control In from the set. (Use +Screw Driver.) Drain Pan ※ Work is possible when Disassembling the Ass'y Cabi Bottom Blower. 1) Disassemble 6 indicating screws and detach Ass'y Cabi Bottom Drain. (Use +Screw Driver.) 3-36 Samsung Electronics...
Page 94 Drain Pan. (Use +Screw Driver.) (3 screws each at left and right side) Evap ※ Work is possible when Disassembling the Ass'y Cabi Bottom Blower. 1) Disassemble 6 indicating screws and detach Ass'y Cabi Bottom Drain. (Use +Screw Driver.) Samsung Electronics 3-37...
Page 95 Procedure Remark 2) Disassemble Sensor on the Evap. 3) Disassemble 2 indicating screws which are in the near of Hanger Plate to detach the Evap. (1 screw each at left and right side) It needs 2 peoples. 3-38 Samsung Electronics...
Page 96: Duct Type (Ma1-Drain Pump Built-In)
1) Disassemble the Cabinet-blower. (Unscrew 19 screws) 2) Disassemble the Partition-front from Partition. (Unscrew 8 screws) 3) Rotate the assy fan parts in CCW direction. 4) Pull out the assy fan parts after hang at the edge of cabinet. Samsung Electronics 3-39...
Page 97 Disassembly and Reassembly Parts Procedure Remark Drain Pan 1) Disassemble the cabinet-drain. - Unscrew 7 screws. 2) Disassemble the Drain pan. - Unscrew 4 screws. 3-40 Samsung Electronics...
Page 98 Drain pump 1) Disassemble the drain pump kit from the set. - Unscrew 2 screws. 2) Disassemble the drian pump case. - Unscrew 4 screws. 3) Disassemble the drian pump. - Unscrew 2 screws and cabel tie. Samsung Electronics 3-41...
Page 99 Disassembly and Reassembly Parts Procedure Remark Evaporator 1) Disassemble the Cover-pipe. - Unscrew 5 screws. 2) Disassemble the Evaporator. - Unscrew 4 screws. 3-42 Samsung Electronics...
Page 100 Disassembly and Reassembly Parts Procedure Remark Main PBA 1) Disassemble the Case Control. - Unscrew 3 screws. 2) Disassemble the Evaporator. - Unscrew 4 screws. Samsung Electronics 3-43...
Page 101: Duct Type (Ma2)
- AM024/027/030/036/048/054JNHDCH/AA (Drain Pump Built-in) - AM054KNMDCH/AZ (Drain Pump Option) Parts Procedure Remark Drain Pan 1) Disassemble the cabinet-blower. - Unscrew 17 screws. 2) Disassemble the cabinet-drain. - Unscrew 9 screws. 3) Disassemble the drain pan. - Unscrew 4 screws. 3-44 Samsung Electronics...
Page 102 1) Disassemle the case blower from partition. - Unscrew 10 bolts by using wrench and driver. 2) Ratate the Assy fan parts in CCW direction. 3) Pull out the Assy fan parts after hang at the edge of cabinet. Samsung Electronics 3-45...
Page 103 Drain pump 1) Disassemble the drain pump kit from the set. - Unscrew 2 screws. 2) Disassemble the drian pump case. - Unscrew 4 screws. 3) Disassemble the drian pump. - Unscrew 2 screws and cabel tie. 3-46 Samsung Electronics...
Page 104 Disassembly and Reassembly Parts Procedure Remark Evaporator 1) Disassemble the Evaporator. - Unscrew 4 screws. Main PBA 1) Disassemble the Case Control. - Unscrew 3 screws. 2) Detach all connect cable. 3) Disassemble the PBA. - Unscrew 1 screw. Samsung Electronics 3-47...
Page 105: Am036/048Jncdch/Aa
2) Detach the Air Inlet Grille. 3) Detach the Cover side by removing 1 screw and sliding Cover. 4) Open the cover of Component Electrical Box by removing 2 screws. 5) Open the cover of Terminal block Box by removing 2 screws 3-48 Samsung Electronics...
Page 106 1) Disconnect 2 wires of Motor. 2) Detach Holder Motor by removing 2 screws. 3) Detach the Upper case of Fan. (AM112JNCDKH : 3EA, AM140JNCDKH : 4EA) 4) Detach Bracket Grille by removing 2 Screws. (AM112JNCDKH : 1EA, AM140JNCDKH : 2EA) Samsung Electronics 3-49...
Page 107 7 screws. 2) Remove 1 screw in the middle of drain pan. 3) Detach the Drian pan. Be careful that there might be some water left in the drain pan when you remove the drain pan. 3-50 Samsung Electronics...
Page 108 1) First, Separate the connector of the expansion valve. 2) Detache the Cover Pipe by removing 2 screws. 3) Detache the Cover Evap LF/RH by removing 4 screws. 4) Detach the Evaporator assembly by removing 3 screws. Samsung Electronics 3-51...
Page 109 Disassembly and Reassembly Parts Procedure Remark Stepping Motor 1) Detach the Connector. 2) Detache the Stepping Motor by emoving 2 screws. Holder Blade 1) Remove 4 screws at both side of the Holder blade. 3-52 Samsung Electronics...
Page 110: Ceiling
Remark Electrical 1) Open the Grille by pressing 3 position. Part (center and both side) 2) Detach the Air Inlet Grille. 3) Open the Cover of Component Electrical Box by removing 3 screws. (center and both side) Samsung Electronics 3-53...
Page 111 Disassembly and Reassembly Parts Procedure Remark 1) Detach the screw and untie earth wire of Motor. & Motor 2) Disconnect of housing of Motor Wire. 3) Disconnect the Capacitor Wire. 3-54 Samsung Electronics...
Page 112 Parts Procedure Remark 4) Loosen the Guard Safety by removing 6 screws. 5) Detach the Upper Case of Fan. (2EA) 6) Loosen the 4 screws what is fix the Motor. 7) Detach the Fan and Motor assembly. Samsung Electronics 3-55...
Page 113 9) Detach the Fan. Drain Pan 1) Disconnect the Display PCB Wire as shown in picture. (white housing) 2) Disconnect the Step Motor Wire as shown in picture. (blue housing) 3) Disassemble the Hanger Bracket by removing the 1 screw. 3-56 Samsung Electronics...
Page 114 4) Loosen the 3 screws of Front Side. 5) Disassemble the assembly Front Cover Part. 6) Disconnect the Step Motor Wire as shown in picture. 7) Detach the Wire Clamp fixed in Base Part. 8) Detach the Front Cover assembly completely. Samsung Electronics 3-57...
Page 115 Remark 9) Loosen the screw what is fix with Base Part and Drain Pan. (Upper Side:2EA) 10) Loosen the screw what is fix with Base Part and Drain Pan. (Lower Side:2EA) 11) Detach the Drain Pan completely. 3-58 Samsung Electronics...
Page 116 3) Loosen the 2 screws shown in picture and remove Plastic Part. (white) 4) Loosen the 2 screws shown in picture and remove Steel Bracket. 5) Disassemble the 4 screws Steel Plate in rear side of the unit. Samsung Electronics 3-59...
Page 117 Disassembly and Reassembly Parts Procedure Remark 6) Loosen the 2 screws as shown in picture. 7) Detach the Plastic Cover as shown in picture. 8) Detach the Evaporator assembly. 3-60 Samsung Electronics...
Page 118 2 Screws Stepping Motor. Display PCB 1) Loosen the 3 screws in rear side of Front Cover assembly as shown in picture. 2) Disassemble Display PCB assembly and Disconnect Wire. 3) Disassemble the Display PCB. Samsung Electronics 3-61...
Page 119: Wall Mounted Type (Neo Forte)
Terminal Cover. (Use +Screw Driver.) 4) Detach the thermistor from the Front Grille. 5) Loosen 2 fixing screws(CCW) of Front Grille. 6) Unlock 3 hooks to fix Panel Front and Tray Drain. (Use +Screw Driver.) 3-62 Samsung Electronics...
Page 120 2) Detach the outdoor unit connection wire from the Terminal Block. 3) Loosen 4 fixing screws(CCW) of Ass'y Control-In. (Use +Screw Driver.) You can disassembly Ass'y Control In without evaporator disassembled. Tray Drain 1) Pull Tray Drain out from the Back Body. Samsung Electronics 3-63...
Page 121 Evaporator from indoor unit. Fan Motor 1) Loosen the fixing screw(CCW). & (Use +Screw Driver.) Cross Fan 2) Detach the Fan Motor from the Fan. 3) Detach the Fan From the left Holder Bearing. 3-64 Samsung Electronics...
Page 122: Global Mini 4Way
3) Remove the 2 fixed screws to remove the Control-Box Cover. (Use +Screw Driver) 4) Remove the Remocon-Receiver and Blade Connector Wire from the PBA. (3EA) 5) Push the 4 panel corners and cover down- wards to remove it. Samsung Electronics 3-65...
Page 123 1) Disconnect the Connector Wire that is con- nected to the indoor unit’s PBA 2) Unscrew the 2 fixed screws on both sides of the Control Box, and disassemble the Control Box from the indoor unit. (Use +Screw Driver) 3-66 Samsung Electronics...
Page 124 Control- Box to remove it. Drain Pan 1) Unscrew the screws on the 4 corners of the indoor unit. (Use +Screw Driver) 2) Remove the Drain Pan from the indoor unit. Samsung Electronics 3-67...
Page 125 Drain-Hose fixed on the side of the indoor unit. (Use +Screw Driver) Evap. 1) Use your hand to remove the temperature Temperature sensor attached to the Evap Pipe along Sensor with the fixing clip. 3-68 Samsung Electronics...
Page 126 1) Remove the screws of the Steel Holder Evaps that are used to fix the Heat Exchanger, and then remove it. (Use +Screw Driver) 2) Remove the 2 fixing screws of the Partition Evap at the Heat Exchanger’s In/Out Pipe. (Use +Screw Driver) Samsung Electronics 3-69...
Page 127 Parts Procedure Remark 3) Remove the screw of the Cover Pipe that is used to fix the In/Out Pipe. Remove the In/ Out Pipe. (Use +Screw Driver) 4) Remove the Heat Exchanger from the indoor unit’s cabinet. 3-70 Samsung Electronics...
Page 128: Pac
1) Remove the 1 screw which is fixed to PART COVER-MAIN PCB. (Use +Screw Driver) 2) Remove the 1 screw on the upper part of GUIDE-BELL MOUTH and separate the GUIDE-BELL MOUTH in a counter clockwise direction. (Use +Screw Driver) Samsung Electronics 3-71...
Page 129 2) Separate the CONNECTOR-WIRE of ASS’Y- PANEL PCB. 3) Remove the 2 screws from the ASS’Y- OUTLET SHUTTER and remove the 2 screws from the front of COVER TOP. (Use +Screw Driver) And then separate by pushing it upwards. Direction of disassembly 3-72 Samsung Electronics...
Page 130 ASS'Y EVAP. (Use +Screw Driver) Be careful not to crush the FIN during ASS’Y EVAP disassembly and avoid the sharp edge of the FIN. 3) Remove the 4 screws which is fixed to ASS’Y-PANEL DRAIN. Samsung Electronics 3-73...
Page 131 (Use Monkey Spanner) ASS’Y CONTROL IN 1) Remove the 2 screws which is fixed to PART COVER CONTROL. (Use +Screw Driver) 2) Remove the 2 screws which is fixed to ASS’Y CONTROL IN. (Use +Screw Driver) 3-74 Samsung Electronics...
Page 132 1) Open the ASS’Y INLET GRILLE and separate the safety clips. Direction of disassembly ASS’Y MAIN PCB 1) Remove the 1 screw which is fixed to COVER-MAIN PCB. (Use +Screw Driver) PART 2) Separate the connector from the MAIN PCB. Samsung Electronics 3-75...
Page 133 4) Separate the wire from the holder wire of FRONT PANEL rear. Holder wire 5) Remove the 4 screws from the DISPLAY COVER. (Use +Screw Driver) 6) Remove the 1 screw which is fixed to DISPLAY PCB. (Use +Screw Driver) 3-76 Samsung Electronics...
Page 134 1) Remove the 2 screws from the BRACKET FRONT BLOWER of OUTLET GRILLE. PART (Use +Screw Driver) 2) Remove the 14 screws from the COVER TOP. (Use +Screw Driver) 3) Separate the COVER TOP. 4) Lift up the OUTLET GRILLE and separate it. Samsung Electronics 3-77...
Page 135 (Use +Screw Driver) 4) Remove the 4 screws from the right side of heat exchanger cover. (Use +Screw Driver) 5) Remove the 4 screws from the left side of heat exchanger cover. (Use +Screw Driver) 3-78 Samsung Electronics...
Page 136 2) Remove the 8 screws from the COVER-FAN BLOWER DUCT. (Use +Screw Driver) 3) Separate the COVER-FAN BLOWER. 4) Remove the 2 screws from the FAN MOTOR BRACKET. (Use +Screw Driver) 5) Pull out the FAN MOTOR BRACKET and separate it. Samsung Electronics 3-79...
Page 137 Parts Procedure Remark 6) Hold up with both hands a FAN and MOTOR and then pull out the FAN and MOTOR. 3-80 Samsung Electronics...
Page 138: Floor Standing Type (Concealed)
– All the procedure has to be verified because the cover should not open when the unit is installed. Parts Procedure Remark Cabinnet 1) Unscrew fixed screw of the upper part cabinet, and please separate 2) Please separate front cabinet. Samsung Electronics 3-81...
Page 139 2) Unscrew fixed screw on both side of heat exchanger plate. And then pulls heat exchanger to the right side, and please separate. Drain Pan 1) Please remove PLATE for fixation of DRAIN PAN located in the side. 3-82 Samsung Electronics...
Page 140 2) Unscrew MOTOR BRACKET fixation screw located in the front surface, and please separate. 3) Unscrew MOTOR BRACKET fixation screw located in the side, and please separate. 4) Separate out MOTOR BRACKET for front side. Samsung Electronics 3-83...
Page 141 MOTOR BLACKET. 6) Please separate screw between the MOTOR BLACKET and the FAN BLOWER. 7) Please separate screw between the MOTOR BLACKET and the FAN BLOWER. 8) Please separate the FAN screw using hexa- gon-wrench. 3-84 Samsung Electronics...
Page 142: Floor Standing Type (Exposed)
4) Please unscrew the FRONT MID Screw and separate the FRONT MID. 5) Please unscrew the FRONT UPPER & the FRONT SIDE screw and separate the FRONT SIDE. 6) Please unscrew the FRONT UPPER screw of the back side and separate the FRONT UPPER. Samsung Electronics 3-85...
Page 143 Parts Procedure Remark Heat Exchanger 1) Please unscrew the screw and separate the COVER. 2) Please unscrew the SIDE CABINET screw. 3) Please disassemble the fixing plate of heat exchanger and separate the heat exchang- 3-86 Samsung Electronics...
Page 144 Parts Procedure Remark Control Box 1) Please unscrew the screw and separates the C-BOX COVER. 2) Please unscrew the screw and separates the C-BOX. Samsung Electronics 3-87...
Page 145 MOTOR BLACKET. 3) Please separate screw between the MOTOR BLACKET and the FAN BLOWER. 4) Please separate screw between the MOTOR BLACKET and the FAN BLOWER. 5) Please separate the FAN screw using hexa- gon-wrench. 3-88 Samsung Electronics...
Page 146: Oap Duct Type
< Service from Top & Bottom side > 1) Disassemble the connection wire to take the Motor Fan out. 2) Disassemble the Canibet Top Fan. - Unscrew 6 screws. 3) Disassemble the Link Screw. - Unscrew 3 screws. 4) Disassemble Cabinet Top Fan. Samsung Electronics 3-89...
Page 147 5) Disassemble C/BOX side Case Blower. - Unscrew 1 Blower screw using 3mm wrench. - Unscrew 6 screws. 6) Disassemble 1 Holder Motor. - Unscrew 2 screws. 7) Disassemble Blower screw of opposite side - Unscrew 1 Blower screw using 3mm wrench 3-90 Samsung Electronics...
Page 148 Please be careful, Avoiding injury when disassembly the steel blower. 9) Disassemble Case blower. - Unscrew 6 screws 10) Disassemble the Bell mouth for Blower change . - Unscrew 8 screws Please be careful, Avoiding injury when disassembly the steel blower. Samsung Electronics 3-91...
Page 149 Parts Procedure Remark Control Box 1) Disassemble Evap Sensor wire,EEV wire, Motor wire and Solenoid V/V wire. 2) Disassemble the Case Control. - Unscrew 6 screws 3-92 Samsung Electronics...
Page 150 Evap < Service from Top side > 1) Disassemble The Case Evap Top. - Unscrew 6 screws. 2) Disassemble the Link Screw. - Unscrew 3 screws. 3) Disassemble the Case Evap Top. 4) Disassemble The Plate Front. Samsung Electronics 3-93...
Page 151 Parts Procedure Remark Evap 5) Disassemble The Cover pipe. - Unscrew 4 screws 6) Remove The cable tie on the Support Evap. 7) Disassemble The Evap. - Unscrew 4 screws. 3-94 Samsung Electronics...
Page 152 Parts Procedure Remark Evap 8) Disassemble the Case Fan Top. - Unscrew 6 screws. 9) Disassemble Evap Sensor wire,EEV wire and Solenoid V/V wire from C/BOX. 10) Disassemble the Evap. Samsung Electronics 3-95...
Page 153 2) Disassemble the Link Screw. - Unscrew 3 screws. 3) Disassemble the Case Evap Bottom. 4) Disassemble The Case Fan Bottom. - Unscrew 6 screws. 5) Disassemble the Drain Pan. 6) Disassemble The Cover pipe. - Unscrew 4 screws. 3-96 Samsung Electronics...
Page 154 Parts Procedure Remark Evap 7) Disassemble Evap Sensor wire, EEV wire and Solenoid V/V wire from C/BOX. 8) Disassemble The Evap. - Unscrew 2 screws. Samsung Electronics 3-97...
Page 155: Cassette Type
2) Remove the 4 screws from the corner of Panel. (Use +Screw Driver) 3) Pull the hook of Panel and then separate the Panel from the Indoor Unit. Panel ▶ Open type Panel 1) Rotate the outside Panel to counterclockwise direction and then separate it. 3-98 Samsung Electronics...
Page 156 4) Pull up the Filter from the Grill and separate it. 1) Reomove the 2 screws which is fixed to the Control Box Indoor Unit upper part.(Use +Screw Driver) 2) Rotate the Guard Fan to counterclockwise direction and separate it Samsung Electronics 3-99...
Page 157 Indoor Unit upper part.(Use +Screw Driver) 4) Put finger in the "PULL" marked groove and then pull up the Cover 5) Put finger in the "PULL" marked groove and then avoids the hook and it opens the Control Box Cover 3-100 Samsung Electronics...
Page 158 1) Remove the 3 screws. (Use +Screw Driver) 2) Push the hook and separate the Cover. Damage can occur to product in case of use a sharp tool. 3) Remove the screw which is fixed to Booster Fan. (Use +Screw Driver) Samsung Electronics 3-101...
Page 159 Disassembly and Reassembly Parts Procedure Remark Top Cover & Drain 4) Pull the Booster Fan connector and separate the connector. 5) Remove the 4 screws. (Use +Screw Driver) 6) Push the hook and separate the Cover. 3-102 Samsung Electronics...
Page 160 Cover. (Use +Screw Driver) 8) ) Remove the 2 screws. (Use +Screw Driver) 9) Push the hook and separate the Cover. 10) Remove the 8 screws. (Use +Screw Driver) 11) Separate the Indoor Unit upper part from the Body Samsung Electronics 3-103...
Page 161 Top Cover & Drain 12) Remove the 3 screws. (Use +Screw Driver) 13) Pull the hook that is on the side and separate the Cover. Drain Pump & Hose 1) Separate the Drain Hose from the Drain Pump. 3-104 Samsung Electronics...
Page 162 Indoor Unit. (Use Monkey Spanner) Temperature Sensor 1) Remove the 6 screws which is fixed to Evaporator and separate the Partition. 2) Separates the Temperature Sensor which is fixed to Evaporator Pipe with the fixing clip together by the hand. Samsung Electronics 3-105...
Page 163 When assemble, be careful with the interfer- ence structure of piping projecting part. 3) Separate the Evaporator from the Indoor Unit. If you remove the Evaporator withbare hands, it may injure your hands, gloves must be worn. 3-106 Samsung Electronics...
Page 164: Troubleshooting
Set up the number of connected indoor units (SMW200-10 black) MICOM. download (AS-PRO) For checking indoor unit communication (SMW200-07P white) (YW396-02P red) Transmitter 12V ERROR DISPLAY (YW396-02P blue) State Check Outdoor Unit Tact Switch (SMW250-04P red) EEPROM SOCKET Outdoor Unit Dip Switch Samsung Electronics...
Page 165: Service Operation
(Natural discharge until Please wait for at least 15 minutes.) If an error occurs, the discharge mode may not work properly. In particular, E464 & E364 is power devices can be damaged. Therefore, the discharge mode, do not use. Samsung Electronics...
Page 166 Whole operation (The set temperature=3 C) Whole operation (The set temperature=40 C) Outdoor fan and valves Normally control conduct Operation time 60 minutes Etc. During the filling operation does not enter the special operation, such as oil recovery, defrost. Samsung Electronics...
Page 167 Operation side : 2000 Step , Stop side : 2000 step Maximum Operation Time 30 minutes Etc. Does not conduct the operation of the special operation, and protection control. Pressure and temperature is outside normal limits : Operation is shut down after gas pipe manually closed. Samsung Electronics...
Page 168 Discharge is complete, the power of the Inverter PCB and Fan PCB is being blocked, communication function is blocked, E206 will occur. If want operation again after complete discharge mode : Restart after K3 key to Reset or Power Reset. Samsung Electronics...
Page 169 Outdoor temperature is less than 10°C : Heating commissioning Oil recovery start Oil recovery start : It is after 10 minutes which Safety Start finishes. Etc. Oil recovery shut down and stop the normal pattern of the outdoor unit stop. Samsung Electronics...
Page 170: Troubleshooting
After entering the option setting status, select the option as listed below. On(SEG1~12) Off(SEG13~24) SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 Samsung Electronics...
Page 171 Press Mode button to be changed to AUTO mode in the OFF status. 11. Setting SEG14, SEG15 option Press Low Fan button( ) to enter SEG14 value. Press High Fan button( ) to enter SEG15 value. Each time you press the button, … will be selected in rotation. SEG14 SEG15 Samsung Electronics...
Page 172 Press Mode button to be change to HEAT mode in the OFF status. 19. Setting SEG23, SEG24 mode Press Low Fan button( ) to enter SEG23 value. Press High Fan button( ) to enter SEG24 value. Each time you press the button, … will be selected in rotation. SEG23 SEG24 Samsung Electronics...
Page 173 For the correct option setting, you must input the option twice. 1) Reset the indoor unit by pressing the RESET button of indoor unit or outdoor unit. 2) Take the batteries out of the remote controller and insert them again and then press the operation button. 4-10 Samsung Electronics...
Page 174 2. Set the option values. CAUTION set values for these options are skipped automatically. SEG4 and SEG5 SEG6 and SEG8 SEG9 and SEG10 SEG11 and SEG12 SEG14 and SEG15 SEG16 and SEG17 SEG18 and SEG20 SEG21 and SEG22 SEG23 and SEG24. Samsung Electronics 4-11...
Page 175 SEG8 When you rotate the Wheel, values appear in the following order: 6 Press the (Mode) button. Fan and On appear on the remote control display. 4-12 Samsung Electronics...
Page 176 (Mode) button. Cool and Oﬀ appear on the remote control display. 13 Set the SEG16 and SEG17 values: a Set the SEG16 value by rotating the Wheel counterclockwise until the value you want to set appears on the remote control display. SEG16 Samsung Electronics 4-13...
Page 177 SEG23 b Set the SEG24 value by rotating the Wheel clockwise until the value you want to set appears on the remote control display. SEG24 When you rotate the Wheel, values appear in the following order: 4-14 Samsung Electronics...
Page 178 Reset the indoor unit by disconnecting and then reconnecting the power cable of the indoor unit or by pressing the RESET button on the outdoor unit. b. Remove the batteries from the remote control, insert them again, and then press the (Power) button on the remote control. NOTE remote control sensor to detect indoor temperature exactly.. Samsung Electronics 4-15...
Page 179 (The same as Indoor Unit’s input Power) 1(L) 2(N) COM2 COM1 OUTDOOR COM- Wire Remote DC 12 V MUNICATION Controller POWER COIL ▶ The external output of SEG15 is generated by MIM-B14 connection. (Refer to the manual of MIM-B14.) 4-16 Samsung Electronics...
Page 180 Indication Details Indication Details Indication Details heater On/ external Off signal control Disuse Thermo on Disuse 1000 Hour Indication buzzer ON/OFF Operation Disuse and Details control buzzer OFF con- (*3) trol 2000 Hour Window (*3) ON/OFF control Samsung Electronics 4-17...
Page 181 - Other indoor units: 2 °C Do not install the electronic heater in the flow channel of the indoor unit fan. CAUTION Electronic heater should not be installed. Discharge side Suction side Air Flow Duct Indoor unit 4-18 Samsung Electronics...
Page 182 Long pipe Time required for change Cooling or height difference mode change Heating between indoor units SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 Control variables when using hot water / external heater SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 Samsung Electronics 4-19...
Page 183 (*1) 9 min. more than 30 m 2) Distance (*2) Indication 11 min. is longer than and Details 110 m 13 min. 1) Height 15 min. difference (*1) 20 min. 15~30 m or 2) Distance (*2) 30 min. 50~110 m 4-20 Samsung Electronics...
Page 184 - External heater is turned on when the temperature is maintained as 8.1 °F(4.5 °C) for 10 minutes. Room temp. > set temp. + f(heating compensation temp.) - External heater is turned off when the temperature is maintained as 8.1 °F(4.5 °C) + 1.8 °F(1 °C) (1 °C is the Hysteresis for On/Off selection.) Samsung Electronics 4-21...
Page 185: Option Items
Troubleshooting 4-3-2 Option Items SAMSUNG MODEL Static Install Code TYPE Option Install Code Cycel code NUMBER Pressure AM007FN1DCH/AA 017044-1180C8-201616-330010 Slim 1WAY JSF-1 AM009FN1DCH/AA 017044-1180F8-201C1C-330010 AM012FN1DCH/AA 017044-11545D-202323-330010 AM009FNDNCH/AA 01504F-19540A-201C1C-330000 AM012FNDNCH/AA 01504F-19342C-202323-330000 Mini 4WAY Small AM018FNDNCH/AA 01504F-19547F-203434-330000 AM020FNDNCH/AA 01504F-195591-203C3C-330000 AM009FN4DCH/AA 014047-195064-201A1A-330000 Small...
Page 186 (*1) 9 min. more than 30 m 2) Distance (*2) Indication 11 min. is longer than and Details 110 m 13 min. 1) Height 15 min. difference (*1) 20 min. 15~30 m or 2) Distance (*2) 30 min. 50~110 m Samsung Electronics 4-23...
Page 187 - External heater is turned on when the temperature is maintained as 8.1 °F(4.5 °C) for 10 minutes. Room temp. > set temp. + f(heating compensation temp.) - External heater is turned off when the temperature is maintained as 8.1 °F(4.5 °C) + 1.8 °F(1 °C) (1 °C is the Hysteresis for On/Off selection.) 4-24 Samsung Electronics...
Page 188 Troubleshooting Option Items(cont.) SAMSUNG MODEL Static Install Code TYPE Option Install Code Cycel code NUMBER Pressure AM007FNTDCH/AA 010044-1170FA-201616-330000 Small AM009FNTDCH/AA 010044-1170FA-201C1C-330000 AM012FNTDCH/AA 010044-11744D-202323-330000 NEO FORTE (without EEV) AM018FNTDCH/AA 010044-11645E-203434-330020 Large AM020FNTDCH/AA 010044-11646F-203C3C-330020 AM024FNTDCH/AA 010044-11648F-204848-330020 AM007HNQDCH/AA 010044-1170FA-201616-330000 Small AM009HNQDCH/AA 010044-1170FA-201C1C-330000 AM012HNQDCH/AA...
Page 189 , input the appropriate option code. If you input the inappropriate option code,error may occur or the air conditioner is out of order. The option code must be inputted correctly by the installation specialist or service agent. 4-26 Samsung Electronics...
Page 190: What To Check Before Diagnosis
When E108 error occurs, change the address and reset the system. Ex.) When address of the indoor unit #1 and #2 are set as 5, address of the indoor unit #1 will become 5 and indoor unit #2 will display E108, A002. Samsung Electronics 4-27...
Page 191 When E108 error occurs, change the address and reset the system. Ex.) When address of the indoor unit #1 and #2 are set as 5, address of the indoor unit #1 will become 5 and indoor unit #2 will display E108, A002. 4-28 Samsung Electronics...
Page 192 14. Simultaneous opening of cooling/heating MCU SOL valve (1st detection) 15. Simultaneous opening of cooling/heating MCU SOL valve (2nd detection) Other outdoor unit self-diagnosis error that is not on the above list E153 Flowating s/w (2nd detection) E162 EEPROM error Samsung Electronics 4-29...
Page 193 When E108 error occurs, change the address and reset the system. Ex.) When address of the indoor unit #1 and #2 are set as 5, address of the indoor unit #1 will become 5 and indoor unit #2 will display E108, A002. 4-30 Samsung Electronics...
Page 194 - When E108 error occurs, change the address and reset the system.Ex.) When address of the indoor unit #1 and #2 are set as 5, address of the indoor unit #1 will become 5 and indoor unit #2 will display E108, A002. Samsung Electronics 4-31...
Page 195 - When E108 error occurs, change the address and reset the system.Ex.) When address of the indoor unit #1 and #2 are set as 5, address of the indoor unit #1 will become 5 and indoor unit #2 will display E108, A002. 4-32 Samsung Electronics...
Page 196 : Off - If you turn off the air conditioner when the LED is flickering, the LED is also turned off. - If you re-operate the air conditioner, it operates normally at first, then detect an error again. Samsung Electronics 4-33...
Page 197 - If the LED displays olny one color, it is turned on for a second and turned off for a second. - If the LED displays more than two colors, each color is shown for a second alternately. 4-34 Samsung Electronics...
Page 198 EEPROM error E163 EEPROM option error E164 Error due to incompatible indoor unit : On : Flickering : Off - If you turn off the air conditioner when the LED is flickering, the LED is also turned off. Samsung Electronics 4-35...
Page 199: Number Display Method (Outdoor Unit, Mcu, Cable Remote Control, Wall-Mount, Etc.)
Error Number, repeat display Display method for error that occurred in outdoor unit Error Number Outdoor unit address E471 U200 E471 U200 and other methods of error display Error Number, repeat display E206 C001 E206 C002 4-36 Samsung Electronics...
Page 200 No temperature changes in EVA OUT during pipe inspection or changes in temperature is seen in E-191 indoor unit with wrong address E-198 Error due to disconnected thermal fuse of indoor unit Samsung Electronics 4-37...
Page 201 Error on top sensor of compressor 2 (Short or Open) E-291 Refrigerant leakage or error on high pressure sensor (Short or Open) E-296 Refrigerant leakage or error on low pressure sensor (Short or Open) E-308 Error on suction temperature sensor (Short or Open) 4-38 Samsung Electronics...
Page 202 Cooling mode restriction due to low air temperature E-442 Refrigerant charing restriction in heating mode when air temperature is over 15 °C E-443 Operation prohibited due to low pressure E-445 CCH is deatched E-446 Error due to operation failure of Fan1 Samsung Electronics 4-39...
Page 203 Error due to closed EEV of indoor unit (1st detection) E-703 Error due to opened EEV of indoor unit (1st detection) Trial operation incompleted (UnPrepared) - It will be cleared when trial operation was executed for 1 hour or when automatic inspection is completed 4-40 Samsung Electronics...
Page 204: Appropriate Measures For Different Symptom
UP will be dis- played. 2. Execute the automatic commissioning by Tact Switch. 3. UP display disappears after commissioning is complete, normal operation is possible. 4. Automatic commissioning is completed, if there is a history, nor- mal operation execution immediately. Samsung Electronics 4-41...
Page 205: Main Pcb Has No Power Phenomenon
Check the short circuit of Hub PCB. Confirm a blinking of Hub PCB LED. Replace Hub PCB Did you check Connecting the communication wire. (CN96) the connection status of the Main / Hub connection wire? Replace Fan PCB 4-42 Samsung Electronics...
Page 206: Indoor Unit Room Sensor Error (Open/Short)
Ex) Room temp. 26°C – Resistance 0.926KΩ 12.1 18.0 27.3 43.0 At that time, is the resistance value significantly deviated from the temp. table? As it is due to an indoor oom temperature sensor defect, replace it. Re-start after replacing PCB. Samsung Electronics 4-43...
Page 207: Indoor Unit Evap In Sensor Error (Open/Short)
Ex) Room temp. 26°C – Resistance 10.93KΩ 12.1 18.0 27.3 43.0 At that time, is the resistance value significantly deviated from the temp. table? As it is due to an indoor EVAP IN sensor defect, replace it. Re-start after replacing PCB. 4-44 Samsung Electronics...
Page 208: Indoor Evap Out Sensor Error (Open/Short)
12.1 18.0 27.3 43.0 At that time, is the resistance value significantly deviated from the temp. table? As it is due to an indoor EVAP OUT sensor defect, replace it. Re-start after replacing PCB. Samsung Electronics 4-45...
Page 209: Indoor Heat Exchanger's Evap In Sensor Dislocation Error
12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Indoor EVA In sensor itself. Restart operation after replace the PCB. 4-46 Samsung Electronics...
Page 210: Indoor Heat Exchanger's Eva Out Sensor Dislocation Error (Open/Short)
12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Indoor EVA Out sensor itself. Restart operation after replace the PCB. Samsung Electronics 4-47...
Page 211: Simultaneous Indoor Heat Exchanger's Eva In, Out Sensor Dislocation Error (Open/Short)
Indoor unit operation & Thermo On Simultaneous Indoor heat exchanger's Error details EVA IN, OUT sensor dislocation error 2. How to check Check if an Indoor heat exchanger's EVA IN, OUT sensor has been dislocated then is correct after assembling. 4-48 Samsung Electronics...
Page 212: Electronic Expansion Valve Opening Malfunction (2Nd Stage) - E135
- Hydro Unit PCB k1, k2 switch : At the same time push for more than 4 seconds. - After resolving the cause of the error, restart operation. (Excessive reset operation, can cause damage to the Heat Exchanger.) Samsung Electronics 4-49...
Page 213: Breakdown Of Eev (2 Nd )
5) If there is no problem with the above checkup items, replace the electronic expansion valve of the troubled indoor unit. 4)- As an electronic expansion valve replacement is tricky work that requires collecting refrigerants in all systems, please check the above items before replacement. 4-50 Samsung Electronics...
Page 214: Problem With Eev Closure
5) If there is no problem with the above checkup items, replace the electronic expansion valve of the troubled indoor unit. 4)- As electronic expansion valve replacement is tricky work that requires collecting refrigerants in all systems, please check the above items before replacement. Samsung Electronics 4-51...
Page 215 Does the water level in the Drain Pan get lower? Replace Drain pump Replace Indoor Unit PCB Normal operation ● Float sensor error will be removed only when the remote controller Replace Drain pump for an indoor unit operates 4-52 Samsung Electronics...
Page 216: The Operational Error Of Indoor Unit's Fan Motor
2) If a fan motor operation capacitor is a PCB separating type, check the connection terminal. 3) Check the operational status of the fan motor. 4) If there is no problem with the above checkup items, replace the PCB. Samsung Electronics 4-53...
Page 217: Mixed Operation Error (Only Applicable To Heat Pump Model/Not To Hr Model)
● Check the operational mode of outdoor unit or other indoor unit then re-enter or stop the operational mode of the relevant unit. ● If it is necessary to apply a different operational mode to an indoor unit from others, please stop other indoor units then operate the indoor unit. 4-54 Samsung Electronics...
Page 218: Eeprom Error
Are there any problems such as short or dewetting between Replace PCB EEPROM PIN? If you restart after reentering model options and power reset, does the Normal operation error occur again? Replace PCB Samsung Electronics 4-55...
Page 219: Option Error Of The Remote Controller For An Indoor Unit
● Check relevant remote controller options for each model then enter correct options ● As this happens only in a Celsius setting model, it is necessary to reenter option codes for error-free models in a region where Celsius is used. 4-56 Samsung Electronics...
Page 220: St Nd
Check the coil connection Correctly connected? and fasten it again When you restart it after replacing MCU SOL VALVE coils, does the Replace coils as they are defective. same error occur again? Replace MCU SOL VALVE BODY Samsung Electronics 4-57...
Page 221: Error Due To Incorrect Indoor Unit Power/Communication Cable Connection
(wall mount type) Criteria Check for Power input(220V) for the Terminal block(F1/F2). Cause of problem Apply power (220V) to the terminal of the indoor unit communication block (F1/F2) ● Check for disconnected line after turning off the Main power. 4-58 Samsung Electronics...
Page 222: Spi Feedback Error
Is the SPI connector of an Connect the connector to PCB indoor unit separated from PCB? and reoperate 예 Can you measure 12V from #1, #4 power with SPI connector Replace SPI being connected? Replace Main PCB Samsung Electronics 4-59...
Page 223: Outdoor Unit Pipe Inspection Error
● Check if the indoor address settings are the same for the address of the indoor units connected to each port of the MCU and the address of the indoor units of the relevant MCU ports. ● Check if the indoor unit usage setup switch is turned on for the MCU port connected to the indoor unit. 4-60 Samsung Electronics...
Page 224: Communication Error Between Indoor And Outdoor Units During Tracking
If there is no peculiarity, then connect the indoor units one by one Check the communication cable and the connector to find the indoor unit that is interfering with the communication for of the outdoor unit PCB, and change the PCB. inspection and change the indoor unit PCB. Samsung Electronics 4-61...
Page 225: Communication Error Between Indoor And Outdoor Units After Tracking
* Essential Requirements before Changing PCB in the indoor unit which interferes with the communication Case of Communication Error: Refer to p.50 to check and change the indoor unit PCB. Good Defective 0.7V 0.7V 4-62 Samsung Electronics...
Page 226: Communication Error Between Main And Sub Unit Of Outdoor Unit Or Between Outdoor Units
Check wiring of outdoor unit Change wiring or connect communication cable. Check K13 and K14 setup Change settings options for outdoor unit. Replace PCB. Essential Requirements before Changing PCB in Case of Communication Error: Refer to p.59 Samsung Electronics 4-63...
Page 227: Communication Error Between Mcu And Outdoor Unit
Change the communication cable and the connector to check and change the MCU PCB. of the outdoor PCB, and then change the PCB. ❈ Essential Requirements before Changing PCB in Case of Communication Error: Refer to p.4-80 4-64 Samsung Electronics...
Page 228: Internal Communication Error Of The Outdoor Unit C-Box
1) Check the Main PCB : Main PCB TX circuit inspection Confirm a blinking of Fan PCB LD22, 32? 2) Check the Hub PCB : Hub PCB TX circuit inspection * Service after turn off the Main Power. Replace Main PCB Samsung Electronics 4-65...
Page 229: Internal Pcb Communication Error Of The Outdoor Unit C-Box
Replace Hub PCB E206 C002 Check the connection status Lighting of Fan PCB LD41 did confirmation? (CN12 connector) Is Fan PCB CN13 connector accurately connected? Fan PCB CN13 connection Replace Fan PCB (Fan PCB TX part : Breakage) 4-66 Samsung Electronics...
Page 230: Communication Error Between Mcu And Outdoor Unit After Tracking Is Completed
MCU PCB. Connect each unit one by one, and find the MCU which interferes with communication to check and change the MCU PCB. ❈ Essential Requirements before Changing PCB in Case of Communication Error: Refer to p.4-80 Good Defective 0.7V 0.7V Samsung Electronics 4-67...
Page 231: Mcu Branch Part Setup Error - Inconsecutive Connection With The Use Of 2 Branch Parts
Find an MCU that is composed as the following picture to carry out assembly of branch part again. After completing the re-setting, press K3 button on the button to reset or turn it off to restart. MCU BOX #0 address setup MCU PCB Branch part use setup Setting error Indoor unit address Branch A Indoor unit 4-68 Samsung Electronics...
Page 232: Mcu Branch Part Setup Error - Repeated Setup For The Same Address Over 3 Times
Find an MCU that is composed as the following picture to carry out assembly of branch part again. After completing the re-setting, press K3 button on the button to reset or turn it off to restart. MCU BOX #0 address setup MCU PCB Branch part use setup Setting error Indoor unit address Branch A Indoor unit Samsung Electronics 4-69...
Page 233: Mcu Branch Part Setup Error - Non-Installed Address Setup
Find an MCU that is composed as the following picture to carry out assembly of branch part again. After completing the re-setting, press K3 button on the button to reset or turn it off to restart. MCU Address Setup MCU BOX #0 MCU PCB Setup for Using Branch Sphere Indoor Unit Address Branch Sphere A Indoor Unit 4-70 Samsung Electronics...
Page 234: Setup Error For Mcu Branch Part - Setup Error For Mcu Quantity Used
Setup for Indoor MCU Address Quantity Used Setup MCU Address Setup MCU BOX #0 MCU BOX #1 MCU PCB MCU PCB Setup for Using Branch Sphere Indoor Unit Address Branch Sphere A Branch Sphere A B Indoor Unit Samsung Electronics 4-71...
Page 235: Mcu Branch Part Setup Error - Overlapping Indoor Unit Address Setup
After completing resetting, press the outdoor unit's K3 button to reset or turn off to restart. MCU BOX #0 address setup MCU PCB Branch part use setup Indoor unit address Branch A MCU BOX #1 address setup MCU PCB Branch part use setup Indoor unit address Branch A 4-72 Samsung Electronics...
Page 236: Mcu Branch Part Setup Error - Set As Being Used Without Connection To An Indoor Unit
Adjust the Dip switch that sets up the use of MCU branch part to ‘Not-Used'. After completing resetting, press the outdoor unit's K3 button to reset or turn off to restart. MCU BOX #1 MCU PCB Branch A Samsung Electronics 4-73...
Page 237: Mcu Branch Part Setup Error - Connect An Indoor Unit To A Branch Part Not Being Used
Check the actual use of the branch part. If it is used, turn on the Dip switch for branch part setup. After completing resetting, press the outdoor unit's K3 button to reset or turn off to restart. MCU BOX #1 MCU address setup MCU PCB Branch part use setup Indoor unit address Branch A Indoor unit 4-74 Samsung Electronics...
Page 238: Mcu Branch Part Setup Error - Connect More Indoor Units Than What Is Actually Set Up In Mcu
After completing resetting, press the outdoor unit's K3 button to reset or turn off to restart. Outdoor unit Indoor number setup MCU number setup MCU address setup MCU BOX #0 MCU BOX #1 MCU PCB MCU PCB Branch part use setup Indoor unit address Branch A Branch A Samsung Electronics 4-75...
Page 239: Outdoor Temperature Sensor Error
12.1 18.0 27.3 Did the resistance 43.0 value significantly stray from the following temperature table? Replace this since it is the defective of the outdoor temperature sensor itself. Restart operation after replace the PCB 4-76 Samsung Electronics...
Page 240: Outdoor Temperature Dislocation Error
12.1 18.0 27.3 43.0 Does the resistance value greatly deviate from the temperature table to the next? As it is due to a problem with the outdoor temperature sensor, replace it. Restart after replacing the PCB Samsung Electronics 4-77...
Page 241: Cond Out Temperature Sensor Error (Open/Short)
COND 12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the outdoor Cond Out sensor itself. Restart operation after replace the PCB 4-78 Samsung Electronics...
Page 242: Outdoor Cond Out Sensor Breakaway Error
Is the Cond Out sensor resistance value reasonable? Defective Sensor : Replace Sensor (Refer to E231) Are there any changes n the value of the sensor when operating from Blocked Sensor Path : stop to heating? Change heat exchanger Ass'y Complete Samsung Electronics 4-79...
Page 243: Digital Compressor Discharge Temperature Sensor Error (Open/Short)
2 terminals. 32.0 59.0 200.0 242.0 362.0 553.0 Did the resistance value significantly stray from the following temperature table? Change this part as it is the fault of the discharge temperature sensor itself. Restart operation after changing PCB. 4-80 Samsung Electronics...
Page 244: Constant Rate Compressor Discharge Temperature Sensor Error (Open/Short)
200.0 242.0 362.0 553.0 Did the resistance value significantly stray from the following temperature table? Change this part as it is the fault of the constant rate compressor discharge temperature sensor itself. Restart operation after changing PCB. Samsung Electronics 4-81...
Page 245: Compressor Discharge Or Top 1/2 Temperature Sensor Error
242.0 362.0 553.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Compressor Discharge or Top Temperature sensor itself. Restart operation after replace the PCB 4-82 Samsung Electronics...
Page 246: E265 : Dislocation Error Of Compressor Sump Temperature (Oil Temperature) Sensor
After 60 minutes of compressor operation, there will be no Sump sensor dislocation detection. 2. How to check 1) Check if a sensor of the relevant compressor has been dislocated in accordance with error code, assemble and correct the error. Samsung Electronics 4-83...
Page 247: E269 : Suction Temperature Sensor Breakaway Error
∙ Suction temperature sensor breakaway/defective. 1. Cause of problem Is Suction sensor Re-insert the sensor. and sensor Holder accurately Re-attach the sensor holder. attached? Is Suction sensor resistance value reasonable? Defective Sensor : Replace Sensor (Refer to E231 ) Complete 4-84 Samsung Electronics...
Page 248: Sump Temperature Sensor Error (Open/Short)
12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Change this part as it is the fault of the outdoor SUMP sensor itself. Restart operation after changing PCB. Samsung Electronics 4-85...
Page 249: High Pressure Sensor Error (Open/Short)
(Please check by connecting the menu folder gauge to the service valve) Out of the PCB High Pressure Replace PCB sensor terminals, is there voltage between pins 3 and 4 5V? The mark is the 1st pin on the PCB. Replace High Pressure sensor 4-86 Samsung Electronics...
Page 250: Low Pressure Sensor Error (Open/Short)
Out of the PCB Low Pressure Replace PCB sensor terminals, is there voltage between pins 3 and 4 5V? The mark is the 1st pin on the PCB. Replace Low Pressure sensor Samsung Electronics 4-87...
Page 251: Suction Temperature Sensor Error (Open/Short)
2 terminals. 12.1 SUCT 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Outdoor Suction sensor itself. Restart operation after replace the PCB 4-88 Samsung Electronics...
Page 252: Liquid Pipe Temperature Sensor Error (Open/Short)
LIQUID 12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Liquid Pipe Temperature sensor itself. Restart operation after replace the PCB Samsung Electronics 4-89...
Page 253: Evi In Temperature Sensor Error (Open/Short)
12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Outdoor EVI In Temperature sensor itself. Restart operation after replace the PCB 4-90 Samsung Electronics...
Page 254: Evi Out Temperature Sensor Error (Open/Short)
12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Replace this part as it is the defective of the Outdoor EVI Out Temperature sensor itself. Restart operation after replace the PCB Samsung Electronics 4-91...
Page 255: Suction-2 Temperature Sensor Error (Open/Short)
12.1 18.0 27.3 43.0 Did the resistance value significantly stray from the following temperature table? Change this part as it is the fault of the outdoor Suction-2 sensor itself. Restart operation after changing PCB 4-92 Samsung Electronics...
Page 256: E407 : Comp. Down Due To High Pressure Protection Control
Are there any blockage inside Pipe inspection the pipe? (filter etc.) Are the Outdoor Fan Replace relevant component operating normally for the cooling and the Indoor Fan operating normally for (motor or fan) the heating? Check the refrigerant amount. Samsung Electronics 4-93...
Page 257: E410 : Comp. Down Due To Low Pressure Protection Control
(filter etc.) Is there any leakage in the Liquid Pipe Valve or the discharge check Replace relevant component valve of the not-go-end Outdoor Unit when only some Outdoor Units are operating? Check the refrigerant amount. 4-94 Samsung Electronics...
Page 258: Sump Sensor Error Due To Protection Control
Re-attach and check sensor. Is the sensor displaying the temperature normally? Check by referring to the other temperature sensor problem check-up methods. Refer to the solution method for the liquid-compression prevention error (E477). Samsung Electronics 4-95...
Page 259: E416 : Comp. Down Due To Compressor Discharge Temperature Sensor
Are all service valves open? Open the Service Valve Are the Indoor Unit and Outdoor Unit EEV normally Check the relevant EEV operating? Are there any blockage inside the pipe? Pipe inspection (filter etc.) Check the refrigerant amount. 4-96 Samsung Electronics...
Page 260: 3-Phase Input Wiring Error
Did the EMI PCB Fuse is short? Replace Fuse, if the rectifier diode of the inverter PCB is normal. Is EMI PCB CN21 connector and Inverter PCB accurately Connection and then restart it connected? Replace Inverter PCB Samsung Electronics 4-97...
Page 261: E428 : Comp. Down By Compression Ratio Control
Manifold Gauge value in range? Are the 4Way Valve normally Check the 4Way Valve operating? Are the Indoor Unit and Outdoor Check the relevant EEV Unit EEV normally operating? Compressor Inspection Is current of compressor normally? Check the refrigerant Complete 4-98 Samsung Electronics...
Page 262: Evi Eev Open Error
Breakdown Check the Intercooler leakage. Normal Replace Intercooler Breakdown Check the Indoor Unit EEV leakage Normal Replace Indoor Unit EEV Check the connection for Indoor Unit Pipe (Connect liquid pipe-gas pipe directly) Reinstall pipe Check the refrigerant Samsung Electronics 4-99...
Page 263: Refrigerant Leakage Error
Out of the PCB high-pressure sensor terminals, Replace PCB is there voltage between pins 3 and 4 5V? Replace high/low-pressure sensor The ▼ mark is the 1st pin on the PCB. 4-100 Samsung Electronics...
Page 264: E440, E442 : Prohibition Of The Operation Of Compressor Due To Ooutdoor Temperature
If the error code is displayed despite a condition that does not belong to any of the above diagnosis methods, read the temperature sensor value of the outdoor inlet air with View Mode or S-net, and if the actual outdoor temperature is different, please replace the temperature sensor. Samsung Electronics 4-101...
Page 265: High Pressure Standard Not Met Before Air Conditioning (Inability To Re-Operate)
Is High Pressure sensor connector accurately connected to PCB? Reconnect and check connector. Is there any refrigerant leakage or recharging problem inside the system? (Check it through Manifold gauge) Supplement or recharge the refrigerant. Replace High Pressure sensor 4-102 Samsung Electronics...
Page 266: Cch Malfunction And Sump Sensor Miswiring Error
Attach the sump sensor to the lower part of the compressor. Is CCH resistance normal? (500~700Ω/infinite for disconnection) Change CCH. Does the E445 error occur even after the outdoor unit power is put back in? Normal Operation Change PCB. Samsung Electronics 4-103...
Page 267: Fan Starting Error
Motor (U V,V W,W U) less than 10Ω? Is the resistance between the body of Replace Fan Motor Fan Motor and chassis MΩ? Does the Compressor connection Check the connection wire wire properly connect? Replace Fan PCB 4-104 Samsung Electronics...
Page 268: Fan Lock Error
If you rotate the fan by hand, Replace Fan Motor the noise occurs? Connection wire of Fan Motor did confirmation? Check the connection status, and then restart. (Check the connection status of the Fan1 and Fan2.) Replace Fan PCB Samsung Electronics 4-105...
Page 269: Momentary Blackout Error
( Filter ) × ( Defrost ) Judgment Method ∙ Momentary stop of compressor due to momentary blackout. Cause of problem ∙ Momentary stop of compressor due to momentary blackout. 1. Precautions : Replace Hub PCB or Main Hub Connection wire. 4-106 Samsung Electronics...
Page 270: Outdoor Fan Motor Overheating
Connection wire of Fan Motor did confirmation? (Verify that the wire folded, or the connection is Check the connecting wire and restart it. detached.) Is there anything strange in Replace Fan PCB appearance Fan Motor? Replace Fan Motor Samsung Electronics 4-107...
Page 271: Outdoor Unit Fan Motor Rpm Error
Connect connector as normal. connector normal? Is the connection for Re-connect connector. the fan connector normal? Is connection for Re-connect connector. fan power condenser normal? Is the motor operating Change motor. condition normal after changing PBA? Complete 4-108 Samsung Electronics...
Page 272: Fan Ipm Overheat Error
*Cold heat sink assembly defect occurs. Is the bolt of the heat sink fully tightened? Tighten Bolt Remove foreign objects and Did check the foreign objects between apply the heat sink grease. the heat sink and IPM? And then reassembly Complete Samsung Electronics 4-109...
Page 273: Over-Voltage Error Of An Outdoor Fan Motor
1) It is a signal to protect a motor by checking the operational condition of the outdoor unit's fan motor without power so as not to operate it in counter-clockwise condition. 2) Check if there is wind strong enough to force a fan to rotate counter-clockwise where the outdoor unit is installed. 4-110 Samsung Electronics...
Page 274: E458 : Compressor Excess Current Error
Is the measured value from the separate ammeter the Change CT sensor. same as the CT sensor value? Is the CT value Breakdown of Compressor: Change measured at 20A or more during compressor. the operation? Inspection Complete Samsung Electronics 4-111...
Page 275: Compressor Starting Error
Replace Compressor. compressor (U V,V W,W U) less than 2Ω? Is the resistance between the body of Compressor and Replace Compressor. chassis MΩ? Does the Compressor connection wire properly connect to Check the connection wire. the compressor? Continue 4-112 Samsung Electronics...
Page 276: Inverter Overcurrent Error
(U-V, V-W, W-U) less than 2Ω? Is the resistance between the body of Compressor and Replace Compressor chassis MΩ? Does the Compressor Check the connection wire connection wire properly connect (Check the status of the connection UVW) to the compressor? Continue Samsung Electronics 4-113...
Page 277: Overvoltage / Low Voltage Error
R, S, T wire? Replace Inverter PCB and then restart it. Did the EMI PCB Fuse is short? * Check the 3-phase sensing circuit part. Replace Fuse, if the rectifier diode of the inverter PCB is normal. 4-114 Samsung Electronics...
Page 278: Dc Link Voltage Sensor Error
Is EMI PCB and Inverter PCB Power Off and then re-connection accurately connected? The case of E396, E498 Is Inverter PCB and Fan PCB DC-Link voltage connection wire Replace Fan PCB accurately connected? Replace Inverter PCB The case of E396, E498 Samsung Electronics 4-115...
Page 279: Liquid Compression Prevention Control
Check the normal EEV operation Breakdown of the main EEV EVI. Resolve the relevant EEV problem. Normal Check the failure in Breakdown liquid bypass valve and 4way valve. Resolve the relevant valve problem. Normals Check and change the discharge valve leakage. 4-116 Samsung Electronics...
Page 280: Fan Motor Overcurrent Error
Is the resistance between the body of Outdoor Fan Motor Fan Motor and chassis MΩ? Check the connection wire Does the Fan Motor connection wire properly connect to the compressor? (Check the status of the connection UVW) FAN Replace PCB. Samsung Electronics 4-117...
Page 281: Input / Output Current Sensor Error
Cause of problem ∙ PCB voltage sensing circuit defective 1. Cause of problem Power Off Is Power connection accurately connected? Power Cable re-connection E485 or E385? E493 or E393? E468 or E368? Replace Inverter PCB Replace Fan PCB 4-118 Samsung Electronics...
Page 282: Outdoor Fan Pcb Overvoltage / Low Voltage Error
∙ Check the input wiring Cause of problem ∙ EMI Fuse short 1. Cause of problem Power Off Is Inverter PCB CN15 and Fan PCB CN11 DC-Link voltage connection Connection and then restart it wire accurately connected? Replace Fan PCB Samsung Electronics 4-119...
Page 283: Hall Ic(Fan) Error
(Verify that the wire folded, or the connection is detached.) Check the connecting wire and restart it. HALL IC on the PCB is connected correctly? Replace Fan PCB Restart When the error is repeated, replace the Fan Motor. 4-120 Samsung Electronics...
Page 284: Inverter Overheat Error
Remove foreign objects and apply the heat sink and IPM? grease. And then reassembly Apply the heat sink grease and then reassembly. Did properly apply the heat sink grease? (Between the heat sink and the IPM) Good No Good Complete Samsung Electronics 4-121...
Page 285: Model Mismatching Of Indoor Unit
Power On Does connected Replace the indoor unit that is indoor unit become compatible with compatible with the DVM INV. DVM INV? Is software version of Software upgrade indoor unit since July, 2011? Replace indoor unit PCB 4-122 Samsung Electronics...
Page 286 5) If there is no problem with the above checkup items, replace the electronic expansion valve of the troubled indoor unit. - As an electronic expansion valve replacement is tricky work that requires collecting refrigerants in all systems, please make sure to check the above items before replacement. Samsung Electronics 4-123...
Page 287: Breakdown Of An Eev Closure
5) If there is no problem with the above checkup items, replace the electronic expansion valve of the troubled indoor unit. - As an electronic expansion valve replacement is tricky work that requires collecting refrigerant in all systems, please make sure to check the above items before replacement. 4-124 Samsung Electronics...
Page 288: Electronic Expansion Valve Closing Malfunction (2 Nd Stage)
Normal operation of electronic expansion valve When EEV KIT was used, was its Address setting accurate? Reset EEV KIT's Address Replace electronic expansion valve Samsung Electronics 4-125...
Page 289: Electronic Expansion Valve Opening Malfunction (2 Nd Stage)
Normal operation of electronic expansion valve When EEV KIT was used, was its Address setting accurate? Reset EEV KIT's Address Replace electronic expansion valve 4-126 Samsung Electronics...
Page 290: Pcb Diagram And Parts List
5. PCB Diagram and Parts List 5-1 Indoor Unit 5-1-1 Slim 1 way cassette type 5 16 11 17 6 18 7 19 8 15 21 10 Samsung Electronics...
Page 291 #7~#10: LOUVER SIGNAL OUTPUT CN808-EEV TB101-AC POWER TE04-COMMUNICATION #1~#4: EEV SIGNAL OUTPUT #1: COM1(F1) #1~#4: EEV SIGNAL OUTPUT #2: COM1(F2) #5 : DC12V #5 : DC12V #3: V1(DC12V) #6 : DC12V #6 : DC12V #4: V2(GND) #5: COM2(F3) #6: COM2(F4) Samsung Electronics...
Page 292: 4Way Cassette , Mini 4Way Casette Type
PCB Diagram and Parts List 5-1-2 4way cassette , mini 4way casette type 21 14 16 5 10 13 Samsung Electronics...
Page 293 #6 : DC12V OUTPUT #6 : DC12V OUTPUT #7~#10: LOUVER SIGNAL OUTPUT CN801-SPI TB101-AC POWER TE04-COMMUNICATION #1: GND #1: POWER(L) #1: COM1(F1) #2: POWER(N) #2: COM1(F2) #2: GND #3: V1(DC12V) #3: SPI POWER OUTPUT(DC12V) #4: V2(GND) #5: COM2(F3) #6: COM2(F4) Samsung Electronics...
Page 294: Duct Type (Slim 1,2)
PCB Diagram and Parts List 5-1-3 Duct type (SLIM Duct 1,2) MAIN 11 12 14 15 Samsung Electronics...
Page 295 #5:R903 CONTROL SIGNAL #5EEPROM_SO #6:INRUSH OUT #6:EEPROM_SI #7:EEPROM CLK ⑰ CN801-SPI ⑱ CN311-2WIRE ⑲ CN302-COM1 COM2 #1:12V #1~2:COM1 #2:COM2_PCTRL_MICOM #3:12V #1:GND #3:COM2_VCHECK_A #4:GND #2:GND #4:COM2_VCHECK_B #5~6:COM2 #3:CONTROL SIGNAL #5:COM2_MICOM_AD #4:NOT USED #6:VCC #7:COM2_ENABLE #8:COM2_C #9:COM2_D #10:COM2_Tx #11:COM2_Rx #12:GND Samsung Electronics...
Page 296 PCB Diagram and Parts List Duct type (SLIM Duct 1,2) (cont.) ① CN313-2WIRES COMM. #1:12V #2:COM2_PCTRL_MICOM #3:COM2_VCHECK_A #4:COM2_VCHECK_B #5:COM2_MICOM_AD #6:VCC #7:NO UESD #8:COM2_C #9:COM2_D #10:COM2_TXD #11:COM2_RXD #12:GND Samsung Electronics...
Page 297 PCB Diagram and Parts List 5-1-4 Duct type (Slim Duct 3, MA-1(Drain Pump Built-in)) ■ MAIN PCB 12 13 Samsung Electronics...
Page 298 #1:12V #5~6:12V #2:GND #2:COM2_PCTRL_MICOM #2:VENT_OUT #3:CONTROL SIGNAL #3:COM2_VCHECK_A #4:NOT USED #4:COM2_VCHECK_B #5:COM2_MICOM_AD #6:VCC #7:COM2_ENABLE #8:COM2_C #9:COM2_D #10:COM2_Tx #11:COM2_Rx #12:GND ⑰ CN302-COM1 COM2 ⑱ CN703-BLDC FAN #1~2:COM1 #1:DC310V #3:12V #2:NOT USED #4:GND #3:AGND #5~6:COM2 #4:DC15V #5:PC04 OUTPUT #6:RPM OUTPUT Samsung Electronics...
Page 299: Duct Type (Slim Duct 3, Ma-1(Drain Pump Built-In))
PCB Diagram and Parts List Duct type (Slim Duct 3, MA-1(Drain Pump Built-in)) ① CN313-2WIRES COMM. #1:12V #2:COM2_PCTRL_MICOM #3:COM2_VCHECK_A #4:COM2_VCHECK_B #5:COM2_MICOM_AD #6:VCC #7:NO UESD #8:COM2_C #9:COM2_D #10:COM2_TXD #11:COM2_RXD #12:GND 5-10 Samsung Electronics...
Page 300: Duct Type (Msp, Hsp Small, Big Duct, Ma-2(Drain Pump Built-In))
PCB Diagram and Parts List 5-1-5 Duct type (MSP, HSP Small, BIG Duct, MA-2(Drain Pump Built-in)) ■ MAIN PCB 11 12 14 15 17 18 Samsung Electronics 5-11...
Page 301 #11:GND #12:VCC #13:BZ2 CN302-Indoor and Outdoor CN311-2 CN302-Indoor and Outdoor ⑰ ⑱ ⑲ Telecommunications Communication Telecommunications and cable and cable #1,2: Indoor and Outdoor machine #1: L communication #2: N #3:12V #4:GND #5: Wired remote control communication 5-12 Samsung Electronics...
Page 302 PCB Diagram and Parts List Duct type (HSP Small , MA-2(Drain Pump Built-in)) (cont.) ■ BLDC PCB Samsung Electronics 5-13...
Page 303 #1: AC power L #1: DC12V #1: DC310V #2: Fan Signal #2: AC power N #2: Fan signal #3: GND #3: DC5V #4: DC15V #4: Fan feedback signal #5: Fan signal #5: GND #6: Fan feedback signal 5-14 Samsung Electronics...
Page 304 PCB Diagram and Parts List Duct type(BIG Duct) (cont.) ■ EMI PCB Samsung Electronics 5-15...
Page 305 PCB Diagram and Parts List Duct type(BIG Duct) ■ EMI PCB ① Power Input L ② Power Input N ③ Earth ④ Power Output L ⑤ Power Output N 5-16 Samsung Electronics...
Page 306: Duct Type (Am054Jnhdch/Aa)
PCB Diagram and Parts List 5-1-6 Duct type (AM054JNHDCH/AA) ■ MAIN PCB Samsung Electronics 5-17...
Page 307 COMMUNICATION / WIRED REMOTE COMMUNICATIONS #1~4: EEV #1: 12V #1,2:GND #1,2: Indoor and outdoor group #5,6: 12V #2: VENT OUT #3:SPI Control communication #3:12V #4:GND #5: Wired remote communication CN311-2 CN101-AC INPUT Communication #1: L #2: N 5-18 Samsung Electronics...
Page 308 PCB Diagram and Parts List Duct type (AM054JNHDCH/AA) (cont.) ■ BLDC PCB Samsung Electronics 5-19...
Page 309 #1: AC power L #1: DC12V #1: DC310V #2: Fan Signal #2: AC power N #2: Fan signal #3: GND #3: DC5V #4: DC15V #4: Fan feedback signal #5: Fan signal #5: GND #6: Fan feedback signal 5-20 Samsung Electronics...
Page 310: Celing Type
PCB Diagram and Parts List 5-1-7 Celing type Samsung Electronics 5-21...
Page 311 #4: NOT USED #4: NOT USED #7~#11:COMM. SIGNAL #5: GND #12:GND CN31-HUMAN_ ⑰ CN201-EEPROM ⑱ ⑲ CN103-DRAIN SENSOR #1:GND #1~#2: COM1 SIGNAL #1: DRAIN SIGNAL #2:NOT USED #3: DC12V #2: GND #3:VCC(DC5V) #4: GND #4~#7:EEPROM SIGNAL #5~#6: COM2 SIGNAL 5-22 Samsung Electronics...
Page 312 SMW250-06 BLU 3711-004182 CN905 FAN MOTOR COMM SMW200-10P WHT 3711-003895 CN501 DISPLAY SMW200-13P WHT 3711-000794 CN411 FLOAT-SW SMW250-02 BLK 3711-000015 CN412 ROOM SENSOR SMW250-02 WHT 3711-004236 CN413 EVA DIS/OUT SENSOR SMW200-06P WHT 3711-005097 CN601 LOUVER SMW200-5P BLU Samsung Electronics 5-23...
Page 313 3711-004531 CN501 FAN MOTOR COMM #5 - OVER TEMP #6 - RST #7 - REV OUT, #8 - FAN FEEDBACK #9 - INRUSH RELAY, #10 - FAN PWM 1WALL,2P,1R,7.92mm,STRAIGHT,SN,BLK 3711-003380 CN701 POWER #1 - N, #2- L 5-24 Samsung Electronics...
Page 314 3711-004182 CN501 FAN MOTOR COMM #5 - OVER TEMP #6 - RST #7 - REV OUT, #8 - FAN FEEDBACK #9 - INRUSH RELAY, #10 - FAN PWM 1WALL,2P,1R,7.92mm,STRAIGHT,SN,BLK 3711-003405 CN701 POWER #1 - N, #2- L Samsung Electronics 5-25...
Page 315: Wall-Mounted Type (Neo Forte)
#5,6: 12V #5 : DISCHARGE TEMP CN140 - FUSE Check ⑨ ⑩ CN313-2WIRES COMM ⑪ CN301-MICOM DOWNLOAD ⑫ CN501-DISPLAY #1:FUSE CHECK #1:12V #2:GND #2~7:LED Control #8: Remote control signal output #9: AUTO SW #10: REMOCON INT #11:GND #12:VCC 5-26 Samsung Electronics...
Page 316 PCB Diagram and Parts List Wall-Mounted type (Neo Forte (cont.) ■ SUB SWITCH CN # COLOR FUNCTION ⑰ CN61 Black Main-Sub PCB Connecor CN83 White External Contact Control ⑱ Samsung Electronics 5-27...
Page 317: Floor Stand Type
PCB Diagram and Parts List 5-1-10 Floor Stand Type ■ MAIN 5-28 Samsung Electronics...
Page 318 #1~2 : GND #1~2 : COM1 #1 : FLOAT SWITCH SIGNAL COMMUNICATION #2 : GND #3 : SPI CONTROL SIGNAL SIGNAL #4 : NOT USED #3 : DC 12V #4 : GND #4~6 : COM2 COMMUNICA- TION SIGNAL Samsung Electronics 5-29...
Page 319: Oap Duct (Am Jnesch/Aa)
PCB Diagram and Parts List 5-1-11 OAP DUCT (AMSSSJNESCH/AA) ■ MAIN PCB 5-30 Samsung Electronics...
Page 320 SIDES ELECTRIC SIDES REMOTE COMMUNICATIONS #1~4: EEV #1: 12V #1,2:GND #1,2: Indoor and outdoor group #5,6: 12V #2: VENT OUT #3:SPI Control communication #3:12V #4:GND #5: Wired remote communication CN311-2 CN101-AC INPUT COMMUNICATION #1: L #2: N Samsung Electronics 5-31...
Page 321 PCB Diagram and Parts List OAP DUCT (AMSSSJNESCH/AA) (cont.) ■ EMI PCB ① N-N TOP ② L-L TOP ③ CN702-Earth ④ L-L TOP ⑤ N-N TOP 5-32 Samsung Electronics...
Page 322 PCB Diagram and Parts List OAP DUCT (AMSSSJNESCH/AA) (cont.) ■ BLDC Driver PCB Samsung Electronics 5-33...
Page 323 #4: FAN RPM #5: Fan Feedback #8: INRUSH CN12- CN13-MOTOR ⑤ ⑥ BLDC-MOTOR COMM #1: HU #1: U #2 : 5V #2 : V #3: HW #3: W #4: GND #5: HV #6: MOTOR TEMP #7: GND 5-34 Samsung Electronics...
Page 324 PCB Diagram and Parts List 5-1-12 360 cassette ■ MAIN PCB Samsung Electronics 5-35...
Page 325 #1 : DRAIN PUMP (12V) #3 : EVA OUT TEMP #2 : SGND #2 : SGND #5 : DISCHARGE TEMP #2, 4, 6 : SGND ⑬ CN804 – VENTILATOR #1 : VENT (MICOM OUTPUT) #2 : BUFFER OUTPUT(HIGH/LOW) 5-36 Samsung Electronics...
Page 326 #4 : COMP CHK (12V JUNCTION) #3 : V1 – 12V [CN83] #4 : V2 - SGND #1 : EXT_CTRL (5V) #5 : F3 - WIRED REMOTE #2 : SGND CONTROL COMM. #6 : F4 - WIRED REMOTE CONTROL COMM. Samsung Electronics 5-37...
Page 327: Cassette
#4 : CENTER 3 COLOR LED - GREEN #5 : CENTER 3 COLOR LED - RED #6 : CENTER LED – ICE BLUE #7 : VISUALIZATION LED_SECTION1, LAYER1 #8 : VISUALIZATION LED_SECTION1, LAYER2 #9 : VISUALIZATION LED_SECTION1, LAYER3 #10 : VISUALIZATION LED_SECTION2, LAYER1 5-38 Samsung Electronics...
Page 328: Wiring Diagram
6. Wiring Diagram 6-1 Indoor 6-1-1 Global 4way(Global Mini-4way) cassteet type Room Louver Temp. Control Control Sensor Motor Display Pipe Temp. Float S/W Control Control Sensor & Drain Pump This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 329: Slim 1Way Cassette Type
Wiring Diagram 6-1-2 Slim 1way cassette type This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 330: Big Duct
Wiring Diagram 6-1-3 BIG Duct This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 331: Ceiling
Wiring Diagram 6-1-4 Ceiling This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 332: Big Ceiling
Wiring Diagram 6-1-5 Big Ceiling - AM036/048JNCDCH/AA This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 333: Rac(Neo Forte)
Wiring Diagram 6-1-6 RAC(Neo Forte) This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 334: Duct Type (Slim Duct 3, Ma-1(Drain Pump Built-In))
Wiring Diagram 6-1-7 DUCT type (Slim Duct 3, MA-1(Drain Pump Built-in)) This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 335: Duct Type (Slim Dcut 1, 2, Msp)
Wiring Diagram 6-1-8 DUCT type (Slim Duct 1,2, MSP) This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 336: Duct Type (Hsp Small , Ma-2(Drain Pump Built-In))
Wiring Diagram 6-1-9 DUCT type (HSP Small , MA-2(Drain Pump Built-in)) This Document can not be used without Samsung’s authorization. Samsung Electronics...
Page 337: Floor Stand Type
Wiring Diagram 6-1-10 Floor Stand Type This Document can not be used without Samsung’s authorization. 6-10 Samsung Electronics...
Page 338: Oap Duct Type
6-1-11 OAP Duct type This Document can not be used without Samsung’s authorization. Samsung Electronics 6-11...
Page 339: Cassette
Wiring Diagram 6-1-12 360 cassette This Document can not be used without Samsung’s authorization. 6-12 Samsung Electronics...
Page 340: Reference Sheet
Version Ceiling 1Ф, 208~230V, 60Hz 2012 Console 2013 Floor Standing 2014 NEO FORTE Mode 2015 NEO FORTE (EEV) Heat Pump (R-410A) 2016 HYDRO UNIT (Floor Standing) Heat Pump (R-134A) FLAT(CEILING TYPE) VTL Product Type Outdoor Unit Indoor Unit Samsung Electronics...
Page 341: Panel
8 Languages English ★ Only display the Global 4 way with Korean/ English K separator. Pattern Waffle Stripe Korean Global market use 4 Way Export/ Panel foreign market use ※ Model name for the column/bundle packaging is “~S”. Samsung Electronics...
Page 342: Pump-Down Method
Gas pipe SVC valve is Liquid pipe SVC 가스관 SVC 밸브 닫힘 액관 SVC 밸브 닫힘 closed. valve is closed. Gas pipe SVC valve Liquid pipe SVC 가스관 SVC 밸브 열림 액관 SVC 밸브 열림 opened. valve is opened. Samsung Electronics...
Page 343: How To Put Refrigerant In Refrigerant Container
8. Please take extra caution by precisely determining the amount of the refrigerant that can be put in each container so that too much refrigerant is not contained in the container. The weight must be measured by using a scale to avoid putting more refrigerant than the amount originally contained in the container. Gas Pipe Connection Scale Liquid Pipe Connection Samsung Electronics...
Page 344 China china.samsungportal.com © Samsung Electronics Co., Ltd. October. 2016. This Service Manual is a property of Samsung Electronics Co., Ltd. Printed in Korea. Any unauthorized use of Manual can be punished under applicable International and/or domestic law. Code No. AC-00015E_9...

This manual is also suitable for:

Am009fn1dch/aa Am012fn1dch/aa Am009fnndch/aa Am012fnndch/aa Am018fnndch/aa Am020fnndch/aa ... Show all

Samsung AM007FN1DCH/AA Service Manual

1 Precautions

3 Disassembly and Reassembly

4 Troubleshooting

5 PCB Diagram and Parts List

6 Wiring Diagram

7 Reference Sheet

Quick Links

Troubleshooting

Related Manuals for Samsung AM007FN1DCH/AA

Summary of Contents for Samsung AM007FN1DCH/AA
