BRAHMA EG12 Series Manual

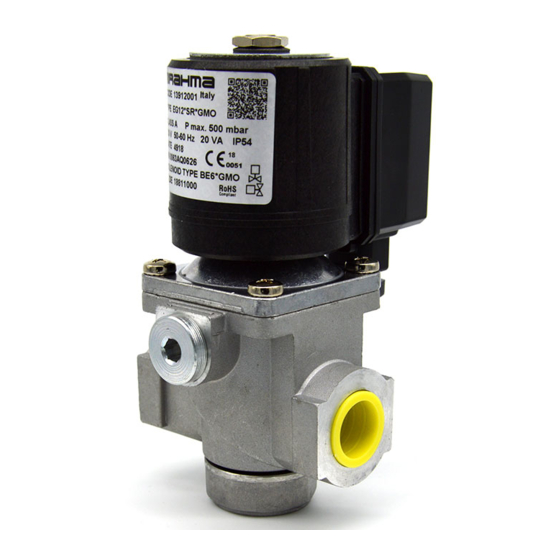

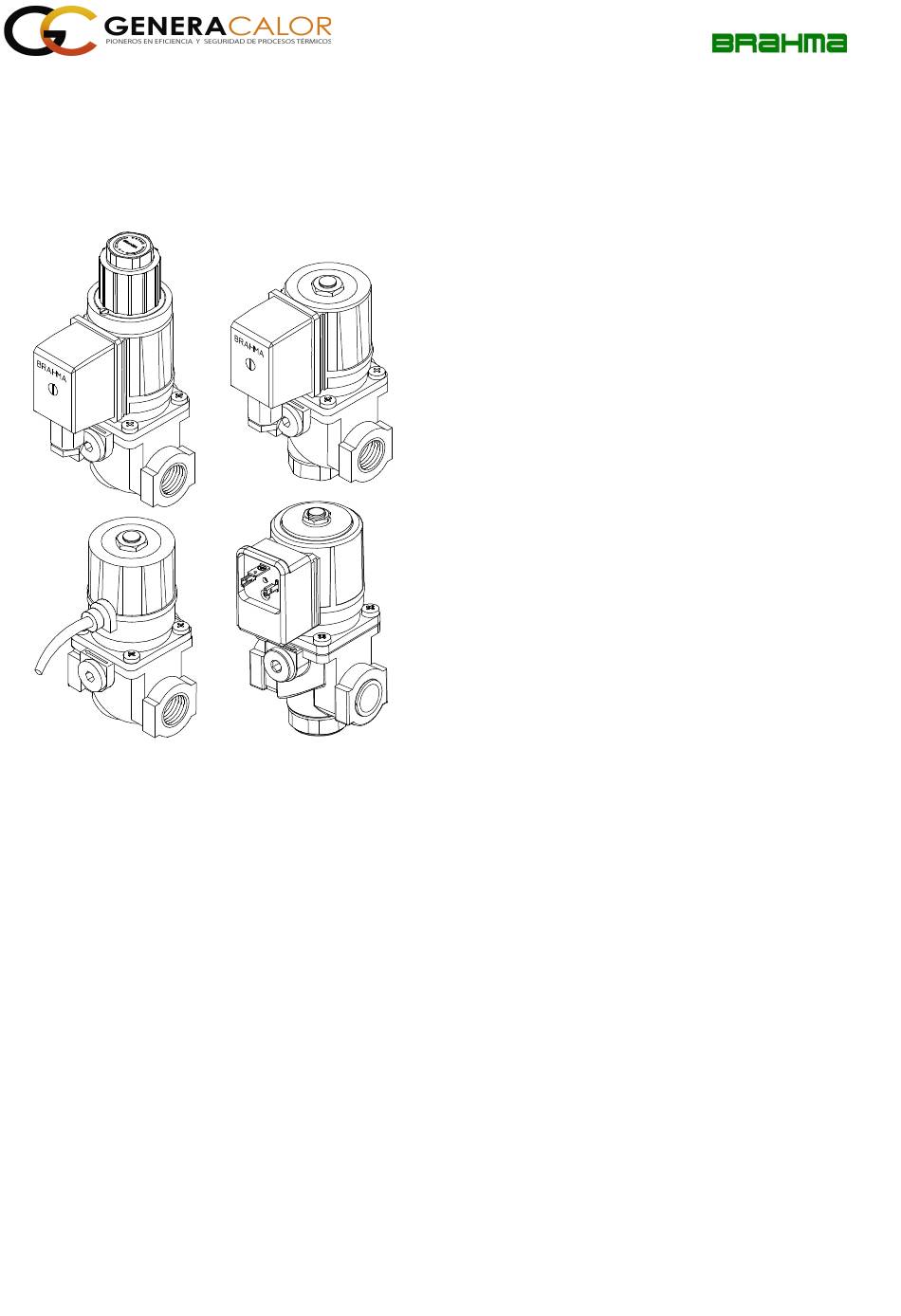

EG12* ... SERIES
SOLENOID GAS VALVES WITH 1/2"
CONNECTION AND OPERATING
PRESSURE UP TO 500mbar
2704_r03

DESCRIPTION

This series of solenoid gas valves are of normally closed
type, suitable for civil and industrial applications, supplied
with alternate or direct current and inclusive of a wire-net filter
on the inlet to avoid the entrance of dirt of > 1 mm.
Gas valves marked with "S" or "L" after reference type have
direct current supplied coil, which permitted to make actions
as silent as possible.
There is the possibility to have a fast opening or a slow
opening valve (obtained by special hydraulic shock-
obsorber), with flow adjustment and fast opening initial flow
adjustment and inlet pressure plugs (all of them) or outlet
plugs (excluding those with flow adjustment).
Gas valves of this series, conforming to EN161, have a CE
type Certificate (CE Reg. N° 63AQ0626) in accordance to
European Directives 90/396 and 93/68.
− EC- type certification in accordance with the new
European Gas Appliances Regulation (EU) 2016/426
(GAR);
− conformity to EC Low-voltage directive 2014/35/EU

TECHNICAL FEATURES

Class:
Group:
Supply voltage (1):
Operating temperature:
Closing time:
Opening time:
Mounting:
Body:
Core hitch:
(1) Versions with different supply voltages are available.
A
2
230 Vac / 50-60 Hz
110 Vac / 50-6 Hz
-10°C / +60°C
≤ 1s (all versions)
≤ 1s (quick opening
versions only)
vertical and horizontal
die-cast aluminium
PG9
1/5
