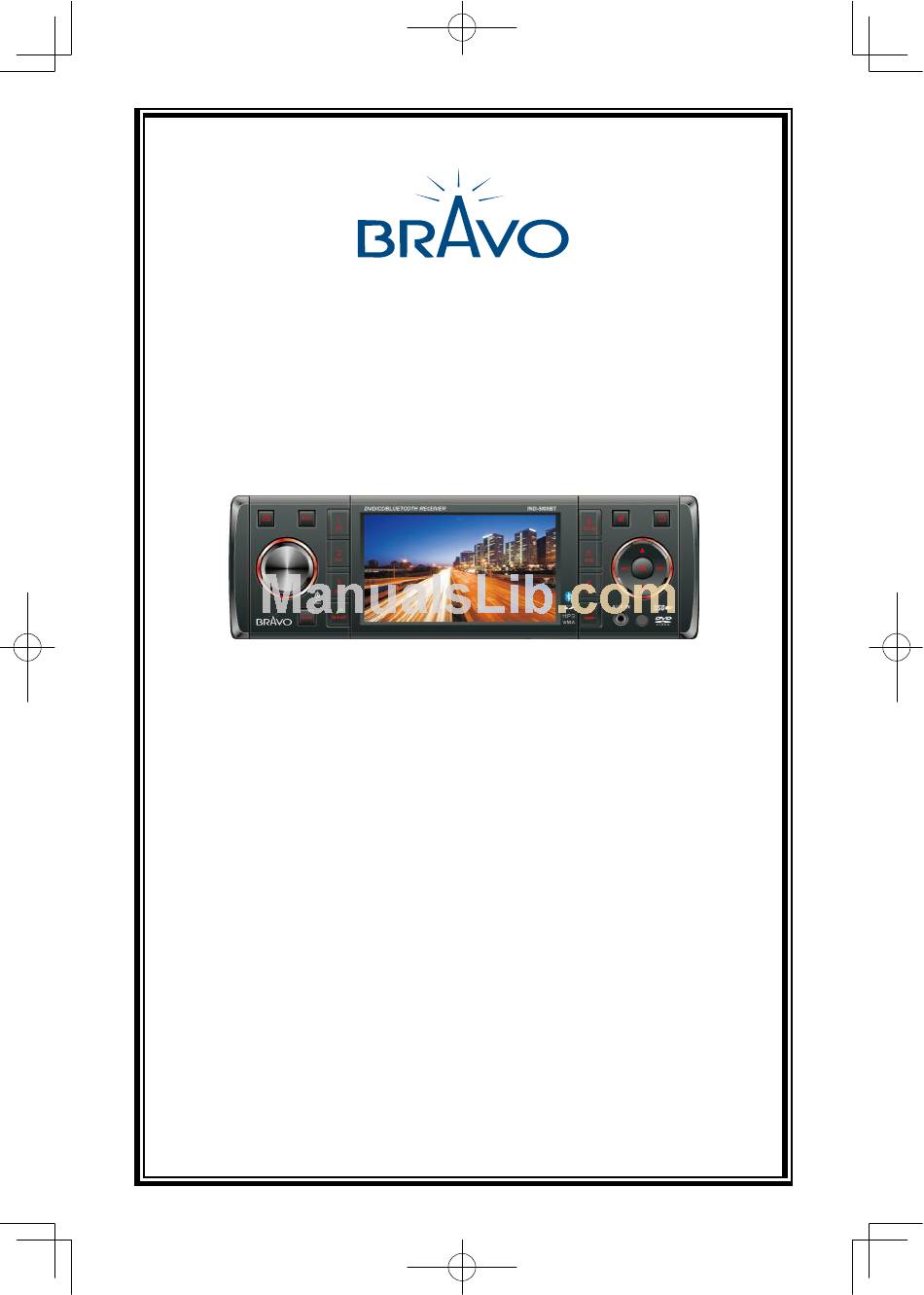

- Page 1 Thank You for purchasing the IND-5000BT 1-DIN DVD/CD RECEIVER WITH 3.5” LCD USER MANUAL V1.0 Bravo View Technology 20153 Paseo Del Prado Walnut, CA 91789 United States of America 909-869-0699 www.bravoview.com...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. P l e a s e r e a d t h r o u g h t h e s e o p e r a t i n g instructions so you will know how to operate your model properly. -
Page 3: Table Of Contents
Safety Information Caution This product is a CLASS 1 LASER PRODUCT. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not repair yourself. Refer servicing to qualified personnel. -
Page 4: Features
Features DVD-R/RW Compatibility It is possible to playback DVD-R/RW discs recorded with the video format and Video Recording format. Video CDs Featuring PBC Compatibility It is possible to playback Video CDs featuring PBC (playback control). WMA and MP3 Compatibility It is possible to playback WMA and MP3 files. About WMA This unit can playback WMA data. -
Page 5: Panel Controls
Panel Controls Power on/off: Press to turn on/off the unit. 1. Panel open 2. Return to previous menu 3. Button 1: Play/Pause 4. Button 2: Intro play 5. Button 3: Track repeat play 6. Button 6: - DVD audio channel - VCD audio channel L/R/ST 7. -
Page 6: Remote Controls
Remote Controls Press to turn on/off the unit. 1. Zoom (DVD/VCD only) 2. Title (DVD only) 3. Power on/off 4. Setup 5. Menu cursor 6. Enter 7. Program 8. Digit area 9. Select Audio/Video Setting, then rotate the knob to adjust level. 10. -
Page 7: Usb/Sd/Mmc/Mp3 Playback
USB/SD/MMC/MP3 Playback 1. Load SD/MMC Card Insert the SD/MMC card into the slot, with the front side at right. The unit will play the music automatically and the LCD will show CARD. 2. Take out SD/MMC Card Press SRC button and switch to non CARD mode, slightly press SD/MMC card, take out the card when it pops out. -
Page 8: Basic Operation
Basic Operations Turn on/off the Power 1. Press to turn on the unit. The unit goes back to the last status after power on. 2. Press again to power off. Mute When power on, press to cut the sound. Note: •... -
Page 9: Rotary Knob Menu
Rotary Knob Menu 1. Rotate the knob to adjust volume level. 2. Short press to access the Audio&VIDEO Setting menu. Each press the knob to change the AUDIO mode: EQ/Bass/Middle/Treble/Balance/Fader, and rotate the knob to adjust level. Each press the knob to change the VIDEO mode: Bright/Contrast/Saturation, and rotate the knob to adjust level. - Page 10 Rotary Knob Menu (sold separately) is connected to the CAMERA IN input on the back of the radio. Turn the rotary encoder to select “On” or “Off”. SUBWOOFER: ON/80HZ/120HZ/160HZ After connecting a subwoofer to the back of the unit, press key to select a crossover frequency: OFF, 80, 120 or 160Hz.
-
Page 11: Language Setting
Rotary Knob Menu LANGUAGE Setting OSD LANGUAGE: Select one language that you are familiar with to display system menu. AUDIO LANG: Select one dialogue language that you are familiar with when playing back DVD discs. Note: If the DVD disc has the audio file in the selected language, the dialogues you listened to will be in the selected language. - Page 12 If the Bluetooth function is abnormal, or you forget the pin code, when RESET ON is selected, the Bluetootch system will be cleared and return to default setting ,and the pin code also changed to “1234”. PAIR NAME Display the BT device name: IND-5000BT.
-
Page 13: Radio Mode
Radio Mode Accessing Radio Mode Press the SRC button on the front panel or remote control to switch to the Radio source. Selecting a Band Press BAND once or more to select FM1- FM2 - FM3 - AM1 - AM2. Display shows wave band, frequency, and preset station number if already stored. -
Page 14: Disc Mode
Disc Mode Accessing Disc Mode If a disc is already in the disc slot but is not playing, press the SRC button on the front panel or on the remote control to switch to the DISC source. To play files from an SD or USB that is already inserted, choose the CARD or USB source. - Page 15 Disc Mode Disc and File NOT Supported *.AAC, *.DLF, *.M3U, *.PLS, MP3 PRO files and files with DRM. Open session discs. Audio/Picture/Video File Playback When AUDIO/PICTURE/VIDEO file is played, Category/Folder/File list will be displayed on the screen, and file/folder name being played will be displayed on top.
-
Page 16: Fast Forward/Backward During Playback
Disc Mode only file names and folder names that can be entered and displayed. Using any other character will cause the file and folder names to be displayed incorrectly. The unit recognizes and plays only files with the MP3/ WMA extension. Note: A file name entered with characters not on the code list may not play correctly. -
Page 17: Disc Mode
Disc Mode - RPT icon will appear on the display. - For VCD/CD: Display appears RPT ONE RPT ALL RPT OFF - For DVD: Display appears RPT CHAPTER RPT TITLE RPT OFF - For File disc: Display appears RPT ONE RPT DIR RPT ALL RPT OFF... -
Page 18: Accessing Bluetooth Mode
Bluetooth Mode Accessing Bluetooth Mode Press the SRC button on the front panel or remote control to switch to the Bluetooth source. Note: For your safety, avoid talking on the phone as much as possible while driving. Bluetooth is a wireless transmission way for short distance. -
Page 19: Music Mode
Bluetooth Mode remote control (if the options are available). After pairing successfully, in the mode of Blue- tooth main menu, press key to select dial- ling history. Missed Call Making a phone call using missed call history. Press button to search for desired record on the list. - Page 20 Bluetooth Mode General Notes for Bluetooth 1. For N7X, N9X, PHILIPS, Sony Ericssion, SAMSUNG mobile phones, during our test, after the mobile phones appear connection successful, the unit still appear waiting for pairing. At this time you must find the unit’s Bluetooth module name on the pairing list of your mobile phone and select it.
-
Page 21: Device Connections
Device Connections Notes of connection • To avoid short circuit in the electrical system, ensure that the negative battery cable is disconnected before installation. • To prevent short circuit in the wiring and damaging to this unit, secure all wirings with cable clamp or adhesive tape. - Page 22 Device Connections Wiring Diagram...
-
Page 23: Device Connections
Device Connections Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2 . F o r c o n n e c t i o n s w i t h o u t t h e I S O connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to... -
Page 24: Kit Installation
Installation Guide sleeve. With the sleeve fully inserted into the dashboard opening, bend as many of the tabs outward as necessary to firmly secure the sleeve to the dashboard. CAUTION: For proper operation of the DVD player, the chassis must be mounted within 20 of horizontal. -
Page 25: Installation Guide
Installation Guide 4. Wire the new unit as outlined in the Mounting Sleeve Installation instructions. 5. Mount the new unit assembly to the dashboard or center console using the reverse procedure of step 1. Reset The RESET button is located behind the front panel and can only be accessed with the front panel opened. -
Page 26: Troubleshooting
Troubleshooting If you suspect something is wrong, immediately switch power off. Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so. Problem Possible cause General Car ignition is not on. -
Page 27: Dvd Player
Care and Maintenance DVD Player The following guidelines will help you extend the life of your DVD player: 1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit. 2. The DVD player will not operate properly in extreme hot/cold or under damp conditions. In case of such conditions, wait until the vehicle interior reaches a normal temperature or any condensation on the disc player lens has evaporated before using the player. -
Page 28: Specifications
Specifications General Power supply: 12VDC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 45W x 4 channels Continuous power output: 20W x 4 channels (4 Suitable speaker impedance: 4-8ohm Pre-Amp output voltage: 4.0V (CD play mode: 1KHz, 0dB, 10K Fuse: Dimensions (WxHxD): 178 x 50 x 166mm... -
Page 29: Limited Warranty
Bravo View will repair or replace the product at no charge. 2. Parts. For a period of 1 Year from original date of purchase, Bravo View will at no charge, replace with new or rebuilt parts in exchange for defective parts. The warranty will either continue from date of original purchase or 90 days from repair (Whichever is longer). - Page 30 CLASS 1 LASER PRODUCT P.N.: 12707500XXXX...
