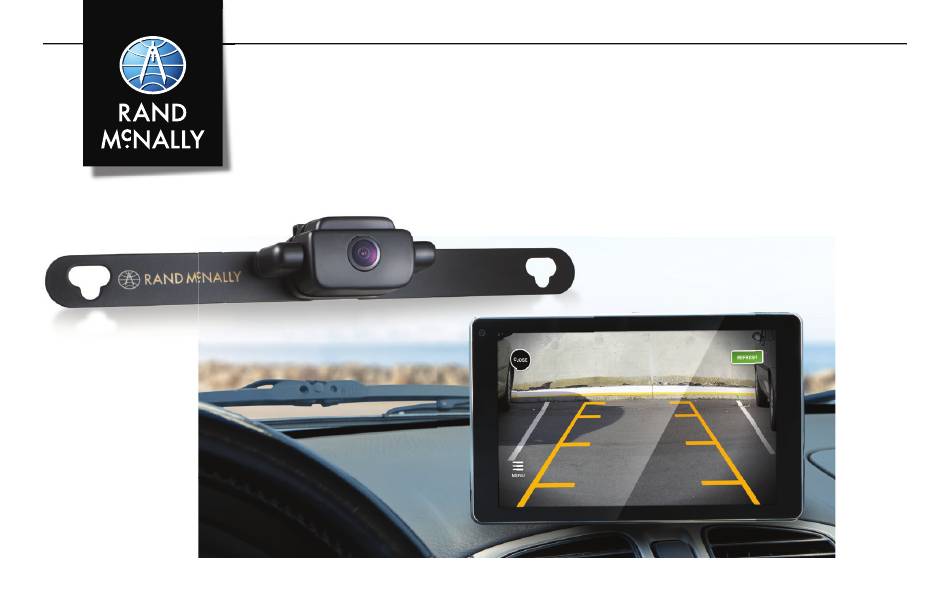

- Page 1 Wi-Fi BackupCamera ® User Manual...
- Page 2 Intentional or unintentional changes or modifications to the equipment instructions. However, there is no guarantee that interference will not not expressly approved by Rand McNally could void the user’s authority to occur in a particular installation. If this equipment does cause harmful operate the equipment.
- Page 3 Specific requirements will vary by vehicle type, make, and model. Rand McNally recommends that the backup camera be installed by a qualified vehicle technician. Rand McNally is not responsible for damage caused by the installation.
- Page 4 Download the Wireless Backup Cam app On your OverDryve device, go to the Rand McNally Market and download the ™ Wireless Backup Cam app.
-
Page 5: Box Contents
Box contents Camera with license plate bracket Wi-Fi transmitter with antenna 3-ft master cable Car charger 4 t-tap connectors 4 zip ties 2 rubber grommets... -
Page 6: Connect The Camera
5. Plug the charger into the vehicle’s power source. A red light on the transmitter indicates power is supplied. When connected, the camera will broadcast a Wi-Fi signal. 6. Turn on the compatible display device, such as OverDryve ™ 7. Open the app. (For download instructions, see page 3.) -
Page 7: Using The App
Using the app 1. The app opens to the Connection page and will search for the camera. This may take several minutes. Make sure Wi-Fi is enabled on the display device. 2. When the camera appears in the list, tap Connect. 3. - Page 8 Using the app Close: Closes the app. Refresh: This button appears when Wi-Fi interference is detected. Tap to switch to a different channel. Menu: Return to the Connection screen.
-
Page 9: Vehicle Installation
Vehicle installation Once the camera has established a connection to the display device, it’s ready for installation in the vehicle. Unplug the pieces of the assembly (camera, master cable, vehicle charger) before continuing. The master cable should remain connected to the transmitter. - Page 10 Vehicle installation There are two options for powering the backup camera: A. Reverse lights—Connecting directly to one of the reverse lights will display the camera view within the app when the vehicle is shifted into reverse. (NOTE: Professional installation is recommended. Visit randmcnally.com/pro-install for a list of service providers.) B.
- Page 11 Vehicle installation A Installation A instructions (Reverse lights) Professional installation recommended. 1. Access the vehicle’s rear light wiring system. 2. Connect the reverse (red) and ground (black) wires on the master cable to the vehicle wires using the T-Tap connectors. If the included master cable contains a spare blue wire for custom installation, please properly insulate it −...
- Page 12 Vehicle installation B Installation B instructions (Rear power source) 1. Connect the reverse (red) and ground (black) wires on the master cable to the same color wires on the included vehicle charger cord. Leave the brake (blue) wire unconnected. 2. Plug the vehicle charger into the rear power source. 3.
- Page 13 Except as permitted by such license, the contents of this product and software may not be disclosed to third parties, copied or duplicated in any form, in whole or in part, without the prior written permission of Rand McNally. This product and software contain proprietary and confidential information of Rand McNally and its licensors.
- Page 14 first Customer purchase, such as a duplicate copy of the original sales receipt, for the warranty to be valid. The Customer must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Rand McNally’s expense, if the product is repaired or replaced under warranty.
- Page 15 Support www.randmcnally.com/support 877-446-4863 BACKUPCAMQSG-011521-v002...
