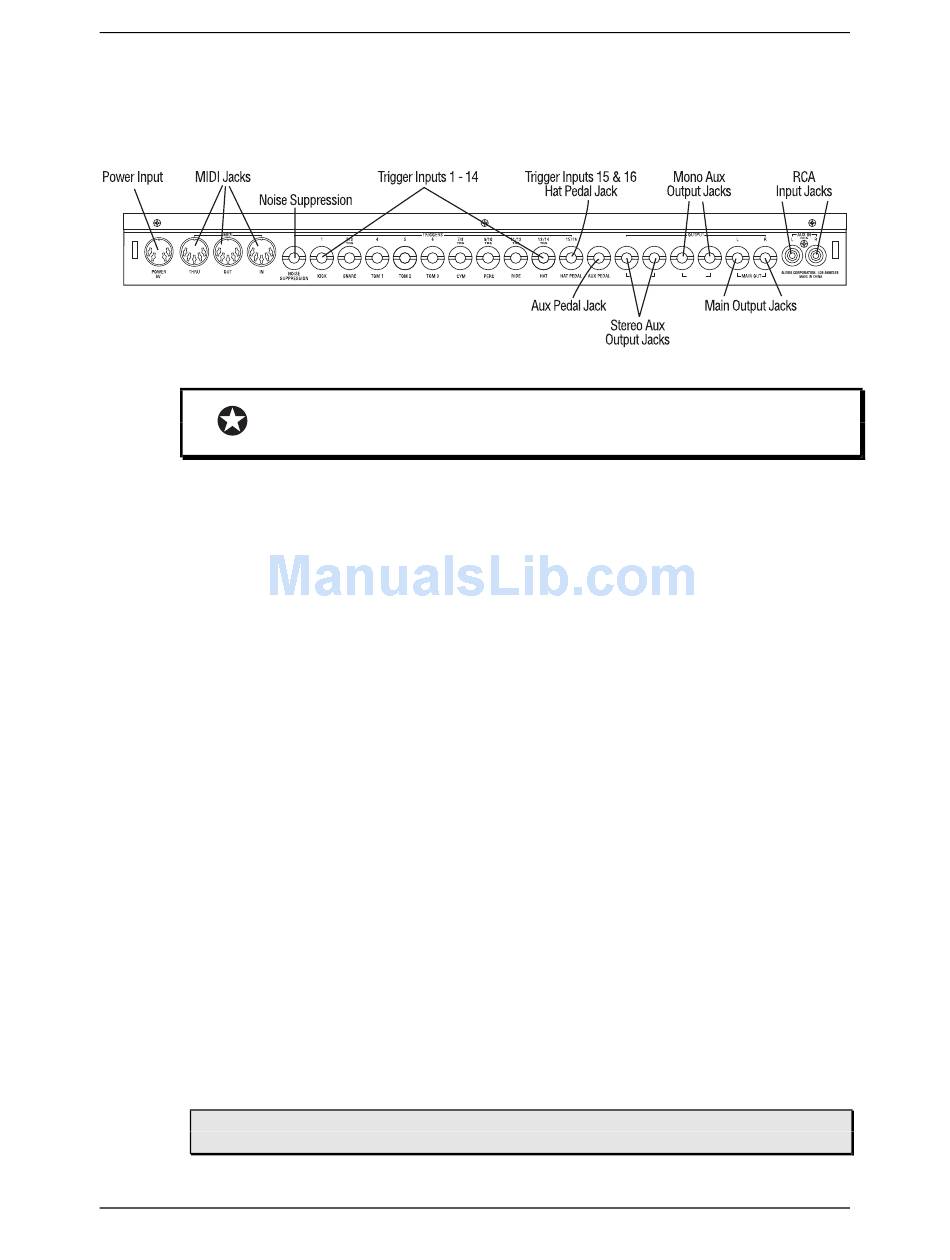

The rear panel of the DM Pro has two Main and four Auxiliary audio outputs along
with two RCA inputs. There is also a headphone output on the front panel. The
outputs can provide an amplification system or mixer with several different audio
connection options:
MONO
STEREO
SIX INDIVIDUAL
OUTS
STEREO
HEADPHONES
RCA AUX
INPUTS
Tip: For the Main and Auxiliary Output jacks, either balanced or unbalanced 1/4"
cables may be used.
1 8
C
ONNECTIONS
When connecting audio cables and/or turning the power on and off,
make sure that the volume controls in your system are turned down.
Connect a mono patch cord from either the [MAIN
OUT-L] or the [MAIN OUT-R] to a mono amplification
system or individual mixer input.
Connect two mono patch cords from the [MAIN OUT -
L] and [MAIN OUT -R] to a stereo amplification system
or two mixer inputs. Make sure that your mixer inputs
are panned hard left and right in order to realize the
stereo effect.
Connect two mono patch cords from the [MAIN OUT -
L] and [MAIN OUT -R] and four mono patch cords from
the [STEREO AUX OUTS 1/2], [SOLO AUX OUT 3] and
[SOLO AUX OUT 4] to six mixer inputs. Note that the
DM Pro Effects Processor only plays out of the MAIN
OUTPUTs.
Plug a set of high quality stereo headphones into the
front panel [PHONES] jack.
These jacks will let you run the stereo audio output of a
CD or cassette player through the DM Pro's main or
headphone outputs. Use it for mixing audio tracks in
with your performance, or for practicing along with
your favorite music! Control the volume of the music
from the CD/cassette player.
