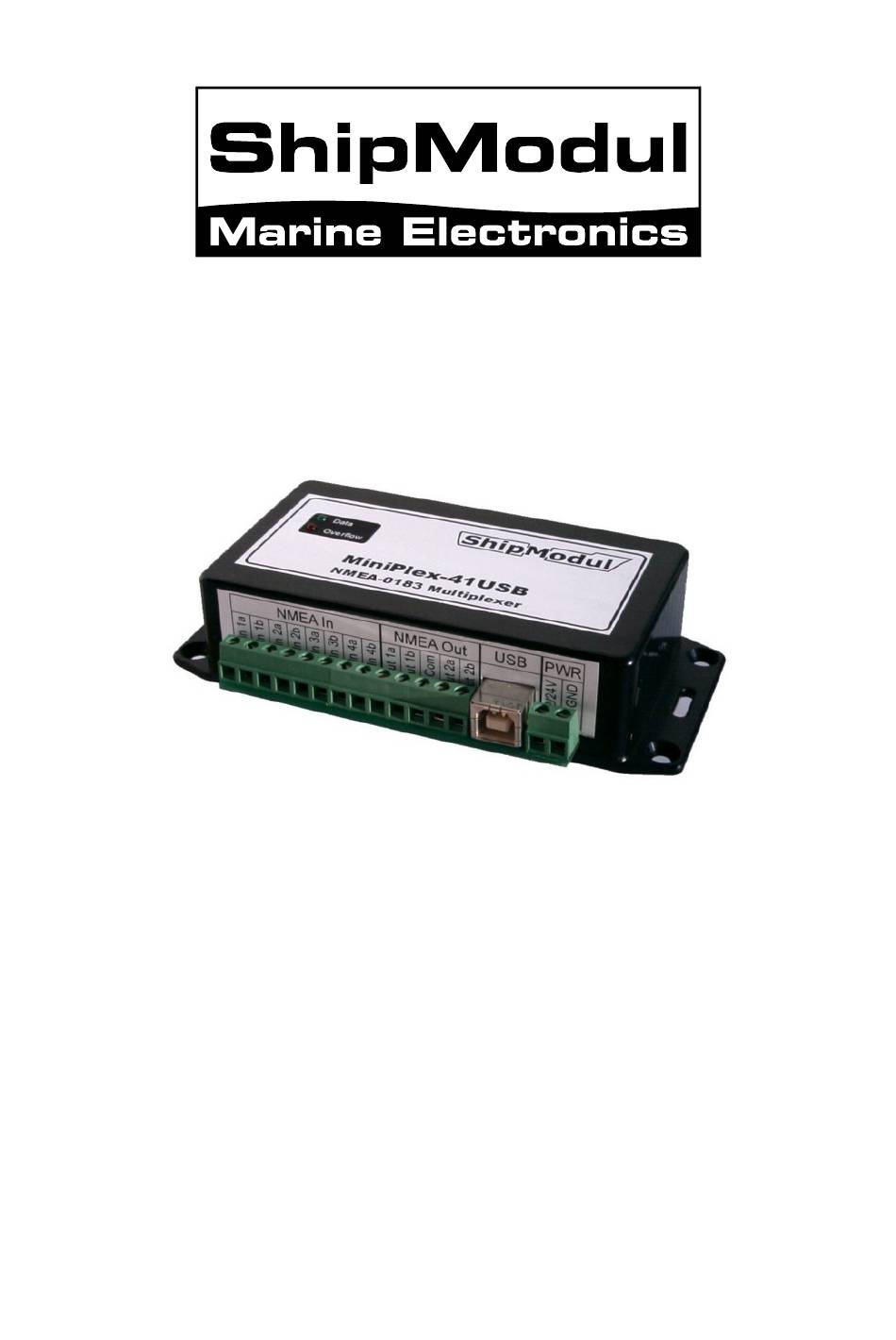

- Page 1 MiniPlex-41USB NMEA-0183 multiplexer Manual MiniPlex-41USB, V1.0 Firmware V1.30 © CustomWare, 2004...
-
Page 2: Operation
Introduction The MiniPlex-41USB is a four-channel NMEA multiplexer, enabling the connection of multiple NMEA- 0183 instruments to each other and a computer. Available are four NMEA inputs (listener-ports), two NMEA outputs (talker-ports) and one USB port for connection with a computer. Specifications: Supply voltage: from USB bus or... - Page 3 Connections NMEA Listener Ports The MiniPlex-41USB has four listener ports, ‘ In 1’ to ‘ In 4’ . Each listener port should be connected to one instrument only. These inputs are galvanically isolated from the multiplexer, as specified in the NMEA-0183 standard. Connect the ‘...
-
Page 4: Power Supply
USB Port The MiniPlex-41USB can be connected directly with the USB port of a computer or a USB hub with the supplied cable. The first time the MiniPlex-41USB is connected, the computer will detect new hardware and ask for a driver disk. Insert the driver disk into the diskdrive and click OK. Follow the directions on the screen to complete the installation. -
Page 5: Serial Port
Screenshot of MPX-Config Serial Port Before being able to configure the MiniPlex-41USB, select the COM port to which the multiplexer is connected. The virtual port created by the driver is marked with ‘ (vcp)’ . When selecting the baudrate, either choose 4800 (factory default) of choose ‘... - Page 6 NMEA Out2, the total throughput is limited by the speed of NMEA Out2, which is fixed to 4800 baud. Even when the USB port is set to 38400 baud, the throughput will be 480 characters per second, the same as on NMEA Out2. Auto mode: When Auto mode is selected, the multiplexer automatically switches between Hub- and Server mode, depending on the presence of computer generated data.
- Page 7 Indicators The MiniPlex-41USB has two LED’ s. The green LED indicates the reception of valid NMEA data on the listener ports or the USB port. The LED only blinks on valid NMEA sentences that start with a ‘ $’ or ‘ !’ and end with a LF character, thus indicating a proper connection and polarity of the connected instrument.
- Page 8 Appendix A: MPX-Config Registry keys The serial port settings of MPX-Config are stored in the Windows registry, using the following keys: HKEY_CURRENT_USER\Software\CustomWare\MPXConfig\BaudRate HKEY_CURRENT_USER\Software\CustomWare\MPXConfig\SerialPort...
- Page 9 $PSMDxx Start of a proprietary command. Dictated by the NMEA standard. SMD: ShipModul manufacturer’ s mnemonic. Two- or three-character command code. For ease of manual configuration, the commands issued to the multiplexer do not require a checksum. Sentences output by the multiplexer always contain a checksum. Sentences output by the multiplexer always contain a checksum, denoted with *hh in the descriptions below.
- Page 10 CFQ – Request current configuration This sentence requests the current configuration settings from the multiplexer. $PSMDCFQ<CR><LF> The multiplexer responds with a CF sentence. OV – Overflow In case of a buffer overflow (blinking red LED on the multiplexer), an overflow sentence is output, to indicate on which input buffer the overflow occurred.
-
Page 11: Declaration Of Conformity
Tel.: +31 592 375700 Fax: +31 592 375550 Declare under our sole responsibility that the product ShipModul MiniPlex-41USB to which this declaration relates is in conformity with the following specifications: EN/IEC61000-6-1:1997 and EN/IEC61000-6-3:1996 FCC Title 47 CFR, Part 15 Class B The product herewith complies with the requirements of the EMC Directive 89/336/EEC and carries the CE-marking accordingly. - Page 12 ShipModul / CustomWare Roggehullen 8 9403 WG Assen The Netherlands Tel.: +31 592 375700 Fax: +31 592 375550 web: www.shipmodul.com e-mail: info@ shipmodul.com...
