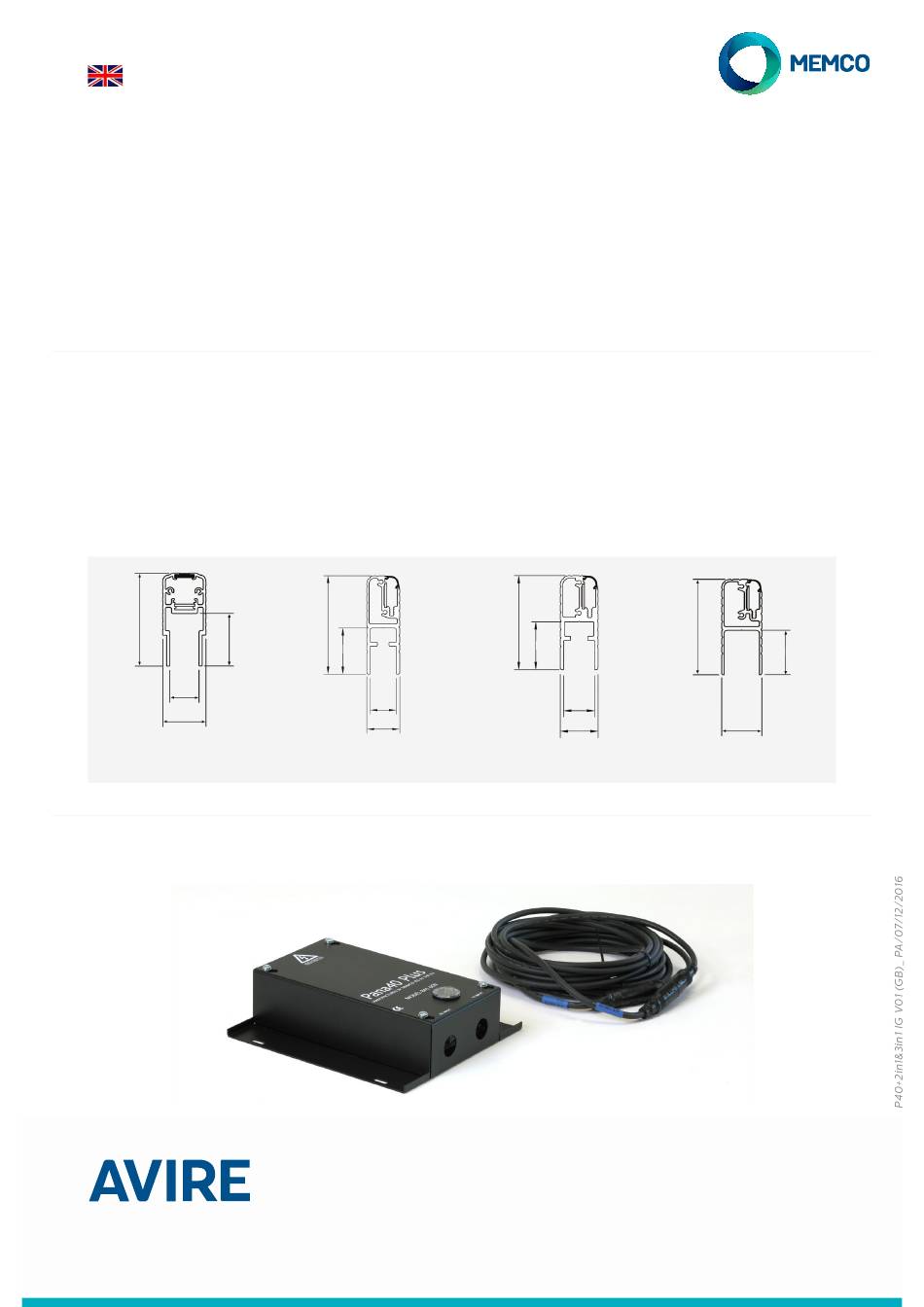

AVIRE MEMCO Pana40 Plus Installation Manual

Pana40 Plus
2-in-1 & 3-in-1 Mechanical Edges
Installation Guide
Ref No. 745 850 (ML) V01
INSTALLATION
Dynamic Installation
+ Position each detector 5mm above the sill
+ Ensure that the detectors are aligned level and straight with each other
+ Please refer to the lift/elevator OEM manual for the correct installation of the mechanical safety edges
+ Secure the cables with the P-clips and screws provided. Ensure there are no tight bends and the cables are not
stressed or stretched as the doors move
60
34
19
28
2in1 : 28mm profile
(745 050)

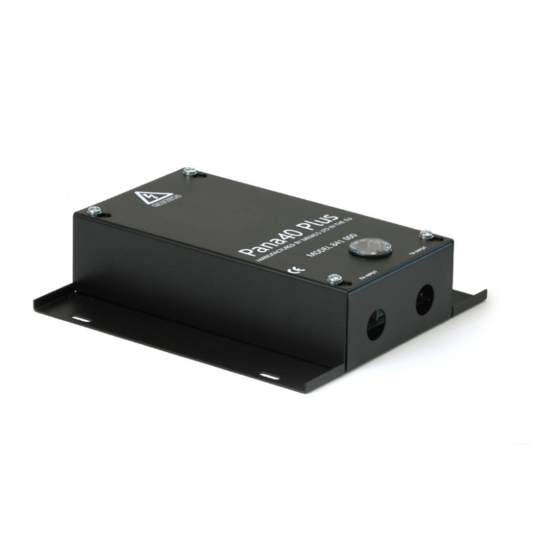

Connect with 841 Controller
Pana40 Plus edges must be installed with an 841 Pana40 Plus Controller. Refer to the Controller Installation Guide for
details on configuration.
Memco is a brand of Avire
60
28
16
20
2in1: 20mm profile (755 200)
3in1: 20mm profile (775 200)
Fig 1: Profiles
Avire Ltd
Unit 1, The Switchback
Gardner Road
Maidenhead
Berkshire
SL6 7RJ, UK
55
28
18
22
2in1: 22mm profile (755 220)
3in1: 22mm profile (775 220)
T: 01628 540100
F: 01628 621947
E: sales.uk@avire-global.com
W: www.memco-global.com
W: www.avire-global.com
60
28
25
2in1: 25mm profile (755 260)
3in1: 25mm profile (775 260)
