CEDAR RAISED GARDEN BED WITH TRELLIS | ASSEMBLY INSTRUCTIONS
Questions? Email info@greenesfence.com or call 800-622-5510 Monday - Friday 8am-5pm EST
PACKAGE CONTENTS + (6) Screws
x4
x2
x6
12in. x 2.5in.
46.5in. x 2.5in.
2ft. x 5.5in.
x 2.5in.
x 2.5in.
Boards
Tall Posts
Trellis Posts
BUILD THE TRELLIS WALL
1.
Hold a 2ft. Board on the ground so it's standing on edge with the notched ends to
the left and right. Slide a Trellis Post down over one notched end of the Board. Next,
slide another Trellis Post over the other notched end. This forms the Trellis wall.
BUILD TWO SHORT WALLS
2.
Repeat Step One using Tall Posts to complete two more walls.
BUILD A FRAME WITH TRELLIS ON ONE SIDE
3.
Place the Trellis wall and one short wall parallel to each other and connect them
into a rectangle with two 4ft. Boards. This forms the frame of a 2ft. x 4ft. Garden
Bed with Trellis on one side.
DECIDE WHERE YOU WANT THE TRELLIS AND BUILD
4.
THE SECOND FRAME
The Trellis can go on either end of the garden bed, or in the center, depending on
where you attach the second 2ft. x 4ft frame. Once you decide, place the other
short wall from Step Two parallel to the correct wall and connect them into a
rectangle with two more 4 ft. Boards, completing a 2ft. x 8ft. rectangle.
FINISH GARDEN BED WALLS
5.
Add one more Board, one at a time, directly on top of each existing Board in the
frame. Push the Boards down evenly between the tops of the Posts. If needed, tap
snugly into place with a rubber mallet.
BUILD THE TRELLIS
6.
Slide one Spacer into the top of each Trellis Post, then add one Slat on top of the
Spacers and push them down directly on top of the existing wall.
Repeat Step Six using all the Spacers and Slats to complete the Trellis
x8
x20
x10
4ft. x 5.5in.
Trellis
2ft. x 1.25in.
Spacers
Boards
Trellis Slats

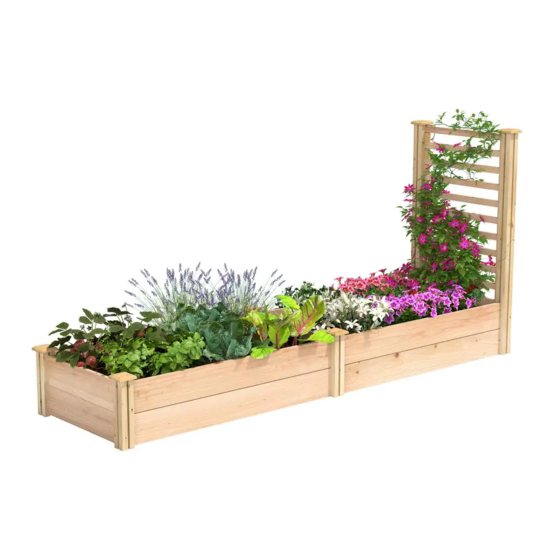

DIMENSIONS
2ft. wide x 8ft. long
x6
3.5in. x 3.5in.
Decorative Caps
MODEL #
RCMG2811TRE
x 11in. high
