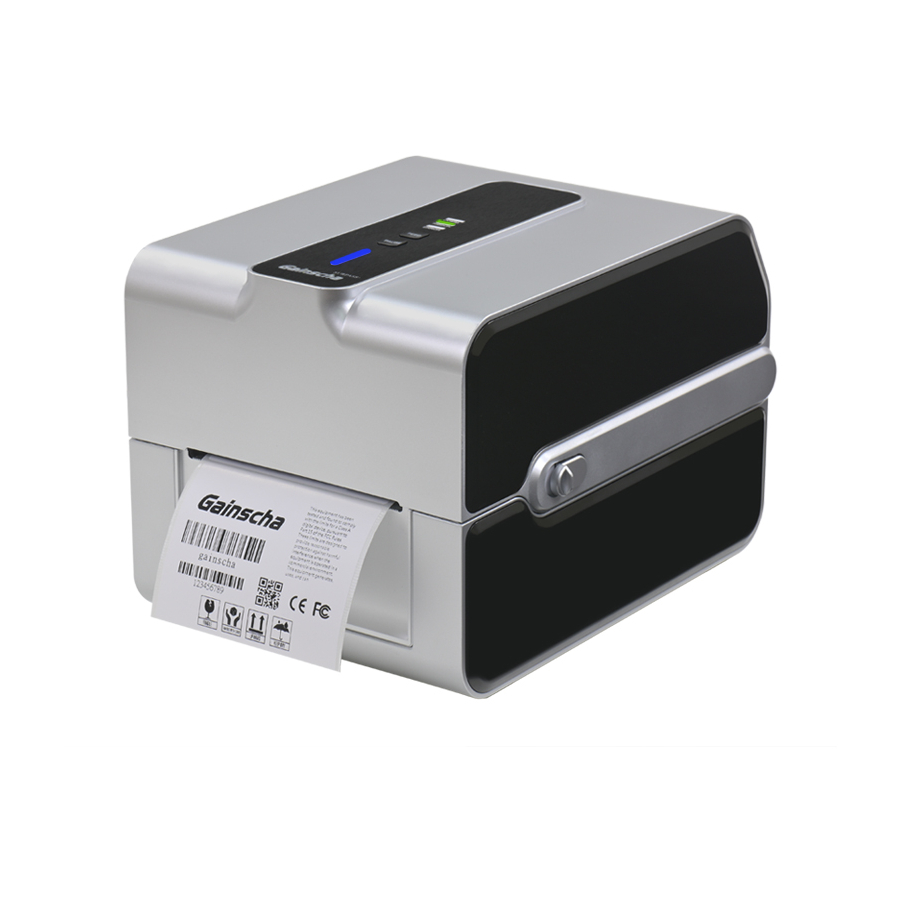

- Page 1 GS-2406T / GS-3405T Series THERMAL TRANSFER / DIRECT THERMAL LABEL PRINTER USER’S MANUAL Ver:1.1.3...
- Page 2 Environmental protection Do not dispose of this product in an unsorted public trash can. You should recycle this product according to local regulations. For more information, please see our website: website： http://www.gainscha.com.tw...
-
Page 3: Table Of Contents
Contents 1. Introduction ................................4 1.1 Product Introduction ............................4 1.2 Product Features............................... 6 1.2.1 Printer Standard Features ........................6 1.2.2 Printer Optional Features ........................8 2. Operations Overview ............................. 9 2.1 Unpacking and Inspection ........................... 9 2.2 Printer Overview ............................10 2.2.1 Front View .............................. - Page 4 3.2 Install Printer Driver ............................. 13 3.3 Loading the Ribbon ............................16 3.4 Loading the Media ............................17 3.4.1 Loading the Roll Labels........................17 3.4.2 Ribbon and print media loading diagram .................. 17 3.4.3 External Label Roll Mount Installation (Option) ..............18 3.5 Loading the Cutter ............................
- Page 5 6.1 Common Problems ............................30 7. Maintenance ................................32 8. Revise History ................................ 33...
-
Page 6: Introduction
Fonts and bar codes can be printed in any one of the four directions. The GS-2406T/ GS-3405T series printer is built-in the flexible firmware design, user can download various printer commands to perform the work. Please refer to the types of printer commands supported in the specifications. - Page 7 ⚫ Applications o Parcel Post o Manufacturing & Warehousing Shipping/ Receiving Labels ◼ Work in Progress o Small Office/ Home Office ◼ Item Labels o Retail Marking ◼ Instruction labels Price tags ◼ ◼ Agency labels Shelf labels ◼ ◼ o Healthcare Jewelry tags ◼...
-
Page 8: Product Features
1.2 Product Features 1.2.1 Printer Standard Features PRINTER GS-2406T GS-3405T GS-2406TM GS-3405TM MODEL Level Economic Economic Empower Empower Resolution 8dots/mm 12dots/mm 8dots/mm 12dots/mm (203DPI) (300DPI) (203DPI) (300DPI) Printing Thermal Transfer & Direct Thermal Method Max. print 152mm(6”) 127mm(5”) 152mm(6”) 127mm(5”) speed /second /second... - Page 9 Buzzer Standard Guillotine cutter (full cut and ➢ Dealer partial cut) options Peeler ➢ Sensors Head open sensor, Ribbon end sensor, Reflective sensor (moveable), Transmissive sensor (moveable) Power External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 2.5A, 60W User 1 power switch, 2 buttons(Feed &...
-
Page 10: Printer Optional Features
Label roll 127 mm (5“) OD capacity Label 5 ~ 2,794 mm 5 ~ 1,016 mm 5 ~ 25,400 mm 5 ~ 11,430 mm length (0.2“ ~ 110“) (0.2“ ~ 40“) (0.2“ ~ 1000“) (0.2“ ~ 450“) Physical 280mm(D) x 200mm(W) x 182mm(H) dimension Enclosure ABS plastic... -
Page 11: Operations Overview
2. Operations Overview 2.1 Unpacking and Inspection This printer has been specially packaged to withstand damage during shipping. Please carefully inspect the packaging and printer upon receiving the bar code printer. Please retain the packaging materials in case you need to reship the printer. Unpacking the printer, the following items are included in the carton. -
Page 12: Printer Overview
2.2 Printer Overview 2.2.1 Front View 1. ONLINE indicator 2. ERROR indicator 3. RIBBON indicator 4. PAUSE button 5. FEED button 123 4 5 2.2.2 Interior View 1. Printer top cover 2. Top cover open tab 3. The place for new ribbon 4. -
Page 13: Front View
2.2.3 Front View 1. Paper tearing edge 2. Front bezel; Accessory assembly ( Cutter / Peeler) 2.2.4 Rear View 1. Power socket 2. USB interface 3. USB host (For HID keyboard or scanner) 4. RS-232 interface (Optional) 5. RJ-45 Ethernet interface (Optional) 6. -
Page 14: Setup
3. Setup 3.1 Setting up the Printer Place the printer on a flat, secure surface, then follow the steps below: 1. Plug the power cord into the AC power cord socket at the rear of the printer. Then, plug the other side into a properly grounded power outlet. -
Page 15: Install Printer Driver
3.2 Install Printer Driver 1. Read the license agreement, click [I accept the terms 2. Select a installation directory and click [Next]. in license agreement], and click [Next]. 3. Click [Finish]. 4. Go to installation process, please click [Install Printer Driver], and then click [Next]. - Page 16 5. Click [Other] and click [Next]. 6. Select printer model name, click to install and click [Next]. 7. Please use a USB cable to connect the printer to the 8. Change the printer name as per need, and click computer, click the corresponding USB interface, and [Next].
- Page 17 9. Click [Finish]. 10. The installation is completed, please click [Close]. 11. Users can check whether the installation is 12. Users can change printer interface through the completed through the following ways: following ways: a. If Windows 10, check from [Windows Settings] → a.
-
Page 18: Loading The Ribbon
3.3 Loading the Ribbon 2. Load ribbon left side first and then right 1. Insert black ribbon roller into new ribbon. side, fix it well. 4. Insert blue ribbon roller into the empty roll for 3. Press the button to open ribbon holder unit as per ribbon collecting after printed picture 6. -
Page 19: Loading The Media
3.4 Loading the Media 3.4.1 Loading the Roll Labels 1. Press two buttons on printer two sides to lift 2. Load print media into the printer; adjust the and open the cover. paper guide to be same width of print media. 3.4.2 Ribbon and print media loading diagram... -
Page 20: External Label Roll Mount Installation (Option)
Then, install it on the external paper roll mount. Note：When using the Gainscha External Label holder, the 1” core label spindle only supports a radius of 12 cm / 2” core label spindle only supports a radius of 10 cm / 3” core label... -
Page 21: Loading The Cutter
3.5 Loading the Cutter Depending on the purchase, there will be two different cutters. TextileCare Cutter Guillotine cutter 1. Push the cover button backwards with both hands to open the printer cover 2. Align the cutter with the tenon, and place the wire of the cutter into the hole 3. - Page 22 Turn the printer upside down, remove the four screws located on the bottom cover, and open the bottom cover After opening, insert this cutter board and lock the cutter board with two screws Make sure the wafer 1X10P P2.0 connector is plugged into the cutter board Pull out the wire just put into the hole and insert it into the wafer 1x7P P1.25 connector...
- Page 23 Open the small cover, insert the wafer 1X10P P2.0 connector of the cutter board into the main board, then lock the screws. 10. Finish...
-
Page 24: Loading The Peeler
3.6 Loading the Peeler Peeler 1. Push the cover button backwards with both hands to open the printer cover 2. Align the peeler with the tenon and place the wire of the peeler into the hole 3. When closing the peeler, be careful not to press it on the wire, and lock the peeler with screws... - Page 25 4. Turn the printer upside down, remove the two screws located on the bottom cover, and open the bottom cover 5. After opening, pull out the wire just put into the hole and insert it into the wafer 1x7P P1.25 connector on the main board 6.
- Page 26 7. Finish Note: Please clamp the label roll with the fixing tabs and clamp the media with the media guide, so as not to cause the media to roll into the peeler and cause the phenomenon that the media cannot be peeled off.
-
Page 27: Led And Button Functions
4. LED and Button Functions 4.1 LED Indicator Event Status Status Beep Description lights 1 lights 2 Blue(ONLINE) and Green(RIBBON) solid, and the Thermal transfer mode device is ready to use. ready Blue(ONLINE) solid, and the device is ready to use. Direct thermal mode ready When the cover is open, a beep sound will be... -
Page 28: Regular Button Functions
4.2 Regular Button Functions This printer has two buttons for feed, pause or cancel errors. There are different functions in different modes, as shown in the following table: Button Printer Function Description status Feed Ready Feed When the printer is ready (Blue LED ON), press this button button once, and the label will advance to the front of the next label... -
Page 29: Power-On Utilities
4.3 Power-on Utilities This printer has six power-on functions for setting or testing the printer's hardware. Press these buttons at the same time when the power is turned on, and release the buttons with the light signal to activate these functions. Follow these steps to enable the boot function: Event Description... -
Page 30: Pirnterutility
After opening the main screen, you can see the following function items: (5) Command Tool (1) Port Settings (6) Language (2) Printer Information (7) About (3) Printer Configuration (8) Exit (4) Printer Function NOTE: If you need more detailed information, please refer to Gainscha official website http://www.gainscha.com.tw/... -
Page 31: Printer Function
5.2 Printer Function 1. Click the Printer Configuration and Printer Setup Can open and close the printer general settings screen. 2. Click the Load Button to bring out all printer general setting information through the selected communication interface. Click the Set button to write the setting value to the printer (please execute the reading function before writing). -
Page 32: Troubleshooting
6. Troubleshooting 6.1 Common Problems The following guide lists the most common problems that may be encountered when operating this bar code printer. If the printer still does not function after all suggested solutions have been invoked, please contact the Customer Service Department of your purchased reseller or distributor for assistance. - Page 33 ⚫ ⚫ Poor print quality Ribbon and media is loaded Reload the supply. ⚫ incorrectly. Clean the print head. ⚫ ⚫ Dust or adhesive accumulation Clean the platen roller. ⚫ on the print head. Adjust the print density and print ⚫...
- Page 34 7. Maintenance This session presents the clean tools and methods to maintain your printer. 1. Please use one of following material to clean the printer. ⚫ Cotton swab ⚫ Lint-free cloth ⚫ Vacuum / Blower brush ⚫ 100% ethanol 2. The cleaning process is described as following, Printer Part Method 1.
- Page 35 8. Revise History Date Version Content 2020/5/22 Ver.1.1 Add 3.6 Loading the Peeler note 2020/6/24 Ver.1.1.1 Modify 1.2.2 Printer Optional Features Add 3.4.3 External Label Roll Mount Installation (Option) note 2020/6/29 Ver.1.1.2 Modify chapter 4.1 LED Indicator 2020/8/13 Ver.1.1.3 Modify chapter 4.3 Power-on Utilities...
