Summary of Contents for Alacritech 2000-100000

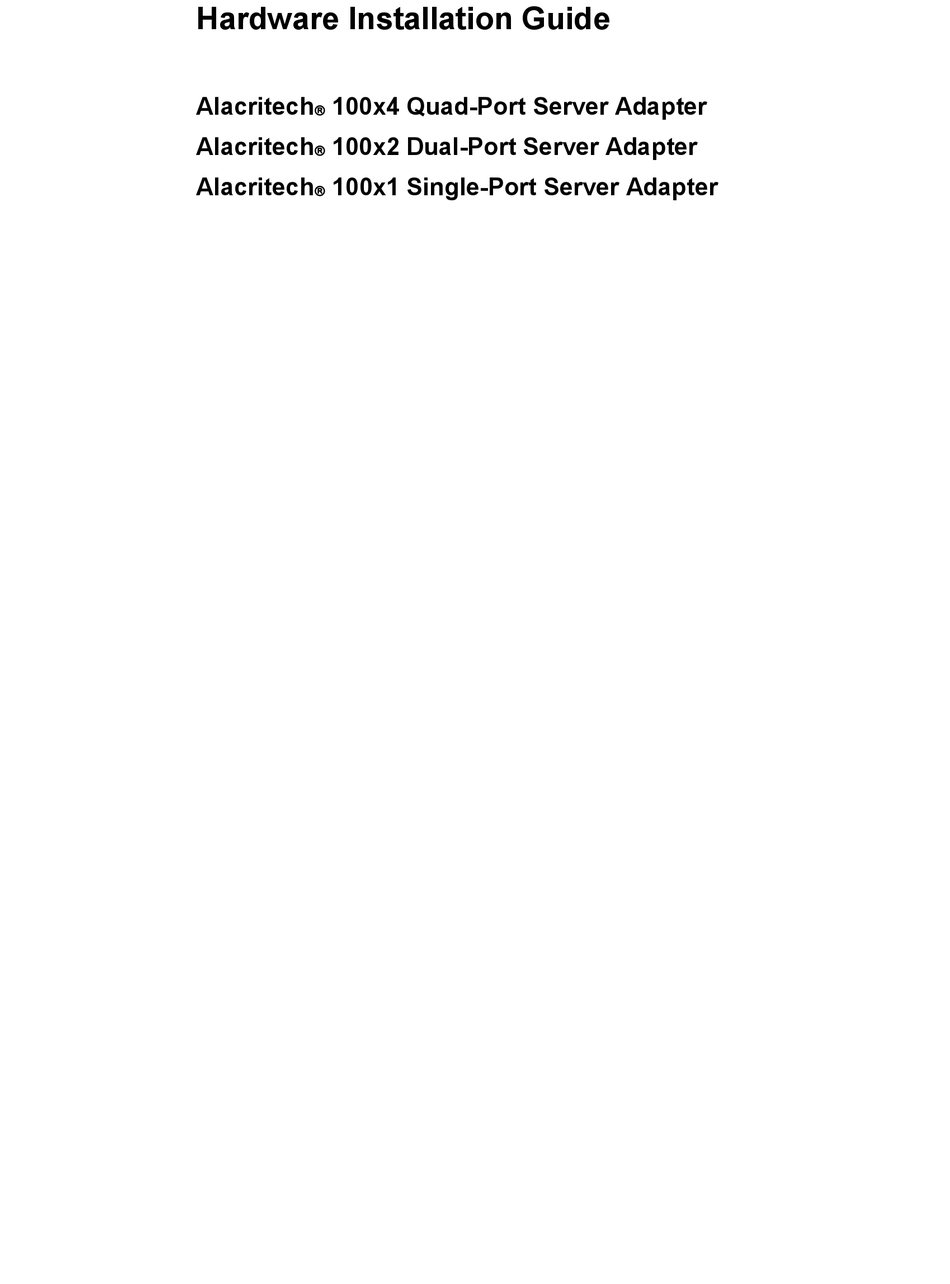

- Page 1 Alacritech 100x4 Quad-Port Server Adapter Alacritech 100x2 Dual-Port Server Adapter Alacritech 100x1 Single-Port Server Adapter ...
- Page 2 Disclaimer The information in this document is subject to change without notice. Alacritech reserves the right to change any portion of these products for reasons such as improving performance or enhancing functionality. Alacritech assumes no liability arising out of the application or use of these products for anything other than its intended purpose.
-
Page 3: Organization Of This Guide
Organization of This Guide This guide covers the installation for the Alacritech 100 Series of server adapters and contains the following sections: Chapter 1 - Introduction, provides a general introduction to the 100 Series of server adapters and the SLIC technology on which they are based. -
Page 4: Table Of Contents
Hardware Installation Overview Installing the Low Profile Bracket Hardware Installation Software Installation and Support Alacritech Automated Customer Support Readme Files on Your Product CD-ROM Installing the Adapter Software Appendix A Hardware Warranty and Information Alacritech 100 Series Hardware Installation Guide... -
Page 5: Introduction
1 Introduction About this Guide This guide describes how to install the Alacritech 100 Series of server adapters. 1.1.1 Naming conventions Because this guide applies to the 100x4 Quad-port, 100x2 Dual-port and 100x1 Single-port server adapters, the general term 100 Series applies to all versions of the adapter, except where indicated. -
Page 6: Specifications
Altitude: 3000 m maximum EMC Standards IEEE 802.3 10BaseT Compliance IEEE 802.3u 100BaseTX Fully compliant auto-negotiation FCC class B EN55022 Class B, CE, VCCI B Diagnostic LEDs Link speed/integrity and network activity for each individual channel Alacritech 100 Series Hardware Installation Guide... -
Page 7: 100 Series Multi-Port Adapter Card Diagram
Below is a diagram of the LED locations and ports of the 100x4 Quad-port Server Adapter. The 100x2 Dual-port Server Adapter is similar, but does not have the bottom two ports or corresponding set of LEDs. Figure 1: 100x4 Quad-port Server Adapter Interface Alacritech 100 Series User’s Guide... -
Page 8: 100 Series Single-Port Adapter Card Diagram
100 Series Single-port Adapter Card Diagram Below is a diagram of the LED locations and port of the 100x1 Single-port Server Adapter. LEDs show Link, Activity, and 100TX mode. Figure 2: 100x1 Single-port Server Adapter Interface Alacritech 100 Series Hardware Installation Guide... -
Page 9: Hardware Installation
The network should have the following features: 10Base-T Ethernet (10Mb) using Category 3, 4, or 5 ■ Twisted Pair or 100Base-TX Fast Ethernet (100Mb) using Category 5 Twisted Pair with RJ-45 connectors TCP/IP. ■ Alacritech 100 Series User’s Guide... -
Page 10: Installing The Low Profile Bracket
2. Install the standard PCI bracket - P/N 6588, making sure that the mounting tabs are on the top (component) side of the board and the screws secured from the bottom side. See Figure 3 for details. Alacritech 100 Series Hardware Installation Guide... - Page 11 Figure 3 Mounting detail for standard and low profile brackets Alacritech 100 Series User’s Guide...
-
Page 12: Hardware Installation
Hardware Installation Note: Alacritech server adapters use components that are sensitive to ESD. Proper ESD handling and storage should be followed. Note: Windows 2000 automatically loads driver software upon detection of new PCI hardware. To aid this process, the Windows 2000 software pre- installation must be performed before hardware is installed. -
Page 13: Software Installation And Support
Readme Files on Your Product CD-ROM For product errata, see the readme text files. To view the files, go to the Alacritech Product CD. Open the files with any text editor. Installing the Adapter Software For information about installing driver software, open the Users Guide Rev xx.pdf file in the doc directory on the CD ROM. - Page 14 Alacritech 100 Series Hardware Installation Guide...
-
Page 15: Appendix A Hardware Warranty And Information
If the adapter product is found to be defective, Alacritech, at its option, will replace or repair the hardware product at no charge except as set forth below provided that you... - Page 16 If the Customer Support Group verifies that the adapter product is defective, they will have the RMA department issue you an RMA number to place on the outer package of the adapter product. Alacritech cannot accept any product without an RMA number on the package.
- Page 17 Licensee agrees to defend, indemnify, and hold Alacritech harmless from and against any and all claims arising out of use of the adapter product in such applications by Licensee or Sublicensees. SOFTWARE: Software provided with the adapter product is not covered under the hardware warranty described above.
-
Page 18: Fcc Compliance Statement
Washington, D.C. 20402. Stock No. 004-000-00345-4. NOTE: In order to maintain compliance with the limits of a Class B digital device, Alacritech requires that you use network cables of a specific quality when connecting this device. For 100BASE-TX operation, your network cables must be Category 5, twisted pair wiring. -
Page 19: Fcc Declaration Of Conformity
(408) 287-9997 declare under our sole responsibility that the product Alacritech SLIC P/N’s 100000, 100001, 100004, 100005, and 100007 Comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
