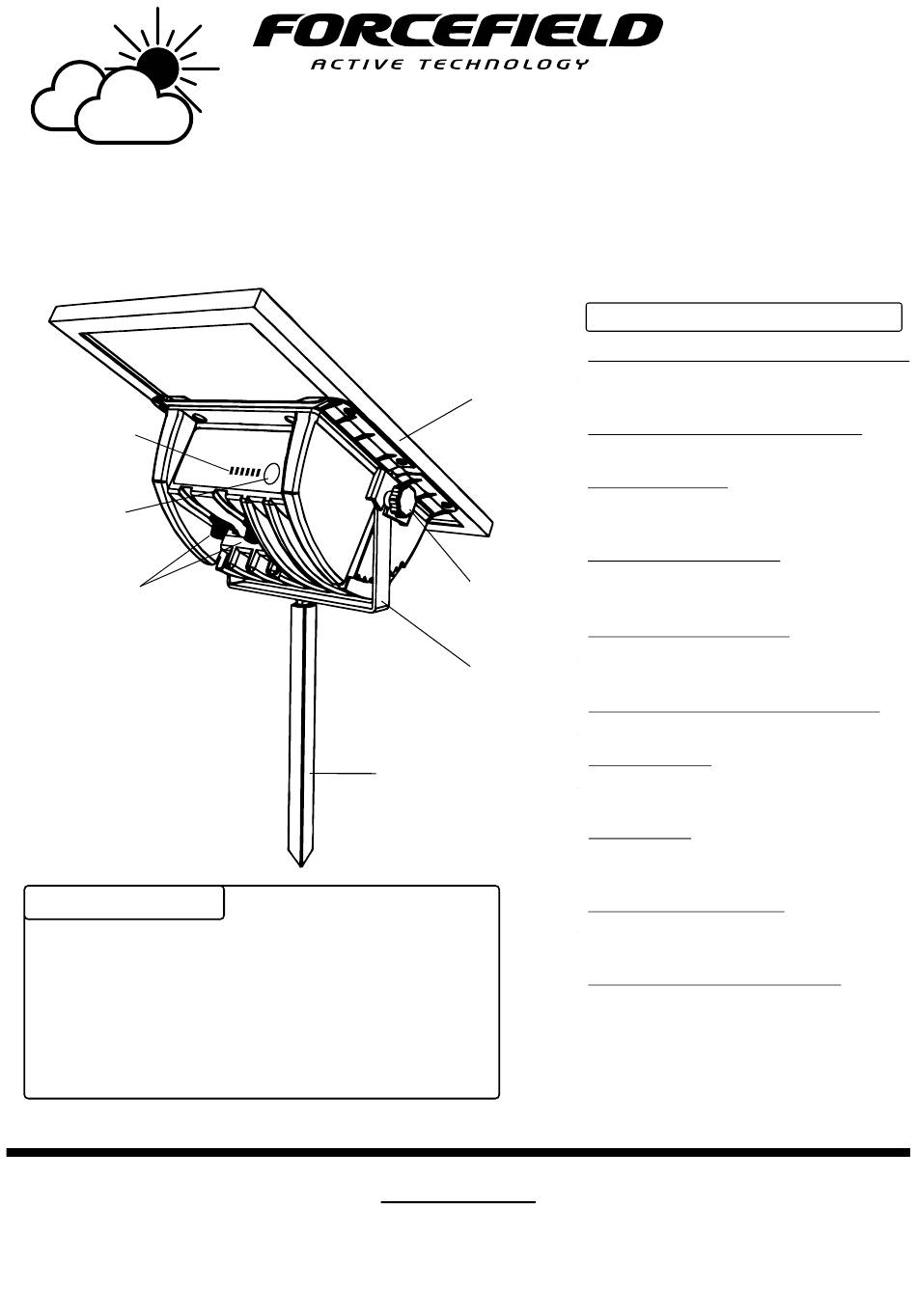

Forcefield SOLAR FENCE Installation And Operation Instructions Manual

Solar powered energiser

Advertisement

Quick Links

LED indicators
On/Off button
Terminal knobs
What's in the box:
1. 1 unit S50 or S75 or S100.
2. 1 pcs U-bracket.
3. 1 pcs Spike with bolt.
4. 1 pcs T/Y Post Socket (Australia markets only).
5. 1 set of fence connection wires.
6. 1 set 15V DC Adapter.
7. 1 Product Manual.
Read all instructions before installing this equipment
Save these instructions for future reference
SOLAR FENCE
SOLAR POWERED ENERGISER
Installation and Operation Instructions
Solar panel
Angle-
adjustment
locking knob
U-bracket
Spike
(interchangeable
with T or Y post socket)
NOTICE
FEATURES & APPLICATIONS
• 12V internal battery with solar charging
Automatic solar charging.
Battery level monitoring.
• External battery charging adapter
In case the battery needs a top-up.
• Simple operation
One button to switch ON / OFF and check
battery voltage.
• Fence voltage indicator
LED indicators let you know your fence
condition.
• Battery voltage indicator
LED indicators let you know your battery
voltage.
• 3 different models: 0.5J, 0.75J, 1.0J.
Output energy, not stored.
• Easy mounting
Can be fixed to a T or Y post (star picket),
wooden post or into the ground.
• Adjustability
Able to be tilted from 7.5° to 60°.
& can be rotated 360° on the mounting.
• Replaceable solar panel
Able to easily swap solar panel to a new
one if damaged.
• UV stabilised plastic enclosure
31001190
V6.1 251119

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLAR FENCE and is the answer not in the manual?

Questions and answers

Summary of Contents for Forcefield SOLAR FENCE

  • Page 1 SOLAR FENCE SOLAR POWERED ENERGISER Installation and Operation Instructions FEATURES & APPLICATIONS • 12V internal battery with solar charging Automatic solar charging. Battery level monitoring. Solar panel LED indicators • External battery charging adapter In case the battery needs a top-up.
  • Page 3 IMPORTANT INFORMATION FOR ALL ELECTRIC FENCE ENERGISERS READ ALL INSTRUCTIONS BEFORE INSTALLATION. NSTALLERS / USERS SHOULD NOTE: ● RISK OF ELECTRIC SHOCK. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 4 IMPORTANT INFORMATION FOR ALL ELECTRIC FENCE ENERGIZERS continued ● Any part of an electric animal fence that is installed along a public road or pathway shall be identified at frequent intervals by warning signs securely fastened to the fence posts or firmly clamped to the fence wires.
  • Page 5: Installation

    3.0m Figure 2 STEP 2: Fix the U-bracket mount. The Solar Fence can be mounted in a manner of different ways. A, B & C show three suggestions: A: Ground Level Mounting: see Figure 3 ● Using the provided spike, hammer it into the ground at the desired location.
  • Page 6 T or Y Post STEP 3: Mount the Solar Fence: Figure 5 The Solar Fence should be lowered onto the U-bracket horizontally so that the hand wheel and lock-washer are on the outside of the plastic and the arm of the bracket is inside the enclosure slots.
  • Page 7 The tilt angle can be set at one angle for the year or can be changed seasonally as the sun’s elevation changes. The chart below shows the best angles for the Solar Fence if setting for the whole year and if changing seasonally.
  • Page 8 ENSURE THE ENERGISER IS OFF BEFORE TOUCHING THE TERMINALS OR YOU MAY RECEIVE A SHOCK. The Solar Fence has the 2 fence terminals on the under- side of the enclosure. They are marked ( ) for ground and ( ) for live. The Ground is the Black knob, Live is the Red knob.
  • Page 9 The higher the output to the fence, the more green LEDs will light up. If only the red LED lights up, the output kV is very low meaning there is a problem with the fence condition (bad leakage) or a problem with the Solar Fence.
  • Page 10 Figure 18 Replacing the battery: The Solar Fence uses a 12V 7.2Ah sealed lead-acid battery fitted internally. This battery will need to be replaced periodically when the battery can no longer take a charge. ONLY REPLACE WITH RECHARGEABLE TYPE. Step 1. Remove the Solar Fence from its mount and place face-down on a flat surface.
  • Page 11: Other Notes

    WINTER STORAGE - IMPORTANT If you intend to not use the Solar Fence, for example: storing during winter, it is important to fully charge the battery before doing so. This is so the battery will not get damaged by being in-active at a low voltage for a long period.
  • Page 12 A copy of this manual is available online. Scan the QR code: http://forcefield.ie/shop/item.aspx?itemid=118 Or visit the Force Field website: www.forcefield.ie ForceField Active Technology Ltd. Unit 3, Portdrine Business Park, Portdrine, Cratloe,Co. Clare, Ireland. Tel: +353 (0) 61 357618 or LoCall 1850 757 757 www.forcefield.ie...
