OEM LONG-RANGE HANDHELD TRANSMITTER DATA GUIDE
DESCRIPTION
The Linx HHLR Remote Command
Unit is ideal for general purpose
remote control and command appli-
cations. This unit has been pre-
certified for FCC Part-15 compliance
which reduces costs and time to
product introduction. Available in 315,
418 or 433.92MHz (418MHz
standard), this compact handheld
remote is capable of a 300+ft.
transmission range. The transmitter
unit can be configured with 1-8 buttons
and the keypad and labeling can be
modified to meet specific customer
requirements. Selectable addressing
provides security and allows the
creation of up to 1024 distinct
transmitter-receiver relationships. The
transmission can be decoded using a
matching Linx function module, KH
Series module, or a Linx LC or LR
Series receiver paired with a decoder
IC or microcontroller. The unit operates
from a single 3-volt lithium cell.
APPLICATIONS INCLUDE
■ General Remote Control
■ Keyless Entry
■ Garage / Gate Openers
■ Lighting Control
■ Call Systems
■ Home / Industrial Automation
■ Wire Elimination
Revised 10/20/03
CMD-HHLR-xxx
0.20"
R 0.2"
2.00"
1.35"
1.61"

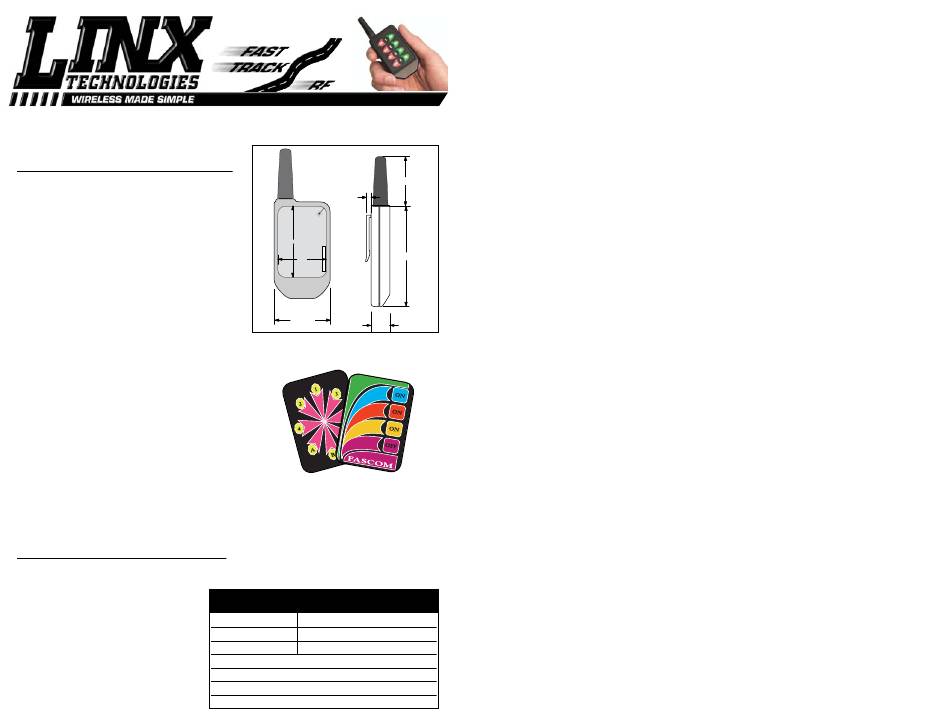

Physical Dimensions
OEM CONFIGURATIONS
With a one-time NRE and minimum
order, Linx can configure the
keypad and label areas to meet
your specific requirements. Contact
Linx for details.
ORDERING INFORMATION
PART # DESCRIPTION
CMD-HHLR-***-xxx 8-Button Handheld Transmitter
EVAL-***-HHLR HHLR Evaluation System
*** = 315, 418 (Standard), 433.92 MHz
xxx = Color Leave blank for standard Black
WHT = White CGY= Gray CBL = Blue
CRE = Red CPU = Purple
1.375"
2.81"
0.60"
