SUMED INTEGRITY User Manual

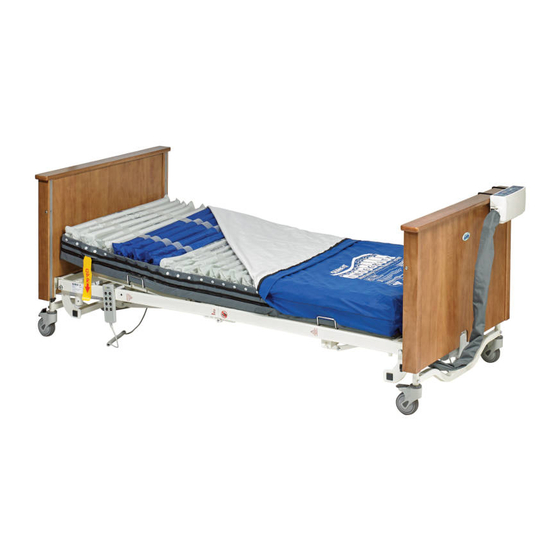

Homecare electric bed
Hide thumbs Also See for INTEGRITY:
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATIONS:
Bed Overall 215 cm long x 103.5 cm wide
Mattress Support Platform 201 cm long x 88 cm wide
Underbed Clearance 26.5 cm to Mattress Support Platform
Folded Bed Dimension 125 cm High x 103.5 cm x 44 cm
Weight of Bed Without Side Rails 85 kg
Mattress Sizes :
LENGTH – 197 cm - 201 cm
WIDTH – 88 cm - 91 cm
DEPTH – 12.5 cm - 22.5 cm
Max User Weight 195 kg
Safe Working Load 230 kg
Storage Temp +5°C to +40°C
®
Sumed International (UK) Ltd. Integrity House, Units 1-2 Graphite Way, Hadfield, Glossop, Derbyshire SK13 1QH
Phone: +44 (0)1457 890980 Fax: +44 (0)1457 890990 E-mail: sales@sumed.co.uk www.sumed.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTEGRITY and is the answer not in the manual?

Questions and answers

Related Manuals for SUMED INTEGRITY

Summary of Contents for SUMED INTEGRITY

  • Page 1 Max User Weight 195 kg Safe Working Load 230 kg Storage Temp +5°C to +40°C ® Sumed International (UK) Ltd. Integrity House, Units 1-2 Graphite Way, Hadfield, Glossop, Derbyshire SK13 1QH Phone: +44 (0)1457 890980 Fax: +44 (0)1457 890990 E-mail: sales@sumed.co.uk www.sumed.co.uk...
  • Page 2 Homecare Electric Bed User Manual INTEGRITY® UNIQUE MOTORISED FOLDING AND EXTENDING ELECTRIC BED Maximum User Weight195kg (30.7 stones)

  • Page 4: Table Of Contents

    I. Actuator System Overview II. Actuator System Connections III.Standard Handset Functions Manufacturer information: IIII. Locking Handset Functions Integrity Homecare Electric Bed is a Class I Medical Device. Page 7-8 The Manufacturer of the Product is: 4. Motorised Operation Sumed International (UK) Ltd I.

  • Page 5: A Brief Overview

    1. Introduction to Integrity SS888-FM I. A brief overview: 3 YEAR WARRANTY SUBJECT TO COMPLIANCE WITH OPERATING INSTRUCTIONS • All mattress support frames are made of powder coated steel (colour - light cream) • 24V DC actuator systems. Voltage:240V/50Hz • Head and foot board are made of scratch resistant wooden board •...

  • Page 6: Important Safety Information

    The Integrity Homecare Electric Bed is intended for continuous use where required. The Integrity Homecare Electric Bed should never be operated by anyone under the age of 12, due to the risk of injury through crushing. Any children visiting a patient should be supervised at all times.
  • Page 7 M. Do not use the bed in areas where ammable gases or vapours may be present N. Do not move the bed whilst operating any of the control system functions Any unauthorised alterations to the Integrity Homecare Electric Bed may result in injury or death Any unauthorised alterations will void manufacturer’s warranty.

  • Page 8: Control System Overview

    3. Control Sytem Overview I. Actuator system overview: Low Voltage 24V DC Control / Actuator System Low Noise Actuators Overload Protection Battery back up available – If battery back up is installed, operation time (in the event of power failure) is possible up to a maximum of 120 mins (dependant on user weight and total number of operations of the control system) II.

  • Page 9: Iiii. Locking Handset Functions

    III. Standard Handset Functions: Folding*: Extension*: Press to fold the bed Press to unfold the bed Backrest: Backrest: Press to raise backrest Press to lower backrest Press to raise knee break Press to lower knee break Press to lower bed height Press to raise bed height Press to Trendelenburg Press to reverse Trendelenburg...

  • Page 10: Motorised Operation

    4. Motorised Operation I. Motorised Extension (Unfolding the bed): PLEASE READ INSTRUCTIONS BEFORE UNFOLDING OR OPERATING THE BED FAILURE TO DO SO MAY RESULT IN DAMAGE OR INJURY PLEASE KEEP HANDS CLEAR OF ANY MOVING PARTS TO AVOID ENTRAPMENT AND POSSIBLE INJURY 1.

  • Page 11: Fitting The Side Rails

    4. Motorised Operation II. Fitting the Side Rails PLEASE READ INSTRUCTIONS BEFORE UNFOLDING OR OPERATING THE BED FAILURE TO DO SO MAY RESULT IN DAMAGE OR INJURY PLEASE KEEP HANDS CLEAR OF ANY MOVING PARTS TO AVOID ENTRAPMENT AND POSSIBLE INJURY 2.

  • Page 12: Motorised Folding

    4. Motorised Operation IV. Motorised Folding PLEASE READ INSTRUCTIONS BEFORE UNFOLDING OR OPERATING THE BED FAILURE TO DO SO MAY RESULT IN DAMAGE OR INJURY PLEASE KEEP HANDS CLEAR OF ANY MOVING PARTS TO AVOID ENTRAPMENT AND POSSIBLE INJURY 1. First remove siderails if tted 2.

  • Page 13: Bed Positions

    4. Motorised Operation V. Bed Positions PLEASE READ INSTRUCTIONS BEFORE UNFOLDING OR OPERATING THE BED FAILURE TO DO SO MAY RESULT IN DAMAGE OR INJURY PLEASE KEEP HANDS CLEAR OF ANY MOVING PARTS TO AVOID ENTRAPMENT AND POSSIBLE INJURY 1. Backrest lifting / lowering 2.

  • Page 14: Warranty, Care & Maintenance

    5. Warranty, Care & Maintenance I. Warranty Integrity Home Care Electric Bed is warranted for a period of 3 years from the date of delivery against defects in materials and workmanship under normal use and service. This warranty does not apply to damage or defects caused by misuse, incorrect handling or installation by a non-authorised installer.

  • Page 15: Troubleshooting & Spare Parts

    6. Troubleshooting & Spare parts i.Troubleshooting FAULT POSSIBLE CAUSE REMEDY BED WILL NOT OPERATE Mains plug not plugged in Plug in All functions do not work Mains socket is not live Quali ed electrician check mains socket Main power cable is damaged Replace main power cable Fuse in mains plug blown Check fuse...
