eikon e2s
®
Service & Repair manual
Part number: 32Z3923
Microwave combination oven
Read instructions before use
Models: 50Hz & 60Hz
Language: English
Date: Feb 2021/v1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Merrychef eikon e2s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Welbilt Merrychef eikon e2s

Summary of Contents for Welbilt Merrychef eikon e2s

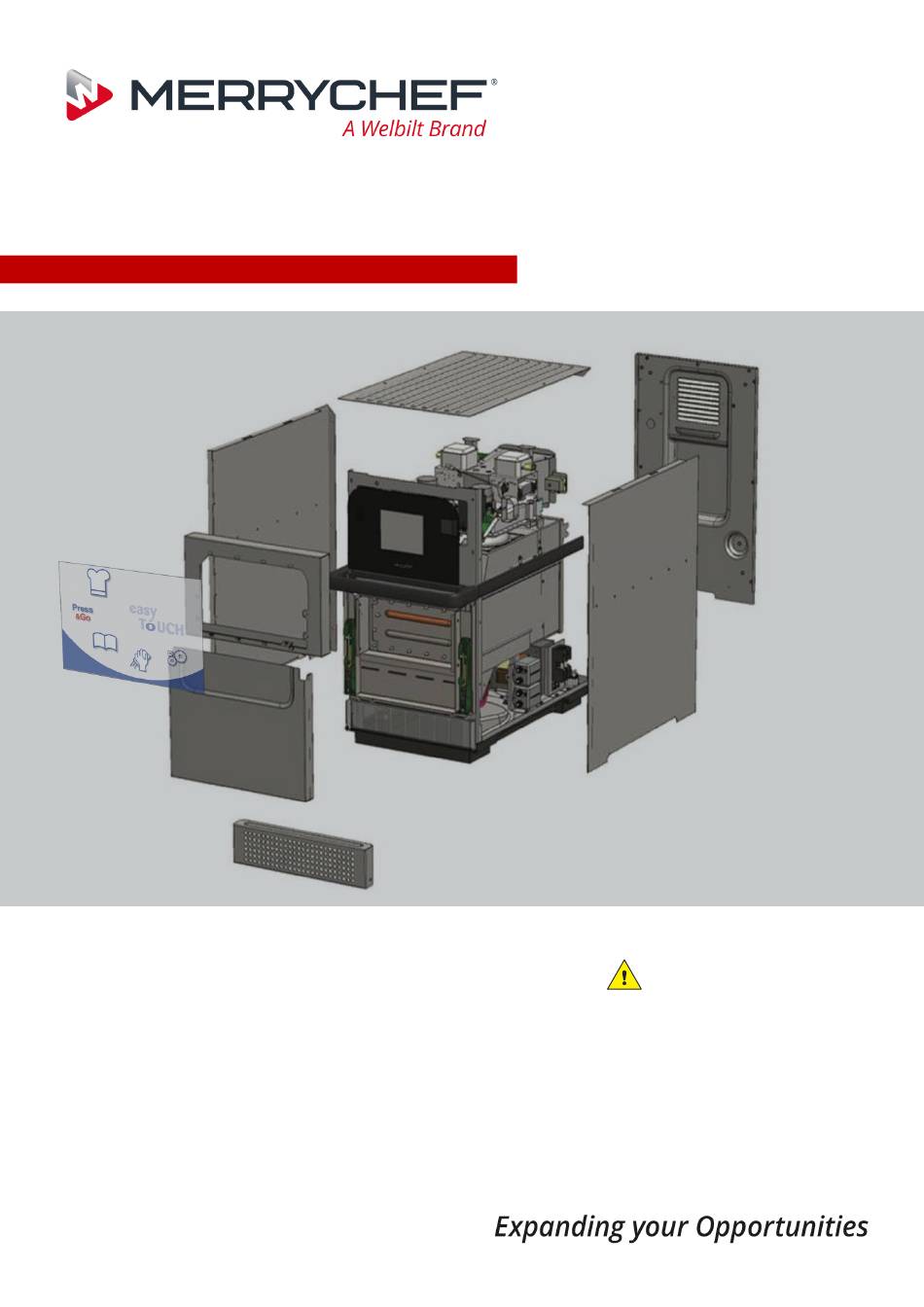

  • Page 1 eikon e2s ® Service & Repair manual Part number: 32Z3923 Microwave combination oven Read instructions before use Models: 50Hz & 60Hz Language: English Date: Feb 2021/v1...
