FXLuminaire A-CT4 Manual

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

INSTALL NOTE: A-CT4
1. Caution and Safety Instructions
•
Qualified personnel must install and/or service
this product in a manner consistent with its
intended use and in compliance with the
National Electrical Code, Canadian Electrical Code,
and/or all local and provincial codes.
•
Follow all product label information and
installation instructions.
•
Turn off power at the fuse or circuit breaker
before installation or servicing.
•
The use of damaged components may cause an
unsafe condition and void the product warranty.

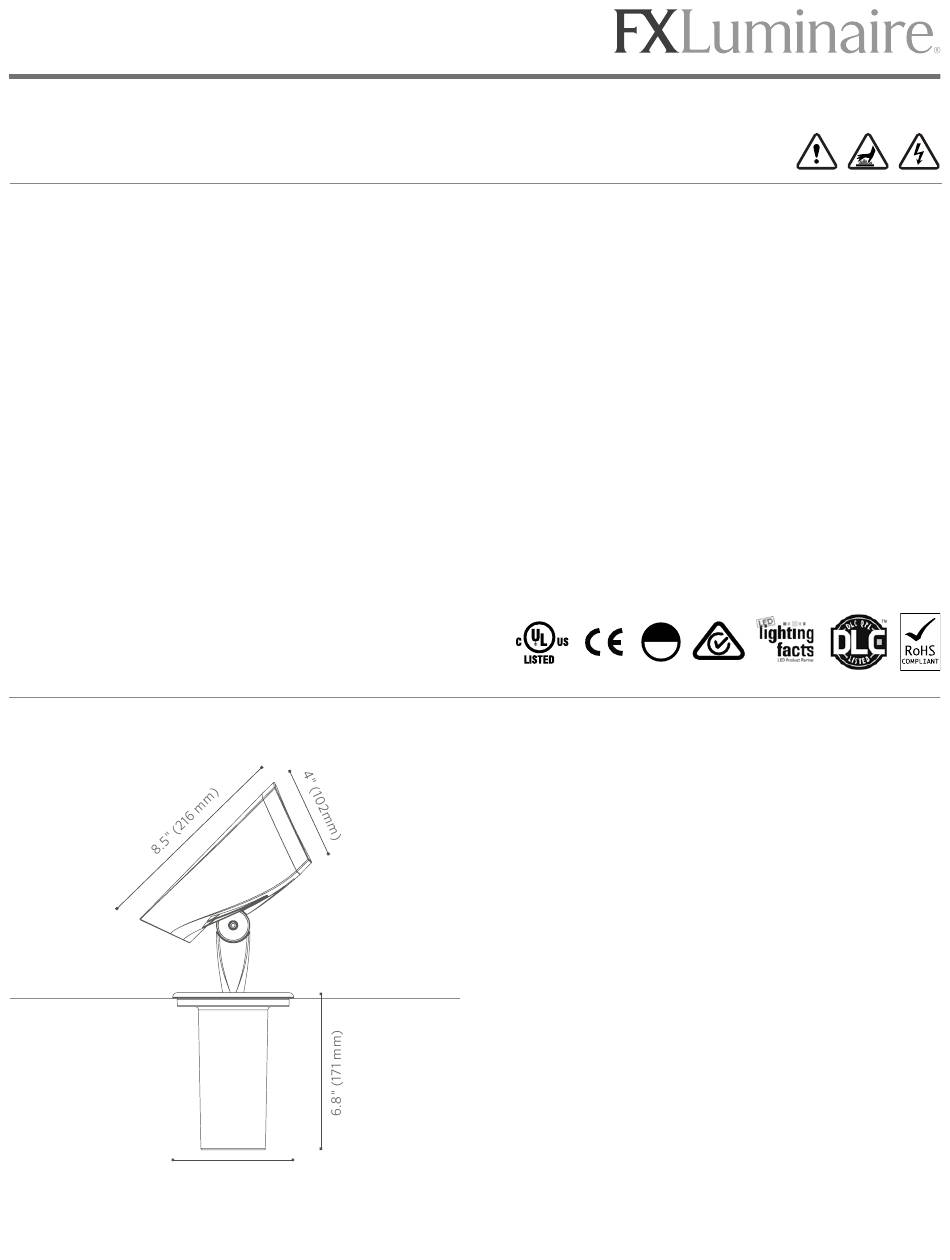

2. Product Information
•
This product is suitable for mounting at grade level.
LANDSCAPE & ARCHITECTURAL LIGHTING
5.3"(133 mm)
| Learn more. Visit fxl.com
•
Do not block light emanating from this product in
whole or part.
•
Never operate the fixture with a missing or
damaged lens. Clean the lens on a regular basis.
•
The entire fixture may become extremely
hot. Do not touch the hot lens or fixture body.
Do not touch the light source at any time.
•
Keep all O-rings and sealing surfaces clean during
installation and servicing; failure to do this may
lead to premature failure of the product.
IP
67
3YJ8
Tools Needed:
•
Installation: 7/8", 5/ 32", and 5/64" Allen keys
•
Servicing: 7/64" Allen key and #1 Phillips
screwdriver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-CT4 and is the answer not in the manual?

Questions and answers

Related Manuals for FXLuminaire A-CT4

Summary of Contents for FXLuminaire A-CT4

  • Page 1 INSTALL NOTE: A-CT4 1. Caution and Safety Instructions • Qualified personnel must install and/or service • Do not block light emanating from this product in this product in a manner consistent with its whole or part. intended use and in compliance with the •...

  • Page 2: Product Installation

    INSTALL NOTE: A-CT4 3. Product Installation Diagrams 1. Secure the driver housing in-ground in accordance with local codes and regulations. 2. Connect conduit or cable runs to the bottom of the driver housing with couplings (1/ 2"-14 NPT, provided by others). Use the provided ½"-14 NPT plug for unused conduit openings.

  • Page 3: Wiring Chart

    INSTALL NOTE: A-CT4 3. Product Installation (continued) Diagrams Wiring Chart Line/Hot/Switching Black Common White Green (via stud or green lead) Ground 0-10V (-) Gray* 0-10V (+) Purple* *For use with 0-10V driver only 5/ 32" Allen key Black Gray White...
  • Page 4 INSTALL NOTE: A-CT4 4. Repair/Replacement Instructions • Standard Optics (20º, 40º, and 60º) 1. Remove the cap by unfastening the 6-32 x 1/ 2" 3. Unfasten the three LED module screws using a (13 mm) screw using a 7/64" Allen key. Then lift Phillips #1 screwdriver.

  • Page 5: Statement Of Limited Warranty

    INSTALL NOTE: A-CT4 4. Warranty STATEMENT OF LIMITED WARRANTY Hunter Industries Incorporated (“Hunter”) warrants FX Luminaire Line-Voltage Series lighting products to be free of defects in materials or workmanship under normal use for a period of five (5) years from the date of invoice. If a defect in a FX Luminaire product is discovered during the applicable warranty period, Hunter will repair or replace, at its option, the product or the defective part.
