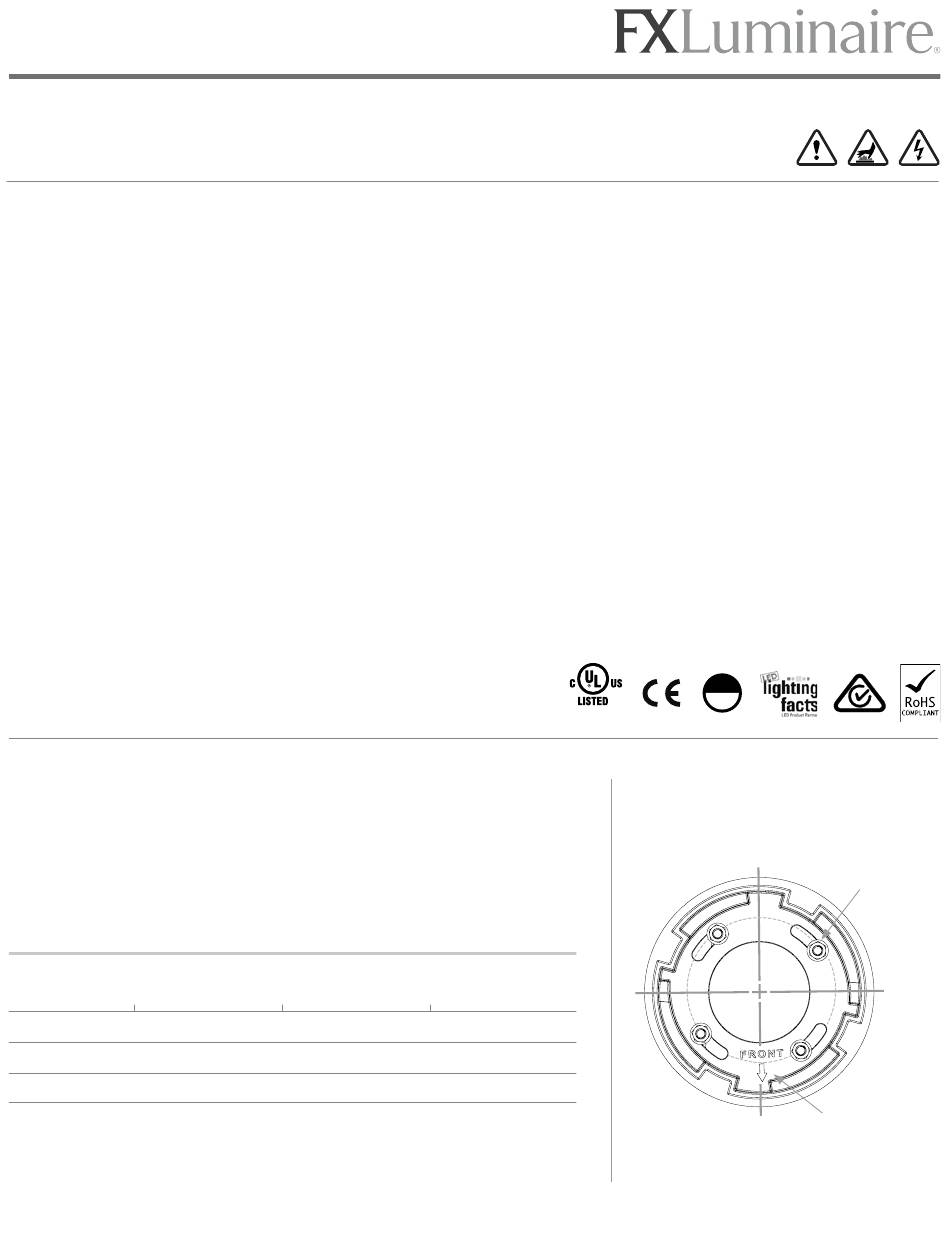

INSTALL NOTE: A-BR10

1. Caution and Safety Instructions

Qualified personnel must install this product in
a manner consistent with its intended use and
in compliance with the National Electrical Code,
Canadian Electrical Code, and/or all local and
provincial Codes.
Follow all product label information and
installation instructions.
Qualified personnel must perform all servicing
of this product.
Turn off power at the fuse or circuit breaker
before installation or servicing.
The use of damaged components may cause an
unsafe condition and void the product warranty.

2. Product Information

Tools Needed
Installation: 9/ 16" (14 mm), 7/ 16" (11 mm) wrench or socket, and
5/ 32" Allen key
Servicing: #2 Phillips screwdriver
Power Requirements
Standard
Voltage (SV)
Input Power
120V/60Hz
Dimming
Phase
Number of Wires
3
Black, White, Green
LANDSCAPE & ARCHITECTURAL LIGHTING
Universal
High
Voltage (UV)
Voltage (HV)
110V to 277V/60Hz
220V to 240V/50Hz
0-10V
N/A
5
3
Black, White, Green,
Brown, Blue,
Purple, Gray
Green/Yellow
| Learn more. Visit fxl.com
Do not block light emanating from the product
in whole or part.
Never operate the fixture with a missing or
damaged lens. The lens must be cleaned on
a regular basis.
Portions of the fixture may become extremely
hot. Do not touch the hot lens or fixture body.
Do not touch the light source at any time.
Keep all gaskets and sealing surfaces clean
during installation and servicing; failure to do
so may lead to premature failure of the product.
3YJ8
Bolt Pattern Dimensions:
Top View
IP
67
2.5" (64 mm)
Radius
Note: Front arrow
indicates orientation
of fixture.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-BR10 and is the answer not in the manual?

Questions and answers

Summary of Contents for FXLuminaire A-BR10

  • Page 1 INSTALL NOTE: A-BR10 1. Caution and Safety Instructions • Qualified personnel must install this product in • Do not block light emanating from the product a manner consistent with its intended use and in whole or part. in compliance with the National Electrical Code, •...
  • Page 2 INSTALL NOTE: A-BR10 3. Product Installation Wiring Chart (SV/UV – 60Hz) Install ring Line/Hot/Switching Black Install spacer Common White Green (via stud or green lead) Ground 0-10V (-) Gray* Anchor bolts 0-10V (+) Purple* *For use with 0-10V driver only 1.
  • Page 3 INSTALL NOTE: A-BR10 3. Product Installation 9. Place the cap on top of the main assembly. 5. Lift the fixture assembly and lower it onto the mounting base assembly. 6. Align the four tabs with the grooves in the install rings.
  • Page 4 INSTALL NOTE: A-BR10 4. Warranty STATEMENT OF LIMITED WARRANTY Hunter Industries Incorporated (“Hunter”) warrants FX Luminaire Line-Voltage Series lighting products to be free of defects in materials or workmanship under normal use for a period of five (5) years from the date of invoice. If a defect in a FX Luminaire product is discovered during the applicable warranty period, Hunter will repair or replace, at its option, the product or the defective part.
