Descripción

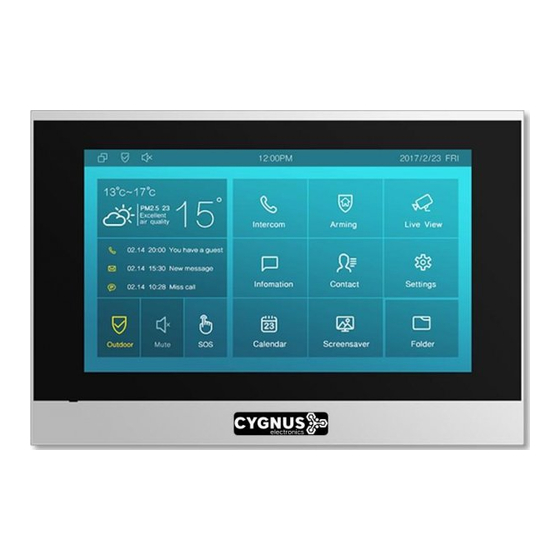

El comunicador multifuncional VRX

El comunicador

multifuncional VRX-307W, con sistema

operativo Linux, funciona como monitor interior y

proporciona comunicación de audio y vídeo con

Porteros exteriores a través del protocolo SIP abierto.

Ofrece la mejor experiencia de pantalla táctil en un

diseño discreto y que ahorra espacio.

diseño discret

o y que ahorra espacio.

Especificaciones

Generales

Pantalla táctil capacitiva de 7", modo ahorro de energía.

Aspecto delgado, ultra claro y elegante.

WiFi incorporado (2.4Ghz)

Recepción de vídeo desde el portero o cámara en la misma red.

Comunicación bidireccional en red, basada en el protocolo SIP.

Alimentación PoE o fuente externa

SIP / RTSP / R485 / PoE

Características SIP

SIP v1 (RFC2543), SIP v2 (RFC3261)

Línea: 2 Cuentas SIP

info@cygnus.la

os, hoteles, o cinas y hogares fácil de instalar y con gurar

s, hoteles, o cinas y hogares fácil de instalar y con

307W, con sistema

Manual de usuario VRX-307W

urar

SIP

cygnus.la

Table of Contents

Need help?

Do you have a question about the VRX-307W and is the answer not in the manual?

Questions and answers

Summary of Contents for Cygnus VRX-307W

Page 1 Manual de usuario VRX-307W Monitor interior de 7” Monitor interior de 7” Monitor interior de 7”S SWi-Fi VRX-307W 307W Ideal para uso en Ideal para uso en Ideal para uso en ed cios, hoteles, o cinas y hogares fácil de instalar y con gurar Ideal para uso en edi cios, hoteles, o cinas y hogares fácil de instalar y con...
Page 2 Manual de usuario VRX-307W Características de la pantalla Tipo de pantalla: matriz activa TFT capacitiva Tamaño : 7 pulgadas (176mm) diagonal Relación de aspecto: 16:9 Resolución: 800*480 Relación de contraste: 400:1 Profundidad de color: 18 bits, 0.26M colores Luminosidad : 200nits (cd/m²)
Page 3 Cygnus Electronics y /o sus a liados en la Argentina y otros países. Cualquier marca de terceros mencionada es propiedad de Cygnus Electronics y /o sus a liados en la Argentina y otros países. Cualquier marca de terceros mencionada es propiedad de sus respectivos sus respectivos dueños.
Page 4 Manual de usuario VRX-307W Guía de inicio rápido Descripción Pantalla táctil VRX-307 Micrófono Ethernet (POE): Conector Ethernet (POE) puede proporcionar conexión de red y de alimentación. RJ45 (PON): Comparte el acceso a la red, para la conexión de PC u otros equipos.
Page 5 Haga clic en Número 1/2/3 ③ para ingresar el número 1/2/3, que Haga clic en Camera URL ④ para ingresar la URL RTSP de la unidad podría ser número SIP o dirección IP. exterior. Nota: URL RTSP del monitor Cygnus: rtsp://IP(dispositivo)/live/ch00_0 Toque Cancelar ⑥ para cancelar la operación o presione ⑤...
Page 6: Table Of Contents
Manual de usuario VRX-307W User Manual VRX-307 2. Daily Use..........................................3 2.1. Starting......................................... 3 2.2. Making a Call.......................................5 2.2.1. Calling from Call List..................................5 2.2.2. Calling from All Call..................................5 2.2.3. Calling from Missed Call..................................6 2.2.4. Calling from Device..................................6 2.2.5.
Page 7 Manual de usuario VRX-307W 2.4.1. Checking the Monitor..................................9 2.5. Message........................................10 2.5.1. Text Message....................................10 2.5.1.1. Creating a Text Message..............................11 2.5.1.2. Deleting a Text Message..............................12 2.5.2. Audio Message....................................12 2.5.2.1. Creating an Audio Message............................... 14 2.5.2.2. Deleting an Audio Message..............................15 2.6.
Page 8: Daily Use
Discovery mode is default mode if users don’t choose any device mode. Discovery mode: It is a plug and play configuration mode. Cygnus devices will configure themselves automatically when users power on the devices and connect them to network. It is super time-saving mode and it will greatly bring users convenience by reducing Figure 2.1-2 Device mode selection...
Page 9 This mode do not need to be done any configurations previously by the administrator. Cloud mode: Cygnus Cloud is an all in one management system. Cygnus Cloud is the mobile service that allows audio, video, remote access control between smart phones and Cygnus intercoms. All configurations in the device will be issued automatically from cloud.
Page 10: Making A Call
Manual de usuario VRX-307W 2.2. Making a Call There are 6 ways to establish VOIP calls by VRX-307. 2.2.1. Calling from Call List In the home page, choose a number from Call List to make a call.  Scroll up or down the Call List to choose the contact that users Figure 2.2.1 Call from call list...
Page 11: Calling From Missed Call
Manual de usuario VRX-307W 2.2.3. Calling from Missed Call In the home page, missed call indicates how many calls that users missed (1 missed call for an example). Missed call could be treated as a brief call log.  Tap Missed Call icon ①...
Page 12: Calling From Local Contacts
Manual de usuario VRX-307W  Choose Audio ③ or Video ④ mode to call out. Note: Only under Discovery mode, users need to press Update key manually. 2.2.5. Calling from Local Contacts On the device, go to More - Contact to enter the Local Contacts interface to make a call.
Page 13: Receiving A Call
Manual de usuario VRX-307W  Input the SIP account /IP address to the keypad ③ to call the corresponding devices or soft phone. Choose Audio ④ or Video mode to call out.  ⑤ 2.3. Receiving a Call 2.3.1. Receive an Incoming Call VRX-307 supports to preview the caller when it receives an incoming call from door phone.
Page 14: Monitor
Manual de usuario VRX-307W  Tap Cancel to hang up the current call.  Tap New to hold the current call and make a new call.  Tap Hold to hold the current call. The call can be resumed or canceled later.
Page 15: Message
Manual de usuario VRX-307W 2.5. Message Message ① indicates how many messages are unread (Two unread messages for an example). Or directly enter the message interface to manage. 2.5.1. Text Message Figure 2.5 Message  Tap Message ① on the main interface to view the unread messages.
Page 16: Creating A Text Message
Manual de usuario VRX-307W 2.5.1.1. Creating a Text Message  Press New key ① to create a new text message.  Enter the destination number manually ② or select the device quickly from the below list ③ .  Input the message content which users want to send ④.
Page 17: Deleting A Text Message
Manual de usuario VRX-307W 2.5.1.2. Deleting a Text Message  Press Clear ① and select text message ② first.  Click Select All ③ to select all message in the message lists.  Click Delete ④ to delete the messages have been selected.
Page 18: Audio Message
Manual de usuario VRX-307W 2.5.2. Audio Message  Tap the Family MSG ① to view the audio messages from family members who record in VRX-307 directly in details. Figure 2.5.2 Audio Message info@cygnus.la cygnus.la...
Page 19: Creating An Audio Message
Manual de usuario VRX-307W 2.5.2.1. Creating an Audio Message  Press New key ② to create a new audio message.  Press Record key ③ which family members want to remind users.  Press Test key ④ to check the audio message is complete, and Volume key ⑤...
Page 20: Deleting An Audio Message
Manual de usuario VRX-307W 2.5.2.2. Deleting an Audio Message  Press Clear ① and select audio message ② first.  Click Select All ③ to select all message in the message lists.  Click Delete ④ to delete the messages have been selected.
Page 21: Arming
Manual de usuario VRX-307W 2.6. Arming Tap Arming to enter the “Arming” interface. Arming feature is not displayed by default. Users could choose to display “Arming” on the home /more page, please refer to chapter 3.4.12 about the feature display setting.
Page 22: Disarm Password
Manual de usuario VRX-307W  To setup the Alarm delay. It means when the sensor triggered, there will be 90 seconds delay time to announce the notification.  The Status in the corresponding zone means whether the zone is available or not.
Page 23: Alarm Log
Manual de usuario VRX-307W Press Save key to save the modification.  On the web portal, users can go to Arming - Disarm Code to configure. Figure 2.6.2-2 Disarm password 2.6.3. Alarm Log On the device, go to Arming - Alarm Log to enter the alarm log interface.
Page 24: Status
Manual de usuario VRX-307W 2.6.4. Status On the device, go to Arming - Status to enter the zone status interface. Users can check the status of zones, including “location,” “zone type,” “trigger mode” and “status.” Figure 2.6.4 Zone status info@cygnus.la...
Page 25 Manual de usuario VRX-307W Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol...
Page 26 Manual de usuario VRX-307W SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center...
Page 27 Manual de usuario VRX-307W Contact us For more information about the product, please visit us at www.cygnus.la or feel free to contact us by Sales email: info@cygnus.la Technical support email: santiago.lovera@cygnus.la Telephone: (+5411) 32218153/52780022 ext.123/304 We highly appreciate your feedback about our products.
