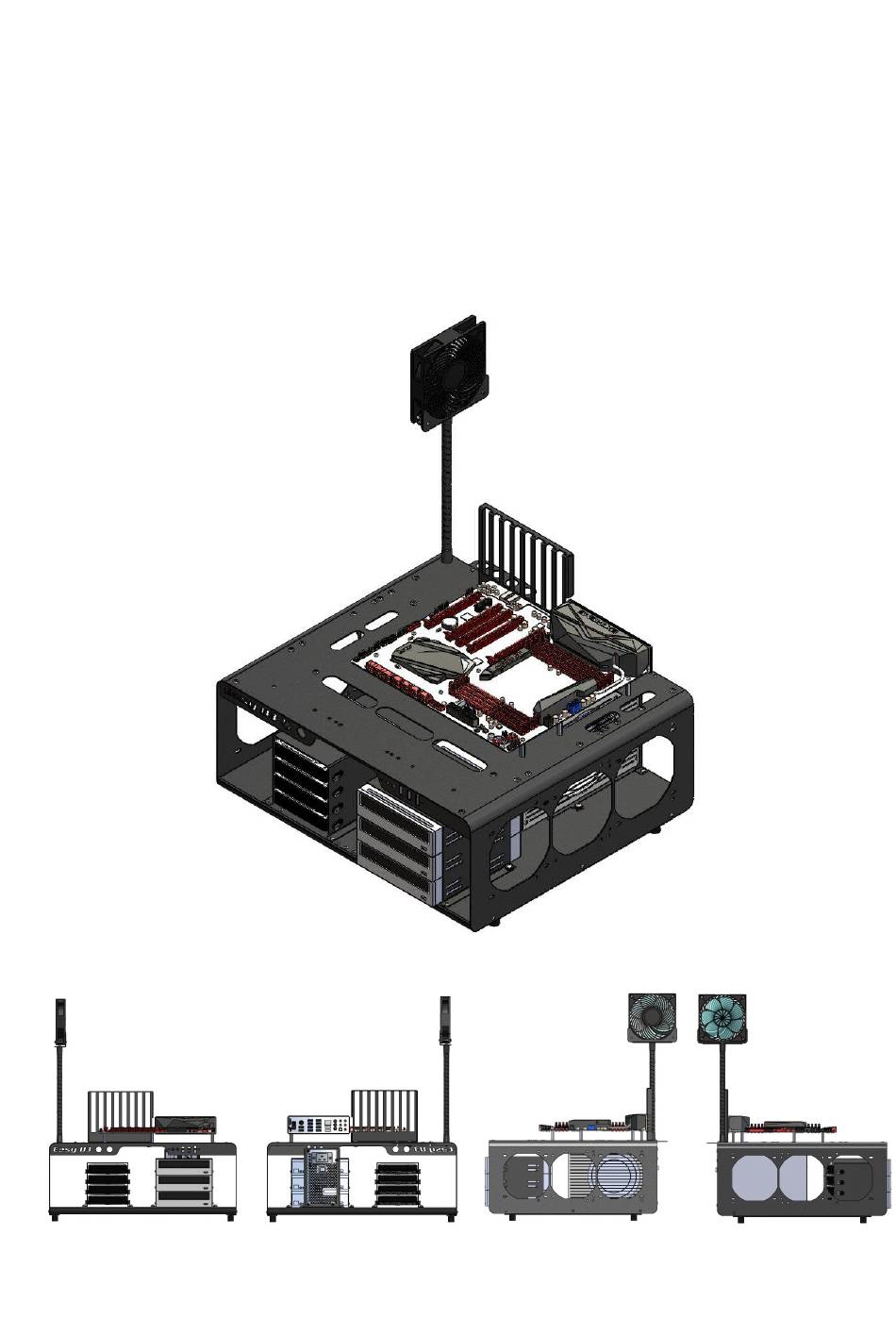

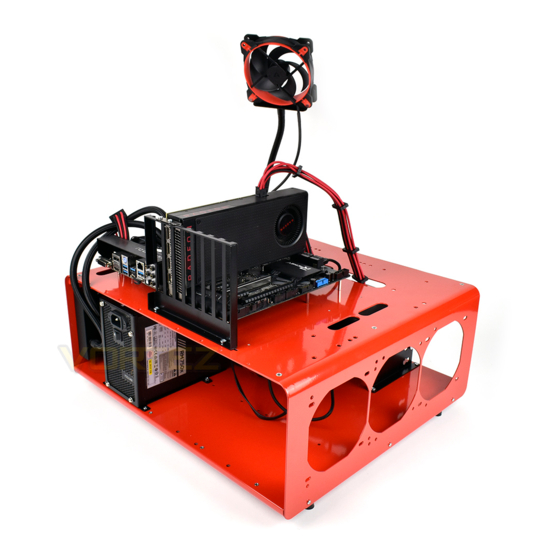

- Page 1 DimasTech Easy Version 3.0 ASSEMBLY MANUAL...
-
Page 2: Contents Of The Kit
CONTENTS OF THE KIT... - Page 3 ASSEMBLY DimasTech Easy V.3.0 - FLEX-FAN - Align VC058 (9) to BT2501 (8) and fasten with No.1 screw VC047_M4x10 (21), as shown in Figure 1 - Align FAN 120 (item not included) to BT2501 (8) on vertical holes and fasten with No.2 screws VC050_M2,5x25...
- Page 4 ASSEMBLY DimasTech Easy V.3.0 – STEP-1 - Assemble No.4 VC067_rubber- feet_M4 (10) into the dedicated M4 threaded inserts, located at the base of the DIMAS_400_C_RF-RB_V.3.0 (1) body, as shown in the figure beside ASSEMBLY DimasTech Easy V.3.0 – STEP-2 - Unscrew the No.6 screws...
- Page 5 ASSEMBLY DimasTech Easy V.3.0 – STEP-3 - The component BT148 (3) has the possibility to house inside No.3 optical readers (items not included), the image has the sole purpose of illustrating the possible positions of the parts. - Align the side holes of the optical...
- Page 6 ASSEMBLY DimasTech Easy V.3.0 – STEP-5 - The component BT051-2013 (5) has the possibility to house inside No.1 power supply (item not included), the image has the sole purpose of illustrating the possibility positions of the parts. - Align the holes in the power...
- Page 7 ASSEMBLY DimasTech Easy V.3.0 – STEP-7 - Align the slots at the base of the BT045-2013 component (6) with the slots at the back of the Dimastech Easy V.3.0 and fasten with No.2 screws VC047_M4x10 (21) plus No.2 knurled nuts VC024_M4 (18), as shown in the figure beside.
- Page 8 ASSEMBLY DimasTech Easy V.3.0 – STEP-9 - The Dimastech Easy V.3.0 has the possibility to mount No.9 spacers VC015_M3_25mm_M-F (15) in any of the No.15 M3 threaded holes available to you according to the type of motherboard you have purchased...
- Page 9 ASSEMBLY DimasTech Easy V.3.0 – PD001_16mm – Unscrew the hexagon nut of the pushbutton PD001_16mm (11), as shown in Figure 1 - Before proceeding with the assembly of the hardware parts, it is necessary to extract the BT148 (3) and BT149 components (4) as shown in STEP-2 and STEP-5.
- Page 10 ASSEMBLY DimasTech Easy V.3.0 – PD001_16mm For power ON or reset function, connect without polarity yellow cable to "NO1" and other Yellow cable to "C1", than to use the push button integrated LED, connect the black cable to "-" and the red cable to "+", push button integrated...
