Installation instructions
RF identification system
Read/write head
UK
DTI600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI600 and is the answer not in the manual?

Questions and answers

Summary of Contents for IFM DTI600

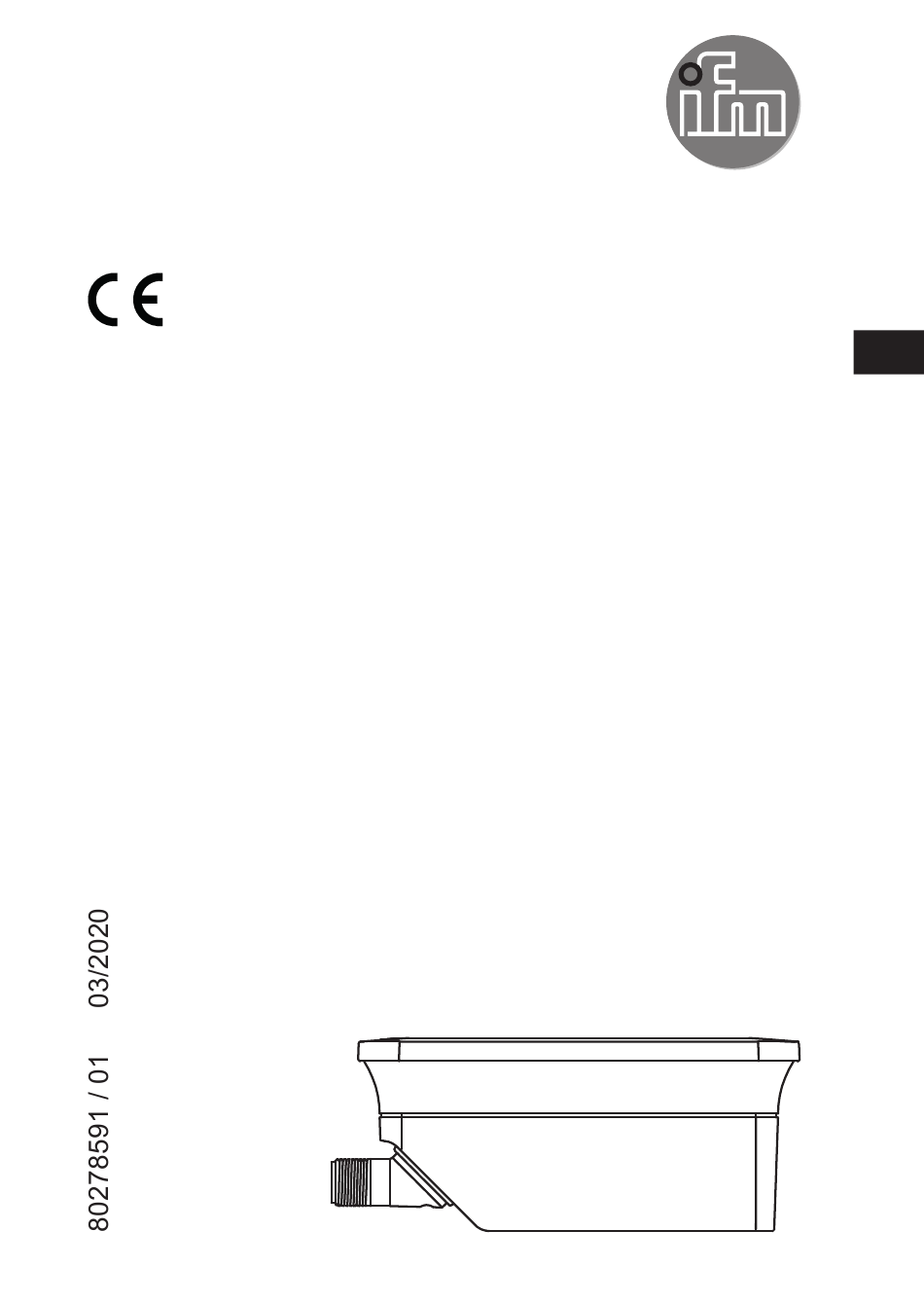

  • Page 1 Installation instructions RF identification system Read/write head DTI600...
  • Page 2: Table Of Contents

    Content 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used �����������������������������������������������������������������������������������������������4 2 Safety instructions �����������������������������������������������������������������������������������������������4 2�1 General ���������������������������������������������������������������������������������������������������������4 2�2 Radio equipment ������������������������������������������������������������������������������������������5 2�3 Interference of electronic and medical devices ��������������������������������������������5 3 Functions and features ����������������������������������������������������������������������������������������5 4 Function ���������������������������������������������������������������������������������������������������������������5 4�1 Operating principle ���������������������������������������������������������������������������������������5 4�2 Overview �������������������������������������������������������������������������������������������������������6 5 Installation������������������������������������������������������������������������������������������������������������6 5�1 General installation instructions ��������������������������������������������������������������������6...
  • Page 3 12�1 Radio approvals ����������������������������������������������������������������������������������������14 12�1�1 Overview �������������������������������������������������������������������������������������������14 12�1�2 Europe / EC declaration of conformity ����������������������������������������������14 12�1�3 USA ��������������������������������������������������������������������������������������������������14 12�1�4 Canada ���������������������������������������������������������������������������������������������15 12�1�5 Taiwan ����������������������������������������������������������������������������������������������15 12�1�6 Australia ��������������������������������������������������������������������������������������������16 12�1�7 Singapore �����������������������������������������������������������������������������������������16...
  • Page 4: Preliminary Note

    1 Preliminary note This document is part of the device and contains information about the correct handling of the product� This document is intended for specialists� These specialists are people who are qualified by their training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device�...
  • Page 5: 2�2 Radio Equipment

    3 Functions and features In combination with the IO-Link master the read/write head DTI600 is used for non-contact reading and writing of RFID tags that conform to the system (ID tags)� The data is available as process data at the IO-Link interface�...
  • Page 6: 4�2 Overview

    4.2 Overview Art� no�: DTI600 Function: read/write head Type designation: DTRHF HLRWIOUS03 Operating frequency: 13�56 Mhz Type: rectangular Max� transmitter power: 2 watts 5 Installation 5.1 General installation instructions When mounting several read/write heads adhere to the minimum distances between the systems�...
  • Page 7: 5�3 Avoiding Interference

    5.3 Avoiding interference The device generates a modulated electrical field with a frequency of 13�56 MHz� To avoid interference of the data communication no other devices generating interference emission in this frequency band must be operated in its vicinity� Such devices are for example frequency converters and switched-mode power supplies�...
  • Page 8: 5�5�2 Installation With Mounting Device E80336

    5.5.2 Installation with mounting device E80336 The mounting device is used to mount the device to a clamp� The following clamps can be used: ● E21110 with a rod diameter of 12 mm ● E20795 with a rod diameter of 14 mm ● E21109 with a rod diameter of 14 mm 5.5.3 Installation with fixing bars E80337 ►...
  • Page 9: 5�6 Mounting Distances

    5.6 Mounting distances Operating mode Distance side (A) Distance front (B) For reading and writing ≥ 600 mm ≥ 400 mm 5.7 Positioning of the ID tags ► Align the ID tag on the antenna central axis� > Distance D see data sheet...
  • Page 10: Electrical Connection

    ► Connect the device to the IO-Link master using the M12 connector� Voltage is supplied via the IO-Link master� IO-Link A selection of sockets is available on our website at www�ifm�com� 6.2 cULus If approval is granted the approval text of the respective countries applies (→ 12 Approvals/standards).
  • Page 11: Indicators

    ID tag in the field green + 4x yellow FLASHING ALTERNATELY device fault 8 Operation The read/write head is configured via the IO-Link master� You can find more information about the operation in the manual at www�ifm�com�...
  • Page 12: Scale Drawing

    9 Scale drawing 12,4 M12x1 The max� tightening torque of the screws when mounting the device is 0�8 Nm� 333,4% EPS Source Product Scale D Frame Size: 80 M12x1 12,4...
  • Page 13: Technical Data

    10 Technical data The data sheets are available on our website at www�ifm�com� 10.1 Detection range with E80384 [mm] -200 -150 -100 [mm] Detection zone All indications apply to static write operations� If not otherwise stated, they refer to the installation of the device and of the ID tag in a non-metallic environment�...
  • Page 14: Approvals/Standards

    The overview of the approval status of a unit is available on our website at www� ifm�com � 12.1.2 Europe / EC declaration of conformity ifm electronic gmbh hereby declares that the DTI600 radio system corresponds to the directive 2014/53/EU� You can find the EC declaration of conformity on our website at: www�ifm�com...
  • Page 15 12.1.4 Canada IC note: This device complies with Industry Canada license-exempt RSS standards� Operation is subject to the following two conditions: 1� The device may not cause interference, and 2� the user of the device must accept any interference received, including interference that may cause undesired operation�...
  • Page 16 12.1.6 Australia Use in Australia: 12.1.7 Singapore Complies with IDA Standards DB 103032 The “Equipment Registration” is available on our website at: www�ifm�com...
