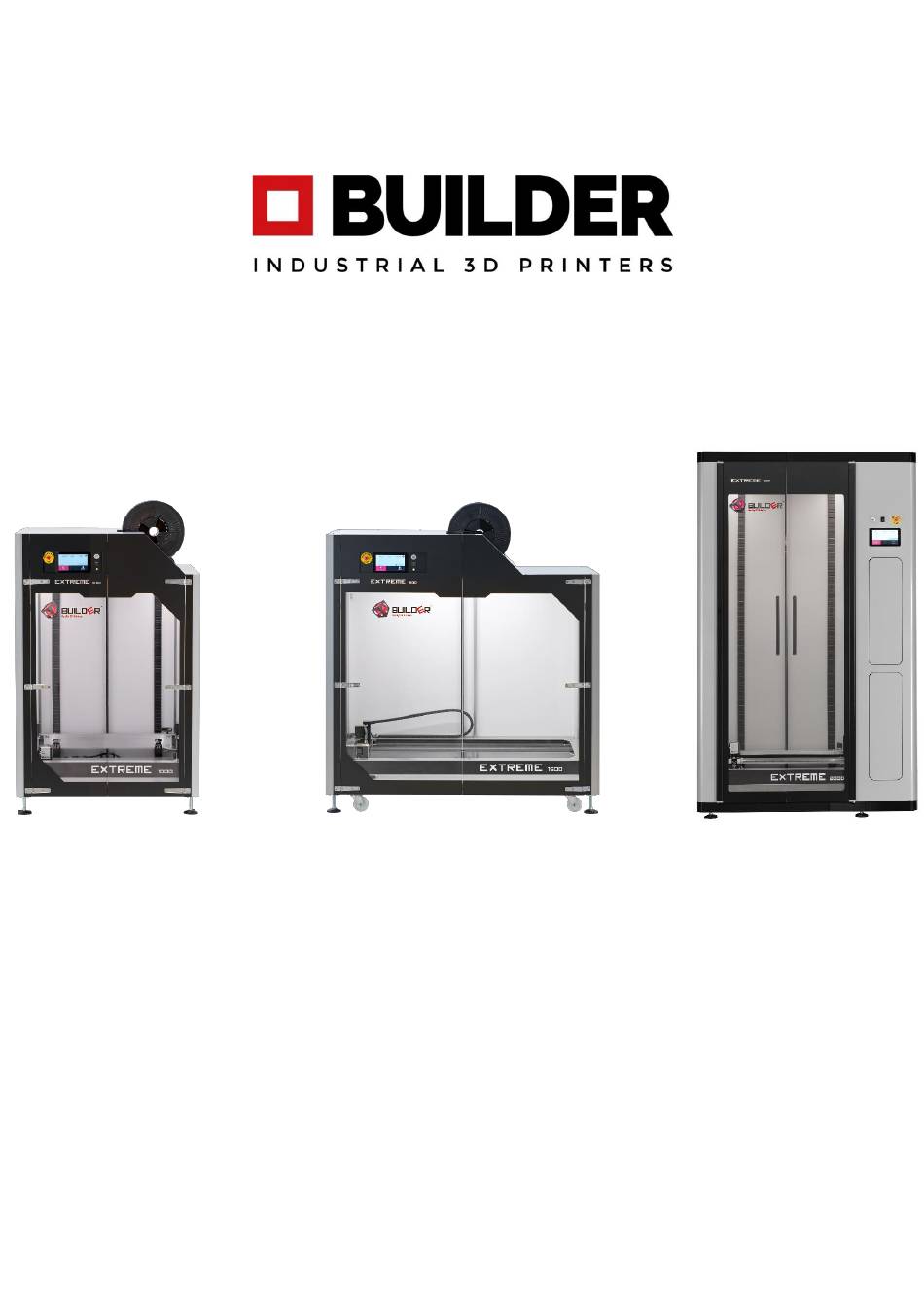

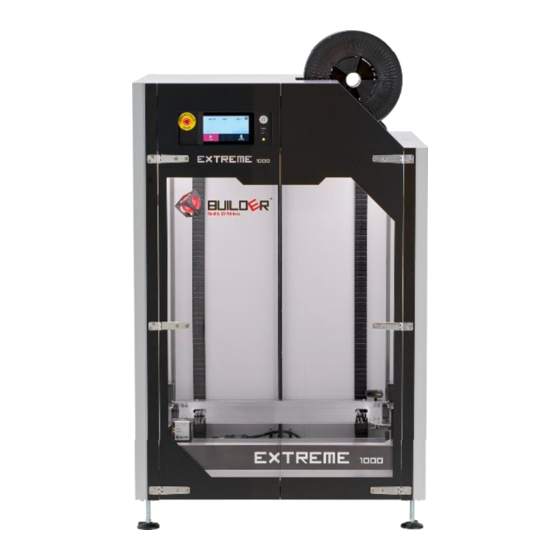

- Page 1 Installation and user manual for: Builder Extreme 1000 PRO Builder Extreme 1500 PRO Builder Extreme 2000 PRO V1.1ENG2021...
-
Page 2: Table Of Contents
Installation of the Builder Extreme PRO .................... 11 Step 1. Unboxing ........................... 11 Step 2. Remove the Builder Extreme from the pallet ..............11 Step 3. Remove accessory box and safety brackets ............... 11 Step 4. Level the machine itself, not the bed ................. 12 Step 5. - Page 3 Technical questions ........................27 Tips & Tricks ............................. 28 Before you start printing ....................... 28 During printing ..........................28 After printing ..........................28 Instruction videos ..........................29 Remove the print head for maintenance ..................29 How to replace the nozzle ......................29 How does the UPS (battery pack) works ..................
-
Page 4: Introduction
Builder Extreme before starting to print complex shaped and large prints. Please make sure that anyone who will be using the Builder Extreme, has fully read the manual to prevent any personal injuries, bad print quality and damages to the printer itself. We have created this manual with a team of Builder experts and we believe the most important information is covered in the manual, yet we cannot be held responsible for incorrect or missing information. -
Page 5: Warranty
The warranty of the Builder Extreme 3D printer, spare parts and filaments is granted to the original buyer only. The warranty will be activated as soon as the Builder product left the Builder factory in the Netherlands. The warranty of the Builder Extreme 3D printer is 12 months. The warranty of the Builder print head is 3 months. -
Page 6: Safety Instructions (Please Read Instructions Before Use)
Minimum age for persons using the Extreme Builder is 16 years. Place the Extreme Builder on a concrete floor and set it level, so that the machine is stable. Install the Builder in a room with sufficient ventilation. - Page 7 When the glass plate is dry you can turn on the power. WARNING! Maintenance of the electrical and mechanical components can only be done by authorized personnel. WARNING! Do not step lean in or step in to the Builder. (The glass plate will break).
- Page 8 Do not use the machine for other purposes than printing parts. When the Extreme Builder is in operation, keep the doors closed. Use only Builder certified materials. WARNING! Turn off the power and wait 15 minutes when you want to replace the extruder head, be careful this part is HOT! ...
-
Page 9: Accessories
Accessories What is in the accessory box? The following accessories are included in the accessories box with the purchase of the Builder Extreme: Quick start to successfully install the machine Nozzle 0.4 mm Installed on the print head ... -
Page 10: Specifications Builder Extreme Pro Series
Fused Filament Fabrication Print head Dual extruder with one nozzle (3 nozzle diameters included Build volume XYZ Builder Extreme 1000 PRO - 700x700x820 mm Builder Extreme 1500 PRO - 1100x500x820 mm Builder Extreme 2000 PRO - 700x700x820 mm Layer resolution 0.4 mm nozzle –... -
Page 11: Installation Of The Builder Extreme Pro
Step 2. Remove the Builder Extreme from the pallet Use a forklift truck to remove the Builder Extreme from the pallet and use a pallet truck to place it on a levelled concrete floor. Note: the Builder Extreme must be removed from the pallet before you continue with the installation. -
Page 12: Step 4. Level The Machine Itself, Not The Bed
Go to settings, home and press home. The frame will now go to its home position. When the frame is all the way down, go to print and click on the Builder logo and start the print “surface test 0.4”. The Builder Extreme will now print a few lines and circles to check if the machine is levelled correctly during installation. -
Page 13: Connect To Wifi
Connect to WiFi To connect the Builder Extreme to your WiFi network, please follow these steps: 1. Go to settings, network, WiFi 2. The Builder will now look for available WiFi networks 3. Select the WiFi network you want to connect with and fill in your password 4. -
Page 14: Installation Of Simplify3D
After successfully installing the Builder Extreme, it is now time to install the slicing software. The Builder Extreme comes with a Simplify3D license. With Simplify3D you can convert your 3D file into a gcode. Please follow these steps to install Simplify3D correctly: 1. -
Page 15: Preparing A 3D Print With Simplify3D
3D print. During the installation of Simplify3D, you have uploaded the FFF profile so when you open Simplify3D right now, you will see the print volume of your Builder Extreme. Please take a look at the video below. The video shows how to upload a STL file, how to slice it and prepare it for 3D printing. -
Page 16: Nozzle Diameters
Print speed is an important factor when it comes to a high quality and detailed prints. Although the Builder Extreme is able to print at a maximum speed up to 300 mm p/s, the maximum speed for your object is depending on size, shape, nozzle and required quality. Easy shaped and larger parts can be printed faster than smaller objects which have a lot of detail. -
Page 17: Touch Screen
The touch screen allows you to manage your Builder Extreme at all times. When you switch on the Builder Extreme, it will take about 20 seconds to start up till the main menu appears. From the main menu you have access to all features. -
Page 18: Information About The Touch Screen
1. back to previous screen (home screen) Disk: prints saved to memory 2. info about current screen Logo square: standard gcodes provided by Builder 3. go to second setting page 4. move the print head in all directions Pre-heat: Heat the nozzle and bed... - Page 19 Tune (while printing) Information screen Temp: change temperature while printing The information screens shows how Utilities: many hours you have printed, the serial Flow: change the flow or ratio when needed number of your machine, software version. Print speed: increase/decrease speed while printing This information is needed when you fill in Replace: when you need to replace the spools a support request on Builders website or to...
-
Page 20: Materials
Materials All materials offered by Builder, are optimized for 3D printing with the Builder Extreme range. The materials that are currently available for the Builder Extreme, have been extensively tested to achieve high quality print results. The materials work best in combination with Builders standard FFF profiles for Simplify3D. -
Page 21: Maintenance
Maintenance Software update Periodically, we update the software for the Builder Extreme. We do this to improve the software, remove bugs and add new features. When a new software is launched, it will be placed on our website and communicated through our social media channels and reseller network. The latest software version can be found here: https://builder3dprinters.com/installation/. -
Page 22: Maintenance Schedule Machine/Print Head
Maintenance schedule machine/print head The maintenance schedule is based on a use of 3000 print hours per year. If your user frequency is higher, we advise you to maintain the machine more often for optimal print results. Before every print Clean the printer Keep the printer clean for optimal print results Remove filament pieces from the build plate... -
Page 23: Frequently Asked Questions
H. Where can I find the surface test? The surface test print is the first print that you need to print on the Builder Extreme after the machine has been installed. The surface test print informs you if the machine is placed correctly and if the bed levelling has worked successfully. - Page 24 J. Why is there already filament inside the print head when it arrives? Every Builder Extreme is tested for 50 hours. These tests are done to make sure the printer works correctly and that the print head is able to print mono, dual and color mixed objects.
-
Page 25: Print Quality Questions
Print quality questions K. My print does not stick to the bed. What to do? First of all, check the bed levelling of the machine. Print the surface test to see if the filaments equally sticks to the bed. If not, please level the bed only on the place where it is needed. Also, make sure the machine has been pre-heating for about 15 minutes before you start a large print. - Page 26 The filament brakes when I just started to print. What to do? When you are not printing for a few days, and you leave the filament in the print head, the filament is under tension. Make sure when you start a new print, you cut of the filament that was under tension (from filament detection till print head).
-
Page 27: Technical Questions
If this works correctly, you can switch on the control box again and continue your print. Y. How to update my printer to the latest software? Please check here if there is a software update available for your Builder Extreme. If so, please follow the instructions in the manual to update to the latest software. -
Page 28: Tips & Tricks
Tips & Tricks Before you start printing 1. Before you start a new print, pre-heat the print bed for about 15 minutes. 2. Check if the correct nozzle is installed on the print head. 3. Check if the filament is placed correctly and that the spools are able to rotate easily. 4. -
Page 29: Instruction Videos
Instruction videos We have made a range of instruction videos to inform you how to use the Builder Extreme PRO correctly, but also how to do minor repairs if needed. Please take your time to watch in the instruction videos. -
Page 30: Support
Support When you are in need of support regarding the Builder Extreme, please first check our FAQ. If you cannot find the answer there, please contact your local Builder reseller or fill in the support request form below. have questions... - Page 31 Builder 3D Printers Smelterij 4 2211 SH Noordwijkerhout The Netherlands www.builder3dprinters.com...
