- Page 1 U S E R M A N U A L UBS1RF OPTIC A L SMOKE AL ARM EN 14604:2005/AC:2008 DOP:UBS1RF-001-V1 0359...
-
Page 2: Smoke Alarm

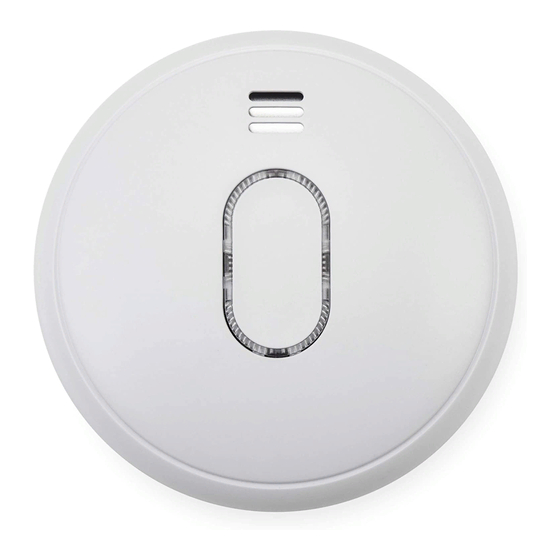

UBS1RF Optical Smoke Alarm OverView This optical smoke alarm is a fire detection and alarm device which gives off an audible and visual warning when it detects the presence of smoke within a specially designed detection chamber. Optical smoke sensors... -
Page 3: Product Specification
Product Specification • Sensor Type: Optical with thermal enhancement • Smoke Sensitivity: 0.101 – 0.153dB/m • Battery Specification: • Silence Time: Approx. 10 minutes ◦ Voltage: DC 3V • Do Not Disturb Time: ◦ Type: 2x AA alkaline Approx. 10 hours ◦... - Page 4 Additional Features Radio-Interlink UltraFire radio-interlinked alarms are designed to be wirelessly interlinked as a network with up to 50 products. These alarms need to be “learned in” or interlinked in order to communicate with each other. If one alarm activates, all other interlinked alarms will also sound.
-
Page 5: Additional Features
Additional Features Alarm Silence Mode WARNING: Before silencing an active alarm you must ensure the environment is safe. Do not silence the alarm in the event of an actual fire, as this may prevent other occupants from evacuating. When in alarm mode, pushing the test button will silence the unit for approximately 10 minutes. -
Page 6: Alarm Signals
Alarm Signals Smoke Detected Alarm All Other Alarms in the Test Alarm Pattern Pattern Network 1. Chirp 3 times. 1. Chirp 3 times. 1. Chirp 2 times. 2. Pause 1.5s. 2. Pause 1.5s. 2. Pause 1.2s. 3. Chirp 3 times. 3. -
Page 7: Status Indicators
Status Indicators • During standby operation the red LED will flash once every 50 seconds. • When the battery fails or a low battery is detected, the alarm will chirp once every 50 seconds in conjunction with the red LED flashing. •... - Page 8 Placement UltraFire Wireless Smoke Alarms must be installed on the ceiling, at least 30cm from the nearest wall, light fitting, or other obstruction. The alarms cannot provide adequate warning of a fire if installed on or too close to a wall.
-
Page 9: Installation Procedure
Installation Procedure WARNING: The label on the alarm must not be removed as it shows important information about the product. Check the desired installation position for wires, pipes, or other obstructions that would be dangerous to drill into. Hold the baseplate against the ceiling at the desired installation position. Mark the installation holes with a pencil. - Page 10 Radio-Interlink UltraFire radio-interlinked alarms are designed to be wirelessly interlinked as a network with up to 50 products. These alarms need to be “learned in” or interlinked in order to communicate with each other. If one alarm activates, all other interlinked alarms will also sound. They are not designed to communicate with wireless alarms from other ranges or manufacturers.
- Page 11 Interlink Master Mode Press the test button three times within two seconds on an optical smoke alarm; if the red LED flashes once then the alarm has entered learning mode, otherwise repeat accordingly. If this alarm has not received a wireless interlink code within 2 seconds it will go into master mode.
- Page 12 Adding a New Alarm to an Existing Interlink Network Fit the batteries into the new alarm and test it as described in the Maintenance section. Remove an already interlinked alarm from its baseplate and press the test button three times within two seconds; if the red LED flashes once then the alarm has entered learning mode, otherwise repeat accordingly.
-
Page 13: Maintenance
Clear Interlink Code It may be necessary to remove an alarm from the network in some situations, for example if troubleshooting an alarm that does not respond to the test signal. Turn the alarm head anti-clockwise and remove it from the baseplate. Take the batteries out from the battery compartment. - Page 14 WARNING: The test button accurately tests the alarm’s components and functions. Do not expose the alarm to an open flame. You may contaminate and damage the sensor, preventing the alarm from providing adequate protection from real fires, and invalidate the warranty. You may use an approved smoke detector test spray to test your detector.
-
Page 15: Troubleshooting
Maintenance Continued Troubleshooting Problem Action Remove alarm head from the Alarm does not sound when tested. baseplate. Check batteries are installed properly and have power. Alarm chirps with the red LED flash Replace batteries as described in the Maintenance section. about every 50 seconds. -
Page 16: Fire Safety Advice
Fire Safety Advice Familiarise yourself with and follow the national and local regulations regarding selection and installation of the different kinds of smoke and heat alarms. Plan Your Escape If an alarm sounds but you did not push the test button and it is not a fault tone then it is likely a dangerous situation has developed in the property. - Page 17 Do not go back inside a burning building for any reason. Wait for the fire service to arrive. Note: These guidelines will assist you in the event of a fire; however, UltraFire cannot predict the exact situation of any home fire. Creating your own escape plan based on your specific premises and occupants is the best way to ensure safe evacuation.
-
Page 18: Warranty Information
Consumables such as batteries are also not covered by this warranty. In no case shall UltraFire be liable for any incidental or consequential damages or any other warranty, express or implied. - Page 19 This warranty does not affect your statutory rights. Except for death or personal injury, UltraFire shall not be liable for any loss of use, damage, cost or expense relating to this product or for any indirect, or consequential loss, damages or costs incurred by you or any other user of this product.
- Page 20 UltraFire 33 West Street, Alford LN13 9DQ 0800 978 8262 support@ultra-fire.co.uk www.ultra-fire.co.uk © 2018 UltraFire All Rights Reserved Doc 49 v1.2...
