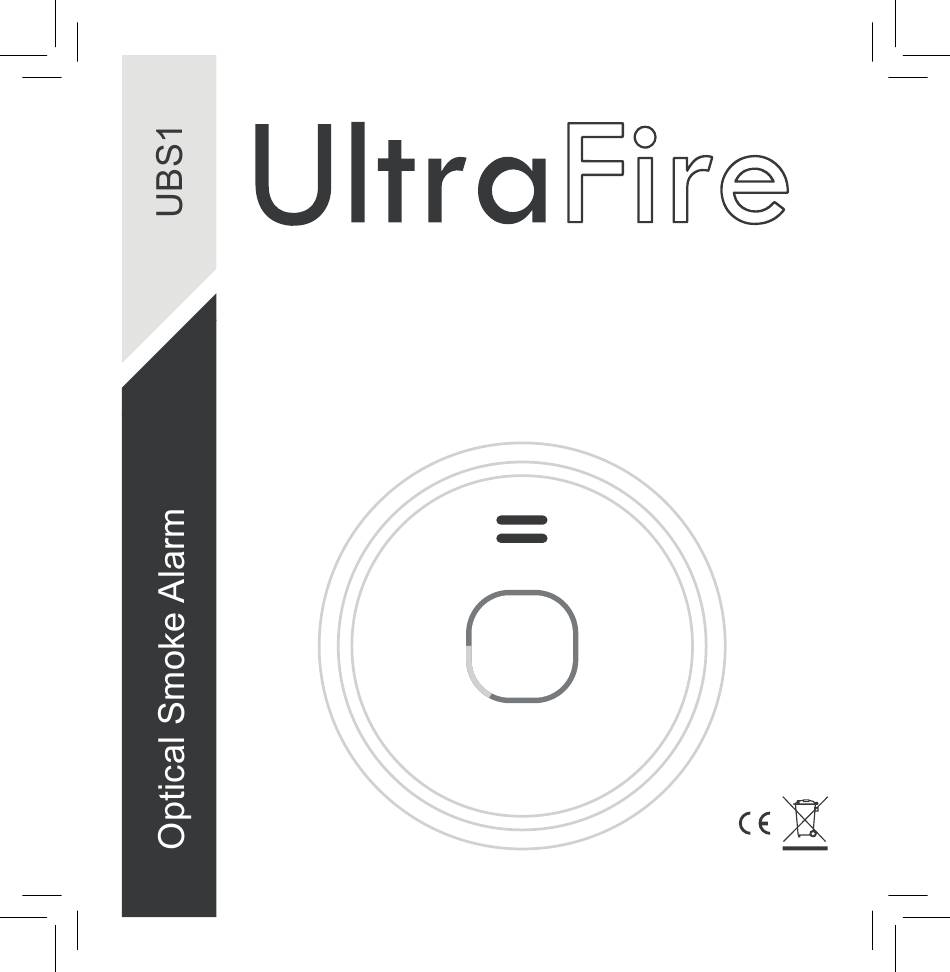

  • Page 1 USER MANUAL UBS1 OPTICAL SMOKE ALARM...
  • Page 2: Table Of Contents

    Index Overview..................Product Specification..............Suitability..................Silence / Do Not Disturb Mode..........Alarm Signals................Status Indicators / Installation............ Placement.................. Installation Procedure..............Maintenance................9/10 Troubleshooting................. Fire Safety Advice..............What to Do in Case of Fire............Warranty Information..............14/15 Contact Information..............
  • Page 3: Overview

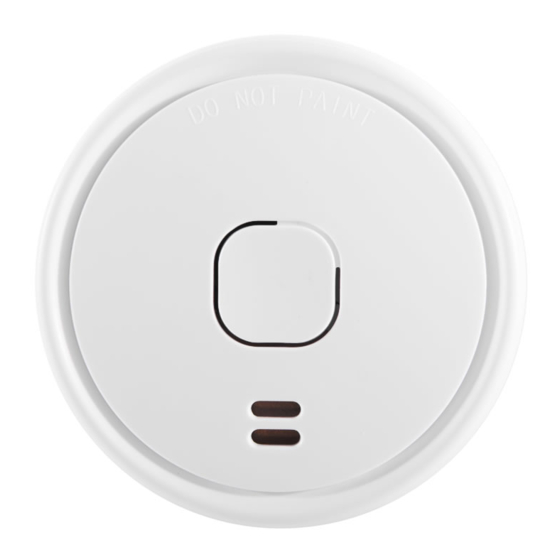

    Overview This optical smoke alarm is a fire detection and alarm device which gives off an audible and visual warning when it detects the presence of smoke within a specially designed detection chamber. Optical smoke sensors are less prone to false alarms than ionisation sensors which have previously been more commonplace, whilst also being...
  • Page 4: Product Specification

    Product Specification • Sensor Type: • Alarm Volume: >85dBA at 3 metres • Smoke Sensitivity: 0.099 - 0.144dB/m Optical (photoelectric) • Battery Specification: • Silence Time: Approx. 8 minutes ◦ Voltage: DC 9V • Certified to: EN 14604: 2005 / AC:2008 ◦...
  • Page 5: Suitability

    Suitability UltraFire’s range of battery-powered fire detection and alarm devices are designed to meet BS 5839-6 Grade F2 requirements. These alarms are only intended for use in single household premises which are permitted to use battery-powered alarms. Local Building Regulations, legislation, or other requirements may specify mains-powered alarms, in which case this product is not suitable.
  • Page 6: Silence / Do Not Disturb Mode

    Alarm Silence Mode WARNING: Before silencing an active alarm you must ensure the environment is safe. Do not silence the alarm in the event of an actual fire, as this may prevent other occupants from evacuating. When in alarm mode, pushing the test button will silence the unit for approximately 8 minutes.
  • Page 7: Alarm Signals

    Alarm Signals Test Alarm Smoke Detected Pattern Alarm Pattern 1. Chirp 3 times with red 1. Chirp 3 times with red LED flash LED flash 2. Pause 1.5s 2. Pause 1.5s 3. Chirp 3 times with red 3. Chirp 3 times with red LED flash LED flash 5.
  • Page 8: Status Indicators / Installation

    Status Indicators • During standby operation the red LED will flash once every 32 seconds. • When the battery fails or a low battery is detected, the alarm will chirp once every 32 seconds in conjunction with the red LED flashing.
  • Page 9: Placement

    Placement 500mm UltraFire Smoke Alarms must be CEILING MINIMUM installed on the ceiling, at least 50cm from the nearest wall, light fitting, or other obstruction. BEST NEVER HERE HERE These alarms should be installed no more than 600mm vertically below...
  • Page 10: Installation Procedure

    Installation Procedure WARNING: The label on the alarm must not be removed as it shows important information about the product. Check the desired installation position for wires, pipes or other obstructions that would be dangerous to drill into. Hold the baseplate against the ceiling at the desired installation position.
  • Page 11: Maintenance

    Maintenance Testing Test your alarms to ensure proper operation once per week by pressing the test button. If there is no sound output it means that the alarm is faulty, the batteries are flat, or that the installation procedure may not have been followed correctly.
  • Page 12 Maintenance Battery Replacement Twist the alarm anti-clockwise to remove it from the baseplate. Remove the old battery. Connect and insert a new battery, ensuring correct polarity. Place the alarm back on the baseplate, twisting clockwise. Hold the test button until the test pattern sounds. This may take 5 - 10 seconds.
  • Page 13: Troubleshooting

    Troubleshooting Problem Action Alarm does not sound when tested. Clean the alarm as described in the Maintenance section. Replace the battery as described in the Maintenance section. Contact the retailer or manufacturer for advice. Alarm chirps with the red LED flash Replace battery as described in the Maintenance section.
  • Page 14: Fire Safety Advice

    Fire Safety Advice Familiarise yourself with and follow the national and local regulations regarding selection and installation of the different kinds of smoke and heat alarms. Plan Your Escape If an alarm sounds but you did not push the test button and it is not a fault tone then it is likely a dangerous situation has developed in the property.
  • Page 15: What To Do In Case Of Fire

    NOTE: These guidelines will assist you in the event of a fire; however, UltraFire cannot predict the exact situation of any home fire. Creating your own escape plan based on your specific premises and occupants is the best way to ensure safe evacuation.
  • Page 16: Warranty Information

    Warranty Information Safelincs warrants to the original purchaser that its enclosed UBS1 battery-powered alarm, under normal domestic use and service, will operate as described and be free from material and workmanship defects for a period of five years from the date of purchase.
  • Page 17 Returning Your Alarm Contact either the original retailer or UltraFire before attempting to return your alarm. Pack the alarm in a well-padded box, tape securely and affix an appropriate address label. Send the alarm either to the retailer you purchased from or to the manufacturer if still under warranty.
  • Page 18: Contact Information

    33 West Street, Alford, LN13 9FX 0800 978 8262 support@ultra-fire.co.uk www.ultra-fire.co.uk © 2020 Safelincs All Rights Reserved DOC 1238 Version 2.0...
