RP 5010
|
|
SAN DIEGO
Rudeco A/S • Rødvej 6, Bursø • 4930 Maribo • Tlf. +45 43996033
rudeco@rudeco.dk • www.rudeco.dk
|
Included instructions
Digging plan
Floor
Bow—Climbing net
Slide 12070
Page:
Included instructions
Page:
1,0 Kiosk
2,1 Vertical bar
4,4 HPL Panel
5,2
8,1
8,2
9,1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP 5010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rudeco Play RP 5010

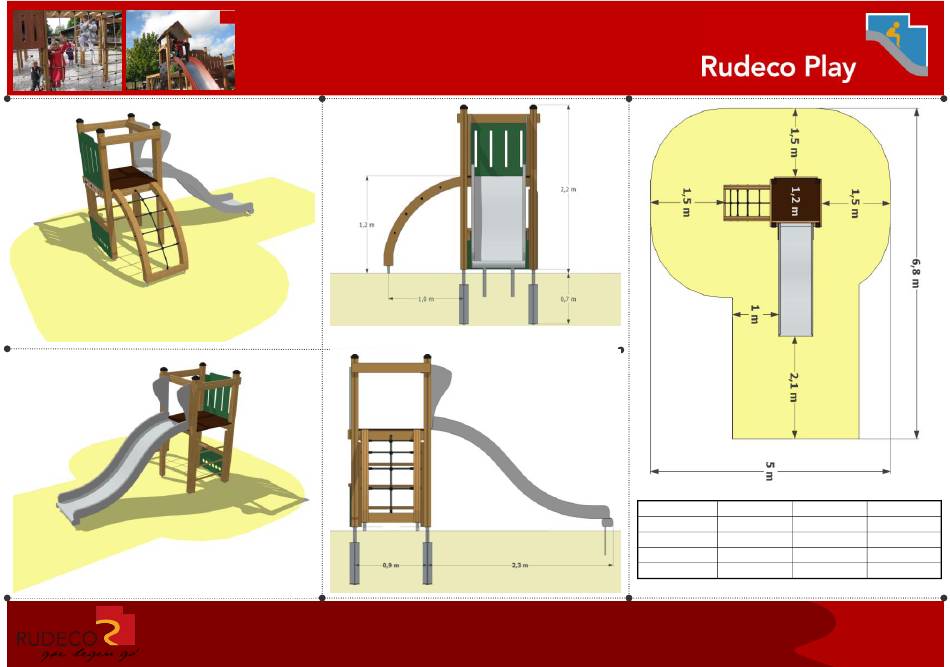

  • Page 1 RP 5010 SAN DIEGO Included instructions Page: Included instructions Page: Digging plan 1,0 Kiosk Floor 2,1 Vertical bar Bow—Climbing net 4,4 HPL Panel Slide 12070 Rudeco A/S • Rødvej 6, Bursø • 4930 Maribo • Tlf. +45 43996033 rudeco@rudeco.dk • www.rudeco.dk...
  • Page 2 STEPS FOR MOUNTING RP 5010 8,1 Kiosk 4,4 Bow – Climbing Net 1,0 Digging plan 9,1 HPL Panel 5,2 Slide 12070 8,2 Vertical bar 2,1 Floor Rudeco A/S • Rødvej 6, Bursø • 4930 Maribo • Tlf. +45 43996033 rudeco@rudeco.dk • www.rudeco.dk...
  • Page 3 DIGGING PLAN RP 5010 POSTS: M9ST210 M9ST210 00:30 11,0 kg Tip: Place the floor on the ground at the desired location, and mark where to dig. Dig holes ø30cm for the posts, in 70cm depth. Keep in mind that the zero-mark has to be placed in level with the ground.
  • Page 4 FLOOR M9GUGA + M9GUGAE M9GUGA 00:20 23,0 kg M9GUGAE 00:15 M9GUGA 21,5 kg M9GUGAE Tip: Be precise with the height of the floor. Impetus goal of zero-point mark to the top side of floor. (Take a look at the front page of this folder) Other parts depends on the location of the floor.
  • Page 5 BOW—CLIMBING NET M9BO120NE Place between the beams underneath the floor. 80-90CM 01:00 25,4 kg 50CM Tip: Dig ø30 x 50cm for supports. Mount the supports on the bow (C+D), then mount the bow underneath the floor. (A+B) 120CM Align the top of the Bow with the floor. Mount the hand list (E+F) as illustrated.
  • Page 6 SLIDE M9GB12070 - M9GB18070 - M9GB24070 M9GB12070 01:00 45,0 kg M9GB18070 01:00 54,5 kg Tip: Place the slide beams on top of the floor, M9GB24070 then mark up where to dig the hole for support steel. 01:15 63,0 kg Dig 25 x 45cm in necessary depth. Mark Item Pcs.
  • Page 7 KIOSK Tip: Align the bottom of the HPL Plate to the bottom of the post and fix it with screws. (A+C) Mount the desk on top of the HPL plate. Fix with screws (D) Mount the fruit sign with screws. (B+C) 00:20 6,9 kg Mark...
  • Page 8: Vertical Bar

    VERTICAL BAR M9RL120 / M9RL150 / M9RL180 80-90cm M9RL120 00:15 5,1 kg 120cm 150cm Min 23cm 180cm M9RL150 00:18 6,3 kg M9RL180 00:20 7,6 kg Mark Pcs. Item no. Item Fr. Screw 8 x 90 4 / 6 41055 Tip: Washer 8/24 4 / 6 41011...
  • Page 9 HPL PANEL M9RP—M9LE—M9TA 00:10 4,9 kg Tip: Align the bottom of the HPL Panel to the top of the floor, and center Mark Item Pcs. Item no. the panel between the posts. Screw 6 X 60 41066 Decorative washer 41016 Rudeco A/S •...
