RPK 512
|
|
MOUNT EVEREST
Rudeco A/S • Rødvej 6, Bursø • 4930 Maribo • Tlf. +45 43996033
rudeco@rudeco.dk • www.rudeco.dk
|
Included instructions
Page:
Steps for mounting
0,1 - 0,2
Slide tubes
5,4
Angled net
7,1
Vertical rope
7,4
Beam & Handlist
9,2
Included instructions
Page:
Included instructions
Page:
Digging plan
1,0
Mountainplate
4,3
Swing along beam
6,4
Turning log
6,7
Horizontal rope
7,2
Vertical net
7,3
Vertical bar
8,2
Climbing plate
8,3
Advertisement
Related Manuals for Rudeco Play MOUNT EVEREST
Summary of Contents for Rudeco Play MOUNT EVEREST
- Page 1 RPK 512 MOUNT EVEREST Included instructions Page: Included instructions Page: Included instructions Page: Steps for mounting 0,1 - 0,2 Digging plan Mountainplate Slide tubes Swing along beam Turning log Angled net Horizontal rope Vertical net Vertical rope Vertical bar Climbing plate Beam &...

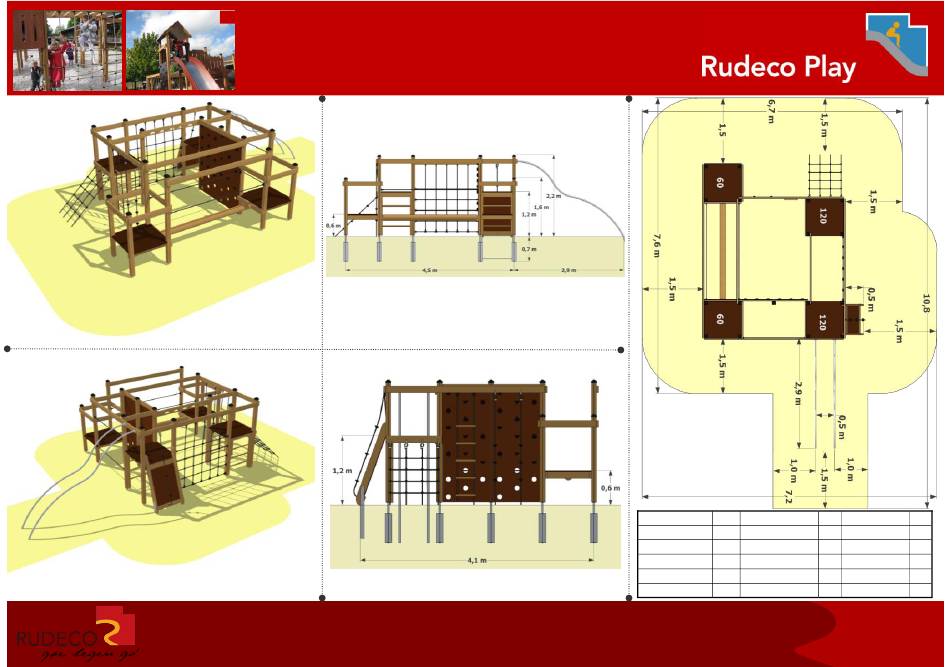

- Page 2 STEPS FOR MOUNTING RPK 512 Layout on playground area 7,2 Horizontal rope 6,4 Swingalong beam 1,0 Digging plan / Floor 6,7 Turning log 8,2 Vertical bar—3 pcs. 2,1 Floor 9,2 Beam and handlist 8,3 Climbing plate Rudeco A/S • Rødvej 6, Bursø • 4930 Maribo • Tlf. +45 43996033 rudeco@rudeco.dk •...
- Page 3 STEPS FOR MOUNTING RPK 512 4,3 Mountain plate 7,3 Vertical net 5,4 Slide tubes 7,4 Vertical rope 7,1 Angled net Rudeco A/S • Rødvej 6, Bursø • 4930 Maribo • Tlf. +45 43996033 rudeco@rudeco.dk • www.rudeco.dk...
- Page 4 DIGGING PLAN RPK 512 POSTS: M9ST150 - M9ST210 M9ST150 M9ST210 9,4 kg 11,0 kg 00:30 00:30 Mark Item Pcs. / Floor Item no. 41055 Fr. screw 8 X 90 Washer 8/24 41011 Tip: Tip: Place the floor on the ground at the desired location, and mark where to dig.
- Page 5 MOUNTAIN PLATE M9BB120 - M9BB240 M9BB120 00:25 16,0 kg M9BB150 00:25 20,3 M9BB180 00:30 24,7 M9BB210 00:30 28,7 M9BB240 00:30 33,5 Align with the top of the floor. Tip: Align the top of the handlist with the top of the floor. Align the bottom of the mountain plate with the bottom of the posts.
- Page 6 SLIDE TUBES M9BSR 50cm 80-90cm 01:10 24,5 kg Tip: Center the Slide tubes between the posts. Dig 25 x 100cm in required depth for ground lug. Mark Item Pcs. Item no. Fr. Screw 8 x 90 41055 Washer 8/24 41011 41110 Screw M8 x 50 Secure Nut M8...
- Page 7 SWING ALONG BEAM M9AG090 - M9AG180 M9AG090 00:15 1,5 kg M9AG180 00:15 3,0 kg Tip: Distance between posts = 90cm / 180cm. To be mounted 2,1 to3 meters above the ground. 210—300cm Mark Item Pcs. Item no. 41055 Fr. Screw 8 x 90 90 cm / 180 cm Washer 8/24...
- Page 8 TURNING LOG M9RB270 70 - 75cm 75 - 77cm M9RB270 00:30 24,0 kg Tip: Distance between posts = 270cm. To be mounted in level with the floor. Place the beam inside or outside Mark Pcs. Item no. Item the posts, according to other parts, mounted on the posts.
- Page 9 ANGLED NET M9SN120 - M9SN180 80-90cm C+D+E 120cm Tip: 150cm 180cm Mount the beam, and center the angled net between two posts. Dig hole for securing the net in 60cm depth. Mount the U-clamps, fill in some soil, and stomp throughly. Repeat until the hole is filled.
- Page 10 HORIZONTAL ROPE M9AGT171 M9AGT270 Min. 23cm B+C+D 80-90cm M9AGT171 00:15 3,0 kg B+C+D M9AGT270 30-60cm 00:15 4,5 kg 40cm Tip: Distance between posts = 180cm or 270cm. Remember to always keep a minimum distance of 23 cm. Mark Pcs. Item no. Item Screw 6 x 60 41066...
- Page 11 VERTICAL NET M9N090 - M9N180 198cm M9N090WB 00:20 14,5 kg M9N180WB 00:15 33,3 kg Tip: Mount the beam as shown, and center the vertical net between posts. 180cm Mount the net with screws 6x60 Mark Item Pcs. Item no. 24/30 41066 Screw 6 x 60 Fr.
- Page 12 VERTICAL ROPE M9RS - M9KNT - M9KTR Tip: Align the ropes for M9KNT and M9KTR with equal distance between each other. Fasten to the beam with screws (A+B) ½ ½ M9KTR 00:30 3,5 kg M9RS 00:30 7,9 kg M9KNT 00:30 3,0 kg Mark Pcs.
-
Page 13: Vertical Bar
VERTICAL BAR M9RL120 - M9RL150 - M9RL180 80-90cm M9RL120 00:15 5,1 kg 120cm 150cm Min 23cm 180cm M9RL150 00:18 6,3 kg M9RL180 00:20 7,6 kg Mark Pcs. Item no. Item Fr. Screw 8 x 90 4 / 6 41055 Tip: Washer 8/24 4 / 6 41011... - Page 14 CLIMBING PLATE M9K120 - M9K210 80-90cm M9K090 DIST PART 01:00 24,5 kg 32 cm M9K090 M9K120 43 cm M9K120 53 cm M9K150 01:00 28,5 kg 65 cm M9K180 M9K150 75 cm M9K210 01:00 34,0 kg M9K180 01:00 37,6 kg 120cm Tip: M9K210 01:00...
- Page 15 BEAM & HANDLIST| M9VA090 - M9VA270 - M9STT090 Tip: Use hand list where no activities are mounted. Where slide bars, ropes e.g. are mounted, you have to use beams. Keep in mind that the minimum distance between two beams are 23cm. Else you have to mount the beams with less than 8,5cm between each other.
