i-Star 12302R User Manual

Wireless bluetooth ceiling speaker kit

Hide thumbs Also See for 12302R:

Download this manual

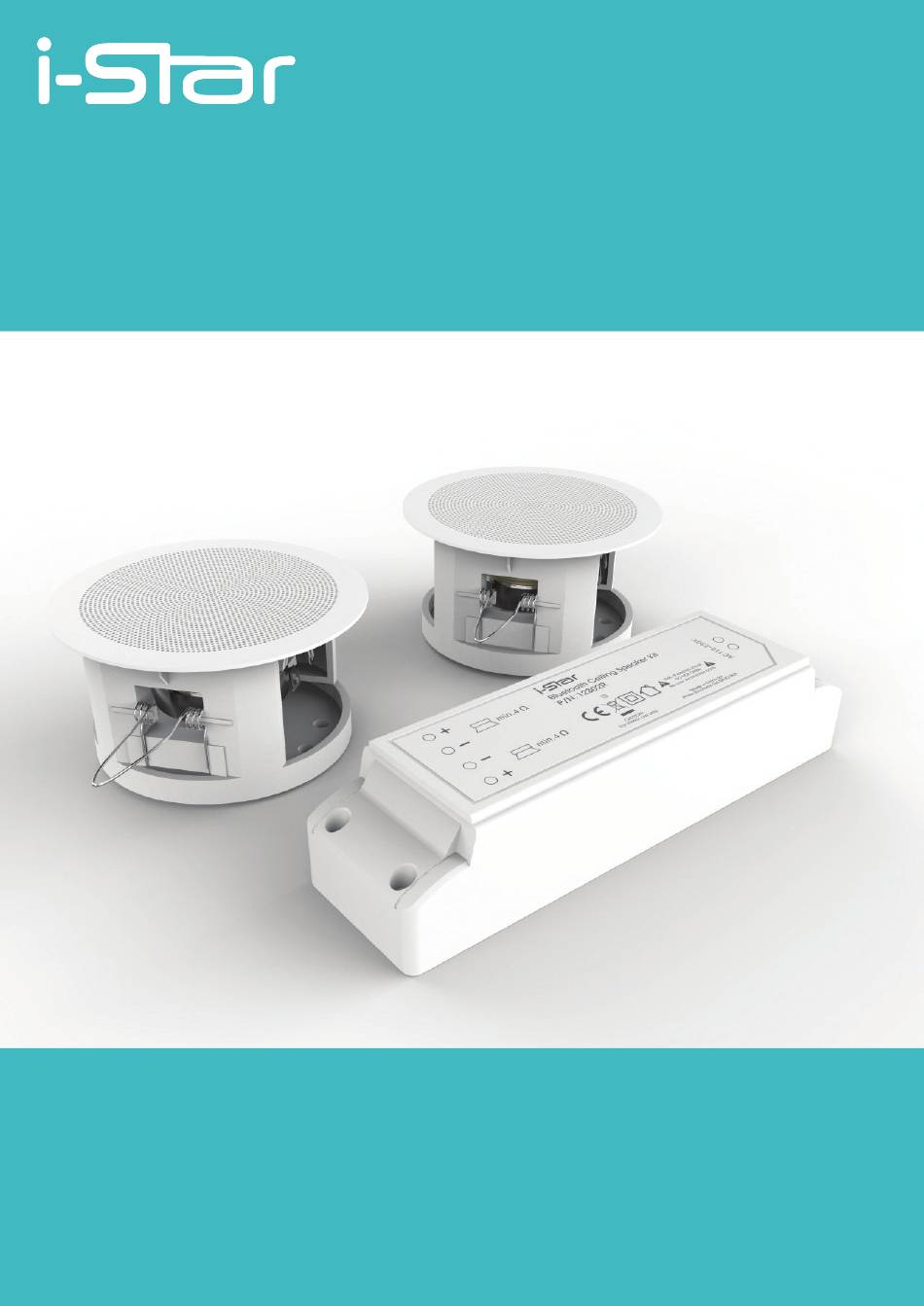

12302R

Wireless Bluetooth

Ceiling Speaker Kit

User Guide

For further information or any queries please contact:

Customer careline: 08457 573479

(Local Rate - UK Only)

Technical Support: www.philex.com/support

Page 1 12302R Wireless Bluetooth Ceiling Speaker Kit User Guide For further information or any queries please contact: Customer careline: 08457 573479 (Local Rate - UK Only) Technical Support: www.philex.com/support...
Page 2 Warnings 1. All mains electrical wiring should be carried out by a fully qualified electrician and tested regularly during installation. 2. All electrical work carried out in England and Wales must comply with Part P of the Building Regulations. If you are located elsewhere check local Building Regulations. 3.
Page 3 Typical speaker kit installation junction Fig. 1 240v Lighting circuit BT module switch cable up to 3m up to 3m Bluetooth module speaker ceiling twin switch for light and Bluetooth module Power connection for Bluetooth module A new cable needs to be run to a new switch for powering on and off the Bluetooth module...
Page 4 60 seconds as above and then pair your device. Declaration of Conformity Hereby, Philex Electronic Ltd. declares that the radio equipment: model 12302R Bluetooth Speaker Kit for radio broadcast reception in domestic premises is in compliance with the Radio Equipment Directive 2014/53/EU.
