- Page 1 EVAPORATIVE AIR COOLER CM-8000E www.climateplus.ae...
- Page 2 EVAPORATIVE AIR COOLER CM-8000E KT-1E-3N-INTRODUCTION Thank you for purchasing our product. We trust it will give you a long and trouble free service. The cooler is a high-tech product, showing simplicity and outstanding reliability, due to its European design origin.

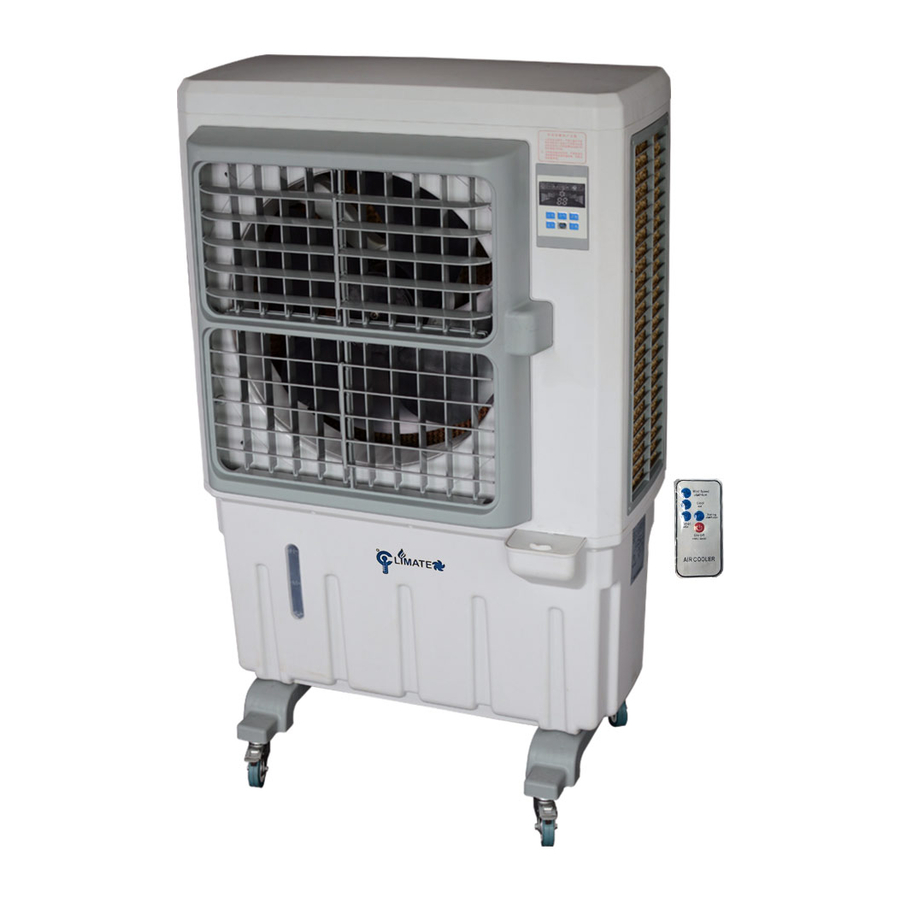

- Page 3 EVAPORATIVE AIR COOLER CM-8000E KT-1E-3N-TECHNICAL SPECIFICATION PARAMETER / MODEL KT-1E-3N Max Airflow 8000C M3/H Power supply / Frequency 220-240V/50HZ Power Consumption 310W Fan Style Axial Water Consumption 4-6L/H Water Capacity Dimension (L*W*H) 890x490x1400mm Weight 32kg Effective Cooling Area 30-55m2 KT-1E-3N-TECHNICAL FEATURE...
- Page 4 EVAPORATIVE AIR COOLER CM-8000E Directory Attentions………….……………………………………………………………………2 Cooling principle…………………………………………………………………….2 Workplace (used for)………………………………………………………………2 Display board………………………………………………………………………..3 Function for buttons……………………………………………………………..3 Installation operation……………………………………………………….…….4 Wiring diagram………………………………………………………………….……5 Installation of caster and caster frame diagram………………..……6 Disassembly6 diagram for posterior lateral plate………………….6 Water in/out……………………………………………………………………………7 Warning………………………………………………………………………….………7 Technical parameter……………………………………………………..………..8 Trouble shoot……………………………………………………………..………….9 -03- www.climateplus.ae...
- Page 5 EVAPORATIVE AIR COOLER CM-8000E Attentions Please read the operation manual carefully and thoroughly before you run this unit. When air cooler is working, pay attention do not allow welding or other ignition sources near it. Power outlet must have ground wire is not less than 1.5mm in order to ensure effective grounding of air cooler.
- Page 6 EVAPORATIVE AIR COOLER CM-8000E 3) Fan speed key) Press fan speed key when it works, to choose fan speed, low-medium-high 1-2-3-1 4) Swing key Press this key you can turn on/off the swing direction. 5) Anion key Press this key, start the function for anion...
- Page 7 EVAPORATIVE AIR COOLER CM-8000E Installation operation Make sure the power cord before use is connected to the power supply to meet requirements 1) On/off in the standby mode, press this key in control panel or remote controller, it works both mode speed of operation, depends on the previous state before the shutdown;...
-
Page 8: Wiring Diagram
EVAPORATIVE AIR COOLER CM-8000E Wiring Diagram -06- www.climateplus.ae... - Page 9 EVAPORATIVE AIR COOLER CM-8000E Installation of casters and caster frame diagram Picture 4 Picture 5 Picture 6 1. take two caster with brake, two caster without brake and two pieces of tank base ( as picture 4) two casters brake and without brake screw into the M10 hole pattern of tank base, the caster with break should be installed on the outlet side and to make sure casters and tank base contacted close (as picture 3.
- Page 10 EVAPORATIVE AIR COOLER CM-8000E To loosen 4 screws of posterior lateral plate (as picture 7) 1. Remove the two dust networks, then raise up posterior lateral plate with hands (as picture 8) 2. Put up the posterior lateral plate after pulling it out, finally, it is removed (as picture 9) 3.
-
Page 11: Technical Parameter
EVAPORATIVE AIR COOLER CM-8000E 4) The posterior lateral plate is forbade to open when it run, to keep safety. 5) Air outlet prohibits any object stretching when air cooler is running 6) Turn off power when it rains or thunder in the open air... -
Page 12: Troubleshooting
EVAPORATIVE AIR COOLER CM-8000E Water storage volume (L) Applicable area (m 30-50 Net Weight Working weight (KG) ≤100 Troubleshooting Malfunction Cause Remedy Power off Check the supply It doesn’t work Fuse break Change fuse Pcb failure Change pcb Keys for on/off...
