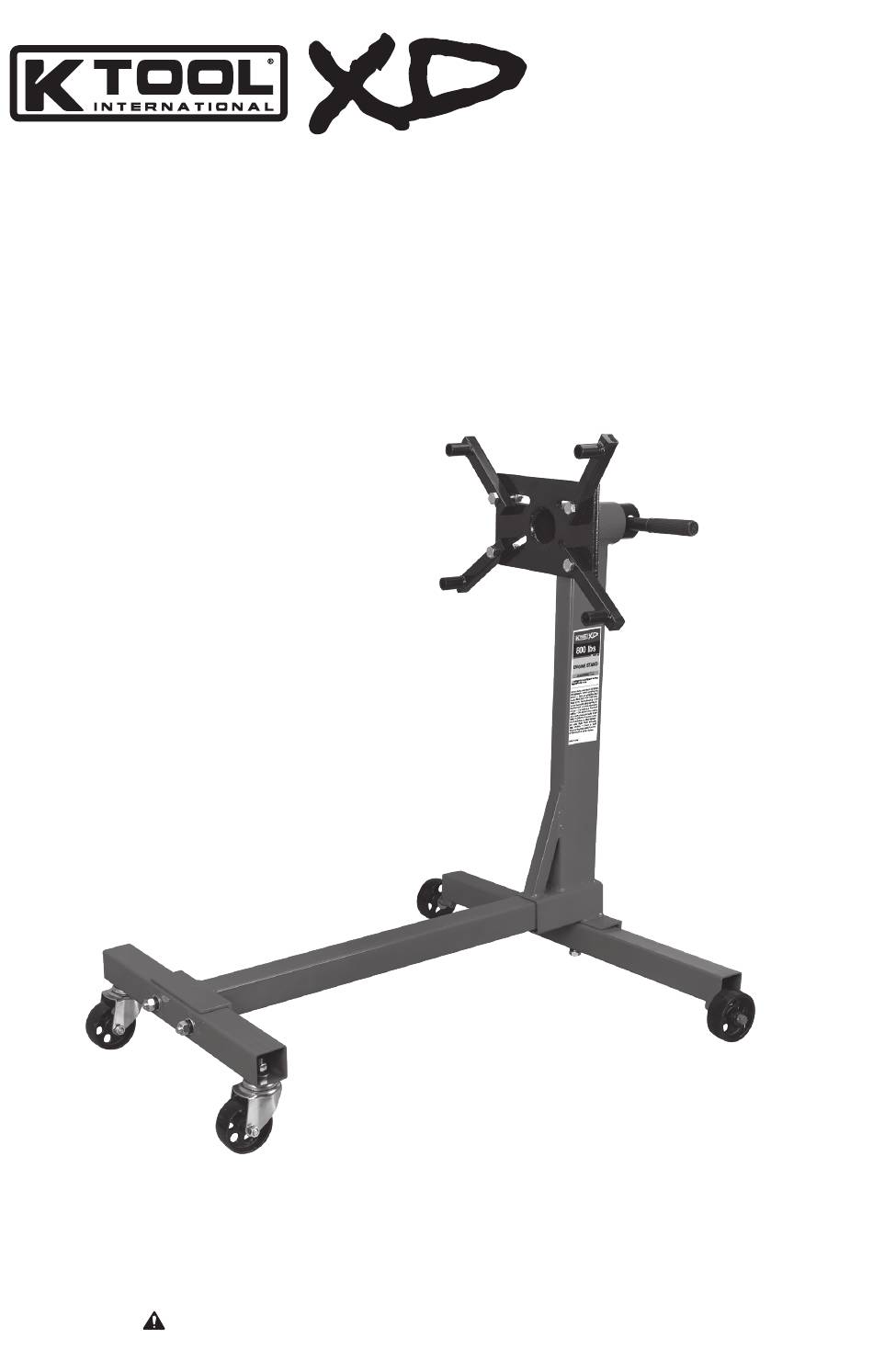

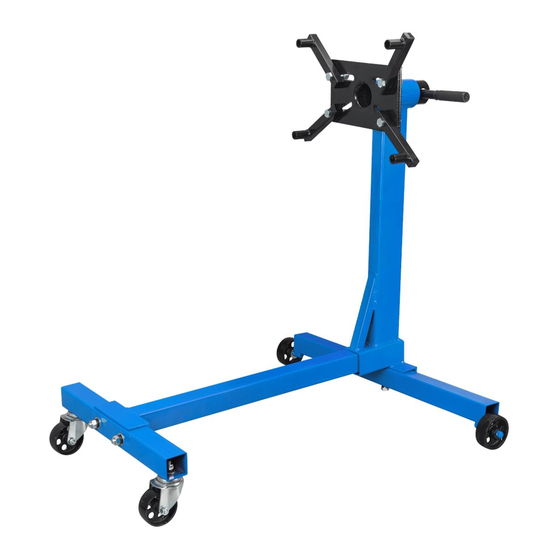

- Page 1 KTI-62108A OWNER’S MANUAL 800 LBS ENGINE STAND WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Complies with ASME PASE / 2014 Safety Standards...
-
Page 2: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this equipment until they have read this manual and have developed a thorough understanding of how the equipment works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. -
Page 3: Safety Markings
SAFETY MARKINGS WARNING! 1. Study, understand, and follow all instructions before operating this device. 2. Do not exceed rated capacity. 3. Use only on hard, level surfaces. 4. Lock mounting plate rotating mechanism before applying a load. 5. Lock the wheels/casters before working on the engine. 6. - Page 4 ASSEMBLY Use the exploded drawing (page 8) as your guide to assembly. Lay all parts and assemblies out in front of you before beginning. The following procedure is recommended: All numbers in parenthesis () refer to the index number from the parts breakdown. 1.
- Page 5 7. Insert head assembly (5) into the hole of the 8. Insert the handle assembly (1) into the hole of main post (9). Line up the hole in the head the head assembly (5). assembly (5) and the main post (9), and assemble them by inserting the lock pin (2).
-
Page 6: Operation
OPERATION 1. With the mounting arms loosened, use the 2. Use the stop pin to lock the head plate assembly correct size engine bolts to attach to the engine. with the head collar. (ENGINE BOLTS ARE NOT INCLUDED WITH ENGINE STAND.) Engine Bolt Engine Engine... -
Page 7: Maintenance Instructions
MAINTENANCE INSTRUCTIONS If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load. Inspection You should inspect the product for damaged, worn, broken or missing parts (e.g.: pins) and that all components function before each use. -
Page 8: Parts Breakdown
PARTS BREAKDOWN No. Part Description Ref. Part# Description Rear support axle 1 KTP62108A-1 Handle assembly 11 KTP62108A-11 Wheel 2 KTP62108A-2 Lock pin assembly 12 KTP62108A-12 Washer M14 Hex head bolt M12x50mm 3 KTP62108A-3 (Metric-class 8.8) 13 KTP62108A-13 Cotter pin Ø2x22mm Hex head bolt M12x80mm 4 KTP62108A-4 Washer M12... -
Page 9: Warranty
WARRANTY K-Tool International HD and XD service-related equipment 2 Year Limited Warranty. K-Tool International warrants that all jacks and service-related equipment will be free from defects in material and workmanship for a period of 2 years following the original date of purchase. This warranty is extended to the original retail purchaser only.
