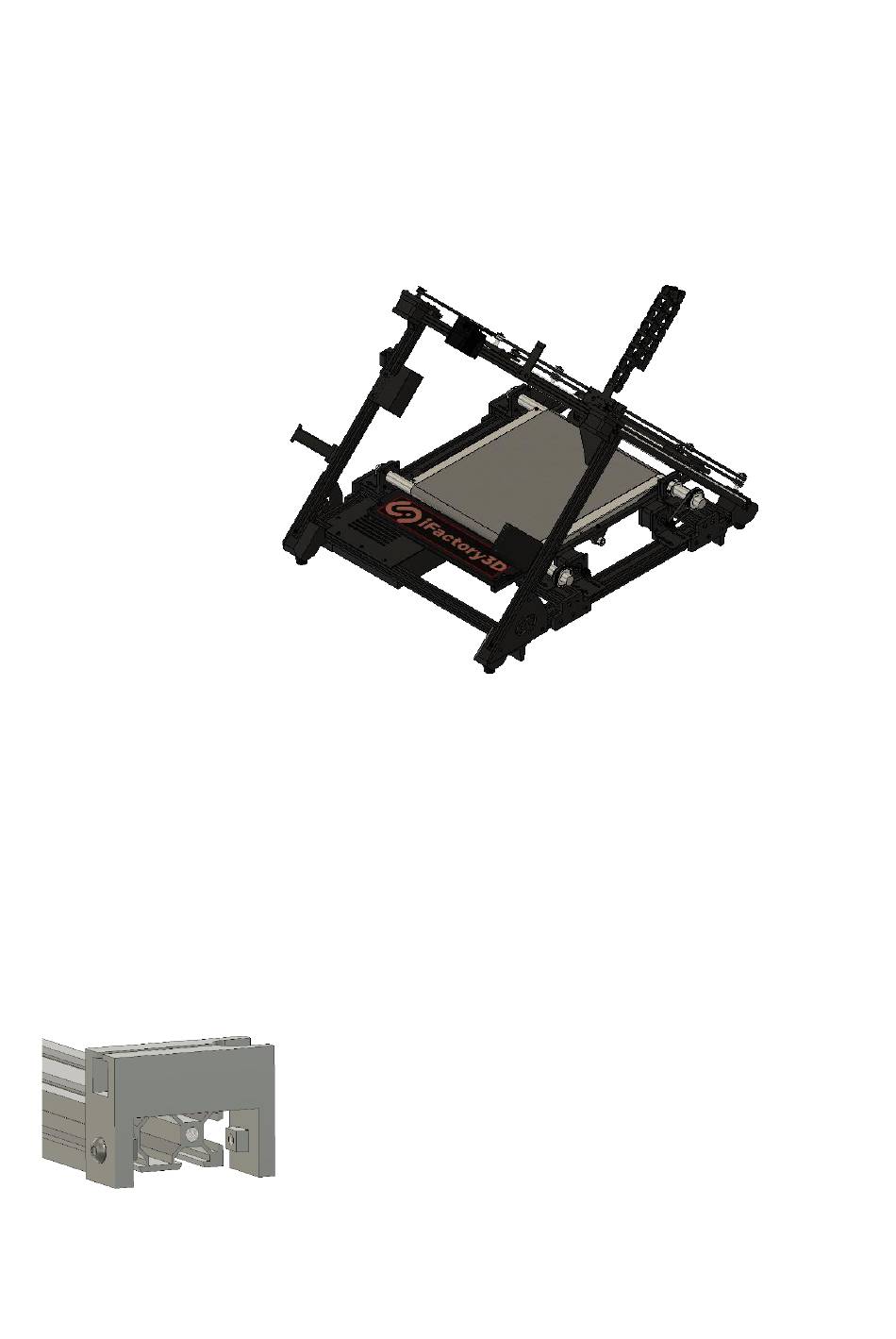

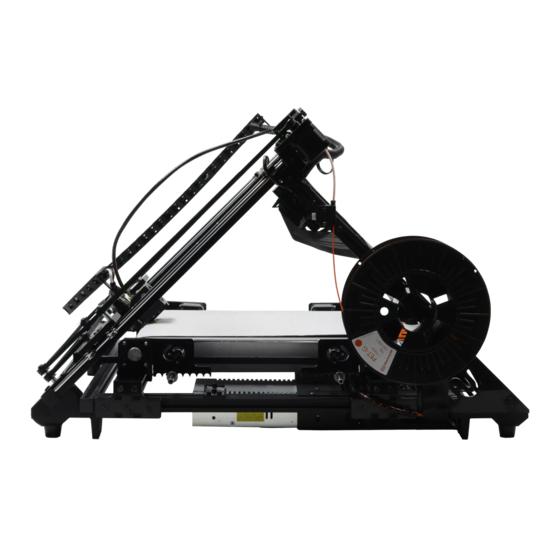

Assembly manual
General advice:
For the assembly of many components of the iFactory One, so-called T-nuts are used. The T-
nuts need to be pushed into the profiles groove. This only works if the T-nut is in the correct
position, as shown in [Picture One].
Once the T-nut is in the groove and the component is in place, the screw can be tightened. To create
the desired clamping, the T-nut must be turned 90° as shown in [Picture Two].
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for iFactory3D iFactory One
Summary of Contents for iFactory3D iFactory One
- Page 1 Assembly manual General advice: For the assembly of many components of the iFactory One, so-called T-nuts are used. The T- nuts need to be pushed into the profiles groove. This only works if the T-nut is in the correct position, as shown in [Picture One].
-
Page 2: Aligning The Wheels
It may happen that the T-nut does not turn in the groove when the screw gets tightened. If this happens, you have to turn the screw back a little (do not turn the screw all the way out because then you will lose the nut!) and then tighten it again until the T-nut produces the desired clamping. - Page 3 Try loosening the bolt on the other side at the wheel. If this is an option (use the hex key in the way you can apply the most torque) you can fasten it again, when you have placed the x rail onto the frame. Fastening the bolt again auto realigns the wheel (it rotates along with the bolt until the wheels hits the rail).
- Page 4 Parts-list Tools Allen keys Slotted screwdriver...
- Page 5 Crosstip screwdriver Spatula...
- Page 6 5,5mm wrench Parts 2020 aluminum extrusions 460mm with corner + M5x20mm screw...
- Page 7 2020 aluminum extrusions 530mm 4020 aluminum extrusions 530mm...
- Page 8 Metal rail for printhead Metal rail...
- Page 9 Scraper 8mm rod...
- Page 10 20mm axis with adjustable ring and gt2 gear Belt...
- Page 11 Spool holder Spring...
- Page 12 GT2x200 belt X/Y belts...
- Page 13 Brackets with bearings (right/left) Power supply/Mainboard...
- Page 14 Plate with holes Square bar 10x10x545...
- Page 15 Heated bed Belt tightener...
- Page 16 Display with display case Filament sensor...
- Page 17 Foot (RB, Right Back) Foot (LB, Left Back)
- Page 18 Foot (RF, Right Front) Foot (LF, Left Front)
- Page 19 Connector Y-endstop...
- Page 20 Adjusting rings 8mm & 20mm corner brackets with rollers left...
- Page 21 corner bracket with rollers small right Slider with rollers left...
- Page 22 Slider with rollers right X-motor with spacer...
- Page 23 Y-motor Z-motor...
- Page 24 Extruder Belt tightening slider...
- Page 25 Side plate with logo Printhead...
- Page 26 Drag chain holder camera holder...
- Page 27 Step 1 bottom frame assembly: 4020 aluminum extrusion 530mm 2020 aluminum extrusions 530mm M5x25 screws Screw the 4020 extrusions to the 2020 extrusions using the M5x25 screws as shown in the picture:...
- Page 28 Step 2 assembly of print rail: 1x guide rail for printhead slider with rollers R big slider with rollers L big printhead 6x M4x20 Slide the printhead on the guide rail Mount the sliders on the left and right side of the guide rail in the orientation shown on the picture...
- Page 29 Step 3 assembly of rear feet: foot RB foot LB 1x 2020 aluminum extrusion 530mm M5x25 Mount the feet to the extrusion profile as indicated in the picture. Step 4 assembly of guide rails: assembly from step 2 assembly from step 3 2x guide rail M4x20 corner brackets with rollers small (1x left L, 1xright R)
- Page 30 Mount the two rails to the extrusion profile of step 3. Use the T-Nuts from the corner brackets. Then slide the assembly from step 2 onto the guide rails. Now the left slider is on the side of the R corner bracket and the right slider is on the L corner bracket.
- Page 31 Step 5 assembly of the front extrusion profiles: aluminum extrusion 20x20x460 with corner 1x assembly from step 4 M5x20 Unscrew the pre-assembled M5 screw. Then mount the profiles on the assembly from step 4 as shown in the picture. The corner must be at the top of the profile.
- Page 32 Step 6 assembly of the upper extrusion profile: 2020 corners 1x assembly from step 5 aluminum extrusions 20x20x530 Mount the profile at the corners of assembly 5. The holes in the profile should face the guide rail.
- Page 33 Step 7 mounting of front feet: foot F (front) M5x25 screws 1x assembly from step 1 assembly from step 6 Mount the feet to the extrusions mounted in step 5. After that mount, the assembly from step 1 on all four feet. Tighten them all with screws and T-nuts. It is easier to mount these parts when the printer lays sideways.
- Page 34 Step 8 mounting of power supply & mainboard: power supply and mainboard M4x6 screws 3x T-Nuts First check if the power supply is set to the correct voltage for your country. There is a switch on the power supply to adjust this. Mount the power supply &...
- Page 35 Step 9 assembly of core XY movement system: Y stepper motor X stepper motor 2x gt2 belt Mount the Y stepper motor to the upper profile on the side of the R slider. Mount the X stepper motor to the upper profile on the side of the L slider. Then attach the guide rail with the printhead to the rear aluminum profile.
- Page 36 The other gt2 belt runs around the geared belt pulley of the X stepper motor and then along all the other rollers on the rear side as shown in the illustration. Tension the belt to the printhead with a cable tie.
- Page 37 Y-stepper belt (belt runs over the bottom rolls) 1. The belts need high tension to have no slack in the motion system. 2. If the belts rub against each other, move the motors more outside the frame. 3. If the belts are tight, you can cut off the remaining gt2 belt at the printhead. 4.
- Page 38 Step 10 assembly of belt frame: 2x square bars 10x10 mm connector bracket metal plates with holes 1x scraper 1x cloth 4x M4x20 M4x12 belt tightener 2x M3x16 2x M3-Mutter 2x washer Slide the connector brackets onto the square bars with the notches for the springs facing inwards.
- Page 39 Mount one metal plate with holes to the square bars using M4x12 screws. Then mount the other metal plate with holes and the scraper with M4x20 screws as shown in the picture. Before tightening the M4x20 screws, place the provided cloth between the scraper and the metal plate with holes.
- Page 40 Step 11 mounting of the heated bed: heated bed 1x belt M3-nuts M3x40 springs assembly from step 10 Place the belt around the heated bed. Then mount the heated bed with four M3 screws, spacers, springs, and nuts as shown in the picture.
- Page 41 Now slide the connector brackets over the nut. The cables of the heated bed should face towards the front left corner where the power supply & mainboard are located.
- Page 42 Step 12 mounting of 4020 extrusions: assembly from step 11 4020 aluminum extrusions Slide the 4020 extrusions onto the connector brackets and connect them together with T-nuts and screws. The distance between the end of the extrusion and the connector should be 94mm (3,75 inch) on each side.
- Page 43 Step 13 mounting of belt tightening sliders: belt tightening slider assembly from step 10 Mount four belt tightening sliders on the 4020 extrusions from step 1 as shown in the picture. belt tightening sliders in the back should touch the foot as shown in the picture. The front belt tightening sliders should be placed in the front third of the printer and must be able to be moved later.
- Page 44 Step 14: Putting together the assemblies assembly from step 13 1x assembly from step 12 M5x25 Place the assembly from step 12 onto the belt tightening sliders from step 13. Connect them with screws. Move the printhead out of the way, so it does not get damaged. The cables of the heat bed should face towards the power supply/mainboard.
- Page 45 Step 15 mounting of the extruder: assembly from step 14 extruder Mount the extruder on the upper profile 10 cm away from the X-motor. Move the print head to the bottom right corner of the belt (longest distance to the extruder). Then mount the bowden tube.
- Page 46 Step 16 mounting of the cable chain holder: drag chain holder Mount the drag chain holder onto the right side of the extruder with the pre-assembled screws. Mount the cable chain to the holder and the printhead. Make sure that there is sufficient space between the gt2 belt and the cable chain. Step 17 mounting of the filament endstop: filament end stop filament end stop holder...
- Page 47 Step 18 assembly of the bearings: metal brackets with additional holes and bearings Mount the brackets on the 4020 extrusion of the belt assembly. There needs to be one in each corner. Metall brackets with holes on the left and on the right side. The elongated hole must face outwards as shown in the picture.
- Page 49 Step 19 mounting of the shafts: shaft with geared pulley adjusting rings end cap Push the shaft with the pre-assembled adjusting ring geared pulley through the bearings and the belt. Secure it with another adjusting ring from the other side. Put the end caps on the ends of the shaft.
- Page 50 Step 20: Tension the Belt corner bracket with iFactory3D logo 8mm rod adjusting ring 8 mm Mount the corner bracket with the logo on the front outer corners. Move the front belt tightening sliders until they touch the corner bracket with the logo and tighten them.
- Page 51 To tighten the belt, use the 8 mm rod. Place the inside the belt and push it downwards into the belt tightener. Secure the 8 mm rod on the outside with the adjusting rings. After that the printing position needs to be checked. For that push down the print head until the nozzle touches the belt.
- Page 52 Step 21 mounting of Z stepper motors: Z stepper motor gt2 belt short Mount the metal bracket on the 4020 extrusion from assembly 1 and tighten just one screw. Place the short gt2 belt over the gears from the motor and the belt shaft. Then move the motor so that everything is parallel and tighten all the screws.
- Page 53 Step 22 mounting of electronic box & y axis end stop: electronic board for cables Lead the cables out of the upper hole of the electronic board (cut the zip ties from the X-Motor cable). Place the electronic board directly under the filament end stop.
- Page 54 Step 23 mounting of spool holder: spool holder Place the spool holder on the left side between the filament end stop and the front feet. Do not place the spool holder too close to the filament end stop, because this might cause the end stop to not work properly.
- Page 55 Step 24 mounting of the y axis end stop: Y-endstop Mount the Y endstop under the X stepper motor as shown in the picture.
- Page 56 Step 25 mounting of the display: Mount the display case on the front right corner of the printer (as shown in the picture) and connect it to the mainboard using the provided USB cable. Power the display via the micro-USB cable which is connected to the power supply.
- Page 57 Step 26 mount the camera: Mount the camera on the top right corner. Step 27 cabling: Mount the cables following their labels to the stepper motors. One motor cable is not labeled. This is the cable for the Z1 motor (front Z motor). Plug the large ribbon cable from the mainboard box into the electronic board for cables.
