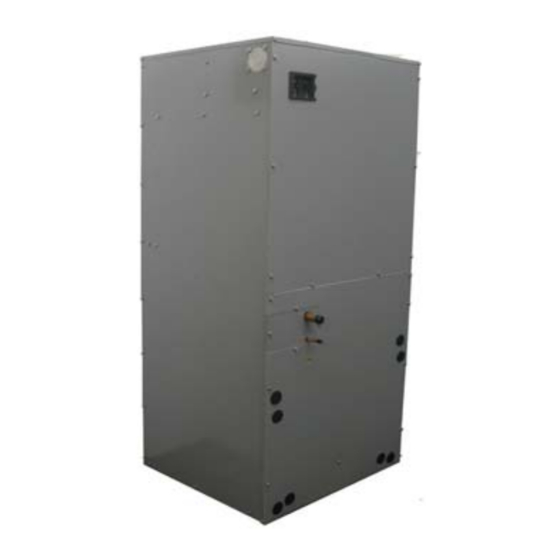

Multi-position, Upflow, and Horizontal DX and Chilled Water Cooling with Electric Heating
MODELS: MS, MM, US, UM SERIES
1 - General
4 - Furnace and Supply Air Duct Installation
6 - Hydronic Heating / Cooling / Refrigerant Piping
1 - Dimensional Data DX Cool With or Without Electric Heat
2 - Dimensional Data Chilled Water With or Without Electric Heat 5
8 - Evaporator Coil Assembly to Convert to Downflow
9 - Combustible Floor Base - Downflow Operation
10 - Installing Evaporator Below Condenser - Piping
17 - Control Box Circuit Breaker Locations
18 - Circuit Breaker Location on Front Panel
20 - 1 Stage Heat w/ 1 Stage Split System Cooling Wiring Diagram 18
21 - 1 Stage Heat w/ 1 Stage Package Cooling Wiring Diagram
22 - 1 Stage Heat w/ 1 Stage Split System HP Wiring Diagram
23 - 1 Stage Heat w/ 1 Stage Package HP Wiring Diagram
3 - Dimensional Data Chilled Water With or Without Electric Heat 5
6 - Wiring Requirements - 18-36 kBTU - Single Branch Circuit
7 - Wiring Requirements - 37-60 kBTU - Single Branch Circuit
8 - Wiring Requirements - 25-60 kBTU - Duel Branch Circuit
9 - Wiring Requirements - 37-72 kBTU - Duel Branch Circuit
SECTION I: GENERAL
The following list includes important facts and information
regarding the electric furnace and its inclusions.
1. Air handler is rated at either 120 volts AC or 240 volts
AC at 60 Hertz
2. Air handler size varies by model
3. Four-wire thermostat operation for heating and cooling
4. Seven wire thermostat for heat pump operation.
5. Air Handlers equipped with blower for A/C or Heat Pump
operation
MORTEX PRODUCTS INC. 501 TERMINAL RD FORT WORTH, TEXAS 76106
INSTALLATION MANUAL
LIST OF SECTIONS
LIST OF FIGURES
LIST OF TABLES
1
2
6
8
10
10
4
24 - 2 Stage Heat w/ 2 Stage Split System Cooling Wiring Diagram 19
25 - 1 Stage Heat w/ 2 Stage Package Cooling Wiring Diagram
7
26 - 2 Stage Heat w/ 2 Stage Split System HP Wiring Diagram
7
27 - 2 Stage Heat w/ 2 Stage Package HP Wiring Diagram
8
8
29 - Blower Assembly and Blower Deck Drawing
9
30 - ECM Motor Control Plug Pin out
9
10
32 - MSVE 18-72 - ECM - No Electric Heater Wiring Diagram
10
33 - MSVE 18-72 - ECM - 5 kW Electric Heater Wiring Diagram 25
11
34 - MSVE 25-72 - ECM - 10 kW Electric Heater Wiring Diagram 25
12
35 - MSVE 37-72 - ECM - 15 kW Electric Heater Wiring Diagram 26
12
36 - MSVE 42-72 - ECM - 20 kW Electric Heater Wiring Diagram 26
13
37 - MSVT 18-72 - X-13 - No Electric Heater Wiring Diagram
15
38 - MSVT 18-72 - X-13 - 5 kW Electric Heater Wiring Diagram
15
39 - MSVT 18-72 - X-13 - 10 kW Electric Heater Wiring Diagram 28
16
40 - MSVT 36-72 - X-13 - 15 kW Electric Heater Wiring Diagram 28
16
41 - MSVT 37-72 - X-13 - 20 kW Electric Heater Wiring Diagram 29
17
42 - MSPS 18-60 - PSC - No Electric Heater Wiring Diagram
43 - MSPS 18-60 - PSC - 5 kW Electric Heater Wiring Diagram
18
44 - MSPS 18-60 - PSC - 10 kW Electric Heater Wiring Diagram
19
45 - MSPS 30-60 - PSC - 15 kW Electric Heater Wiring Diagram
19
46 - MSPS 37-60 - PSC - 20 kW Electric Heater Wiring Diagram
3
10 - Electrical Data
4
11 - Field Installed Electric Heater Kit Model Numbers
12 - Field Installed Accessory Heater Kit Nomenclature
6
13 - Low Voltage Wire gauge and Maximum Lengths
7
14 - Recommended Heating / Cooling Thermostat Wire Colors
14
15 - Recommended Heating / Cooling / HP Thermostat Wire Colors 20
14
14
15
6. This air handler is designed for multi position, upflow and
horizontal application
7. This air handler must not be operated without the door
installed
NOTE: This air handler and its components listed on the A/C
and Heat Pump equipment sticker were listed in combination as
a system by ETL for the United States and Canada.
SAVE THIS MANUAL FOR FUTURE REFERENCE


13
16
17
23
25
26
19
20
20
22
22
22
23
24
27
27
29
30
30
31
31
15
16
17
17
20
21
22
