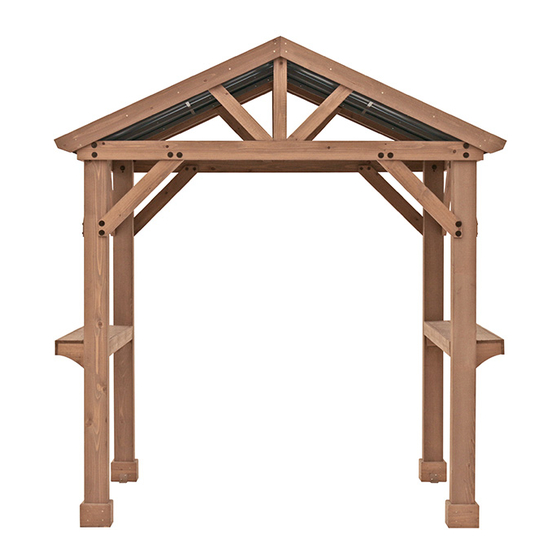

BACKYARD PAVILION
Installation and Operating Instructions – YM12973
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Yardistry – North America
Toll Free Customer Support:
1.888.509.4382
info@yardistrystructures.com
www.yardistrystructures.com
Regular Hours: Mon - Fri, 8:30 am - 5:00 pm EST
(For extended hours see our website)
English and French Spoken
Y40000-973
(excl. holidays)
Revised 11-11-2020
HEIGHT:
2.692 m / 8' 10"
2.438 m
1
8'-
"
8'
2
1.742 m
5'-9"
5' 8-9/16"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YM12973 and is the answer not in the manual?

Questions and answers

Related Manuals for Yardistry YM12973

Summary of Contents for Yardistry YM12973

  • Page 1 BACKYARD PAVILION Installation and Operating Instructions – YM12973 HEIGHT: 2.692 m / 8’ 10” IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Revised 11-11-2020 2.438 m " 8‘ Yardistry – North America Toll Free Customer Support: 1.888.509.4382 1.742 m 5'-9" info@yardistrystructures.com 5’...

  • Page 2: Important Safety Notice

    Wood is NOT flame retardant and will burn. Grills, fire pits and chimineas are a fire hazard if placed too close to a Yardistry structure. Consult user’s manual of the grill, fire pit or chiminea for safe distances from combustible materials.

  • Page 3: Limited Warranty

    Limited Warranty Yardistry warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase. In addition, for any product with lumber, all lumber is warranted for five (5) years against rot and decay. This warranty applies to the original owner and registrant and is non-transferable.

  • Page 4: Instructions For Proper Maintenance

    Instructions for Proper Maintenance Your Yardistry structure is designed and constructed of quality materials. As with all outdoor products it will weather and wear. To maximize the enjoyment, safety and life of your structure it is important that you, the owner, properly maintain it.

  • Page 5: Assembly Tips

    Assembly Tips Following are some helpful tips to make the assembly process smooth and efficient. PRE-ASSEMBLIES: (i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc) • Work on a raised, solid and flat surface such as, a table or saw horse. •...
  • Page 6 Permanent Installation Examples Note: It is critically important you start with square, solid and level footings, concrete pad or deck to attach your Pergola Room. " We supply Post Mounts with this structure which gives you the flexibility to permanently install your structure to a pre-existing or new wood or concrete surface.

  • Page 7: Part Identification

    Part Identification ( Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be smaller or larger. 4pc. (806) - Left Gusset - 651mm (25-5/8") (Y50229-806) 4pc. (793) - Shelf Gusset - 269.7mm (10-5/8") (Y50229-793) 4pc.

  • Page 8: Hardware Identification

    Hardware Identification ( Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be smaller or larger. 4pc. Main Panel (5 x 8) (Y01030-250) 1pc. Ridge Cap (Y01030-251) 2pc. Roof Edge 67 (Y01030-254) 1pc.
  • Page 9 Hardware Identification ( Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be smaller or larger. 16pc. Hex Bolt 5/16 x 2" - (Y07718-320) 1pc. #2 x 2" Robertson Driver (Y00400-005) 24pc.
  • Page 10 • Please retain this information for future reference. You will need this information if you contact the Consumer Relations Department. PRODUCT NUMBER: YM12973 CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1) CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2) CARTON I.D.
  • Page 11 Step 2: Post Assemblies A: At the bottom of each (788) Post, on each side of the Posts, place one (802) Plinth flush to the bottom and attach with four #8 x 1-1/2” Wood Screws per plinth. Rounded edges on top. (F2.1 and F2.2) Note: There will be four Post Assemblies.

  • Page 12: Step 3: Frame Assembly

    Step 3: Frame Assembly A: Move your Post Assemblies to the final location. Make F3.1 (797) Side sure the ground is flat and level before continuing assembly. Beam (796) Front Back Beam B: With one person at each Post stand two complete Post Assemblies.
  • Page 13 Step 4: Attach Gussets F4.1 Note: The bevelled ends on each gusset (797) Side should always face away from the wood it Beam (805) Right is attaching to. (796) Front Gusset Back Beam A: Make sure the assembly is still square and level then facing one (797) Side Beam (806) Left place one (805) Right Gusset on the right...
  • Page 14 Step 5: Secure Frame Assembly A: Attach (796) Front Back Beams and (797) Side Beams to Post Assemblies with two 5/16 x 3” Lag Screws (with 1/4-5/16” large washer) per corner. (F5.1 and F5.2) (796) Front Back Beam F5.1 (797) Side Beam (796) Front (797) Side...
  • Page 15 Step 6: Attach Uprights A: From inside the frame measure 35-9/16” (90.3 cm) along one (796) Front Back Beam from inside the Post Assembly then place one (881) Centre Gable Upright tight to top of (796) Front Back Beam, make sure it is square then attach with two #8 x 1-1/2”...

  • Page 16: Step 7: Roof Frame Assembly

    Step 7: Roof Frame Assembly Step 7: Roof Frame Assembly Assemble Roof Straps to Rafters. Insert Cap bracket at angled end of Roof Strap & Rafter assembly. Part 1 Step 7: Roof Frame Assembly Bolt at each connection. Assemble Roof Straps to Rafters. Insert Cap bracket at angled end of Roof Strap & Rafter assembly. Step 7: Roof Frame Assembly (4) 823-Steel Roof Rafter Bolt at each connection.
  • Page 17 Assemble Roof to Beam Brackets to middle Rafters. Assemble Roof to Beam Brackets to middle Rafters. (2) 285-Steel Rafter to Beam Bracket (2) 285-Steel Rafter to Beam Bracket Step 7: Roof Frame Assembly (2) 1/4" x 1/2" Pan Bolt (2) 1/4" x 1/2" Pan Bolt Part 2 (2) 1/4"...
  • Page 18 Fasten Wood Rafter to Frame. Hole at miter end of Steel Rafter is not used. Miter at top of Rafter is flush with Roof Cap Bracket. Wood Rafter is flush with Steel Rafter Step 7: Roof Frame Assembly (2) 877-Rafter Part 3 (8) Pan Screw #10 x 2-1/2"...
  • Page 19 Step 7: Roof Frame Assembly Part 4 F: Makes sure each Roof Frame Assembly is square. The diagonal distance between outside corners of (877) Rafters is 84-7/16” (2.145 m). (F7.10) Step 9: Check for square. Diagonals are same dimension (81-1/8") F7.10 84-7/16”...

  • Page 20: Handle With Care

    STOP STOP STOP STOP INSTALLING ROOFING MATERIAL CAUTION! Roofing material may have sharp edges! Wear gloves! HANDLE WITH CARE! Place roofing material on a non-abrasive surface before assembly as it can bend, dent and scratch easily. WARNING – DO NOT OVER TIGHTEN ROOFING SCREWS! Over tightening screws will cause roofing material to crush.
  • Page 21 STOP STOP STOP STOP INSTALLING ROOFING MATERIAL CAUTION! Roofing material may have sharp edges! Wear gloves! BE SURE TO REMOVE ALL PLASTIC COVERING, ON BOTH SIDES OF THE ALUMINUM PANELS AND TRIM, DIRECTLY BEFORE INSTALLING EACH PIECE. (One side is clear and the other is blue, both must be removed.) Example #1 Example #2 Overtightened and Crushed...
  • Page 22 Step 8: Attach Roof Panels Part 1 Note: Be sure to remove all plastic covering on both sides of the metal panels directly before installing each piece. A: Place (879) Left Gable Upright and (880) Right Gable Upright under frame to prevent it from bending when installing screws.
  • Page 23 Step 11: Fasten Second Roof Panel & Roof Edge Step 8: Attach Roof Panels Position second roof panel, overlap and align with first panel at center. Use wood block to support frame and prevent bending. At row 1 , starting at Part 2 side A , fasten panels to Steel Strap using (7)Self Tapping Screws #8 x 5/8".
  • Page 24 Step 13 - Install first roof panel assembly. (2) Wood Screw - #8 x 1-1/2" Step 9: Attach Roof Panels to Frame (4) Pan Screw - #10 x 1-1/4". Part 1 Align roof panel flush with front beam. Then fasten Beam to Rafter Brackets with #10 x 2-1/2"...
  • Page 25 Step 9: Attach Roof Panels to Frame Part 2 B: Lift the second Roof Panel Frame up and over the pavilion frame so the two Roof Panel Frames are tight together and (877) Rafter notches are tight to (796) Front Back Beams and tight to the front. From inside the Step 14 - Install second roof panel assembly.
  • Page 26 Align second roof panel assembly flush at peak and flush with front beam. Fasten Beam to Rafter Brackets with Step 9: Attach Roof Panels to Frame Pan Screws - #10 x 2-1/2" . Make Roof miters tight at top and fasten Center Part 3 Upright with Wood Screws - #8 x 1-1/2".
  • Page 27 Step 9: Attach Roof Panels to Frame Step 13 - Install first roof panel assembly. (2) Wood Screw - #8 x 1-1/2" Part 4 (4) Pan Screw - #10 x 1-1/4". Align roof panel flush with front beam. Then fasten Beam to Rafter D: Attach all Rafter to Beam Brackets to (797) Side Beam with two #10 x 1-1/4”...
  • Page 28 Step 10: Attach Gable Uprights Step 16 - Install Left and Right Uprights (2) 803-Left Uprights (2) 880-Right Uprights A: From inside the assembly place one (879) Left Gable Upright and one (880) Right Gable Upright on (796) (16) Wood Screw #8 x 1-1/2" Front Back Beam tight to (881) Centre Gable Upright and tight to each (877) Rafter then attach with four #8 x 1-1/2”...
  • Page 29 Step 11: Attach Ridge Caps Step 17 - Slide Ridge Cap onto Cap brackets. A: Slide Ridge Cap over each Roof Cap Bracket across top of the roof. Ridge Cap should be flush to the outside edge of the roof. Attach Ridge Cap to Roof Cap Bracket and (877) Rafter, with one #8 x 1” Roofing Screw per end.
  • Page 30 Step 12: Attach Fascia A: On one side of the assembly place two (801) Fascia against the (877) Rafters so the peaks meet in the centre and they are tight together. Bottom of (801) Fascia to bottom of (877) Rafter should measure 1/2” (12.7 mm) all along each (801) Fascia.
  • Page 31 Step 13: Attach Plaque A: Attach Gazebo ID Plaque to any beam on your pavilion using two #8 x 1” Roofing Screws, so it is in a prominent location. This provides warnings concerning safety and important contact information. A tracking number is provided to allow you to get critical information or order replacement parts for this specific model.

  • Page 32: Step 14: Shelf Assembly

    Step 14: Shelf Assembly Part 1 A: Under each (797) Side Beam, measure 40” (101.6 cm) up from the bottom of each Post Assembly along the sides facing each other, then place one (793) Shelf Gusset on each face so the tops are at the 40” (101.6 cm) mark.
  • Page 33 Step 14: Shelf Assembly Part 2 B: Place two (795) Shelf Tops on each set of (793) Shelf Gussets so they are flush to the edges and outside faces. Attach (795) Shelf Tops to (793) Shelf Gussets with four #8 x 1-1/2” Wood Screws per board. (F14.3, F14.4 and F14.5) C: Under each set of (795) Shelf Tops place two (794) Shelf Joists so they are centred under the pilot holes in the (795) Shelf Tops and flush to the outside edges of the (795) Shelf Tops.
  • Page 34 Step 14: Shelf Assembly Part 3 D: Place one (792) Front/Back Shelf on the front and back of the Shelf Assembly so they are flush to the top of (795) Shelf Tops and to the outside faces of (793) Shelf Gussets. Attach each (792) Front/Back Shelf to (793) Gussets with four #8 x 1-1/2”...
  • Page 35 Step 15: Attach Corner Brackets A: Place one Corner Bracket flush to the bottom of each Post Assembly on the inside (802) Plinth, under the Shelves, pre-drill with a 1/8” drill bit then attach with two #10 x 2-1/2” Pan Screws per bracket. (F15.1 and F15.2) B: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface.
