DS2 – Two-Camera Vehicle Event Recording System
Quick Installation and Setup Guide
Before you Begin...
This process involves mounting cameras and running cables through the vehicle interior. It is helpful to have
some familiarity with installing automotive accessories.
Warning:
It is your responsibility to avoid damaging safety or electrical systems.
DS2 may interfere with on-board collision avoidance systems utilizing forward facing cameras.
Consult your vehicle's Owner's Manual or your dealer if you're unsure whether your vehicle
uses this technology. To confirm if DS2 is compatible with your vehicle, please consult
https://community.seon.com/ds2-unsupported-vehicle-list/
Impairing or interfering with the operation of an airbag is a critical safety concern. If you are not
confident in your ability to perform the procedures in this Guide, please consider contacting
Seon Support to schedule a professional installation.

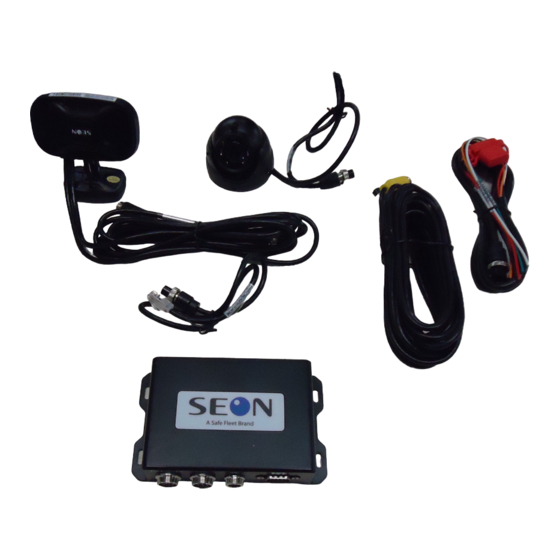

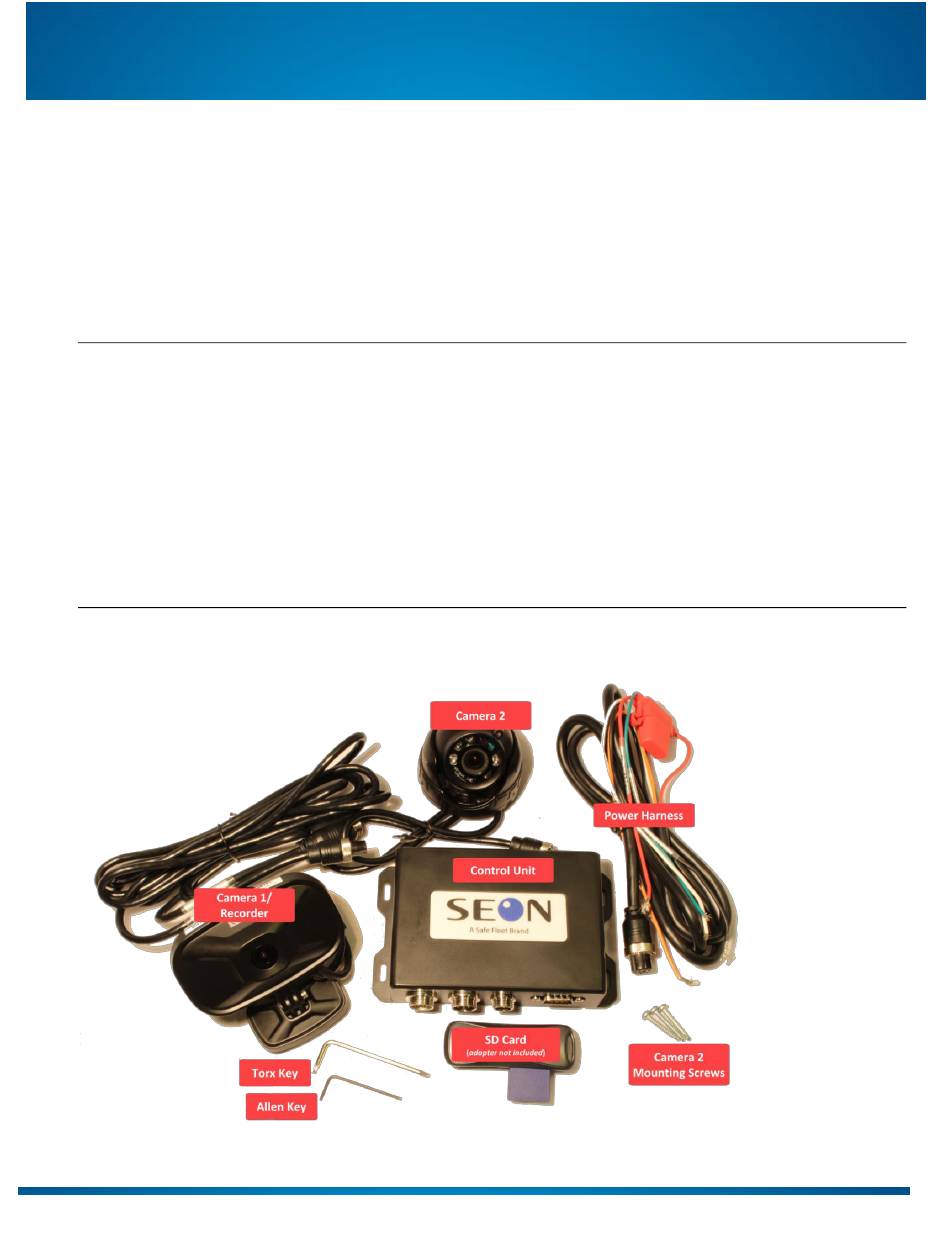

Check that you received all system components:
or contact the Seon service team.
DS2 Quick Installation and Setup Guide
Part #700-1078 R5
Advertisement
Table of Contents
Related Manuals for SEON DS2
Summary of Contents for SEON DS2
- Page 1 DS2 may interfere with on-board collision avoidance systems utilizing forward facing cameras. Consult your vehicle's Owner's Manual or your dealer if you’re unsure whether your vehicle uses this technology. To confirm if DS2 is compatible with your vehicle, please consult https://community.seon.com/ds2-unsupported-vehicle-list/ or contact the Seon service team.
- Page 2 DS2 – Two-Camera Vehicle Event Recording System Step 1: Determine Installation Locations Think about placement of cameras and the Control Unit, and confirm the positions will work for the images you want to capture. Make sure you consider cable lengths and how they will run between components:...
- Page 3 DS2 – Two-Camera Vehicle Event Recording System Camera 2 - on the headliner or a bulkhead (to capture passengers, driver, or cargo): Do not mount to a surface that cannot support the camera’s weight or is subject to constant vibration.
- Page 4 1. Clean the area where the mount will contact the windshield (alcohol swab is recommended). 2. Peel off the red adhesive backing from the mount. 3. Face the camera outward (SEON logo visible from inside the vehicle). 4. Ensure the camera body is aligned horizontally (not skewed).
- Page 5 DS2 – Two-Camera Vehicle Event Recording System Step 4: Mount Camera 2 1. Use the supplied Allen key to loosen the 3 set screws and separate the mounting plate from the housing. 2. Thread the cable through the plate and attach the flat side to the mounting surface with the 3 screws.
- Page 6 DS2 – Two-Camera Vehicle Event Recording System Step 5: Install the Control Unit 1. Place the Control Unit in the desired location. Leave room to connect the cables. 2. Plug the Power Harness into the Power/Sensor input on the Control Unit.
- Page 7 DS2 – Two-Camera Vehicle Event Recording System Step 6: Run/Connect Camera Cables Warning: The “A” pillar (beside the windshield) may contain an air bag. Do not attempt to run cables down the “A” pillar unless you are sure you understand how the safety system may be affected.
- Page 8 DS2 – Two-Camera Vehicle Event Recording System Contact Technical Support Service & Support service@seon.com Toll-free phone 1.844.899.7366 Product Information sales@seon.com Web site https://community.seon.com/ds2/ If you do not have login credentials for the Community, please contact Technical Support. Complete Seon warranty details are available online at: http://www.seon.com/documents/Seon-Warranty.pdf...
