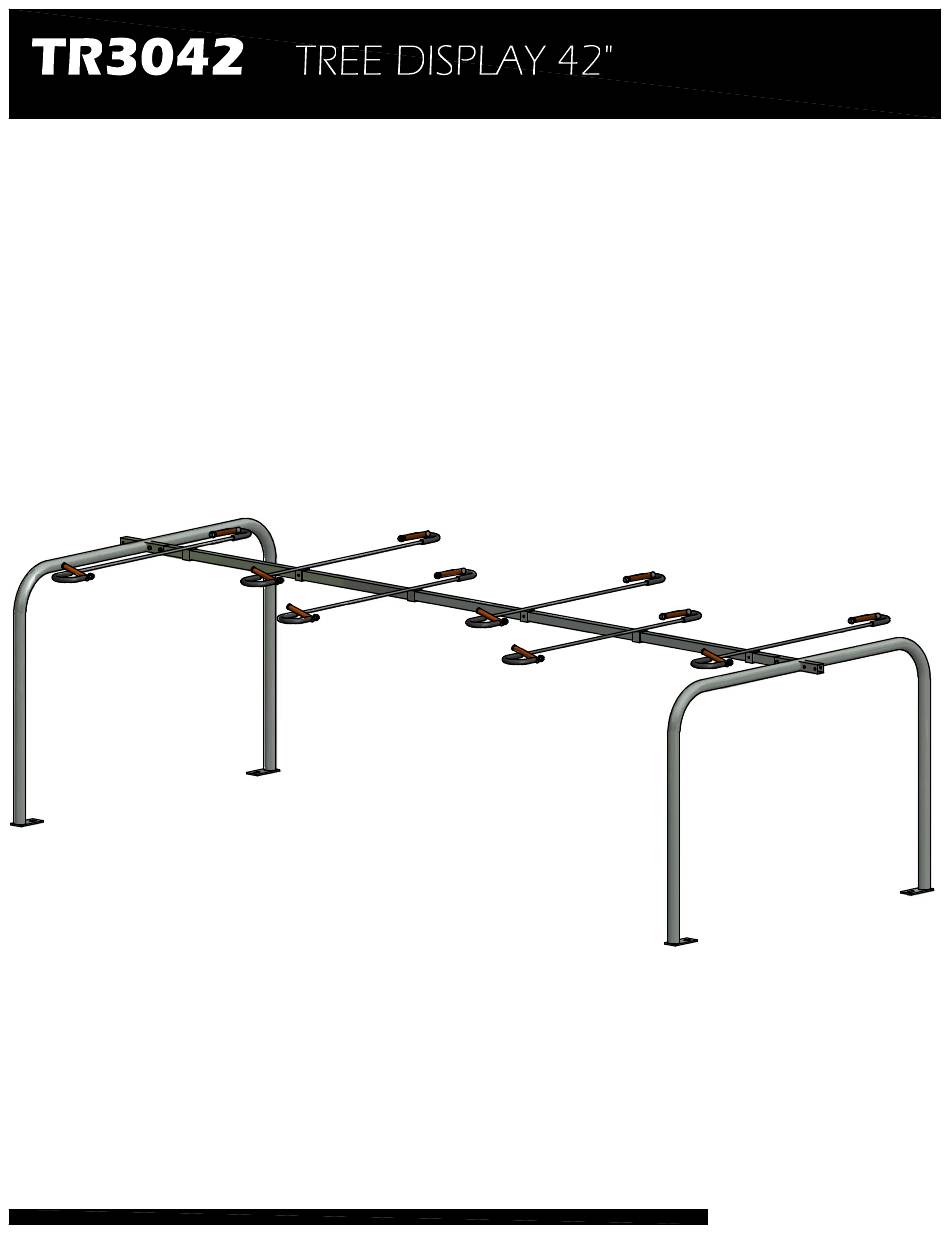

ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before assembly.
Save instructions for future reference.
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AB-131112
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Advertisement
Table of Contents
Related Manuals for Poly-Tex TR3042
Summary of Contents for Poly-Tex TR3042
- Page 1 ASSEMBLY INSTRUCTIONS IMPORTANT Please read these instructions carefully before assembly. Save instructions for future reference. P.O. Box 458 U.S. & Canada Toll Free 27725 Danville Avenue 800-852-3443 Castle Rock, MN 55010 (651) 463-7009 www.poly-tex.com fax (651) 463-2479 REV: AB-131112...
- Page 2 TR1029 NB1972 DISPLAY SIGN HOLDER HEX BOLT 1/4" x 1-1/2" (OPTIONAL) TR1023 42" TREE RETAINER NB1754 SERRATED HEX NUT 1/4" S/S NB1968 SNAPPER PIN (OPTIONAL) NB1978 SET SCREW 5/16"x 1/2" TR1013 120" SUPPORT BAR PT2446 10" SPIKE TR1028 END STAND HEX WRENCH NB1979 (INCLUDED).
- Page 3 SLIDE EACH TREE RETAINER OVER THE 120" SUPPORT BAR ORIENTED AS SHOWN. NOTE POSITION OF HOLES IN SUPPORT BAR AND DIRECTION OF TREE RETAINERS. ROTATE RETAINERS ALTERNATELY 180°. INSERT ONE END OF THE ASSEMBLED SUPPORT BAR INTO EACH END STAND STUB. ALIGN HOLES IN SUPPORT BAR WITH HOLES IN THE END STAND STUB AND INSERT HEX BOLTS.
- Page 4 Limited Warranty Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a period of (1) year from date of invoice. This warranty is provided to the original purchaser of the product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex, but does assign any transferable manufacturer or supplier warranties.
