INSTALLATION MANUAL
Thank you for buying this Briteq
please read these operating instructions very carefully before you start using this unit.
FEATURES
• This kit adapts the "BT-THEATRE YOKE" perfectly to the "BT-THEATRE HD1" theatre Fresnel.

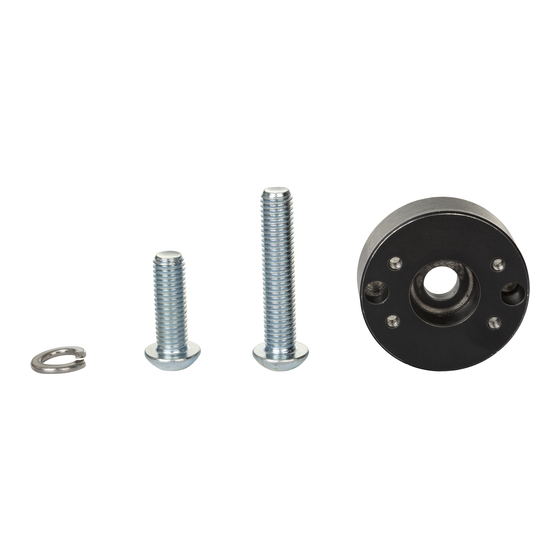

• The kit consists of 4 extra parts:
• Custom-made aluminum cylinder
• 1pc M10 "hex socket head" bolt L=50mm
• 1pc M10 "hex socket head" bolt L=30mm
• 1pc M10 "spring washer"
• All installation accessories for easy installation are included
MECHANICAL ASSEMBLY:
IMPORTANT: To save time, follow the steps below very carefully!
Please also check the user/assembly manual of the "BT-THEATRE YOKE"
You can also check the INSTRUCTION VIDEO: CLICK HERE to better understand
DIFFERENT PARTS
You will not need all parts: here is a selection of the parts that you will need / not need anymore.
PARTS NOT NEEDED ANYMORE
BRITEQ
®
®
product. To take full advantage of all possibilities and for your own safety,
some steps in the assembly process.
PARTS NEEDED FOR THE ASSEMBLY
1/2
INSTALLATION MANUAL V1.0
BT-THEATRE YOKE ADAPTER-HD1
