Lascar Electronics EL-SIE Quick Start Manual

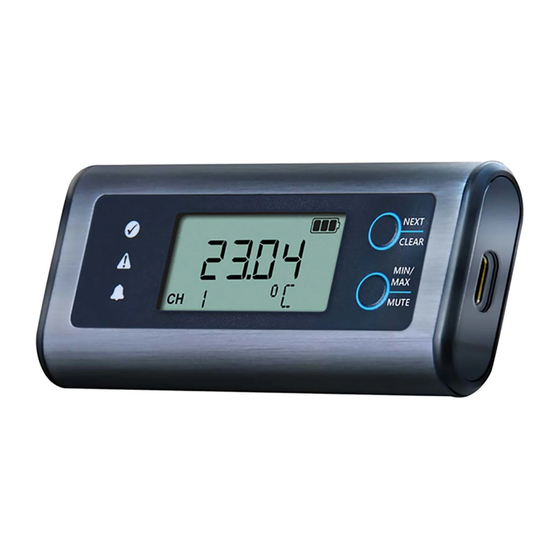

Getting to Know Your EL-SIE Logger
Status
LEDs
Access Screws
Sensor
Connect to your PC or Mac
All the software needed to configure your EL-SIE, view and analyse the data it logs, is contained within the
product itself.
1. Connect the logger to your computer using the USB cable supplied
2. Open your web browser and into the address bar type http://EasyLog.local
3. The EL-SIE home page will load – save it to your Favourites or Bookmarks
4. Follow the on-screen instructions to configure and start logging
5. Disconnect the logger and position it where you want to take readings
Once the logger is running you can plug it back into your computer and, without having to stop it logging,
view the data recorded so far. Just select http://EasyLog.local from your Favourites and click on View/Save
Data.
EasyLog Cloud Data Storage
Store your data securely, and make it available from
any internet-connected computer or mobile device, with
EasyLog Cloud. The EL-SIE can send logged data to the
Cloud from your computer or Mac,
making sharing and analysis easier
than ever. For more information and to
set up an account on EasyLog Cloud,
visit www.easylogcloud.com.
CALIBRATION CERTIFICATES AVAILABLE
Lascar offers a Traceable Calibration Certificate Service on Temperature Data Loggers. Using reference equipment
which has been calibrated by a UKAS/NIST/CNAS accredited laboratory and using apparatus traceable to national or
international standards. For more information please see www.lascarelectronics.com.
Quick Start Guide
Display
For full information about
your data logger visit
Function
Buttons
www.lascarelectronics.com
and navigate to the product
page of your logger.
The data sheet is in
the Resources section.
USB Port
Install the Batteries
2 x AAA Batteries: The unit is powered
when the batteries are installed. Use AAA
1.5V alkaline batteries only, these are user
replaceable.
Loosen the screws and remove the end
cap, then fit the batteries in the orientation
shown on the label. Replace the end cap
and tighten the screws carefully until
secure.
EL-SIE
