Summary of Contents for StageRight ME-1000

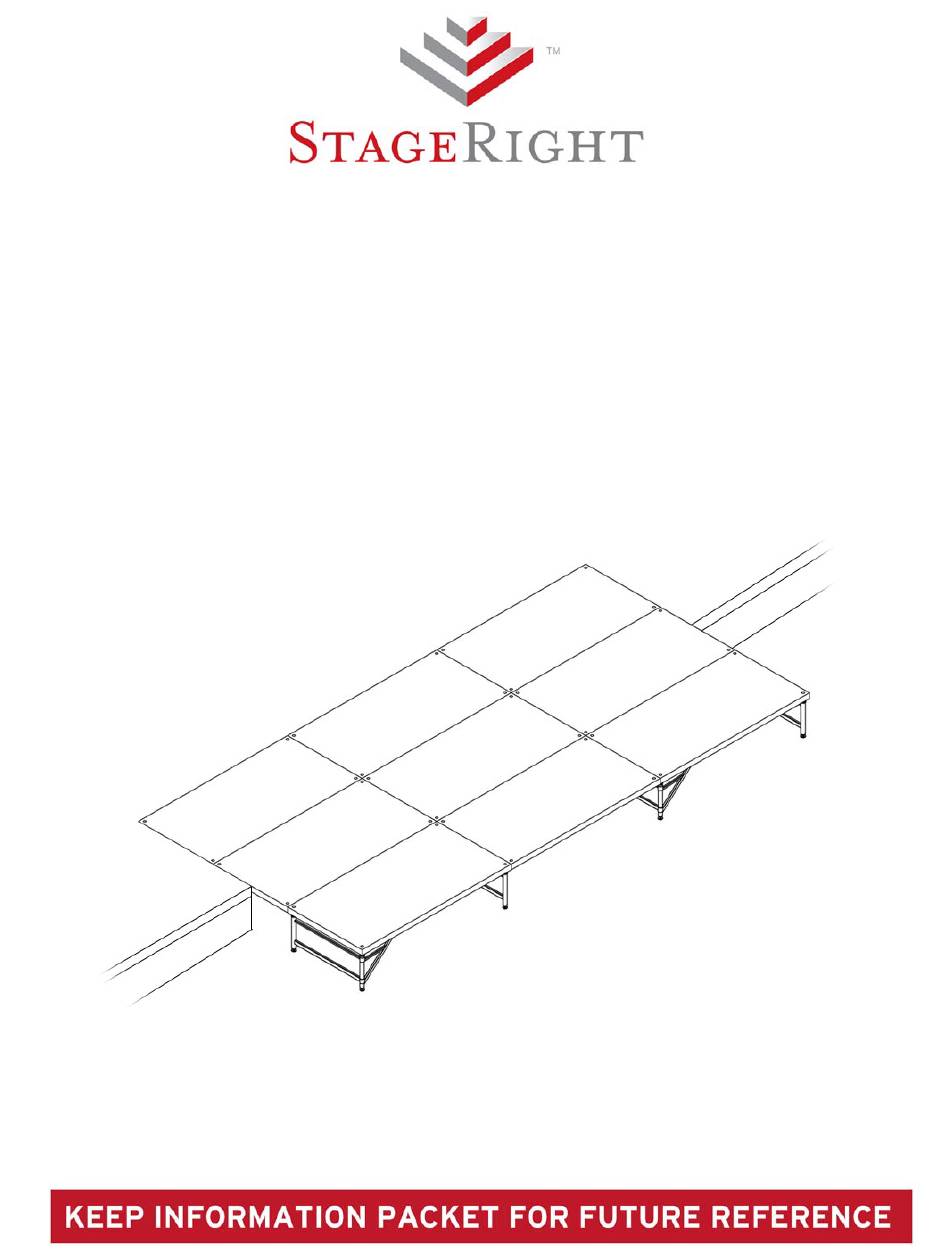

- Page 1 RODUCT NFORMATION ACKET RODUCT AME: Pit Filler...
-
Page 2: Table Of Contents
Careful study of this manual is encouraged to obtain a thorough understanding of your new All Purpose Deck and its functions and maintenance. If your manual becomes lost or destroyed, StageRight will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-438-4499. -
Page 3: General Safety Rules
General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS Stay clear of all pinch points. Make sure that all fasteners are properly engaged before use. Quick pins, faspins, button ... -
Page 4: Symbols
Symbols Safety Alert: Precautions that involve your safety Read The Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product Pinch Point Warning Label: Failure to keep hands away from pinch points will result in personal injury... - Page 5 ME-1000 Structure’s ME-1000 AS ME-1000 AT...
- Page 6 StageRight Corporation Technical Specifications ME – 1000AT Support System, All Terrain Style PART # DESCRIPTION WT. (LB.) SHIPPING DIM. 314409 16”-24” Adjustable Height 110” x 48” x 6” 314410 24”-36” Adjustable Height 110” x 48” x 6” 314412 32”-48” Adjustable Height 110”...
- Page 7 Instructions Begin the assembly of your ME – 1000AT Support System by laying out the components as shown above. Take note that the horizontal braces are marked with a green sticker while the diagonal braces are marked with a yellow sticker. Assembly of this structure should be done with at least two people and tools are not required.
- Page 8 Next attach one of the diagonal braces to the assembly as shown above. Simply attach one end of the brace to the lower level of the H-section and then attach the opposite end to the top level of the H-section. Attach the remaining horizontal brace as before.
- Page 9 Complete the assembly by attaching the final diagonal brace. To change the position of the locator nodes begin by pulling the spring pin that keeps the locator assembly in place and rotate the locator to the desired position and then release the spring pin.
- Page 10 Jam Nut To level the deck after it has been placed on the ME-1000 Support System, simply raise or lower the adjustable screw feet by threading them in or out. Once the deck has been leveled, go back and tighten...
-
Page 11: Zhd
ZHD Structure... - Page 12 StageRight Corporation Technical Specifications Z – HD Support Systems 4’ x 8’ 4’ x 6’ 4’ x 4’ 3’ x 8’ 3’ x 6’ 2’ x 8’ 12” Fixed 311010 311610 311410 311510 311310 311210 Height 34 lbs 31 lbs...
- Page 13 Instructions *Note: Two people are required for this assembly. To begin the setup of your Z-HD support system, rotate the outside legs in opposite directions until the unit can stand freely, creating a Z-shape. Next place the desired locators on the support system by pulling out on the lock pins and then lowering them onto the upright tubes.
- Page 14 To place the deck on the Z-HD support system, begin by aligning the holes at one end of the deck to the locating nodes at the corresponding end of the support system. Lower the end down. Align the remaining holes of the deck to the support system and lower the deck completely onto the supports.
-
Page 15: Stub Legs
Stub Leg Structure... - Page 16 Stub Leg Detail A StageRight pit filler system that is designed to sit on angle or wall mount brackets, utilizes stub legs. Typically, the stub legs sit directly on the angle or the wall mount bracket; the use of tie...
-
Page 17: Deck Specs
StageRight Corporation Technical Specifications All Purpose Decks Laminated honeycomb-core construction is rigid yet lightweight. Conical Locator Nodes With StageRight’s unique locator nodes, decks can be used on several support systems in various configurations. These drawings represent a few locator plate... -
Page 18: Maintenance
Customer Service For parts or service contact Stageright Corporation. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the technical specification page of this product information package. Customer Service hours are Monday thru Friday from 8:00 a.m. - Page 19 StageRight Corporation 495 Pioneer Parkway Clare, MI 48617 Toll-free: 800-438-4499 Phone: 989-386-7393 Fax: 989-386-3500 Email: info@stageright.com Web: www.stageright.com...
