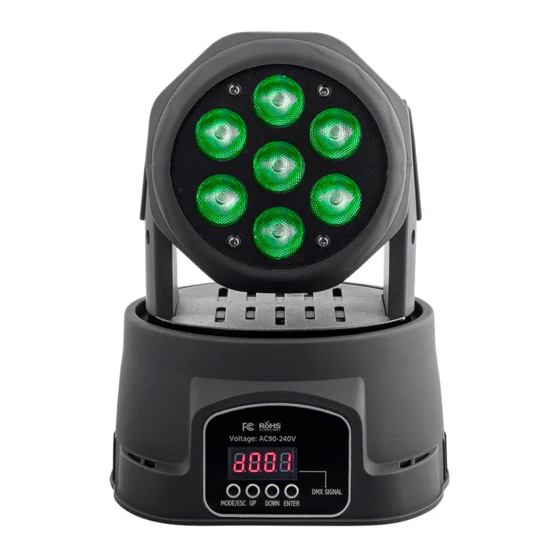

- Page 1 Stage Wash 7x 10W LED Moving Head (RGBW) P/N 612870 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ................................3 INTRODUCTION ............................................4 FEATURES ..............................................5 CUSTOMER SERVICE ........................................5 PACKAGE CONTENTS ......................................... 6 PRODUCT OVERVIEW ........................................6 Fixture ............................................... 6 MENU SYSTEM ............................................7 DMX Address ............................................. 7 Mode Selection ..........................................8 Pan Inversion ............................................ -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 4: Introduction
Take care to prevent damage to the power cord. Do not allow it to become crimped, pinched, walked on, or become tangled with other cords. Ensure that the power cord does not present a tripping hazard. Never unplug the unit by pulling on the power cord. Always grasp the connector head or adapter body. -
Page 5: Features
FEATURES 7x 10-watt RGBW LEDs 9-channel and 14-channel DMX-512 control options Pan can be limited to 180°, 360°, and 540° Tilt can be limited to 90°, 180°, and 270° Supports RGBW color mixing Includes a built-in variable electronic strobe function ... -
Page 6: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Mini moving head wash light 1x Hanging bracket 2x Screws 1x AC power cable 1x User's manual... -
Page 7: Menu System
CONTROLS AND MENU DISPLAY The 4-digit LED display indicates the mode and the value for the selected function or mode. Press the MODE/ESC button to access the menu system and to cycle through the available menu options. Press the ENTER button to edit the currently displayed mode. ... -
Page 8: Mode Selection
3. Use the UP and DOWN buttons to change the displayed value. 4. Press the ENTER button to save the new address setting. Alternatively, press the MODE/ESC button to cancel your changes. Mode Selection Perform the following steps to set the mode. 1. -
Page 9: Display Inversion
2. Use the UP and DOWN buttons to change from tiL to rtiL or from rtiL to tiL. 3. Press the ENTER button to save the new setting. Alternatively, press the MODE/ESC button to cancel your changes. Display Inversion 1. Press the MODE/ESC button until the display shows diS (normal display) or rdiS (inverted display). -
Page 10: Fixture Reset
2. Use the UP and DOWN buttons to change the value. 3. Press the ENTER button to save the new setting. Alternatively, press the MODE/ESC button to cancel your changes. Fixture Reset Perform the following steps to reset the fixture. 1. -
Page 11: Dmx Termination
DMX TERMINATION As with all DMX devices, the last unit in any chain must have a DMX terminator connected to the DMX Out connector. If using just a single light, connect a DMX terminator to the DMX Out connector. A DMX terminator is a DMX plug with a 120-ohm, 1/4-watt resistor soldered between pins 2 and 3. -
Page 12: 14-Channel Mode
14-Channel Mode Channel Function Pan Control (coarse) 16-bit Pan Control (fine) Tilt Control (coarse) 16-bit Tilt Control (fine) Pan/Tilt Speed (slow to fast) Master Dimmer (0-100%) and Strobe (slow to fast) Red Dimmer (0-100%) Green Dimmer (0-100%) Blue Dimmer (0-100%) White Dimmer (0-100%) RGBW Color Mixing (0-231) and Random Color Mixing (232-255) Color Mixing Speed (slow to fast) -
Page 13: Specifications
SPECIFICATIONS Model 612870 Light Source 7x 10-watt 4-in-1 RGBW LEDs Maximum Pan Range 540° Maximum Tilt Range 270° DMX Channels 9-channel or 14-channel Input Power 90 ~ 240 VAC, 50/60 Hz Maximum Power Consumption 80 watts Fuse Type 250V, 1A Dimensions 11.8"...
