SUSPENZ 22-9908 Manual

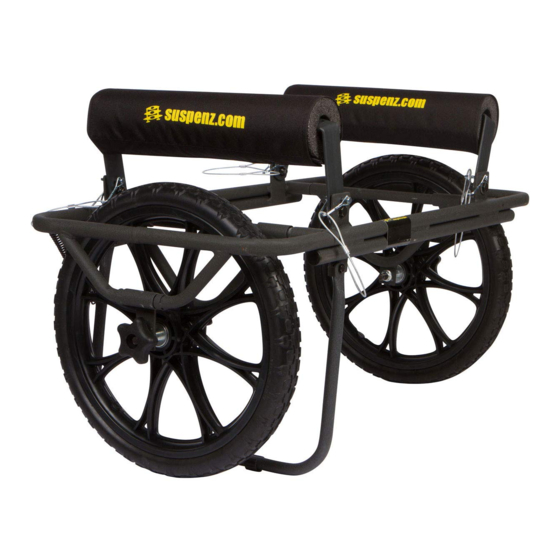

All-Terrain Airless Cart
Tools Needed : Adjustable Wrenches (2)
1. Rotate the 2 Bunker Bars to a vertical position on cart frame.
Use the 4 Bunker Bar Locking Pins w/Tether
Bars in place during the assembly process. Then turn cart
upside down for wheel assembly.
Serrated Flange Nut
2. Remove
Black Knob).
of the
Inner Wheel Guard
3. Rotate
tab. Secure with the
Flange Nut
with wrench while using 2nd wrench to hold
nuts on the other side of the metal tab.
Black Knob
4. Undo from wheel axle. Rotate inner wheel guard
(with wheel) and outer wheel guard so the axle passes
through hole in tab of the
Black Knob
Re-attach
5.
Repeat on other side then turn cart over and flip the kick-
stand down for balance to complete cart assembly. Note:
the kickstand is purposely shorter than the wheel allowing
the cart to tilt.
Rev. 12/20
Suspenz®, Inc. Suspenz®, Inc.
8725 Roswell Road #0-220 8725 Roswell Road #0-220
Atlanta GA 30350 Atlanta GA 30350
from wheel axle (opposite side
up, and insert wheel axle through
Serrated Flange Nut .
Tighten
Outer Wheel Guard
onto axle and tighten fully by hand.
Black Knob
to hold Bunker
Serrated
Outer Wheel Guard
.
Model # 22-9908
Parts List
Qty Name
1
All-Terrain Cart Frame
2
Mag-Lite Wheel
2
Cam Buckle Strap Set
4
Bunker Bar Locking Pin
with Tether
Holds up to 300 lbs.
Wheel
Serrated Flange Nut
Inner Wheel Guard
Scan* to see
Video Instructions
for Assembly & Use
or
Visit Suspenz.com
"Video & Manual" page
*QR code reader app required
Customer Service:770-518-0045 Customer Service:770-518-0045
Fax: 770-518-8507 Fax: 770-518-8507
Website: www.suspenz.com Website: www.suspenz.com
Discard; used for
packaging only
