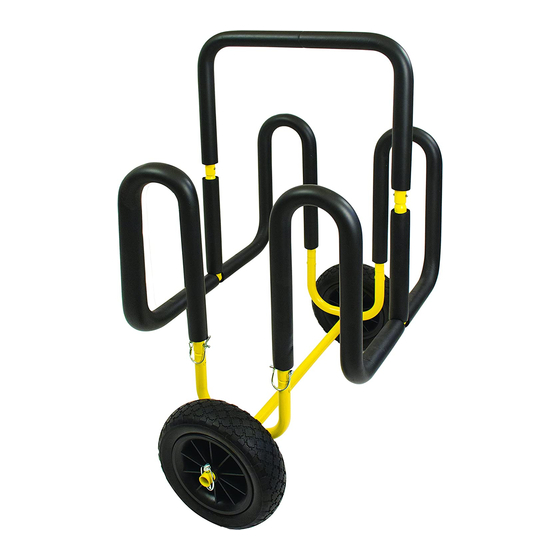

Double-UP SUP Cart
Tools Needed: None
Step 1: Assemble Loop Frame to Wheel Base
4 Locking Pins, 2 Loop Frames and 1 Wheel Base
Parts Needed:
Loop Frame.
Repeat for 2nd
Caution: When closing the
Locking Pin, use the palm
of your hand to lock it into place.
For Technical assistance or Replacement parts: call 866.787.7369
Rev. 11/17
Suspenz®, Inc.
8725 Roswell Road #0-220
Atlanta GA 30350
Model # 22-9934
Parts List
Qty
Name
1
Top Frame
2
Loop Frame
1
Wheel Base
4
Locking Pin for Frame
2
10" Airless Wheel
2
Quick Release Pins
1
Tie Down Strap
Holds up to 125 LBS
Scan* to see
Video Instructions
for Assembly & Use
or
Visit Suspenz.com
"Video & Manual" page
*QR code reader app required
Customer Service:770-518-0045
Fax: 770-518-8507
Website: www.suspenz.com
