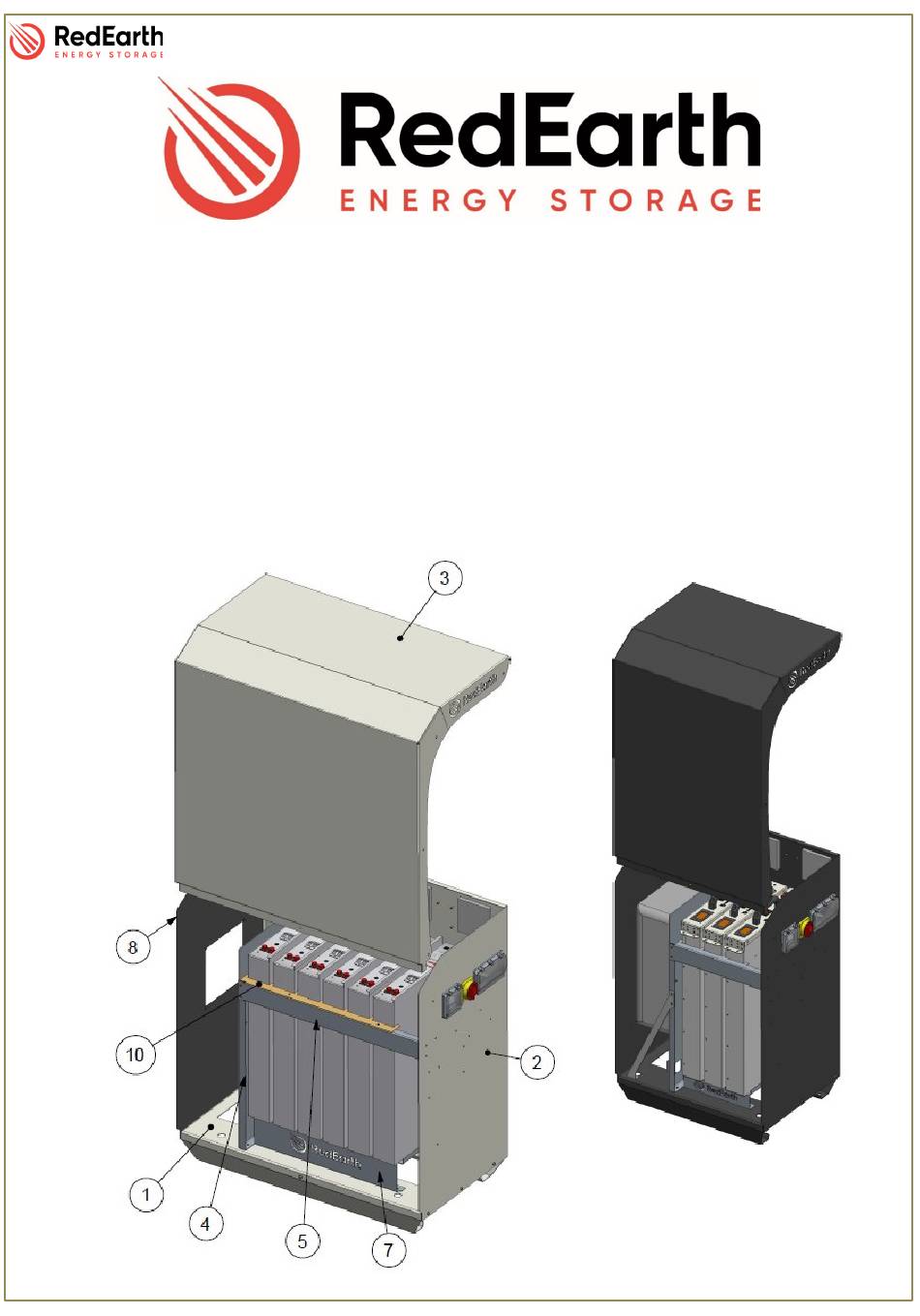

- Page 1 SunRise – Installation Manual SunRise Home Battery System Model: Single Phase Installation Manual RE_PROD_0005 Version 3 Page 1 of 28 Issue Date 16/11/2020...
- Page 2 SunRise – Installation Manual RedEarth Energy Storage Ltd 15 Fienta Place Darra – QLD 4076 Australia Tel: 1800 733 637 Email: info@redearth.energy Web: www.redearth.energy RE_PROD_0005 Version 3 Page 2 of 28 Issue Date 16/11/2020...
- Page 3 DO NOT use water. Evacuate the area and call emergency services. Toxic gas may be produced if the battery catches fire. Note: MSDS document is provided with the system and also can be found at www.redearth.energy Damaged battery Do not use a damaged battery.
- Page 4 Lithium-ion 3.55kWh nominal each – Model US3000) NOTE: This Installation Guide should be read in conjuction with the following Sungow, PylonTech or RedEarth Troppo Manuals supplied with the system. A total of 6.65kW of solar panels can be connected to the systems two MPPT’s to claim full STCs (1.33 x 5.0kW).
- Page 5 SunRise – Installation Manual Dimensions & Clearance SunRise Weight: 87kg plus 42kg per Troppo battery Or 32kg per US3000 battery Dimensions: 1040 H x 969 W x 544 D [mm] SunRise (Mini) Weight: 61kg plus 42kg per Troppo battery Or 32kg per US3000 battery Dimensions: 1040 H x 669 W x 543 D [mm] SunRise Minimum Clearance According to AS/NXS 5139...
- Page 6 Middle This general area is where the batteries are located. A complete set will have either 5 Pylontech or 6 RedEarth Lithium Batteries (SunRise Mini will have 3 RedEarth Lithium Batteries). The terminals on the back panel and above the batteries are for the connection of the thermal relay and the heat extraction fans.
- Page 7 SunRise – Installation Manual Components The SunRise comes fully equipped with the following items. • SunRise pre-wired enclosure • Sungrow SH5K-30 inverter • SunRise User Manual • SunRise Installation Manual • Battery Specifications • Spare Parts Kit o Stickers & Traffolytes for a complete install o MC4 connectors o M25 glands (plain to screw) o M25 plugs...
-
Page 8: Installation
SunRise – Installation Manual Installation 8 steps for complete SunRise installation: 1. Transporting 2. Positioning 3. Solar Install 4. Electrical connections 4.1. Solar 4.2. Battery 4.3. Grid & EPS 4.4. Aux. Earth Fault Alarm 4.5. MSB & Meter 5. Turn on/Shutdown 6. - Page 9 SunRise – Installation Manual Installation Step 2. Positioning The SunRise is designed to be a freestanding weatherproof system. However, we strongly recommend it to be placed outdoors and close (300mm) to a wall in a shaded area to reduce the chances of overheating. It should also be placed as close as possible to the solar panels and the MSB to minimise voltage drop/power loss.
- Page 10 V 4.2. Battery Tested and commissioned in RedEarth factory, the batteries can be found in the middle section of the SunRise. If the batteries are to be removed during final transportation/positioning, see the procedure below on how to remove/install the battery.
- Page 11 SunRise – Installation Manual Installation • Removing/Installing Troppo Battery To remove or install a battery, you will need to follow these steps: • Remove the battery cables by pressing the button on the side of the terminal and pull it straight up; NOTE: When installing the battery cable, simply push it onto the terminal until you hear a click.
- Page 12 SunRise – Installation Manual Installation • Removing/Installing US3000 Battery To remove or install a battery, you will need to follow these steps: • Remove the battery cables by pressing the button on the side of the terminal and pull it straight up; NOTE: When installing the battery cable, simply push it onto the terminal until you hear a click.
- Page 13 4.3. Auxiliary Earth Fault Alarm RedEarth’s Sunrise has two terminal blocks for the installation of a third-party alarm. These 2 terminals are on the same din rail as the EPS terminals and can be identified by their smaller size, with the grey terminal set as the active and the blue the neutral.
- Page 14 SunRise – Installation Manual Installation 4.4. Main Switchboard (MSB) & Meter In the MSB, three tasks must be done for a complete Sunrise Install: • Separation of the circuits into non-essential and essential (EPS) • Installation of the Sungrow meter •...
- Page 15 SunRise – Installation Manual Installation Step 5. Turning ON NOTE: Turning the SunRise ON for the first time will require access to the batteries on the inside of the unit. For all other times, the Turn ON procedure is the reverse of the shutdown procedure. •...
- Page 16 SunRise – Installation Manual Installation • If using US3000 batteries, to turn ON the unit for the first time, you must follow the steps below: 1 Switch ON the all battery “POWER” switches; 2 Press the SW (red) button on the Master Battery; 3 Switch ON the BATTERY SYSTEM D.C.
- Page 17 SunRise – Installation Manual Installation Shutting Down The shutdown procedure is the reverse of the “turn on” procedure and is shown below. This procedure can be found on the RHS of the unit. 1 Turn OFF all AC circuit breakers (#1); 2 Switch OFF the SOLAR D.C.
- Page 18 Step 6. Commissioning The SunRise is commissioned and tested in RedEarth’s factory to guarantee correct operation of the system as ordered. However, last-minute parameter adjustments may be required (eg. Export limitation). Carefully follow the procedure in Chapter 8 of the Sungrow User Manual on how to make these alterations without compromising the existing configuration.
- Page 19 There are currently two ways to enable monitoring to the SunRise. • 4G Antenna • Hardwire to LAN The first option uses RedEarth’s monitoring hardware and requires positioning the antenna in a good 4G reception area. To do this, pass the antenna through the antenna access point and secure it with the appropriate size gland (available in parts kit box).
-
Page 20: Normal Operation
SunRise – Installation Manual How to Operate a SunRise NORMAL OPERATION: In this operation mode the Sunrise will operate as explained above. Where the system uses solar, battery and grid depending on the situation. All of the breakers and isolators should be on the ON position and the ByPass Switch should be in the upwards position ( I ). - Page 21 SunRise – Installation Manual Services and options available for your SunRise RedEarth can provide several options for the SunRise; • Membership of the RedEarth Customer Community • Additional batteries for system expansion • Remote and ongoing monitoring option • Extended warranty option •...
- Page 22 SunRise – Installation Manual Appendix A Single Line Diagram - Power RE_PROD_0005 Version 3 Page 22 of 28 Issue Date 16/11/2020...
- Page 23 SunRise – Installation Manual Appendix A Single Line Diagram – Communications RE_PROD_0005 Version 3 Page 23 of 28 Issue Date 16/11/2020...
- Page 24 SunRise – Installation Manual Appendix A Single Line Diagram - Main Switchboad (Generic) RE_PROD_0005 Version 3 Page 24 of 28 Issue Date 16/11/2020...
- Page 25 SunRise – Installation Manual Appendix B Technical Specifications – SunRise PV Input MPP Voltage Range 125V – 560V Max. Input Voltage (V 600V Max. Input Current 11/11A Short Circuit Current (I 12/12A Battery Battery type Lithium-Ion Phosphate or Battery Ready 4.1kWh per Troppo (4.1 / 8.2 / 12.3 / 16.4 / 20.5 / 24.6) Nominal Energy Capacity 3.5kWh per US3000 (3.5 / 7.1 / 10.6 / 14.2 / 17.7)
- Page 26 SunRise – Installation Manual Appendix B Technical Specifications – SH5k-30 RE_PROD_0005 Version 3 Page 26 of 28 Issue Date 16/11/2020...
- Page 27 SunRise – Installation Manual Appendix B Technical Specifications – Lithium Battery – Troppo 4.1 Short-circuit Current (I 0.4 kA 0.8 kA 1.2 kA 1.6 kA 2.0 kA 2.4 kA UN Number 3481 RE_PROD_0005 Version 3 Page 27 of 28 Issue Date 16/11/2020...
- Page 28 SunRise – Installation Manual Appendix B Technical Specifications – Pylontech – US3000 Short-circuit Current (I 0.4 kA 0.8 kA 1.2 kA 1.6 kA 2.0 kA UN Number 3481 RE_PROD_0005 Version 3 Page 28 of 28 Issue Date 16/11/2020...
