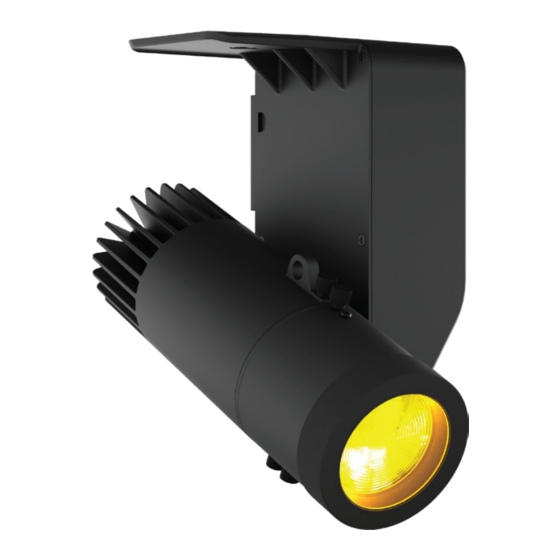

Prolight EclDisplay UNFC User Manual

40w rgb+ww led gallery light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EclDisplay UNFC
EclDisplay DATFC
40W RGB+WW LED gallery light
USER MANUAL
English version
REV.01-02/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EclDisplay UNFC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prolight EclDisplay UNFC

Summary of Contents for Prolight EclDisplay UNFC

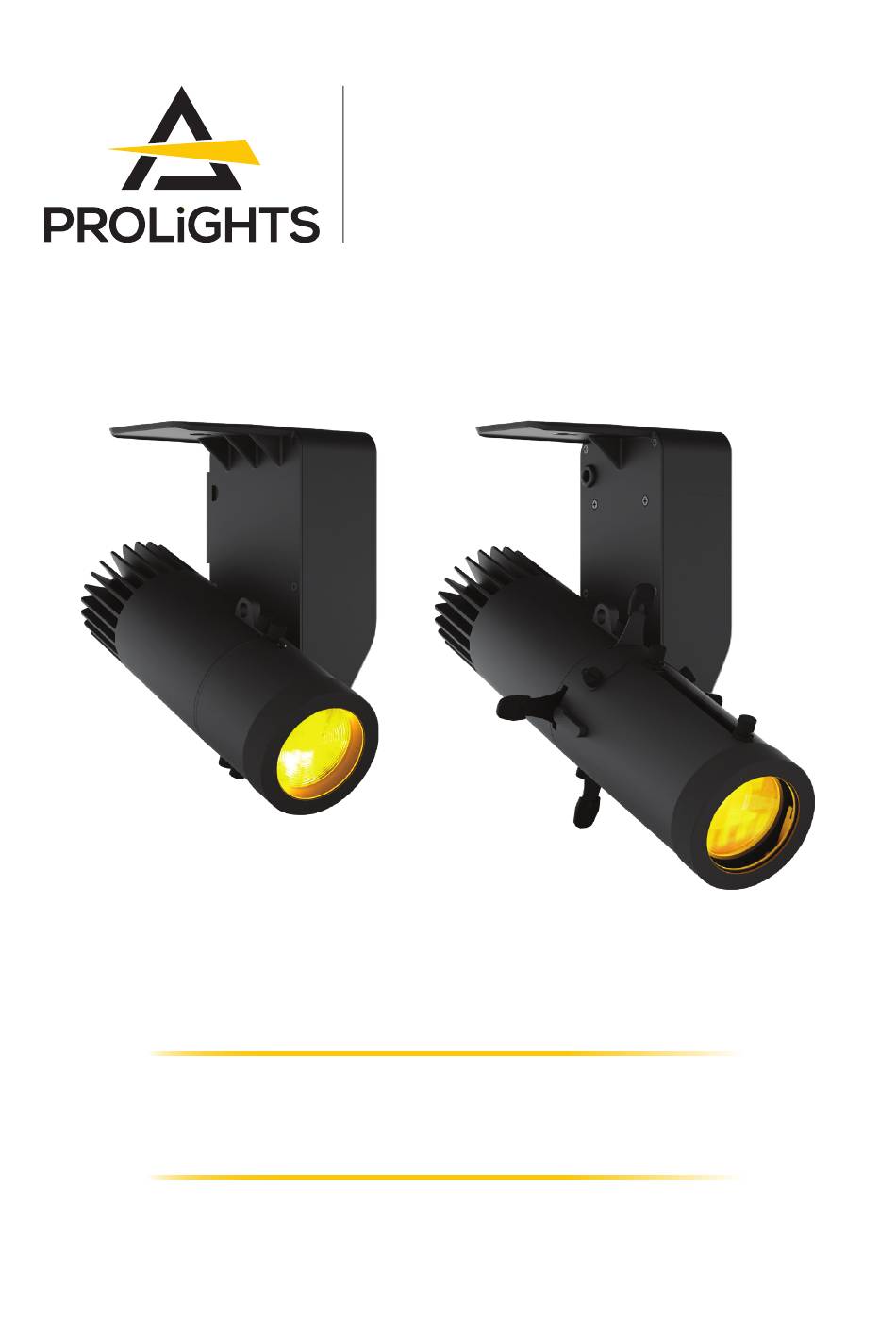

  • Page 1 EclDisplay UNFC EclDisplay DATFC 40W RGB+WW LED gallery light USER MANUAL English version REV.01-02/21...
  • Page 2 Thank you for choosing PROLIGHTS Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements for professionals and designed and manufactured for the use and application as shown in this document. Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be a source of danger.
  • Page 3 HALF SNOOT, FULL SNOOT (CODES ECLDISPHSNOOT, ECLDISPFSNOOT - OPTIONAL) ........................28 CEILING ADAPTER KIT (CODES ECLDISPCEILKIT, ECLDISPCEILFLG - OPTIONAL) ..29 14 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............32 VISUAL CHECK OF PRODUCT HOUSING ..............32 TROUBLESHOOTING ..................... 33 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 4: Safety Information

    Minimum distance of illuminated objects 0,2 m • The projector needs to be positioned so that the objects hit by the beam of light are at least 0.2 meters (0.65 ft) from the lens of the projector. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 5 • Do not look directly at the LED source during operation. It can be harmful to the eyes and skin. • During Installation, operation and maintenance, be prepared for the fixture to light and move suddenly when connected to power. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD); • 2014/30/EU - Electromagnetic Compatibility (EMC); • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 7: Package Content

    • NASPW12SK315M: global Pulse Track clip wire suspension set 1.5m, 150N, white; • NASPW12SK35M: global Pulse Track clip wire suspension set 5m, 150N, white; • NASKB122/3: global Pulse Track Mounting Clamp for Rod and Wire, 200N, black/white. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 8: Technical Drawing

    ECLDISPLAYUNFC with ECLDISPWASHL2550 184 mm [7.2 in] 303 mm [11.9 in] 160 mm [6.3 in] Weight: 2.18 kg - 4.80 lbs ECLDISPLAYUNFC with ECLDISPPRZL2040 Dimensions are in mm / in - Fig. 01 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 9 ECLDISPLAYDATFC with ECLDISPWASHL2550 177 mm [7.0 in] 303 mm [11.9 in] 160 mm [6.3 in] Weight: 1.95 kg - 4.29 lbs ECLDISPLAYDATFC with ECLDISPPRZL2040 Dimensions are in mm / in - Fig. 02 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 10: Tilt Range

    4 - TILT RANGE Fig. 03 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 11: Installation

    Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 clamp RSR Steel security cable 37 [1.5] 87 [3.4] Track system Ø14 [Ø0.5] 4 [0.2] Dimensions are in mm / in - Fig. 04 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 12: Connection To The Mains Supply

    ECLDISPLAYUNFC DMX- / DALI2 DMX+ / DALI1 SWITCH DALI DIMMER POWER / SIGNAL Press the top and bottom sides of the cage at the indicated point (1). Then remove it (2). Fig. 05 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 13 ECLDISPLAYDATFC POWER SIGNAL DIMMER DALI GND DMX- DMX+ DALI2 DALI1 Press down on the sides of the cage (1). Then remove it (2). PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 14 Loosen and remove the marked four screws (2). Then remove the arm housing (3). Fig. 06 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 15: Product Overview

    4. OPTIC (accessory not included, in the figure ECLDISPWASHL1530); 5. RUBBER RING (accessory included in the box optic); 6. PLASTIC CAP for access to connections; 7. KNOB dimming; 8. LOCK TILT; 9. PLASTIC ARM COVER. Fig. 07 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 16 The control with higher priority defines the maximum dimming level of the successive inputs. There is an dip switch to rapidly change between DALI or DMX (though DMX is set as default). Phase-Cut Dimming (UN) Knob Dimming DMX / DALI Fig. 08 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 17: Rdm Functions

    0x00E0 Setup DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS* 0x00F0 SLOT_INFO 0x0120 SLOT_DESCRIPTION 0x0121 DEFAULT_SLOT_VALUE 0x0122 Dimmer DIMMER_INFO 0x0340 Settings CURVE* 0x0343 CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME* 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY* 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 Sensors SENSOR_VALUE 0x0201 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 18 0x82DF MAINTENANCE TIME:ELAPSED TIME 0x82E0 ERROR MESSAGE:0:NO ERROR 1:... 0x82EA CLEAN ALL DATA 0:NO,1:YES 0x82C8 NOTE: for the functions marked with a final asterisk (*) refer to the tables on the following pages. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 19 To use color gels. Please refer to DMX chart 2:MACRO for Gel numbers, listed on DMX value column. To use RAW color mixing. Red, Green, Blue 3:RGBW and White channel are available as single custom pid as listed below. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 20 Max value of green color intensity. 18 WHITE CALIBRATION-BLUE (125 ÷ 255) Max value of blue color intensity. 19 WHITE CALIBRATION-WHITE (125 ÷ 255) Max value of white color intensity. 20 CURRENT HOURS (00000-65535) Shows fixture hours. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 21: Error Messages

    This error message indicates that an overheating has oc- [TEMPERATURE TOO HIGH] curred and the led has been switched OFF by the product protection system. [LED TEMPERATURE SENSOR ERROR] LED sensor damaged (open or in short circuit) PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 22: Dmx Charts

    Lineary from 0% to 100% 000 ÷ 255 GREEN FINE Lineary from 0% to 100% 000 ÷ 255 BLUE Lineary from 0% to 100% 000 ÷ 255 BLUE FINE Lineary from 0% to 100% 000 ÷ 255 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 23 (57) 116 ÷ 117 Straw Tint (58) 118 ÷ 119 Medium Yellow (59) 120 ÷ 121 Lee Minus Green (60) 122 ÷ 123 Pale Gold (61) 124 ÷ 125 Orange (62) 126 ÷ 127 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 24 044 ÷ 045 STAND ALONE MANUAL COLORS 046 ÷ 047 Reserved 048 ÷ 253 FACTORY DEFAULT OF CONTROL FUNCTIONS 254 ÷ 255 * Values inside brackets refer to Gel number for Stand Alone. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 25: Accessories Installation

    Loosen the two marked knob of the ECLDISPLAY. Insert the optic (2-A) and rotate it (2-B) so the marked grooves (3) of the optic coincides with the four marked flaps of the unit (4). PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 26 The marked lever in position A allows the locking of the blades. Rotating the lever to position B or C allows the release of the blades. This operation must be repeated for both levers on the frame system. Fig. 09 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 27 (3). Insert the holder from above throught the track Move the marked rod down (6). (4). Then insert the barn door (5). Fig. 10 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 28 ANTI-GLARE LOUVRE (CODE ECLDISPLOUVRE - OPTIONAL) Anti-glare louvre Rubber ring Insert the anti-glare louvre into the rubber ring. Mount the anti-glare louvre with the rubber ring on the optic. Fig. 11 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 29 GOBO HOLDER (CODE ECLDISPGOBOHIND - OPTIONAL) Loosen the two marked knob of the optic (1). Then move the cap (2). Insert the gobo holder into the slot provided on the optic. Fig. 12 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 30 Loosen the three marked knob. Insert the half snoot on the optic and tighten the knobs in the egraved ring. Loosen the three marked knob. Insert the full snoot on the optic and tighten the knobs in the egraved ring. Fig. 13 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 31 100 mm 35 mm [1.4 in] [3.9 in] [9.1 in] [3.9 in] [1.4 in] 110 mm [4.3 in] Ø200 mm [7.9 in] Measurements for cuts on the panels (1) and of the ECLDISPCEILFLG (2). PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 32 Mount the marked ceiling adapter kit on the ceiling by tightening the screws in the marked points (4). Fit the M6 screw to fix the projector (placed upside down) in the holes provided in the back housing (see detail). Fit the M4 screw to lock rotation. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 33 (6). Tighten the M4 screw (6) to lock the vertical movement of the plate. Mount the flange tightening the two marked screws (7) to complete the ceiling adapter kit. Fig. 14 PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 34: Maintenance

    • This checking is necessary for both fixed installations and preparing product for renting. Any free moving parts inside of the product, cracked cover/housing or any part of front lens not sitting prop- erly in place need to be immediately replaced. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...

  • Page 35: Troubleshooting

    • Dirty or damaged filters • Install lens assembly properly. Contact an authorized service center in case of technical problems or not reported in the table can not be resolved by the procedure given in the table. PROLIGHTS - EclDisplay UNFC / EclDisplay DATFC...
  • Page 36 Note...
  • Page 37 Note...
  • Page 38 Note...
  • Page 40 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
