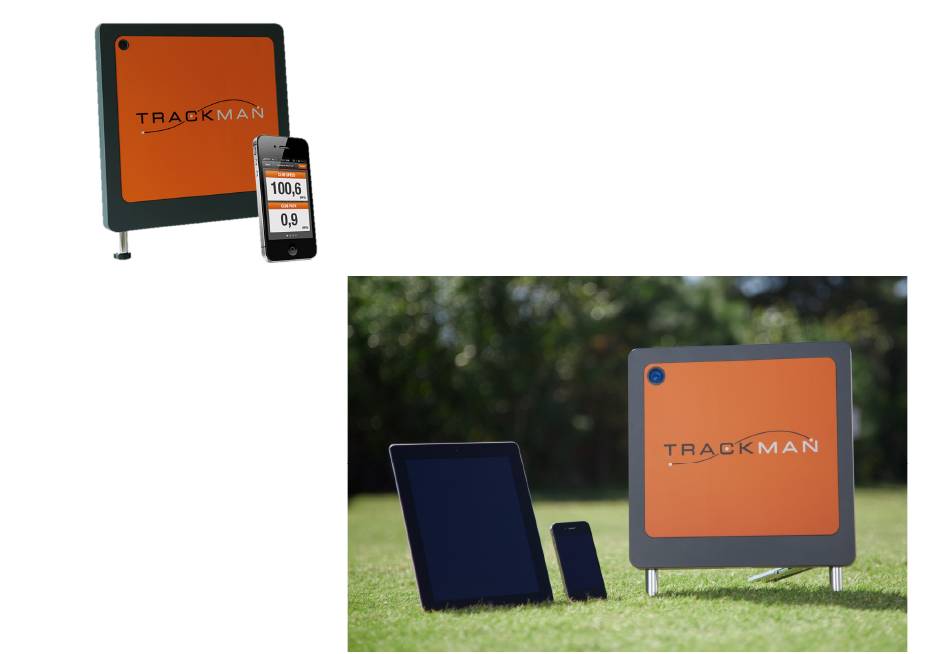

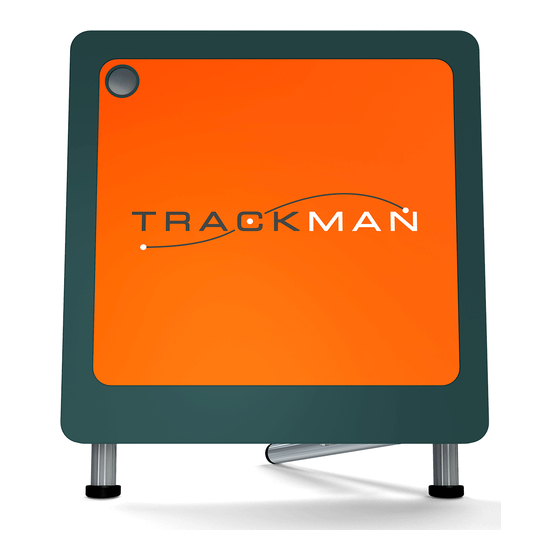

- Page 1 TrackMan Operator Training The following setup and use information is the same for using TrackMan in the Indoor setting or Outdoor setting unless noted...
- Page 2 Extend the two bottom legs and single back leg before setting up the radar behind the desired hitting area...
- Page 3 1. There are two bottom legs that must be extended prior to setting up and turning on the radar. Pull the legs out until they click into place 2. When you are finished using the system, simply tap the two bottom legs so that they collapse back inside the radar...
- Page 4 If the radar is lower than the hitting area, it is a best practice to place something that is the same height under all three legs of the TrackMan. The picture shows a metal plate that sits under the entire radar and raises all three...
- Page 5 The back leg should be roughly the same height (+/- 1 inch / 2.5 cm) as the area you are hitting from. Small differences are ok, but it is recommended to adjust the height of the back leg as needed. The two front legs will extend or Back contract via the motorized legs to level the radar so that it is level horizontally and tilts back at 7 degrees.
- Page 6 The actual view of the Even though the radar 26° radar is 26 degrees has a very wide view it is (13 degrees on each side of recommended to hit the center). This means that ball from a place that is the further you are from towards the center line of the radar the more area...
- Page 7 This setup is not When standing behind the radar and looking in the mandatory and direction the radar is TrackMan will pick up pointed, visualize a line shots that are a little that is as wide as the radar. outside this area. If...
- Page 8 Point the radar in the general direction of your target. The internal camera will allow you to fine tune your setup when you open the software...
- Page 9 The radar should be setup behind the hitting area on an extension of the target line...
- Page 10 Radar to Ball Ideal distance is 9 ft (2.8 m) It is ideal to have the ball approximately 9 feet (2.8 meters) in front of the radar. This distance from the radar to the ball is the same whether you are in Indoor or Outdoor mode...
- Page 11 Radar to Ball 7.5 to 11 ft (2.3 to 3.4 m) The above distance range is the recommended hitting range for capturing the most amount of data on each shot, including club delivery measurements...
- Page 12 (2.2 – 4.0 m) will allow you to and measuring all launch conditions track all golf shots. This is the and trajectories. Hitting from the extremes may see a reduced pickup capture range for TrackMan on club delivery measurements...
- Page 13 Ideal Distance 9 ft (2.8 m) Recommended Range 7.5 to 11 ft (2.3 to 3.4 m) Capture Range 7 to 13 ft (2.2 to 4.0 m)
- Page 14 Minimum 10 ft Ball to Net (3 meters) In order to measure Spin Rate in Indoor mode, it is recommended that you have a minimum of 10 feet or 3 meters of ball flight...
- Page 15 The minimum distance required to measure the Spin Rate when there is limited ball flight depends on the Ball Speed and Spin Rate combination. The following chart shows what is possible at 10 feet, 12 feet, and 15 feet depending on the Ball Speed and Spin Rate EXAMPLE At 150 mph Ball...
- Page 16 The Power LED lets you know if the radar is on. When turning on the radar, this light will flash until the system has finished booting. When turning off the radar, press the power button and the system will shut down...
- Page 17 The blue Wireless LED only means that you can connect your iPhone, iPad, or computer to the TrackMan now. You must use the local Wi-Fi settings on your device to make sure the connection is established...
- Page 18 Thumbs up means the system is armed and ready to collect data. If this LED is not on while in the Live tab of TPS, try clicking the Home tab and then going back to the Live tab. You can click between the Home, Live, and Analyze tab without affecting the current session.
- Page 19 Power Button – Press to turn radar on and off USB Port – This can be used when updating the firmware or if you do not want to use the Wi-Fi connection AC Power Supply – Use when charging or running radar on AC Power...
- Page 20 IMPORTANT If you have less than 30 yards/meters of ball flight, select INDOOR. If you have more than 30 yards/meters of ball flight, select OUTDOOR...
- Page 21 The “crosshair” should be A zoomed image is placed at the bottom of the available in the top right target if visible in the image. corner to make small The vertical line should go adjustments on the through the target. Move the target selection.
- Page 22 The blue shaded area represents the recommended hitting area. For optimal results, the ball should be hit Use the exposure from a location inside or compensation (brightness) touching the blue shaded box to make additional adjustments to the picture if you are having trouble seeing the target...
- Page 23 The blue shaded area does not match up with the ball and hitting area. In this instance the radar needs to be turned (rotated) to the left so that the hitting area and blue shaded area match up...
- Page 24 Right-handed Golfer It is a best practice to select a target that is directly in front of the radar or slightly to the right side of center for a right-handed golfer. A target that is chosen somewhere on or between the two yellow flags is recommended.
- Page 25 Using the previous information, this is an image seen using the internal TrackMan camera, the center of the radar will be approximately the center of the blue shaded area.
- Page 26 Left-handed Golfer It is a best practice to select a target that is directly in front of the radar or slightly to the left side of center for a left-handed golfer. A target that is chosen somewhere on or between the two yellow flags is recommended.
- Page 27 “tee-up to net/target where the ball took off and distance”. The TrackMan app only the target chosen by the requires you to select the target internal TrackMan camera...
- Page 28 In almost ALL cases, only ONE metallic dot should be used on the golf ball. The sticker should be pointed directly towards the target Use one metallic dot and point The metallic dot should not the dot directly towards the point to the sky, to the ground, target or to the side...
- Page 29 All information about metallic dots is for INDOOR mode only Point metallic dot in direction of target Alternative The metallic dot should be pointed straight towards the target so that it can rotate backwards when it is struck (as depicted by the blue arrow). If there is limited ball flight, the dot can be rotated to point directly away from the target.
- Page 30 Measured Estimated When using TrackMan with limited flight distance (< 30 m/yds), make sure the software is set to INDOOR. In order to receive measured Spin Rates, a special metallic sticker must be placed on the golf ball. If the Spin Rate is not measured If the Spin Rate is estimated/calculated, a calculated number will be provided.
- Page 31 Two dots can be used CONTACT in very rare cases. support@trackman.dk Make sure the dots are either pointed BEFORE USING THE towards the target or TWO DOT METHOD away from the target The metallic dots should run The metallic dots should not...
- Page 32 TrackMan will only output data that it is confident in. This example shows a shot where certain club delivery measurements are missing. This can occur for a couple of reasons, but first make sure you are using the recommended setup procedures.
- Page 33 To increase club delivery pickup rate in certain situations, the radar can be moved slightly off of the target line and turned in to face the hitting area. This can allow the radar to see post impact club data better (example for right handed golfer)
