- Page 1 I-Line Elegant installation speaker systems Elegant installation speaker systems 202D 402D Instruction Manual Firmware version: 1.0 Revision: 3.0...
- Page 2 Keep this manual with the product or in a safe place so that it is available for future reference. We recommend you to regularly check the SE Audiotechnik website for the latest version of the firmware and documentation such as this instruction manual.
-
Page 3: Table Of Contents
IA 202D / IA 402D Instruction Manual Contents Important Safety Instructions....................4 Introduction ..........................6 Overview ..........................8 3.1. Front Panel ........................8 3.2. Rear Panel ........................9 4.1. Package Contents ......................10 4.2. Unpack Your Amplifier ....................10 4.3. Installation ........................ -
Page 4: Important Safety Instructions
IA 202D / IA 402D Instruction Manual 1. Important Safety Instructions Explanation of graphical symbols The lightning bolt triangle is used to alert the user to the risk of electric shock. The exclamation point triangle is used to alert the user to important operating or maintenance instructions. - Page 5 IA 202D / IA 402D Instruction Manual This unit has been engineered and manufactured to ensure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. Always follow the basic precautions listed here to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards.
-
Page 6: Introduction

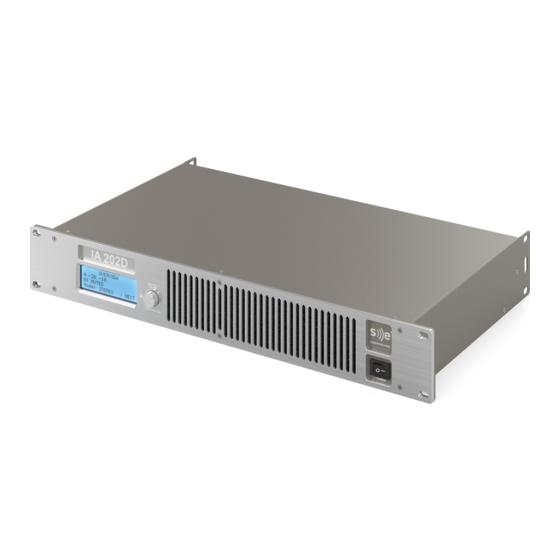

IA 202D / IA 402D Instruction Manual 2. Introduction 202D and 402D are two system amplifiers as part of SE Audiotechnik installation series I-Line. This instruction manual explains the core functionality and features of the amplifiers. Please check if your amplifiers are equipped with the latest firmware version as the firmware is being improved and updated. - Page 7 IA 202D / IA 402D Instruction Manual 2.2. Technical Specifications Parameter / Value IA 202D IA 402D Type Class-D, SMPS Power Output 2 x 250W @ 8 Ω 2 x 400W @ 4 Ω 2 x 125W @ 16 Ω 2 x 200W @ 8 Ω...
-
Page 8: Overview
IA 202D / IA 402D Instruction Manual 3. Overview 3.1. Front Panel Revision 3... -
Page 9: Rear Panel
IA 202D / IA 402D Instruction Manual 3.2. Rear Panel Revision 3... -
Page 10: Package Contents
Save the shipping carton as evidence of damage for the shipper’s inspection. Contact your SE Audiotechnik dealer or SE Audiotechnik support center for help and assistance. We recommend that you save all packing materials and full package contents if you ever need to transport the amplifier. -
Page 11: Handling
IA 202D / IA 402D Instruction Manual 4.4. Handling • Do not rest your weight on the device or place heavy objects on it, and avoid the use of excessive force on the buttons, switches or connectors to prevent injuries or device damage •... -
Page 12: Screen Items & Operation
IA 202D / IA 402D Instruction Manual 6. Screen Items & Operation 6.1. Overview Overview menu/screen is the default screen showed on the amplifier LCD during normal operation (Figure 1). OVERVIEW A:-24 -12 -6 -3 LIM B:-24 -12 -6 -3 LIM Mode: INV. -
Page 13: Main Menu
IA 202D / IA 402D Instruction Manual 6.2. Main Menu To enter the menu of the amplifier, press & hold Master Control rotary knob for 3 seconds. A menu as shown in Figure 4 will appear on the LCD Screen. MENU >... -
Page 14: Channel A / B
IA 202D / IA 402D Instruction Manual • Inv. Stereo (Inverse Stereo). This setting swaps A & B inputs • Mono A • Mono B INPUT ROUTING Back > Stereo Inv Stereo Mono (A+B) Mono A Mono B Figure 7. Input Routing Menu. 6.3.3. -
Page 15: Preset Loading
IA 202D / IA 402D Instruction Manual The names of the presets are organized in such a way that first five symbols would always represent loudspeaker model for which the preset is made. This is due to the safety reason so that user always knows if his user preset has the right factory settings. Factory presets are each speaker systems default configuration with factory pre- defined filter &... -
Page 16: Preset Information
IA 202D / IA 402D Instruction Manual SAVE USER PRESET > IC 34:_USER_1__← Back Save Figure 12. Preset Saving Menu. 6.3.3.1.3. Preset Information By pressing 3 seconds on the selected preset a dialog shows up displaying various information about the preset. Currently only Date, Version Author is displayed and shall... -
Page 17: Hp/Lp Filter
IA 202D / IA 402D Instruction Manual 6.3.3.3. HP/LP Filter Selected channels high-pass (low-cut) or low-pass (high-cut) filter settings can be set in the HP/LP Filter menu. CH A HP/LP FILTER Back Type: HPF > Order: 12dB/Oct Freq: 60 Hz Bypass: ON Figure 15. -
Page 18: Delay
IA 202D / IA 402D Instruction Manual An example of parametric equalizer 1 (EQ 2: PEQ 1) is shown. Here four different parameters can be edited: • Bypass. – the equalizer band is bypassed. – the equalizer band is active, •... -
Page 19: Both Channels
IA 202D / IA 402D Instruction Manual Reset Channel A User Parameters? (DLY,EQ,Filters Phase Inversion) Back > Reset Figure 19. “Reset User Parameters” Menu. 6.3.4. Both Channels Both Channels section allows to perform certain operations for both channels simultaneously. 6.3.4.1. Link Channels IA system amplifiers allow to link certain parameters for both channels, those currently include:... -
Page 20: Reset User Params
IA 202D / IA 402D Instruction Manual 6.3.4.3. Reset User Params This menu allows to reset user DSP settings for both channels at once as shown in the section 6.3.3.7. 6.3.5. Delay Settings Both IA 202D and IA 402D system amplifiers have maximum delay memory of 1400 samples. -
Page 21: System Settings
IA 202D / IA 402D Instruction Manual 6.4. System Settings System Settings menu allows to set various amplifier parameters and access various system functions. SYSTEM SETTINGS Back > LCD Backlight LCD Brightness Reset HW Information Firmware update Lock Exit Figure 23. System Settings Menu. 6.4.1. -
Page 22: Hw Information
IA 202D / IA 402D Instruction Manual RESET SYSTEM SETTINGS? > No (Back) Figure 26. Reset System Settings Menu. 6.4.4. HW Information In the HW Information menu users and service technicians can find amplifiers hardware information: • MCU Firmware version •... -
Page 23: Other Functions
IA 202D / IA 402D Instruction Manual 7. Other Functions 7.1. Screen locking/unlocking If the amplifier is set in the Automatic Lock setting it will lock the screen after set timeout set by the user. This is also shown by the “L”... -
Page 24: Signal Flow Diagram
IA 202D / IA 402D Instruction Manual 8. Signal Flow Diagram Revision 3... -
Page 25: Menu Tree
IA 202D / IA 402D Instruction Manual 9. Menu Tree MENU DSP Settings Back Input Sensitivity Input Routing Channel A Channel B Back Preset Input Level HP/LP Filter Phase Inversion EQ 1: Low-Shelf EQ 2: Parametric EQ 3: Parametric EQ 4: Parametric EQ 5: High-Shelf Bypass User EQ Delay... -
Page 26: Mechanical Dimensions
IA 202D / IA 402D Instruction Manual 10. Mechanical Dimensions 264.7 Revision 3... - Page 27 © SE Audiotechnik 2018...
