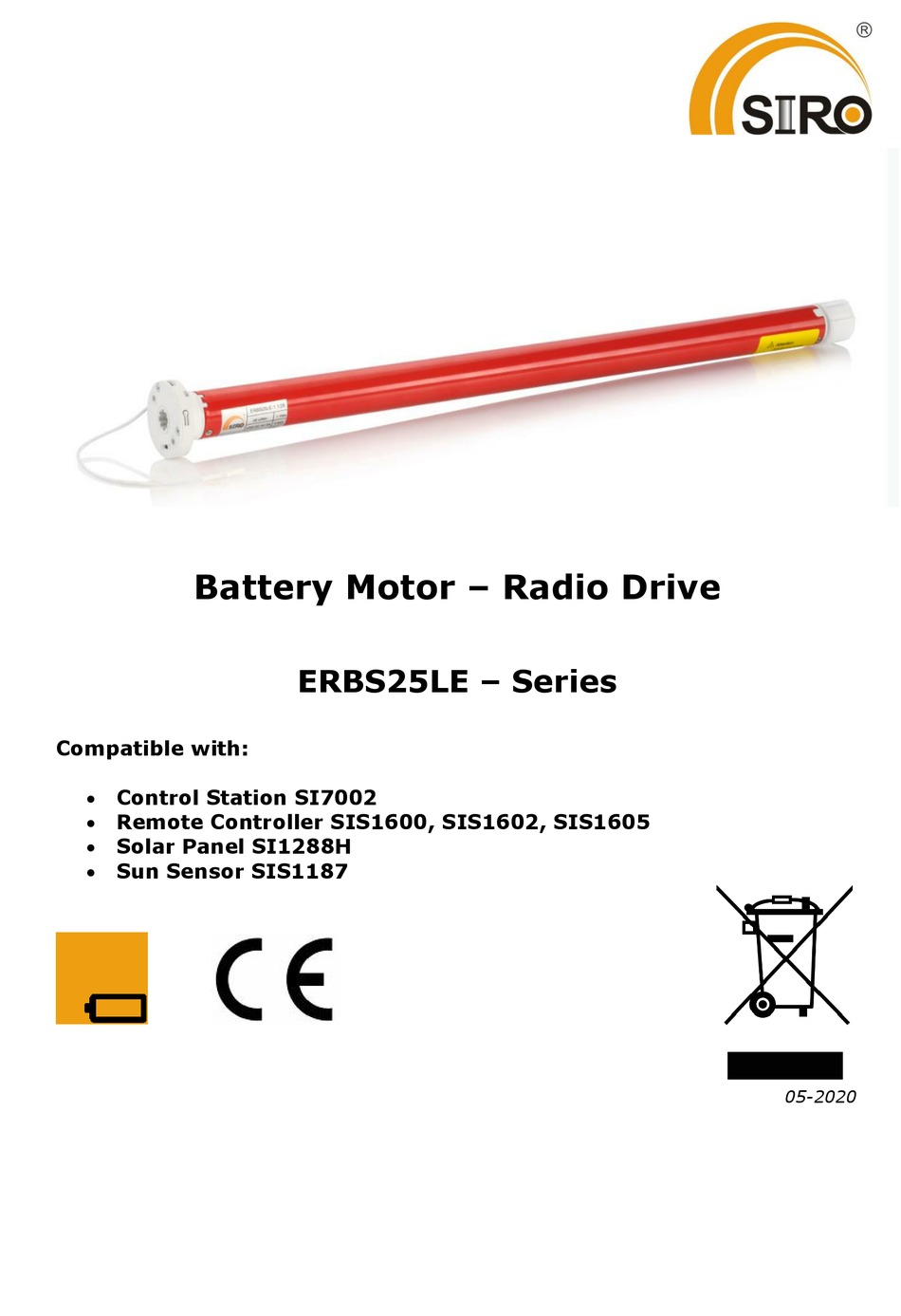

- Page 1 Battery Motor – Radio Drive ERBS25LE – Series Compatible with: Control Station SI7002 Remote Controller SIS1600, SIS1602, SIS1605 Solar Panel SI1288H Sun Sensor SIS1187 05-2020...
- Page 2 1. General safety guidelines Notes on the product Check the drive for intactness. Do not use the product if you discover any damage. In this case, contact the point of sale. Only use the drive to open and close suitable hangings. ...
- Page 3 3. Electrical connection The distance between the drive and the transmitter should be at least 300 mm. The distance between the two radio receivers should be at least 500 mm. Strong, local transmitters (e.g. radio headphones) whose transmission frequency is identical to the control (433MHz) can influence the function.
- Page 4 Establishing the connection between the motor and the remote controller Establish connection: Specify a channel. Press and hold 1. Press and hold the learn button on the the stop button on the remote motor head with an object until the drive controller, up to 10 seconds, until reacts only once (usually after 3 seconds) with drive...
- Page 5 5. Setting the end positions You need to define the upper and lower end positions, when reaching these, the drive switches off automatically. To do this, the drive system must be fully inserted. You can choose whether to set the lower or upper end position first. ...
- Page 6 6. Setting a desired middle position (optional) You can set a middle position of your choice as an option. The middle position can only be set after the two end positions have been set. Setting the desired middle position: 1.
- Page 7 The warranty covers all design faults, material defects and manufacturing faults. Any defects occurring within the warranty period will be remedied by SIRO free of charge by supplying an equivalent or new product. Replacement delivery for warranty reasons does not result in general extensions of the original warranty period.
