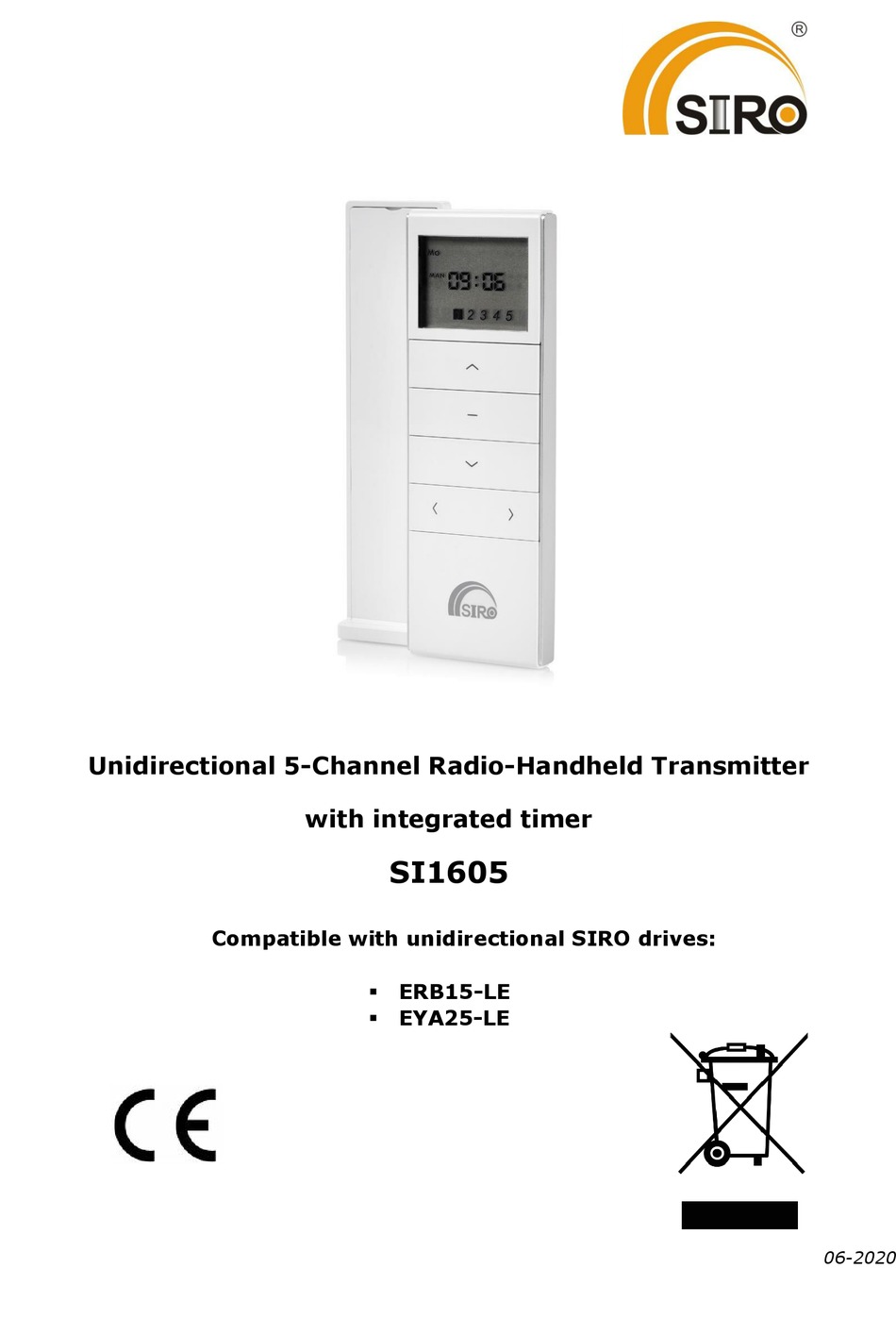

- Page 1 Unidirectional 5-Channel Radio-Handheld Transmitter with integrated timer SI1605 Compatible with unidirectional SIRO drives: ERB15-LE EYA25-LE 06-2020...
-
Page 2: Functional Overview
1. Functional overview The remote control SI1605 is a radio transmitter with integrated timer. You can use the transmitter to remotely control drives and radio receivers of the unidirectional LE-series from SIRO either manually or automatically with a program The SI1605 remote controller has 5 radio channels with which the motors or radio receivers... -
Page 3: Installation
2. Installation The remote controller SIS1605 requires a battery cell type CR2450 – 3V as power source. To ensure that the device can execute all commands, it is recommended to replace empty batteries in time 1. Open the battery compartment of the remote controller on the back by sliding the cover down. 2. - Page 4 Before the SI1605 remote controller can control one or more drives, the connection between the devices must be established. First select a channel on the SI1605 remote controller that is to be used to control one or a group of drives. Make sure that the remote controller is in manual mode.
-
Page 5: Technical Data
Operating temperature: -5°C to +40°C Radio coding: Rolling Code Radio frequency: 433.92 MHz Transmitter power: Channels: Compatibility: SIRO LE Series Check that you have received the correct device before commissioning. Also compare the frequency information on the motor or controller nameplate... -
Page 6: Warranty Conditions
Any defects occurring within the warranty period will be remedied by SIRO free of charge by supplying an equivalent or new product. Replacement delivery for warranty reasons does not result in general extensions of the original warranty period.
