Manual for brushless motor electronic speed control
Dear user,
Thanks for purchasing brushless electronic speed controller(ESC) which designed and manufactured by
Hobbyking.Improper operation may cause personal injury and equipment damage. High power system for RC model is
dangerous,strongly suggest users read the instruction carefully . We won't assume any responsibility for personal injury
,property damage or consequential damages resulting from our product or our workmanship.
I. Main features:
●Applies to multiple kinds of three-phase brushless motor in the drive market.
●Can operate normally without special setting.
●Motor operating parameters can be set by remote control or programming card with voice prompts, very simple and
convenient.
●With multiple self-protection function: battery over low voltage, over thermal, throttle lost, motor blocked etc.
●Auto entrance angle , automatically adapt to various types of high-speed motor.
●Have a smooth, delicate feel of speed controlling, top-ranking of speed linear. the end of throttle can automatically
correct.
●Battery cells can be automatic judged
●High quality components and water cooling system ensure that ESC expresses the strong capacity of resistance of
flow (current overcurrent).
II.First start setting
Warning: please set up the boat model before using , to make sure the quant won't encounter people or objects, and
avoid occurring safety accidence ！

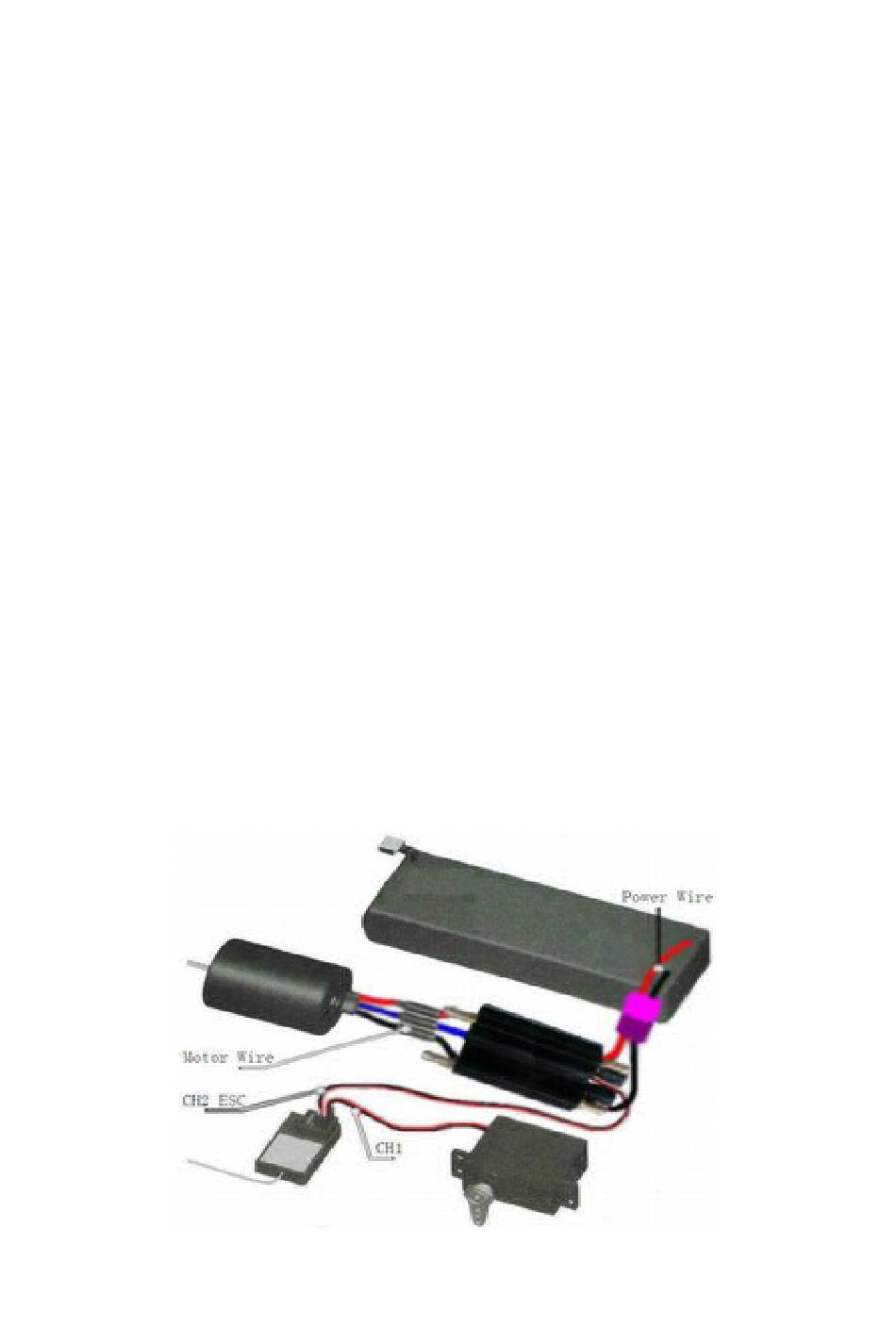

1. Connect the wire as the graphical representation, enter 2.
2. Set throttle trip
第 1 页 共 6 页
Advertisement
Related Manuals for HobbyKing 70A Boat
Summary of Contents for HobbyKing 70A Boat
- Page 1 Thanks for purchasing brushless electronic speed controller(ESC) which designed and manufactured by Hobbyking.Improper operation may cause personal injury and equipment damage. High power system for RC model is dangerous,strongly suggest users read the instruction carefully . We won’t assume any responsibility for personal injury ,property damage or consequential damages resulting from our product or our workmanship.
- Page 2 Firstly, the user must understand the performance of the remote control , the range and direction of throttle control. what’s your purposes for the model you are handling. For different purpose it has different setting for the model. Set throttle with gun-type remote control Cut off the main power supply of ESC, turn on the power supply of transmitter and receiver.
- Page 3 the sound ∮. Shows the power supply voltage of ESC is in the appropriate range. If there is no sound, shows the voltage of ESC’s battery pack isn’t in the specified range. For example, ESC’s voltage is 2-6S, if it’s lower than 2S or higher than 6S, ESC won’t make sound.
- Page 4 Prompt 1 short 2 short 3 short 4short short 1 rising 2 rising sound beep beep beep beep beep beep tone tone rising rising projects beep beep beep beep beep ↑ ↑↑ tone tone beep beep beep ↑↑↑ ↑↑↑↑ beep Operation Forwar Forward...
- Page 5 Positive and negative rotation with brake: reverse function is available. when push the throttle from forward direction to the reverse zone, Ship model is in the braking state, the throttle must return to the middle, And the motor stops operating then reversing, this mode is mainly used for training. Direct positive and negative rotation: When push the throttle from the middle point region to the reverse...
- Page 6 ● When turning off the battery of receiver, please note: Depending on the receiver you are using, it will send false throttle signal to the ESC, which will shortening the lifetime of the motor. ● Protect the ESC from mechanical load, vibration, dust and pollution. ●...
