Summary of Contents for Goldair GCPAC07

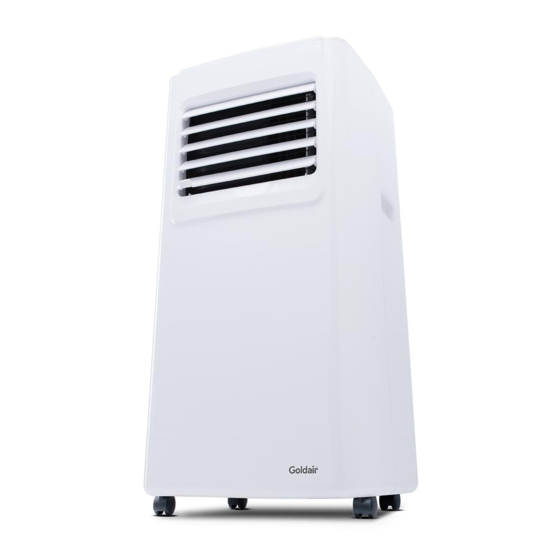

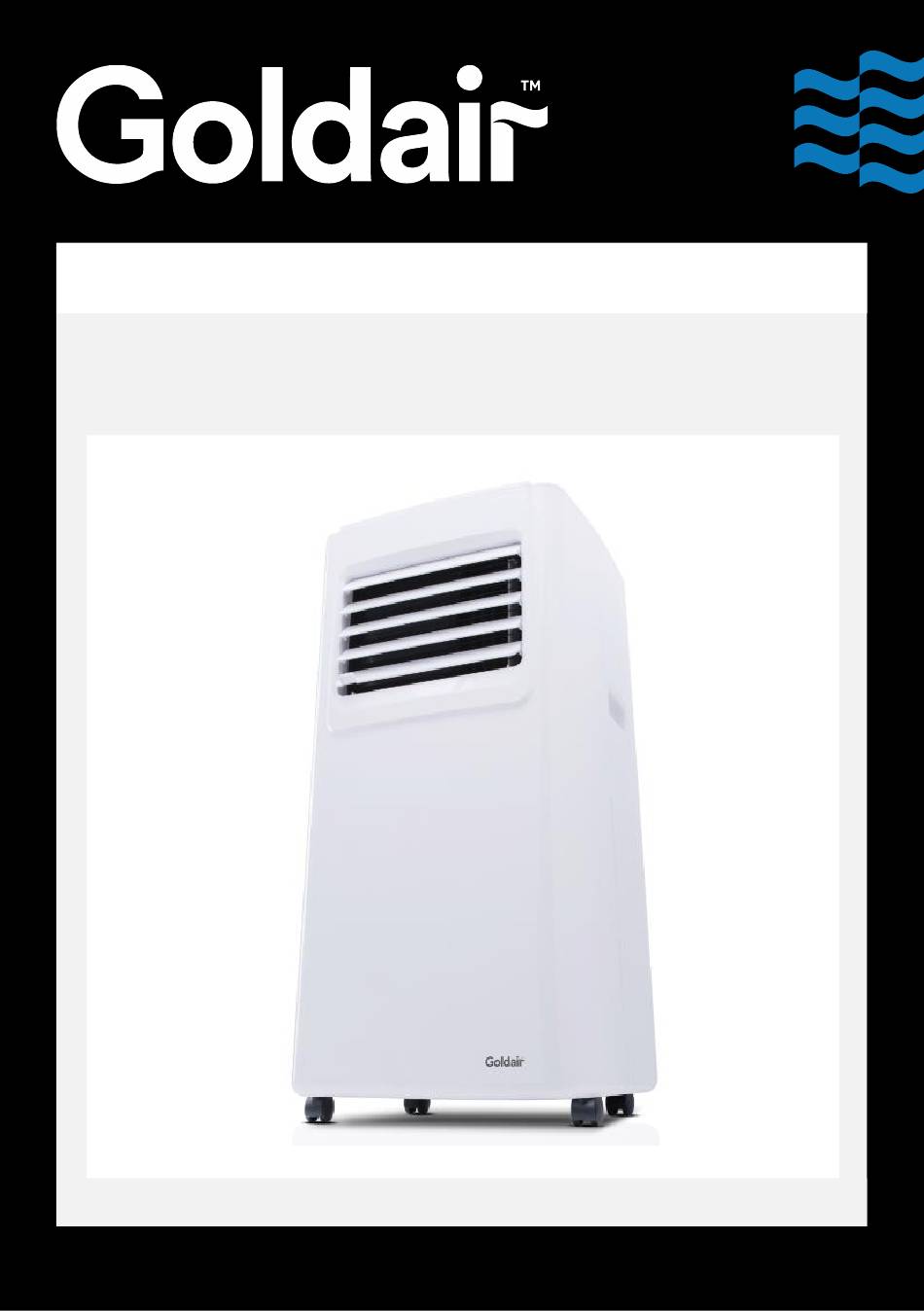

- Page 1 Operating Instructions 7K BTU 2.0kW Portable Air Conditioner Model: GCPAC07...
- Page 2 General Care and Safety Guide Thank you for choosing this Goldair product. This Goldair appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully and keep them for future reference.
- Page 3 (example: open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn. Be aware that refrigerants do not have any odour. TECHNICAL SPECIFICATION Model: GCPAC07 Supply: 220-240VAC 50Hz Input Wattage Cooling: 792W Cooling Capacity: 2.06kW...
- Page 4 Components...
-
Page 5: Installation
Installation NOTE: The air-conditioner should be installed on a flat surface with at least 300mm clearance all around, including from the top of the unit as it is important that the air outlet is not blocked. Power supply must be nearby. WARNING: THIS APPLIANCE MUST BE INSTALLED, OPERATED AND STORED IN A ROOM WITH A FLOOR AREA LARGER THAN 7m... -
Page 6: Control Panel And Remote Control
Control Panel and Remote Control This Portable Air Conditioner is designed to be operated in cooling mode, fan mode or dehumidifying mode. When switching between these functions keep an interval of at least 3 minutes between each ON/OFF. Allow the refrigerant to settle by leaving the appliance to stand for two hours after transport or after the unit has been on its side. - Page 7 Control Panel and Remote Control 6. Fan Speed Button In cooling or fan mode press the button to select between high or low fan speed operation. In dehumidification mode the fan will automatically be set to low speed operation. This cannot be changed.
-
Page 8: Care And Maintenance
Care and Maintenance Manual Drainage The unit will stop once it has filled with water. Turn off the unit and unplug the power plug. Move the unit carefully, so as not to spill the water in the water pan at the bottom of the body. Find a place to drain the water or place a bucket below the water outlet on the back of the unit. -
Page 9: Care And Cleaning
Care and Maintenance CARE AND CLEANING Clean the upper filter screen frame • Unscrew screw fixing the EVA filter screen and the rear housing to remove the EVA filter screen (as shown in the below figure) • Put the EVA filter screen into warm water with neutral detergent (about 40 ℃ / 104 ℉) and dry it in the shade after rinsing clean. -
Page 10: Troubleshooting
PROOF OF PURCHASE To receive warranty retain receipt as proof of purchase. (Refer to back of booklet). SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm... -
Page 11: One Year Warranty
In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period. - Page 12 New Zealand PO Box 100707, North Shore Mail Centre, Auckland, 0745 www.goldair.co.nz Australia PO Box 574, South Morang, Victoria, 3752 www.goldair.com.au...
Need help?
Do you have a question about the GCPAC07 and is the answer not in the manual?
Questions and answers

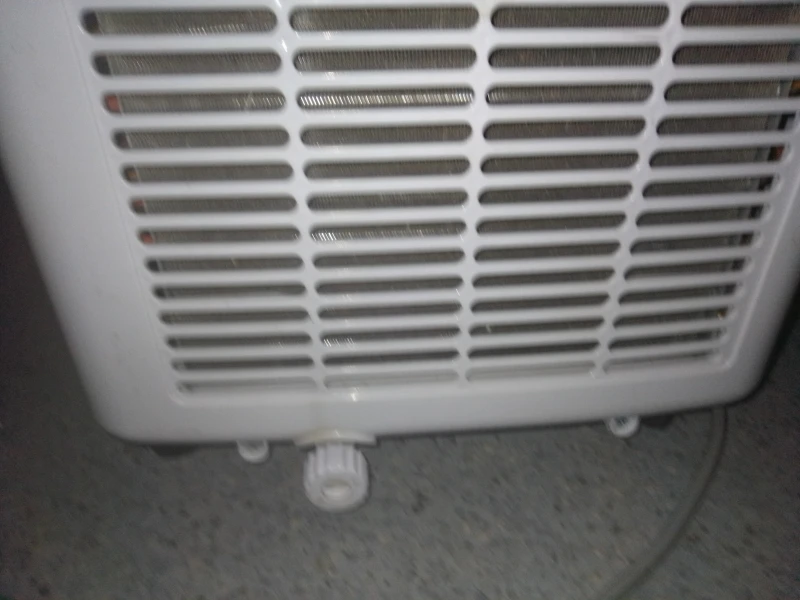

Why does it leak water whilst working
The Goldair GCPAC07 may leak water while operating because the water pan at the bottom of the unit becomes full. To prevent leakage, the user should drain the water by unscrewing the drainage cover and unplugging the water plug to allow water to flow out. The unit can be slightly tilted backward to assist drainage. After the water is discharged, the water plug and drainage cover should be re-tightened before using the unit again.
This answer is automatically generated
Why does water leak into the floor when it's in
The Goldair GCPAC07 may leak water onto the floor if the water pan at the bottom of the unit becomes full and is not drained properly. To prevent leakage, the user should drain the water by unscrewing the drainage cover and unplugging the water plug, allowing the water to flow into a container. Tilting the unit slightly backward can help with drainage. After draining, the water plug should be replaced, and the drainage cover should be re-tightened.
This answer is automatically generated
Where can I buy a replacement remote Goldair GCPAC07
